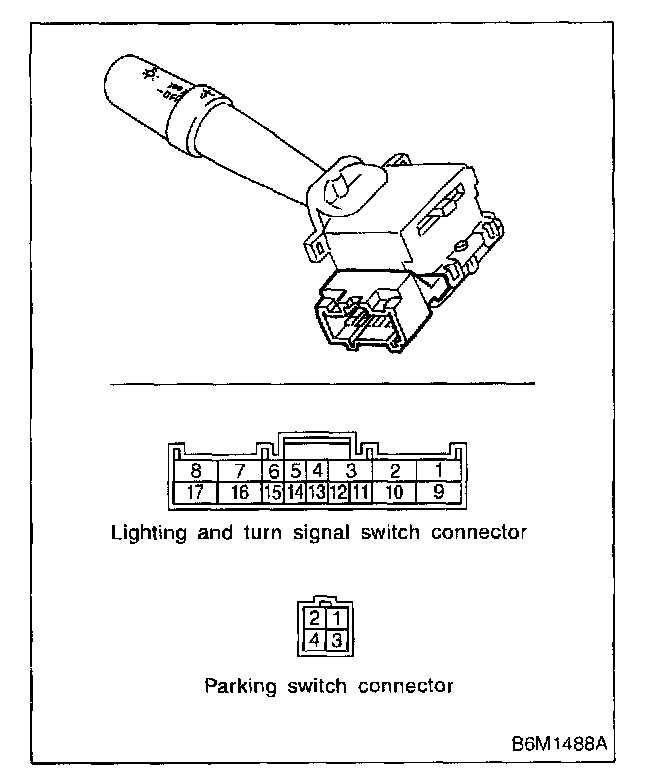

Measure combination switch resistance.

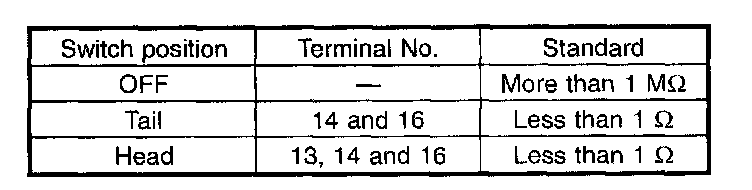

1 - Lighting Switch:
1. LIGHTING SWITCH

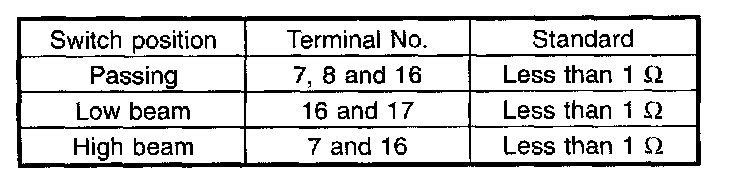

2 - Dimmer and Passing Switch:
2. DIMMER AND PASSING SWITCH

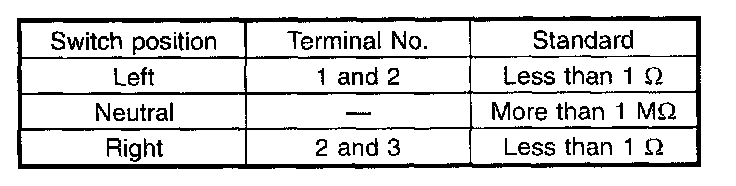

3 - Turn Signal Switch:
3. TURN SIGNAL SWITCH

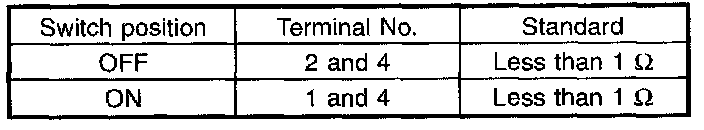

4 - Parking Switch:
4. PARKING SWITCH
Headlamp: Testing and Inspection
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.
Measure combination switch resistance.
1. LIGHTING SWITCH
2. DIMMER AND PASSING SWITCH
3. TURN SIGNAL SWITCH
4. PARKING SWITCH
