REMOVAL
1. Disconnect ground cable from battery.
2. Remove two clips and lower the mudguard.

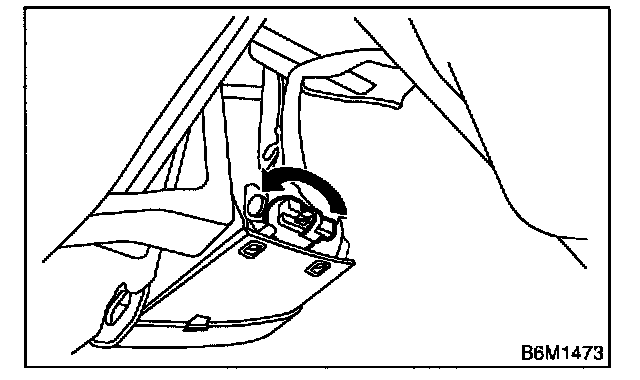

3. Disconnect harness connector.

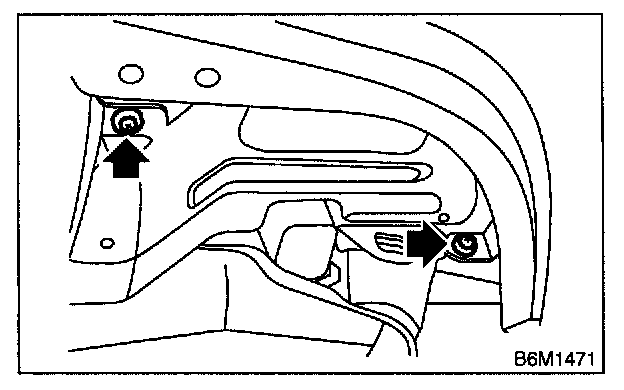

4. Remove mounting bolts, and then detach fog light assembly.
INSTALLATION
Install in the reverse order of removal.
Fog/Driving Lamp: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.
REMOVAL
1. Disconnect ground cable from battery.
2. Remove two clips and lower the mudguard.
3. Disconnect harness connector.
4. Remove mounting bolts, and then detach fog light assembly.
INSTALLATION
Install in the reverse order of removal.
