FRESH/RECIRC IS NOT CHANGED

TROUBLE SYMPTOM:

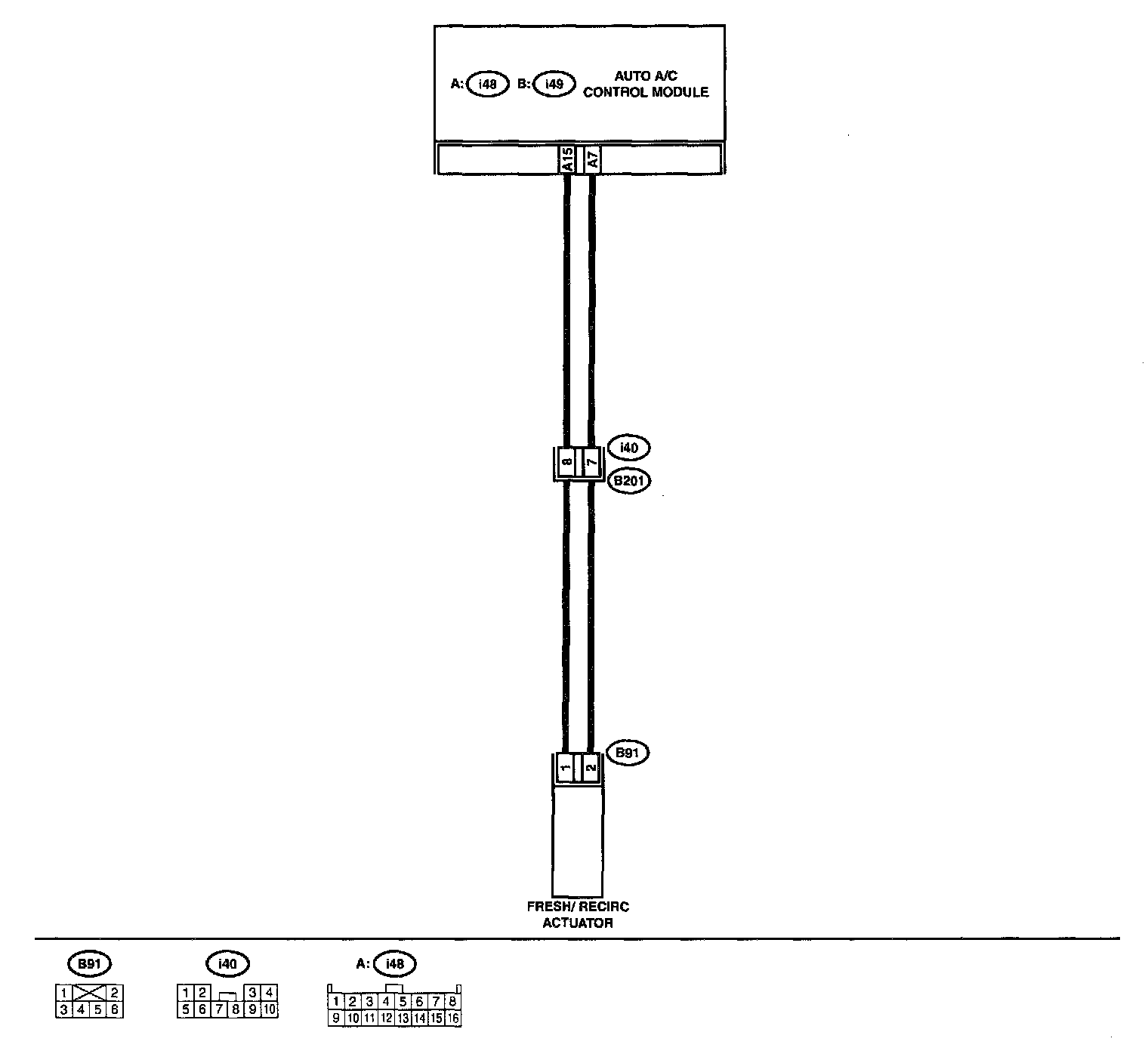

Wiring Diagram:

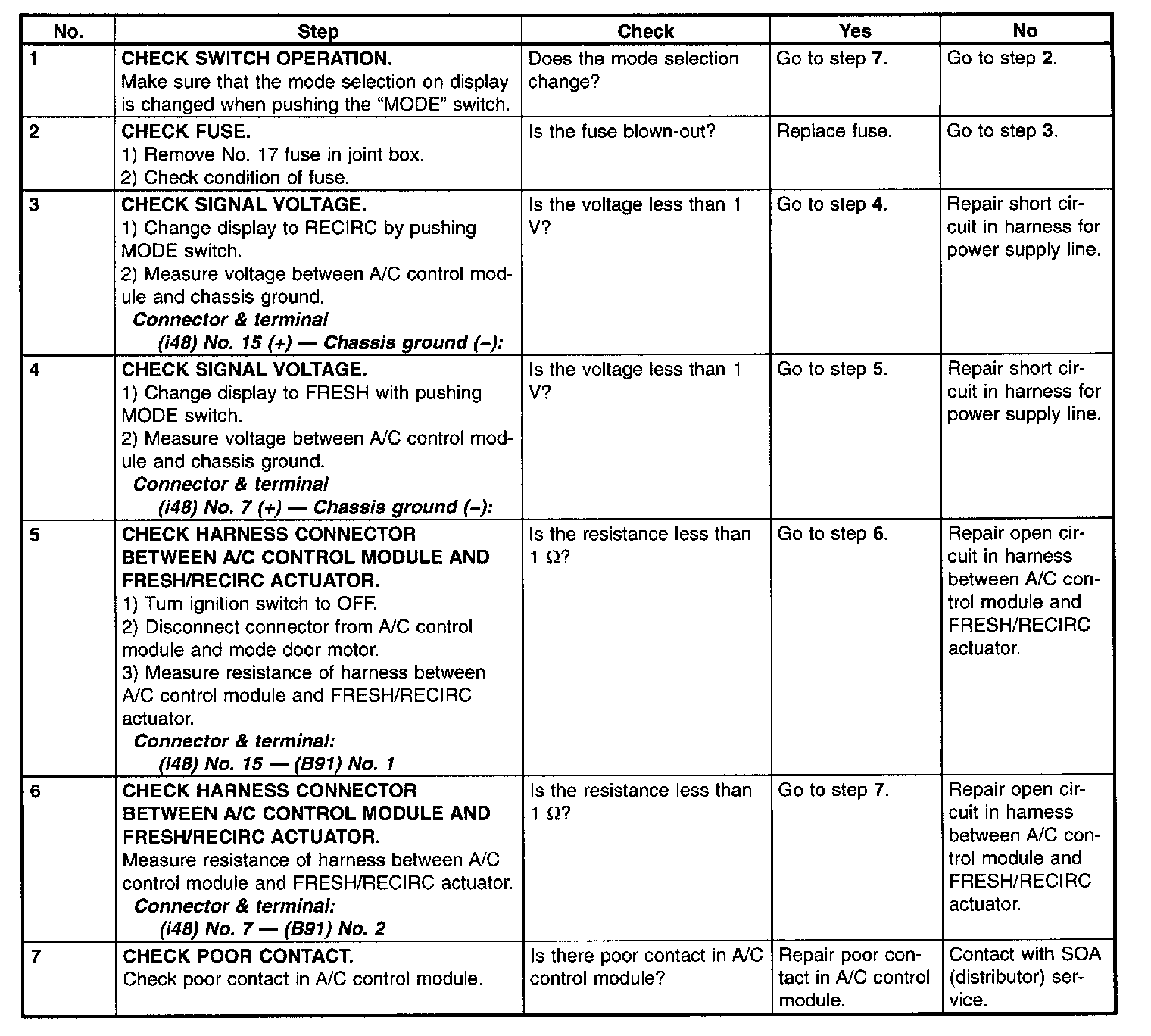

Step 1 - 7:




FRESH/RECIRC mode door is not changed.
