Clutch, M/T

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

AI Repair Guides

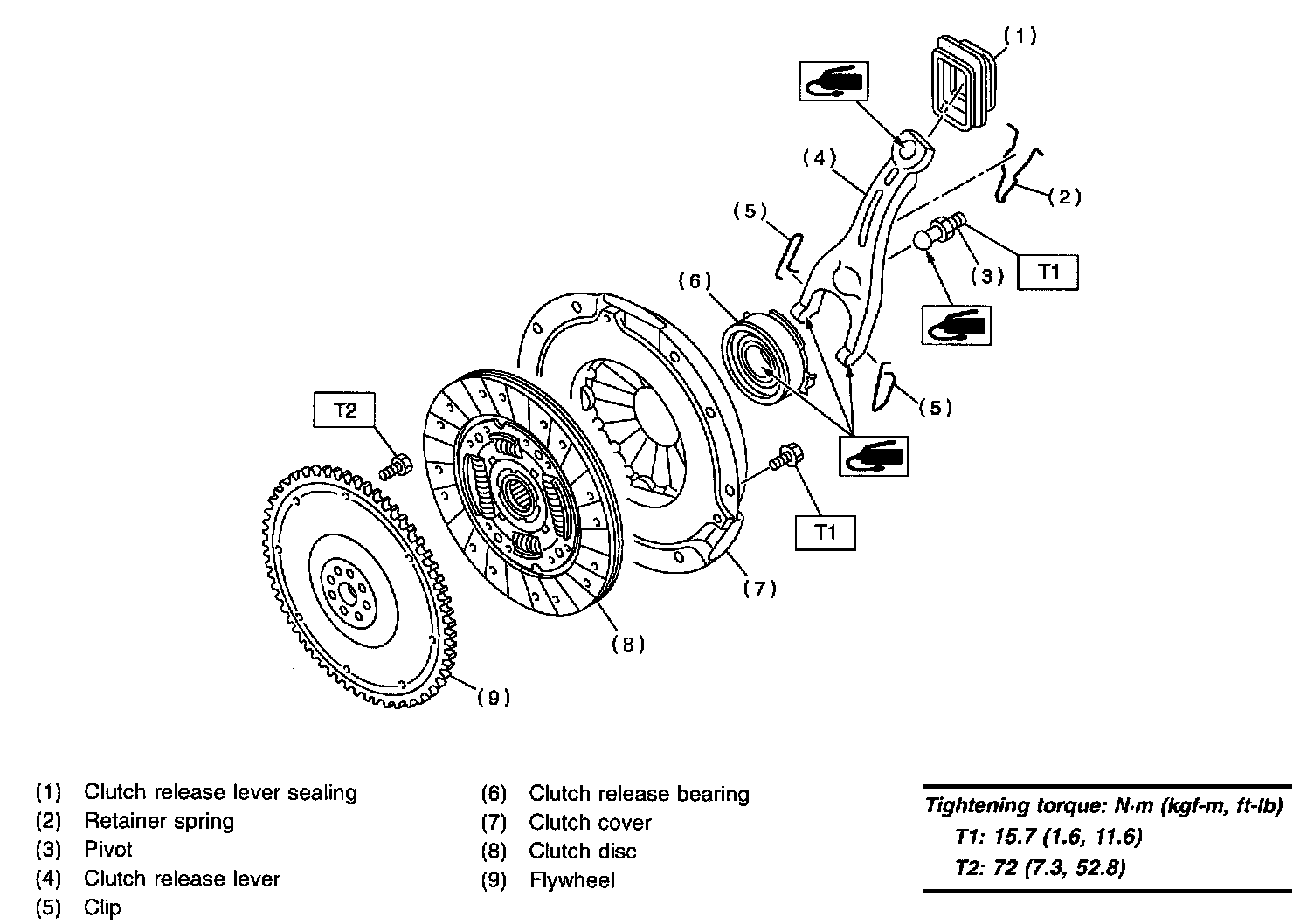

1. CLUTCH ASSEMBLY

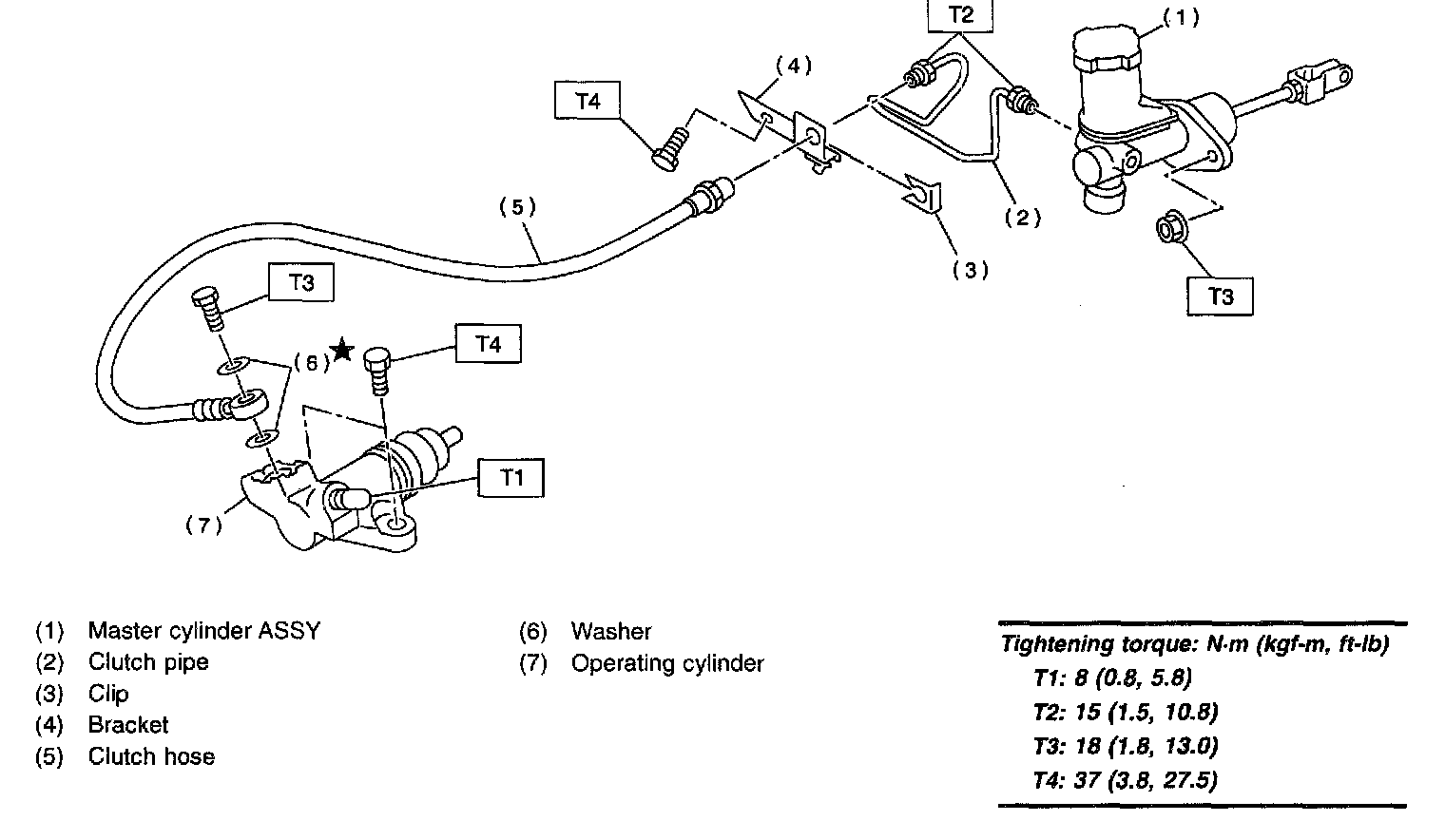

2. CLUTCH PIPE AND HOSE

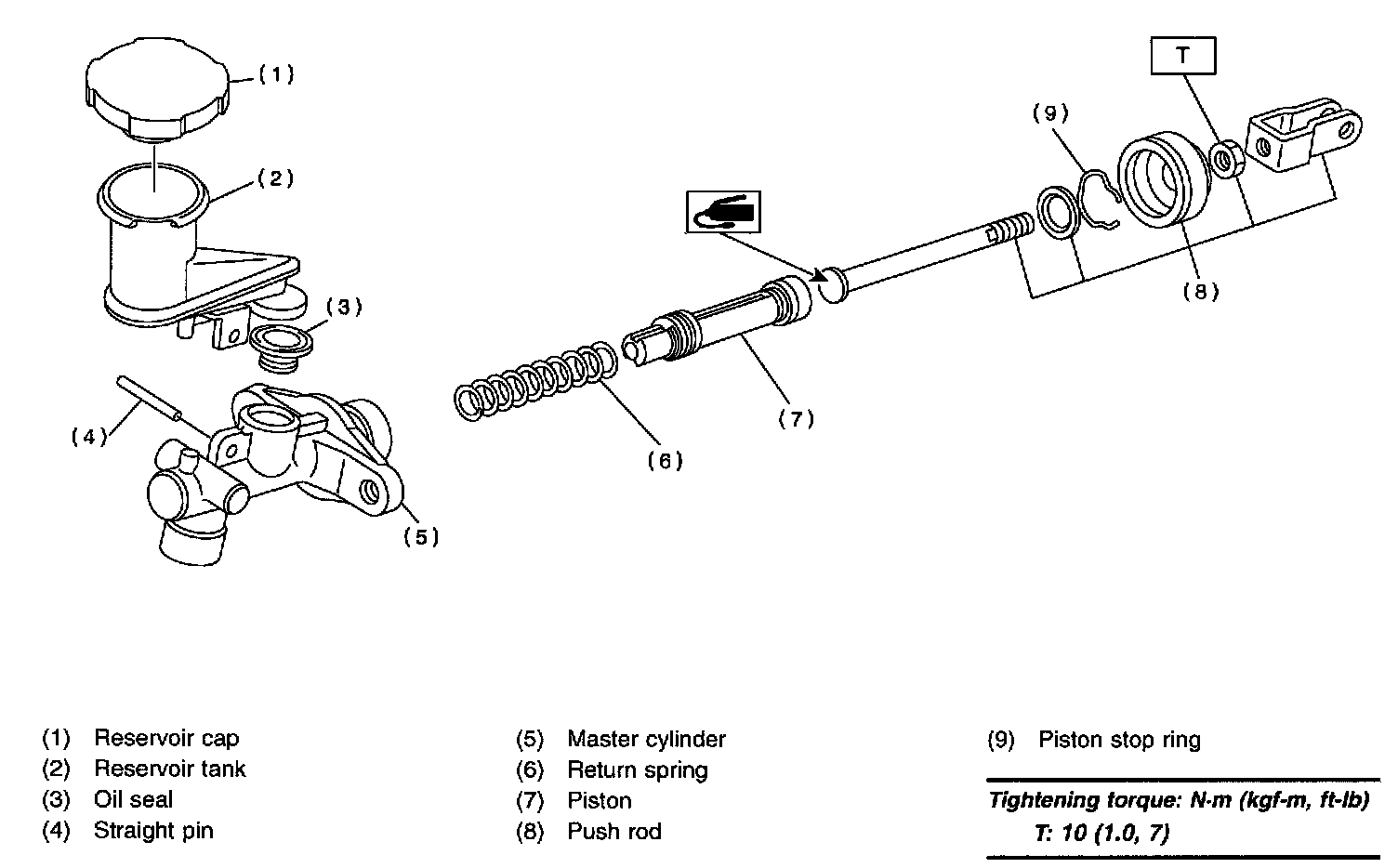

3. MASTER CYLINDER

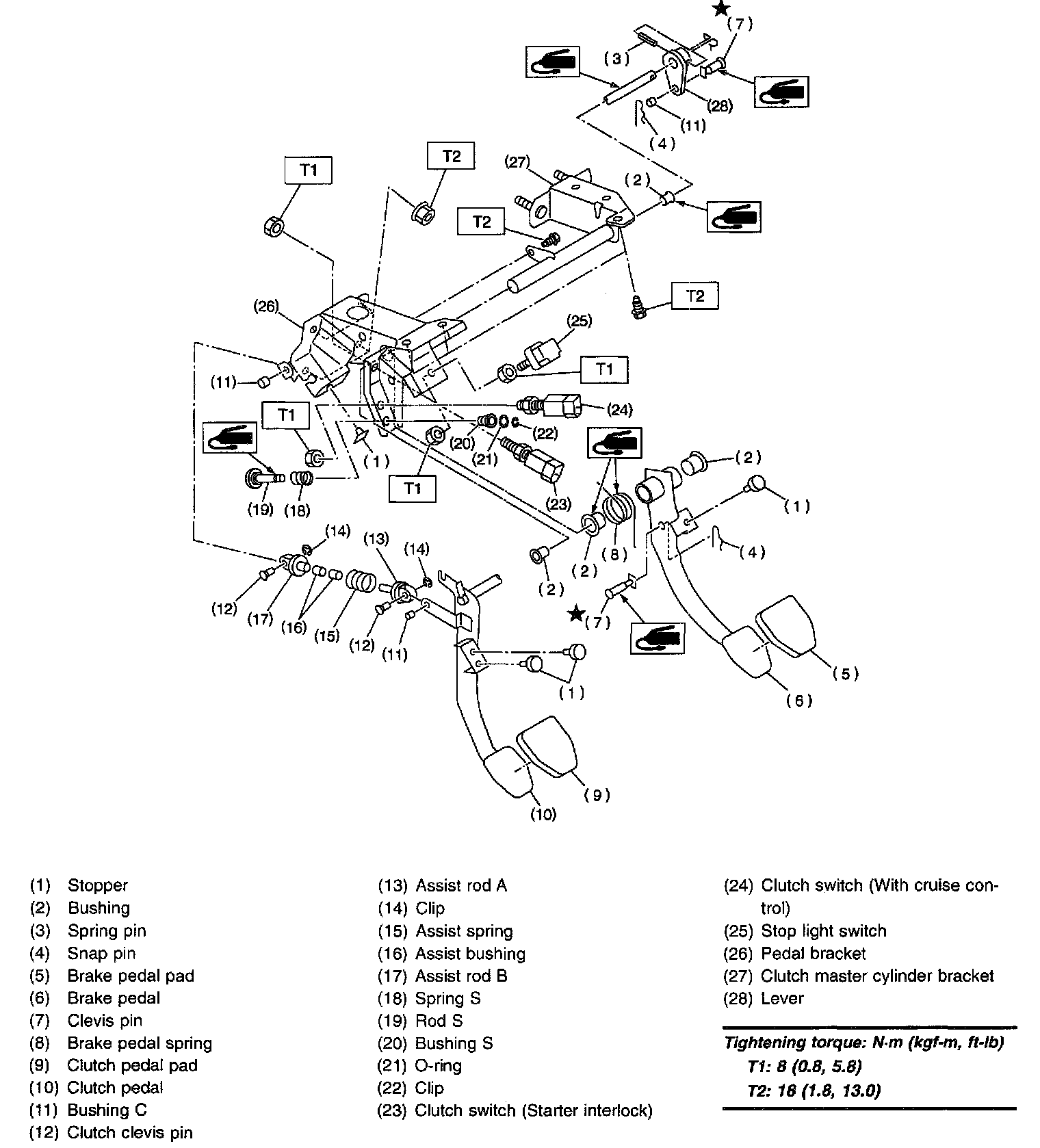

4. CLUTCH PEDAL
