DIAGNOSIS:
- VDC operating indicator light circuit is open or shorted.
TROUBLE SYMPTOM:
- When starting the engine and while VDC operating indicator light is kept ON.

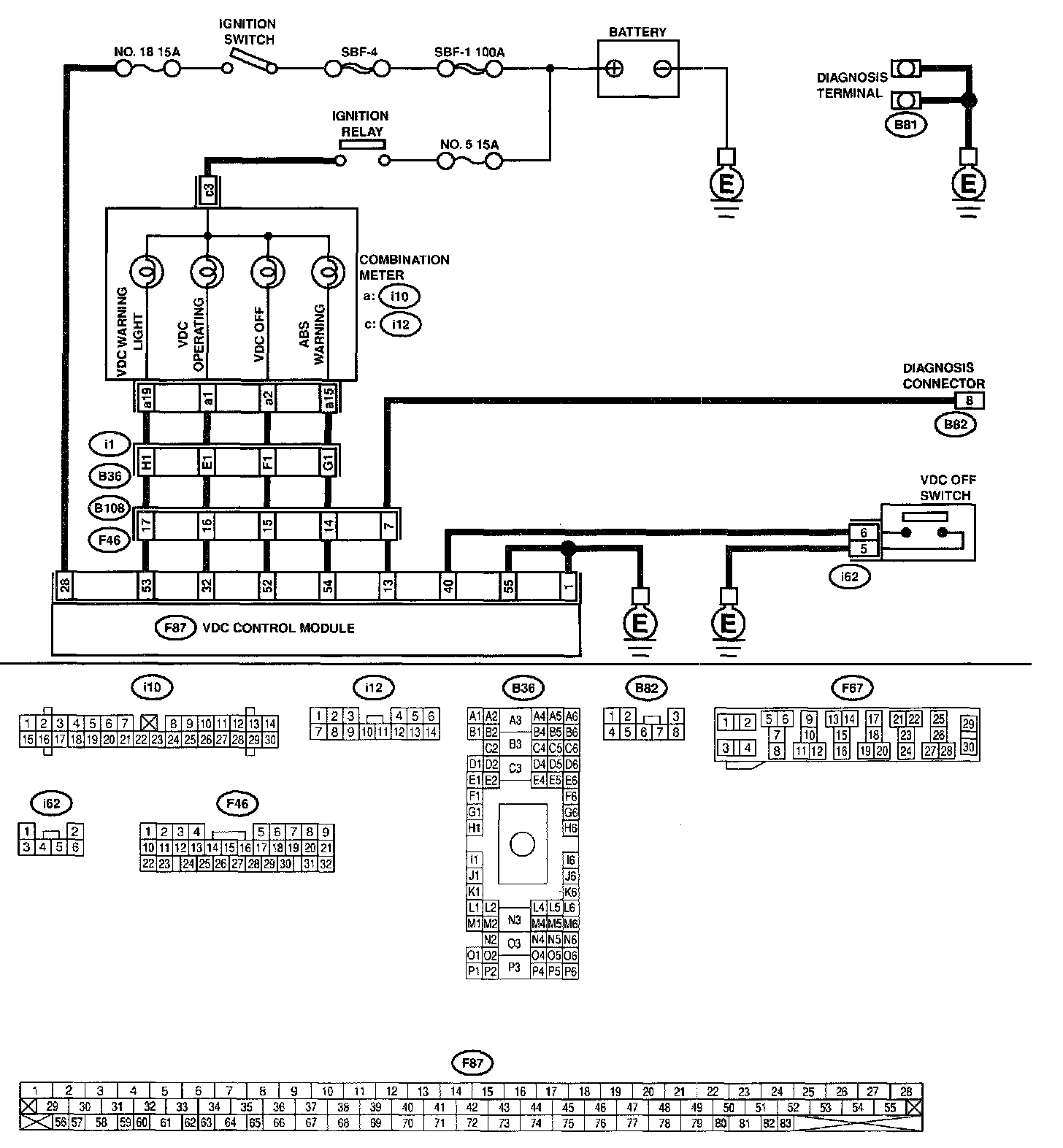

WIRING DIAGRAM

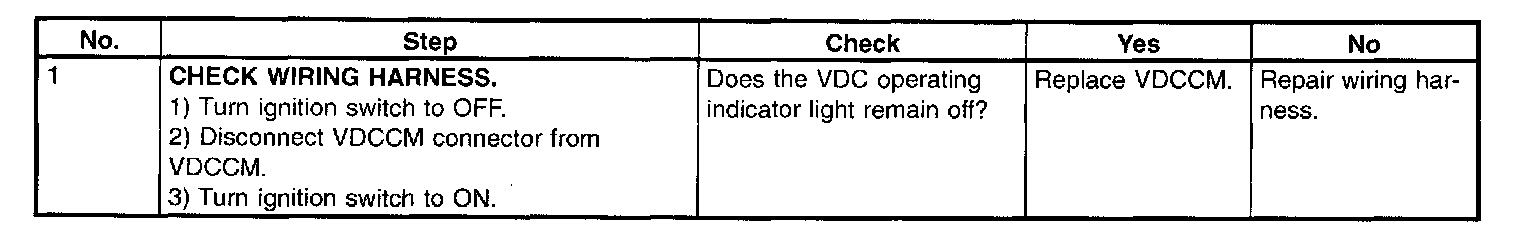

PROCEDURE
VDC Operating Indicator Light Does Not Go Off
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.
DIAGNOSIS:
- VDC operating indicator light circuit is open or shorted.
TROUBLE SYMPTOM:
- When starting the engine and while VDC operating indicator light is kept ON.
WIRING DIAGRAM
PROCEDURE
