DIAGNOSIS:
- Diagnosis circuit is open.
TROUBLE SYMPTOM:
- The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.

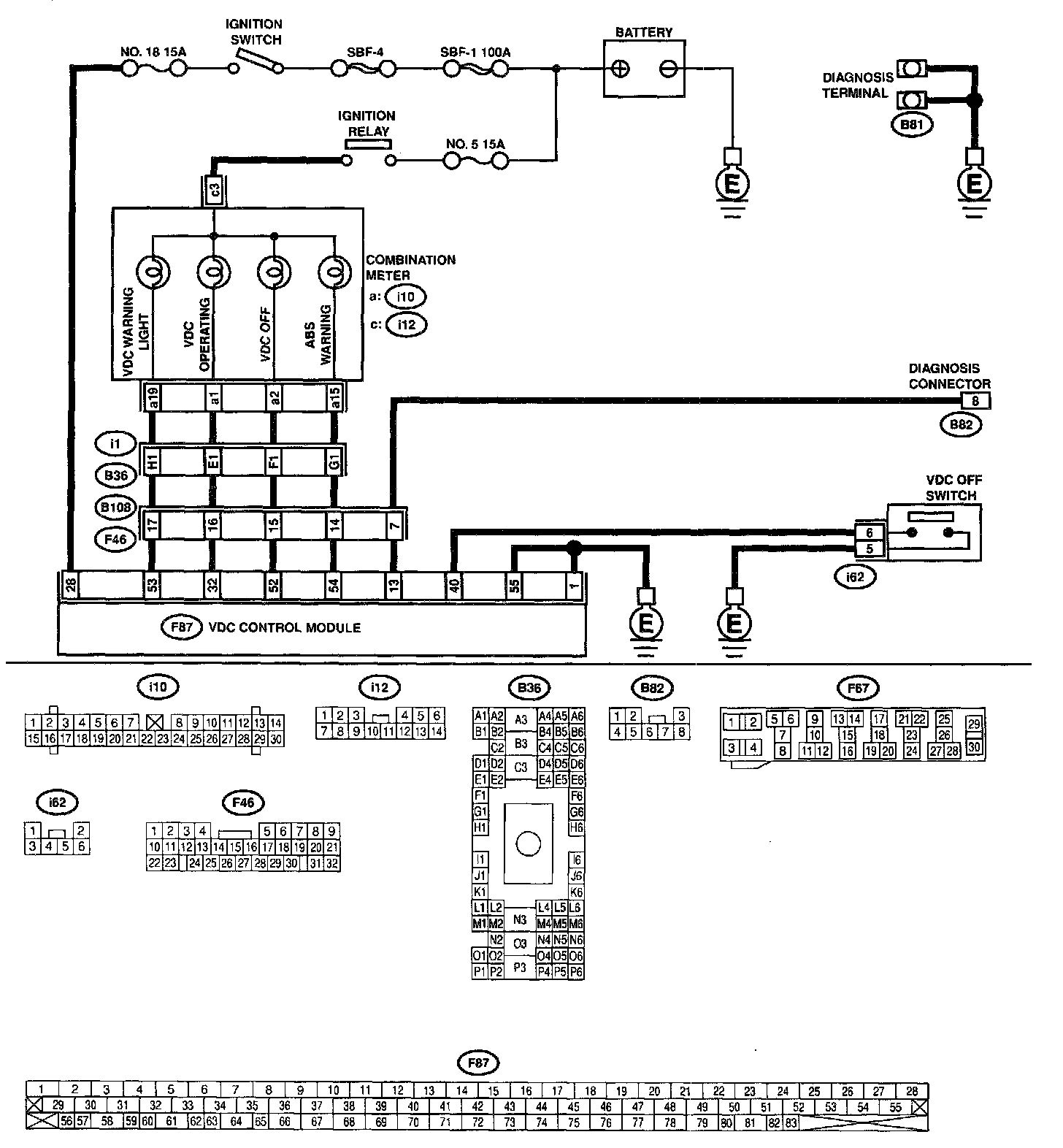

WIRING DIAGRAM:

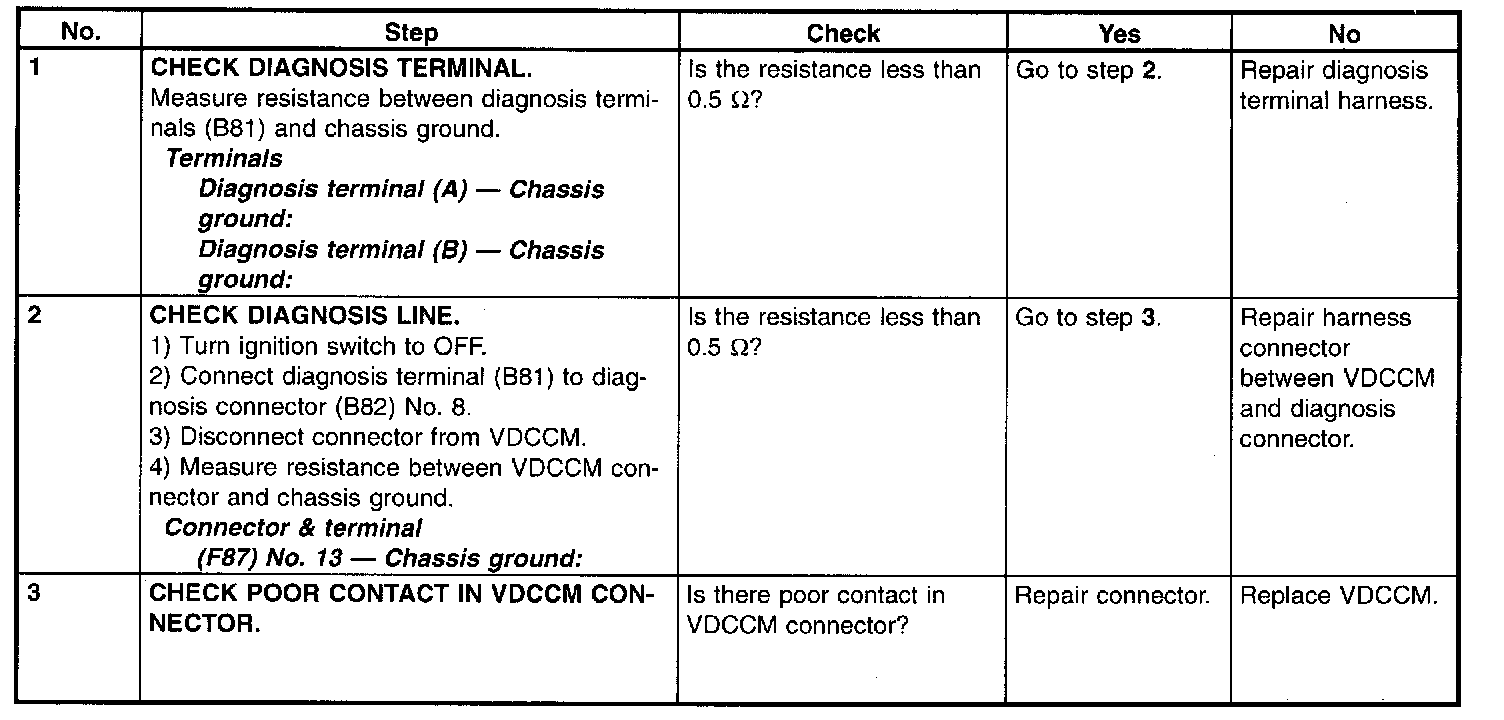

PROCEDURE:
Diagnostic Trouble Code Does Not Appear
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.
DIAGNOSIS:
- Diagnosis circuit is open.
TROUBLE SYMPTOM:
- The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.
WIRING DIAGRAM:
PROCEDURE:
