Vehicle Dynamics Control (VDC) System

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

AI Repair Guides

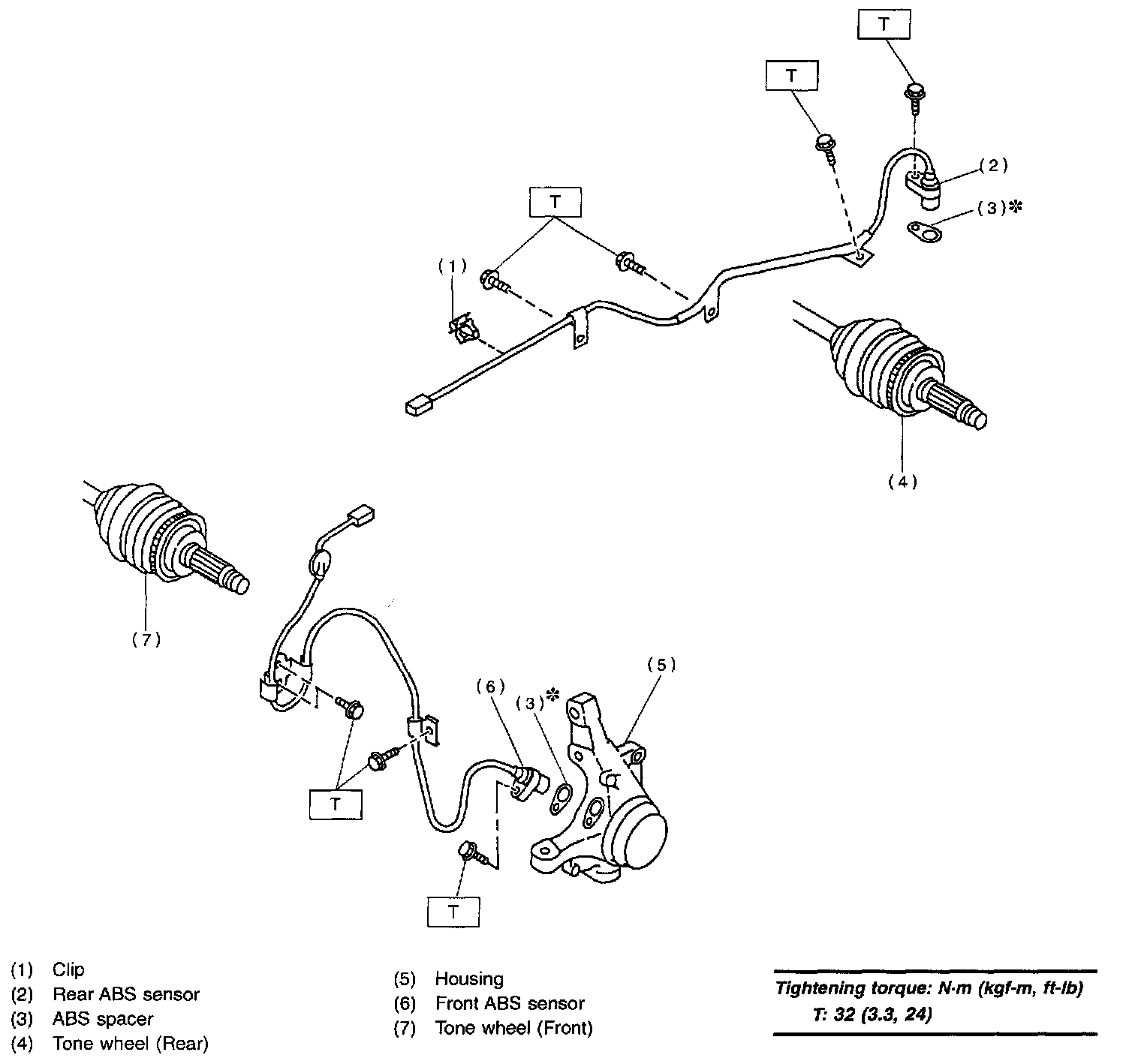

ABS SENSOR

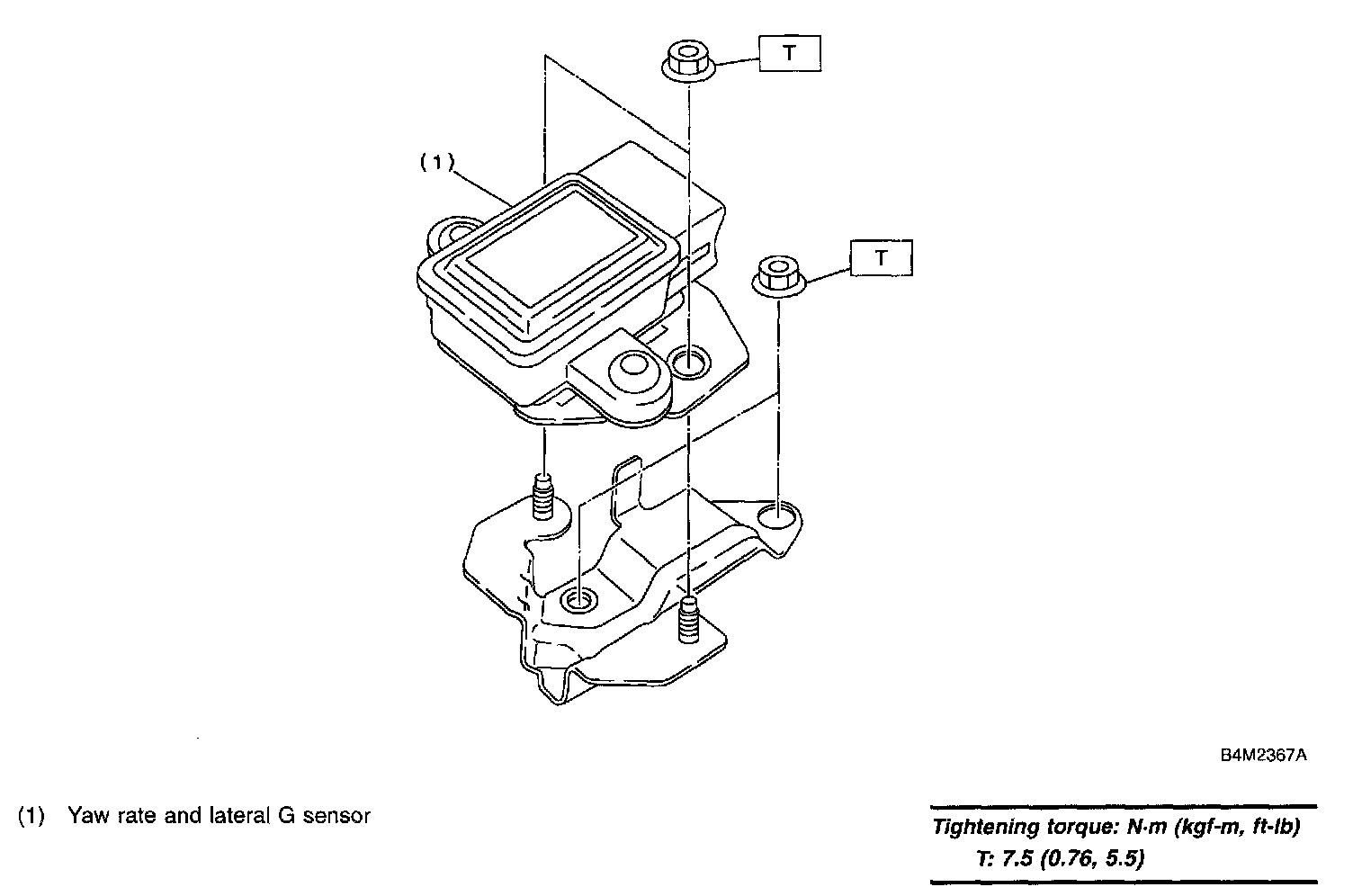

YAW RATE AND LATERAL G SENSOR

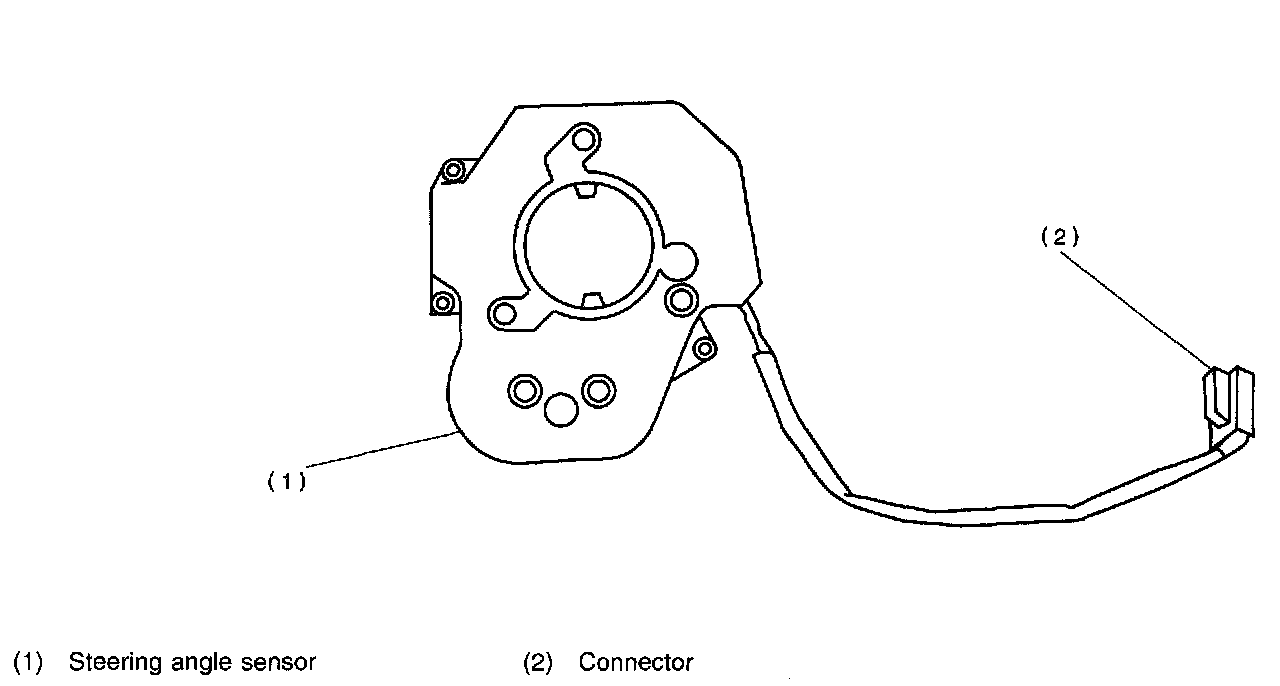

STEERING ANGLE SENSOR





VDC CONTROL MODULE (VDCCM)

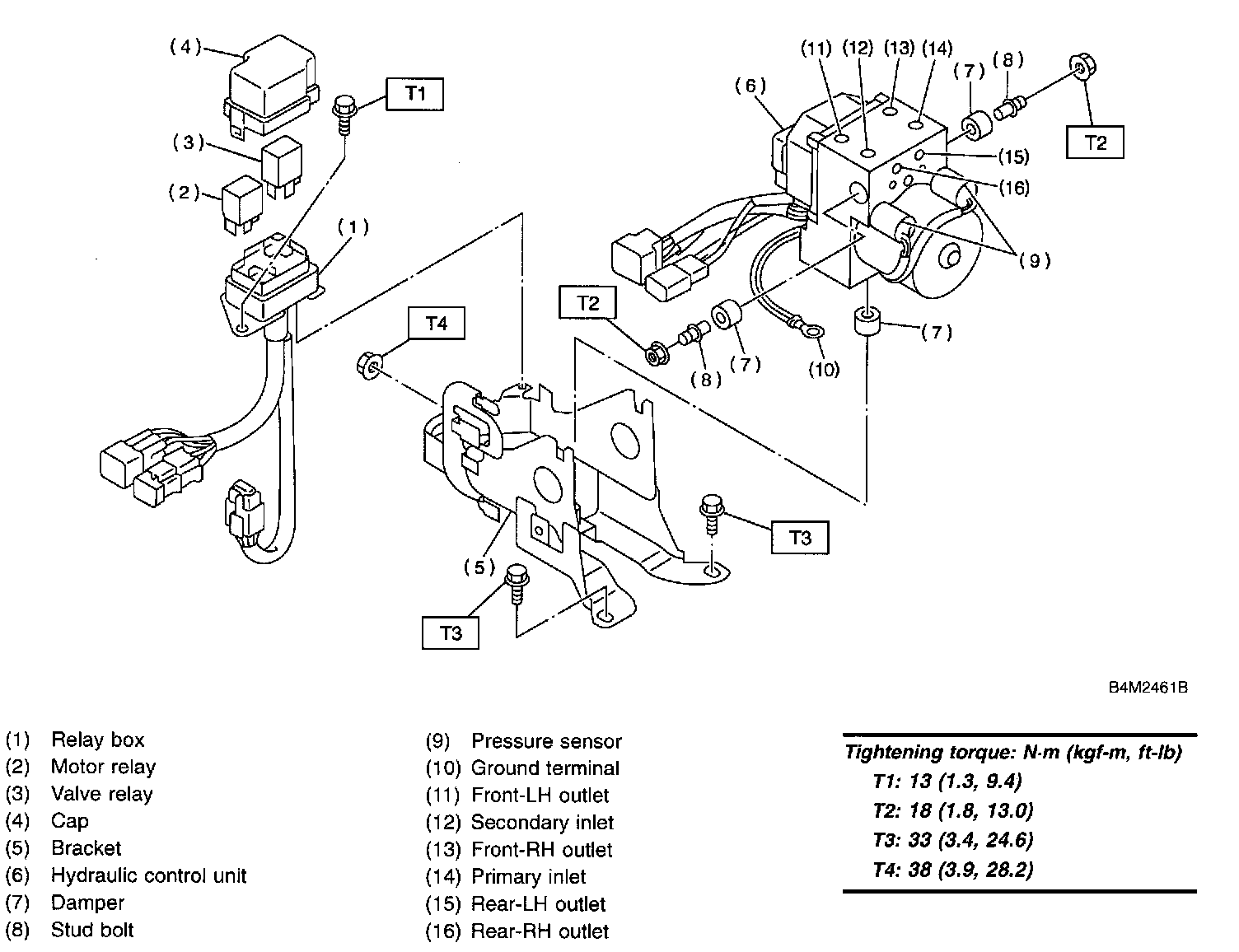

HYDRAULIC CONTROL UNIT (H/U)

← Back to Exploded ViewsAll Makes
