Alarm Module: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

AI Repair Guides
INSPECTION

IMPACT SENSITIVITY TEST

1. Remove the key from the ignition switch.
2. Close all windows.
3. Close all doors and the rear gate or trunk lid.
4. Cover the hood with a blanket.
5. Press the LOCK/ARM button of the transmitter.
6. Confirm that the security indicator light blinks every 2 seconds.

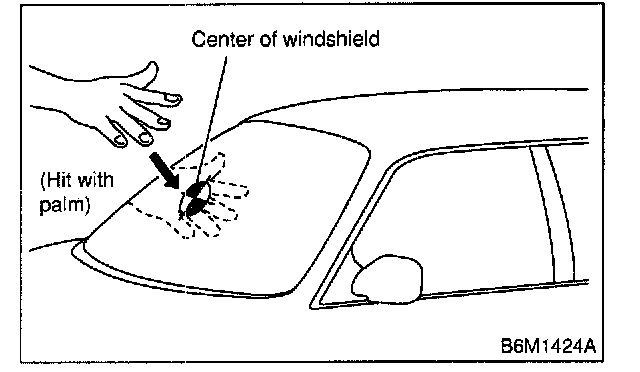

7. Hit the center of the windshield with your palm and make sure the alarm operates.
If NG, adjust the impact sensitivity.
