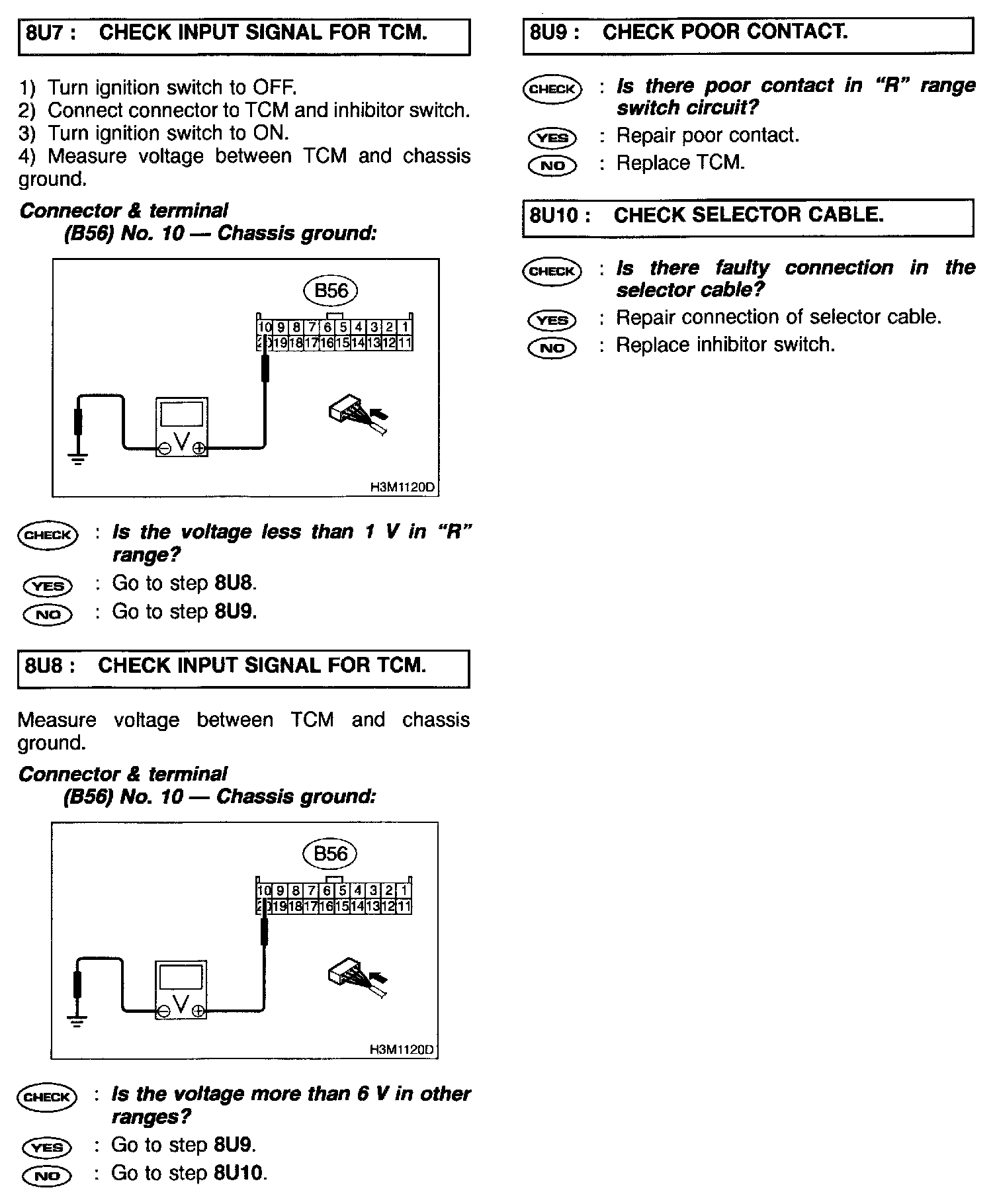

CHECK "R" RANGE SWITCH











Diagnosis:
Input signal circuit of "R" range is open or shorted.

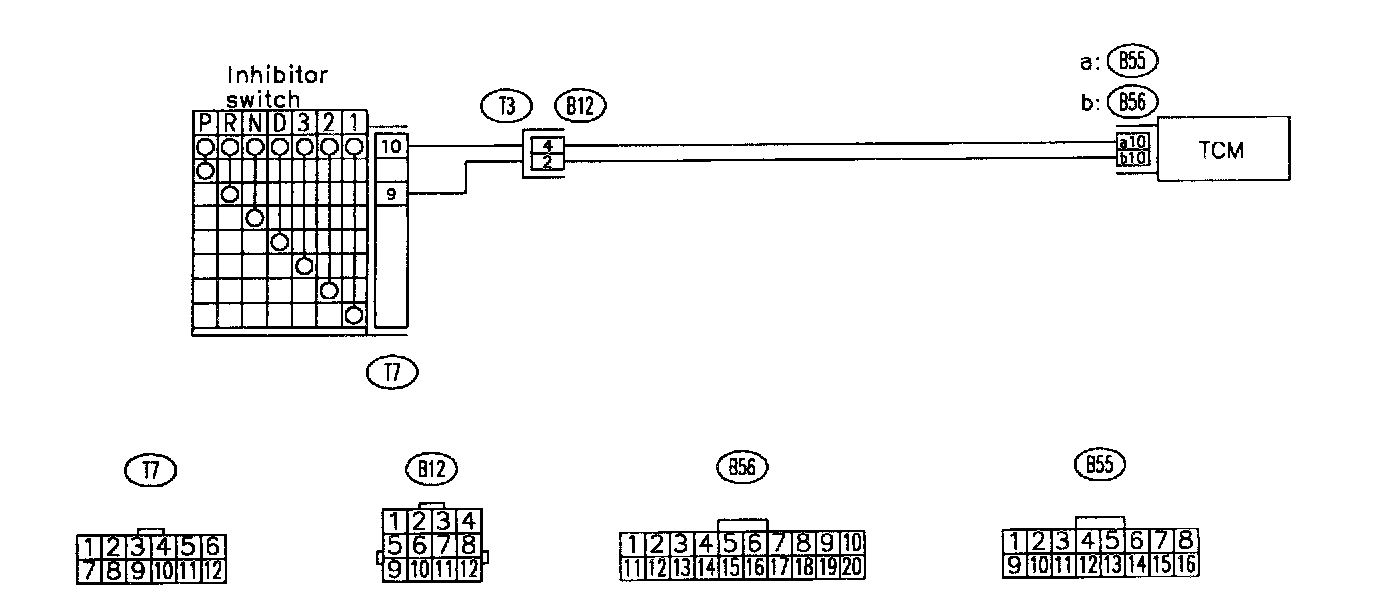

Wiring Diagram:
