Diagnosis:
- LED does not come on even if FWD switch is ON.
- FWD switch circuit is open or shorted.

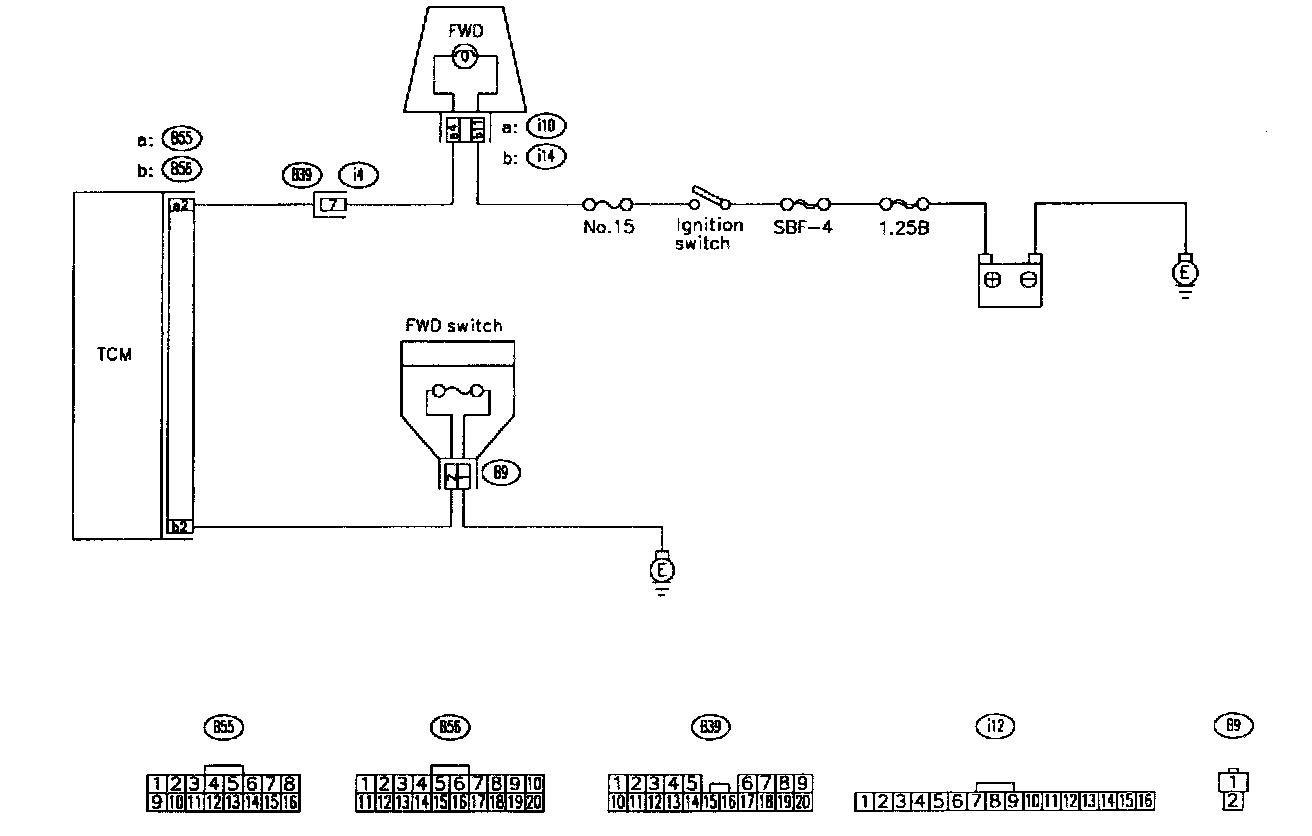

Wiring Diagram:

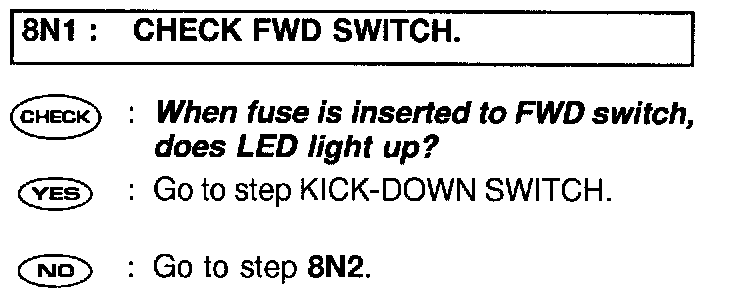

Check FWD Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1998 Subaru.
Diagnosis:
- LED does not come on even if FWD switch is ON.
- FWD switch circuit is open or shorted.
Wiring Diagram:
