Diagnosis:
Input signal circuit of "2" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "2" range.

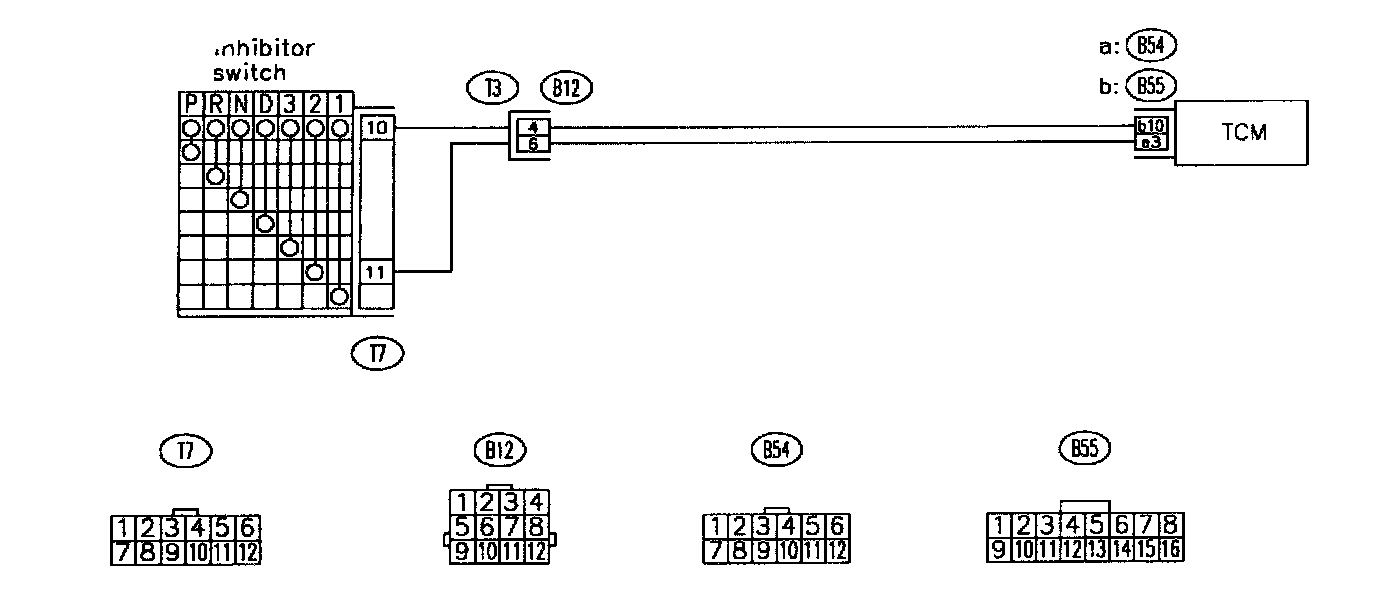

Wiring Diagram:

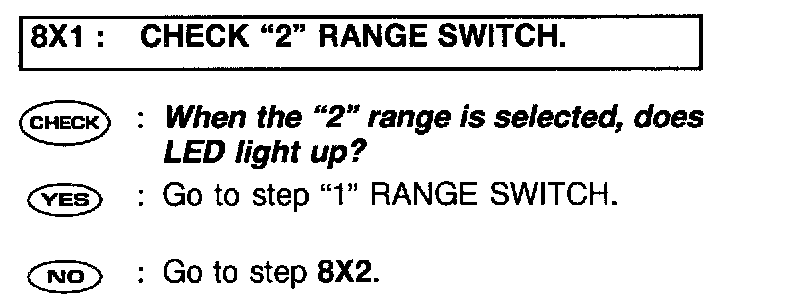

Check 2 Range Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1998 Subaru.
Diagnosis:
Input signal circuit of "2" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "2" range.
Wiring Diagram:
