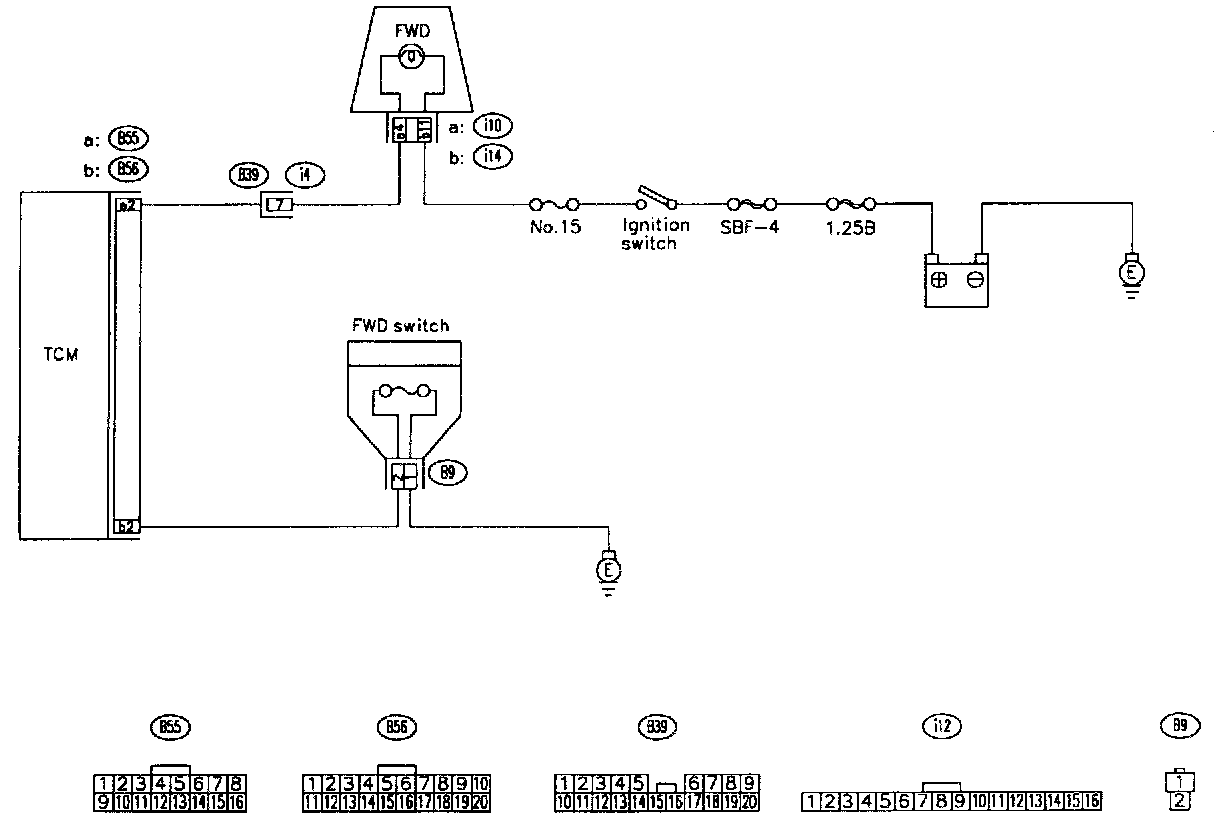

WIRING DIAGRAM, FWD SWITCH

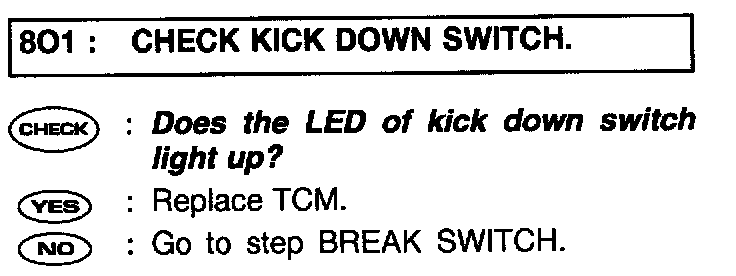

CHECK KICK DOWN SWITCH.

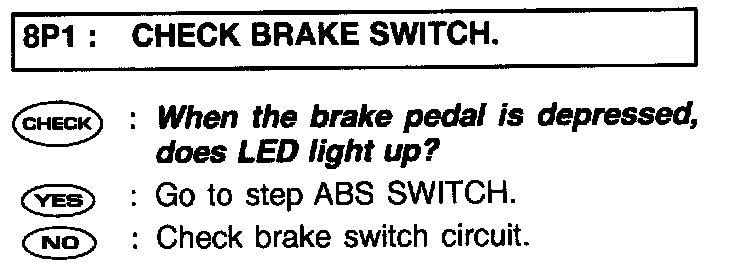

CHECK BRAKE SWITCH.

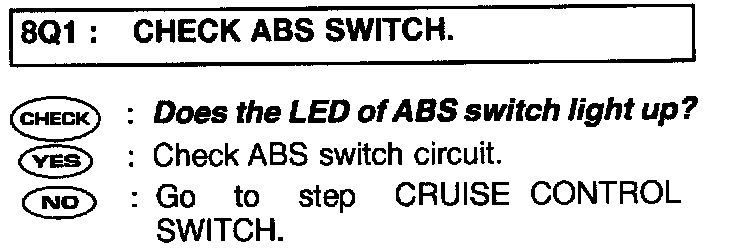

CHECK ABS SWITCH.

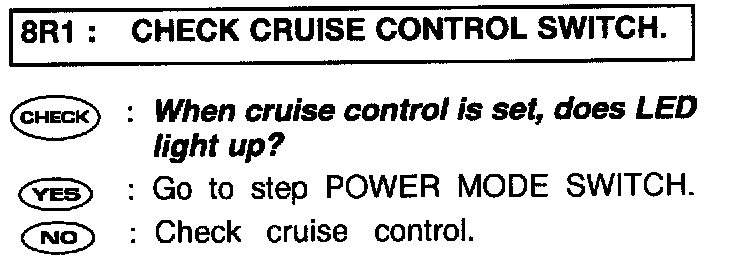

CHECK CRUISE CONTROL SWITCH.

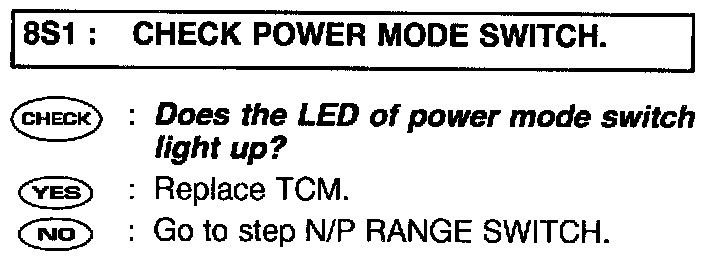

CHECK POWER MODE SWITCH.

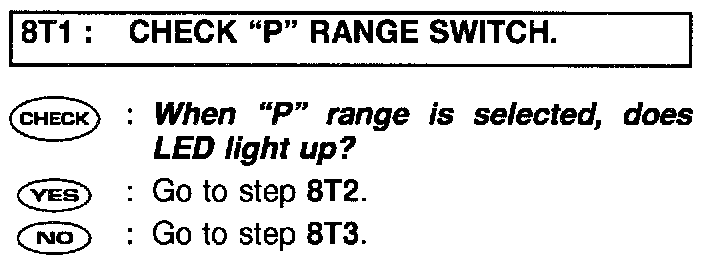

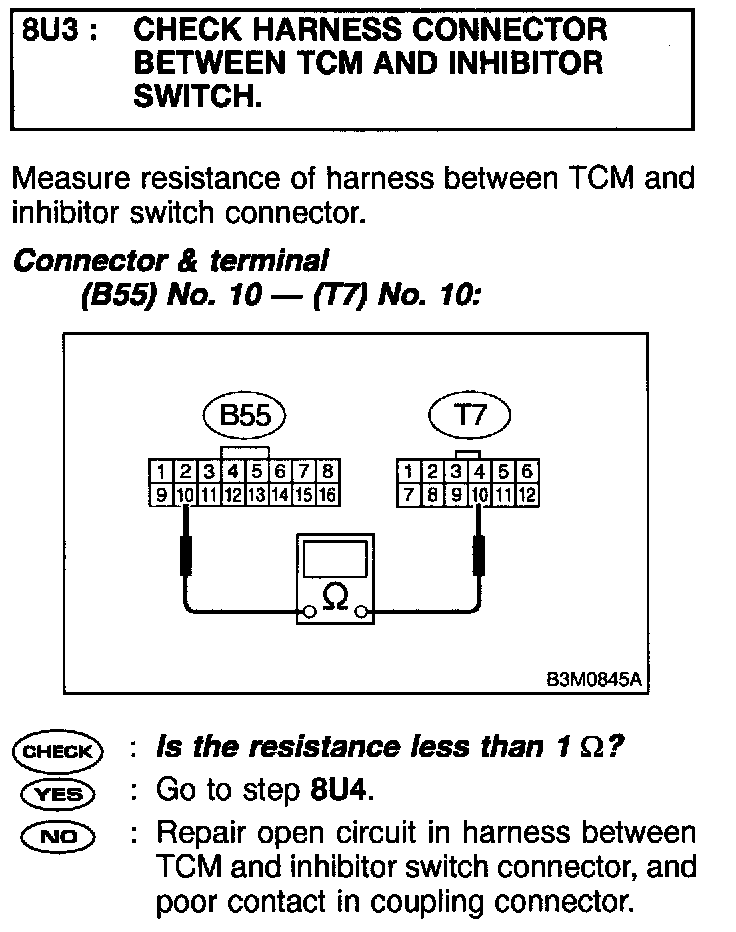

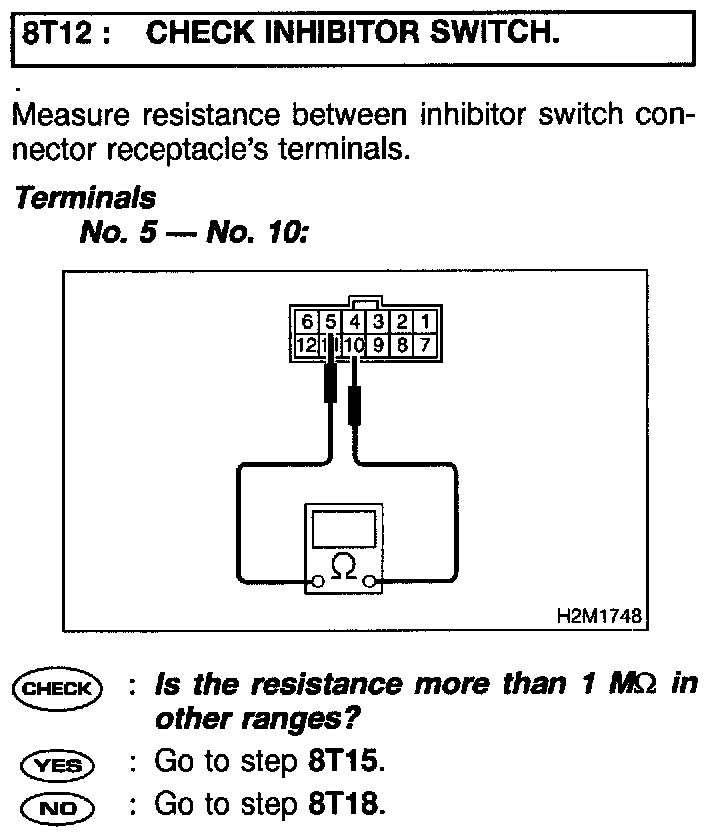

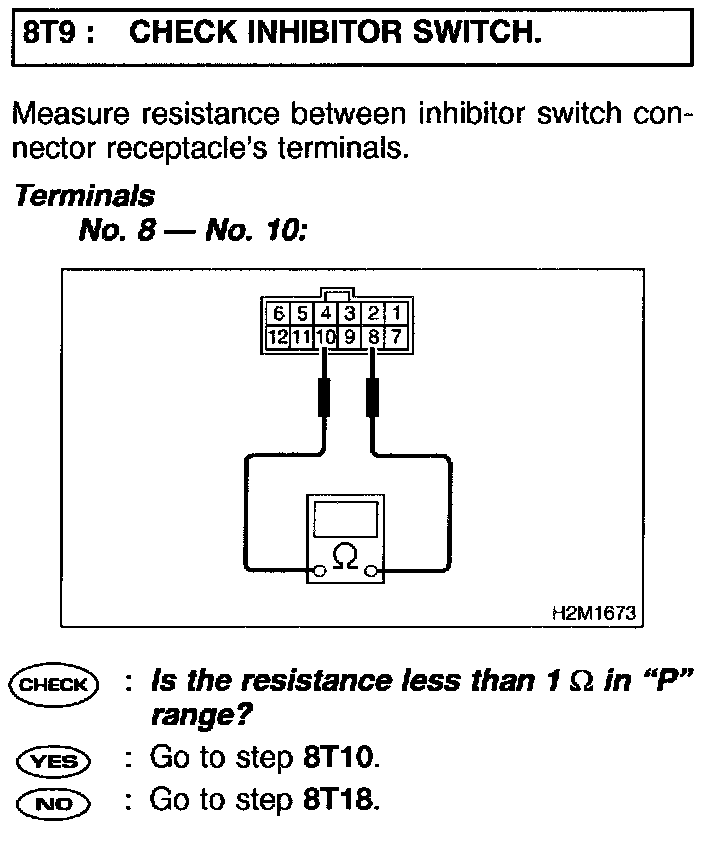

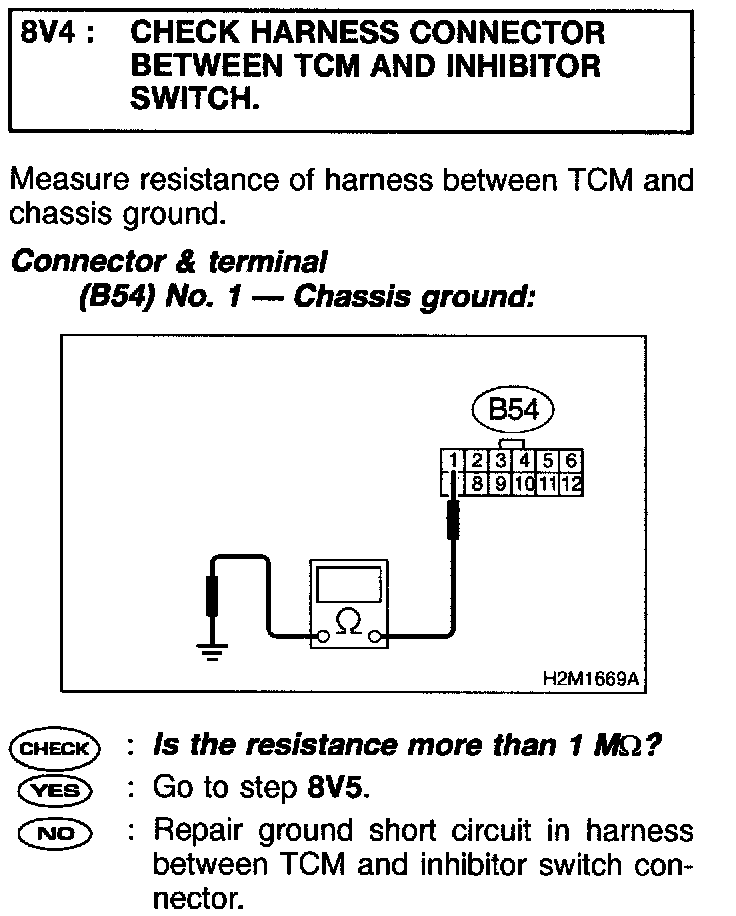

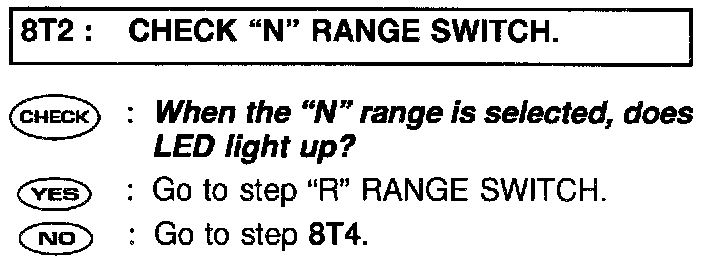

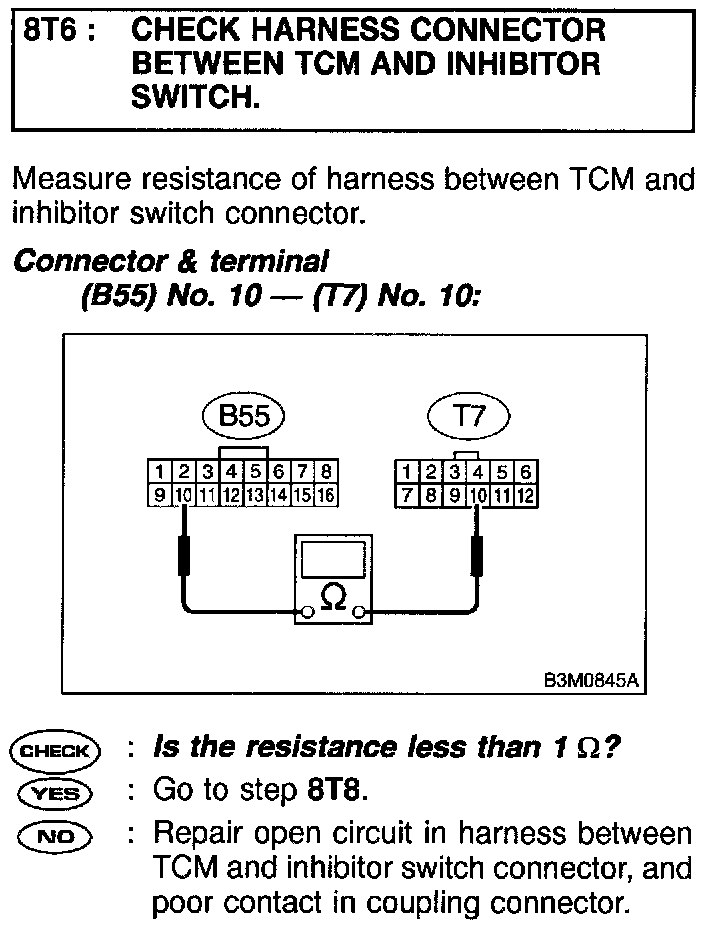

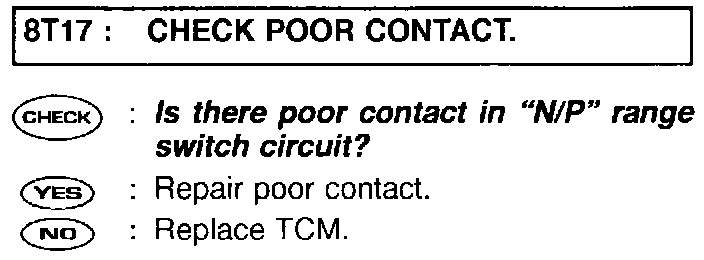

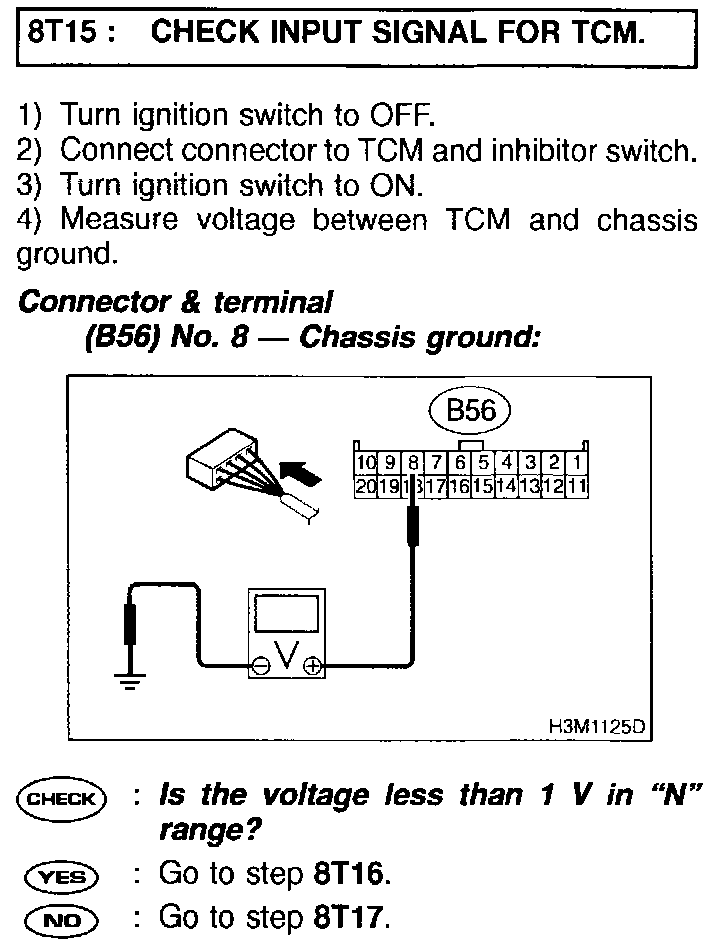

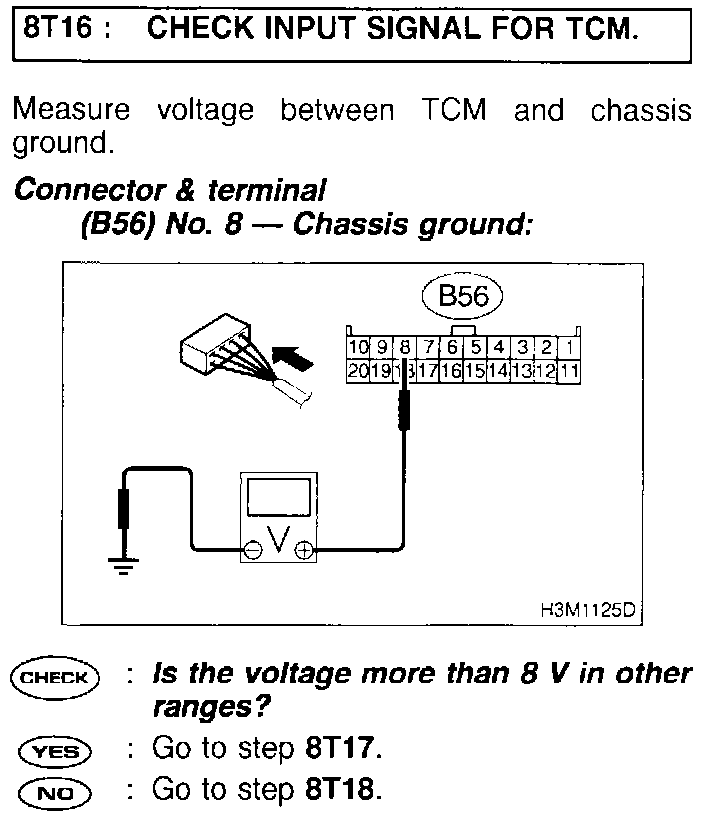

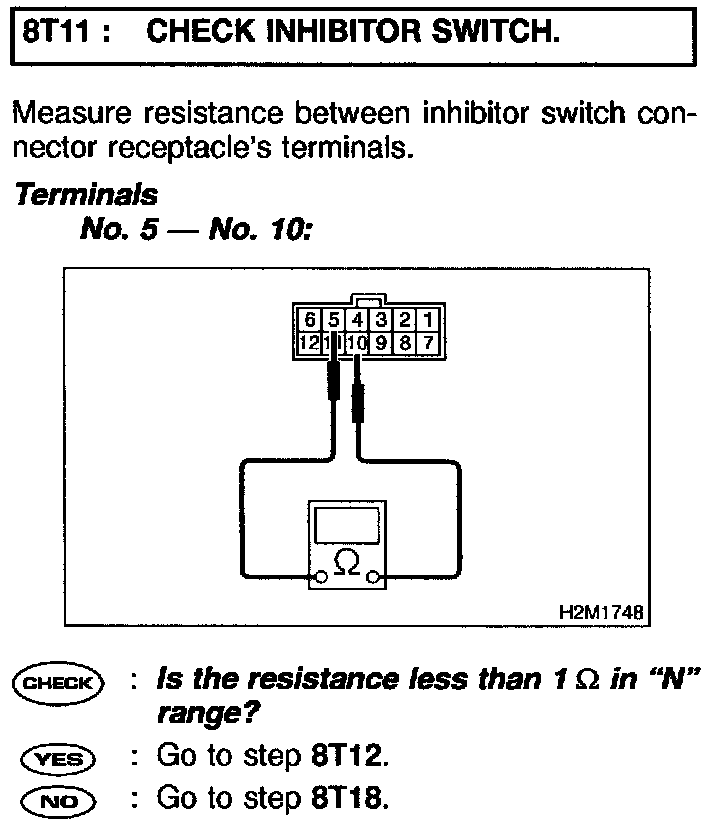

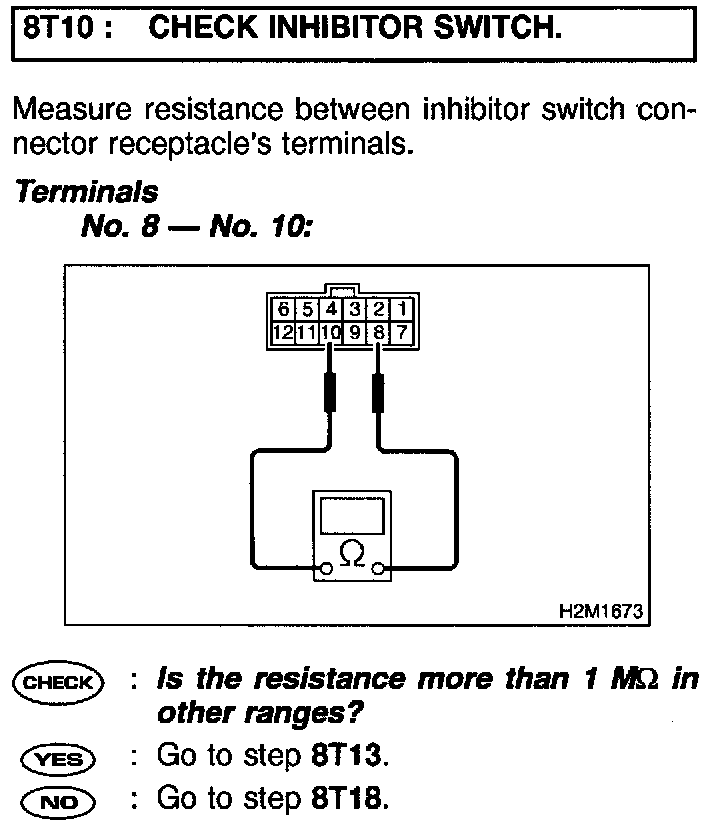

CHECK "N/P" RANGE SWITCH.

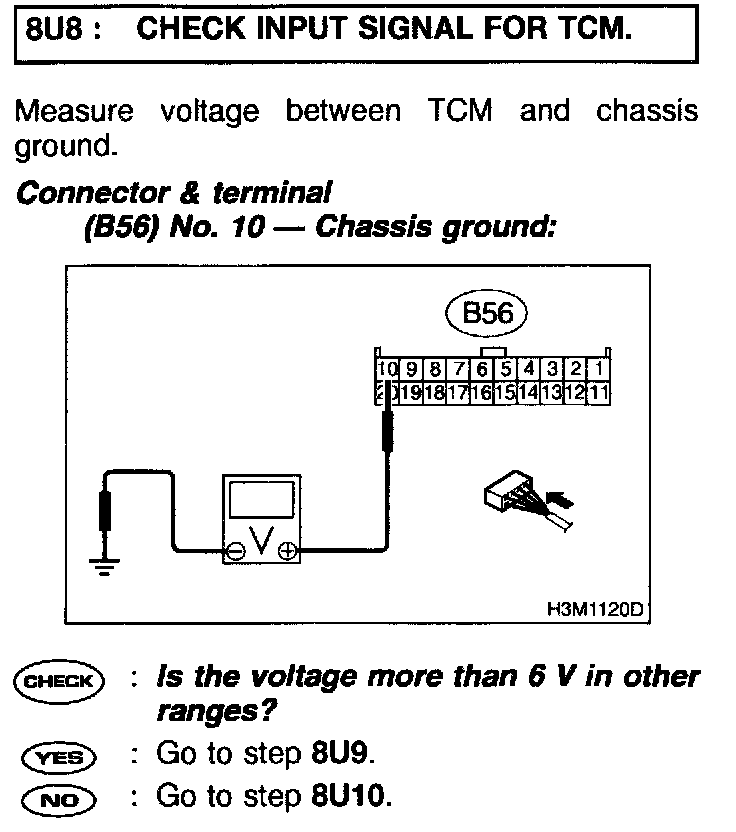

DIAGNOSIS:
- Input signal circuit of "P" or "N" range is open or shorted.

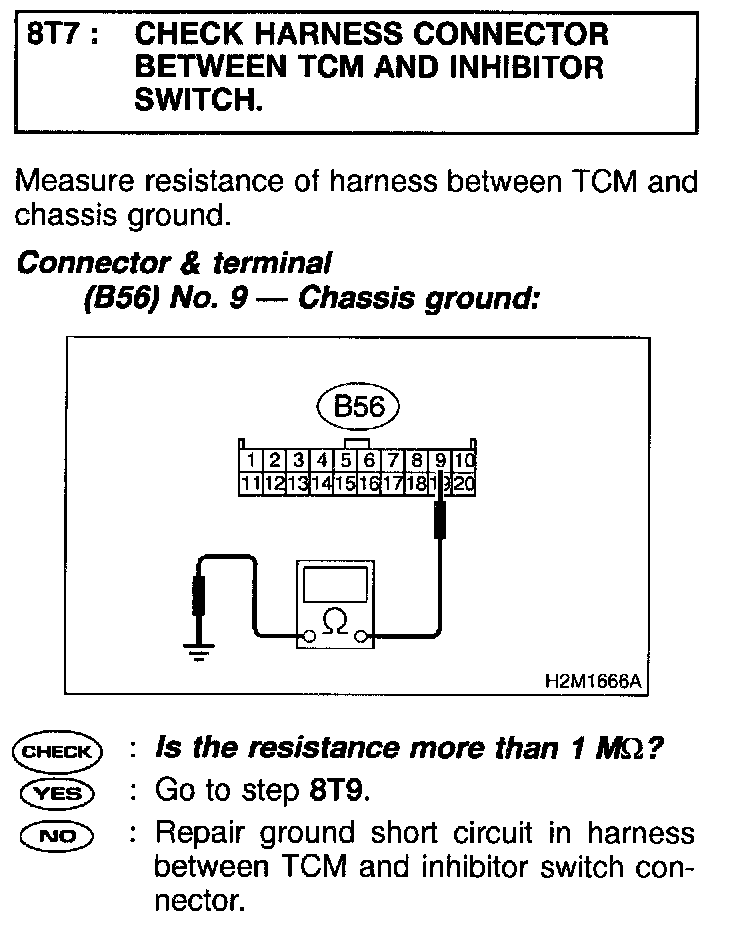

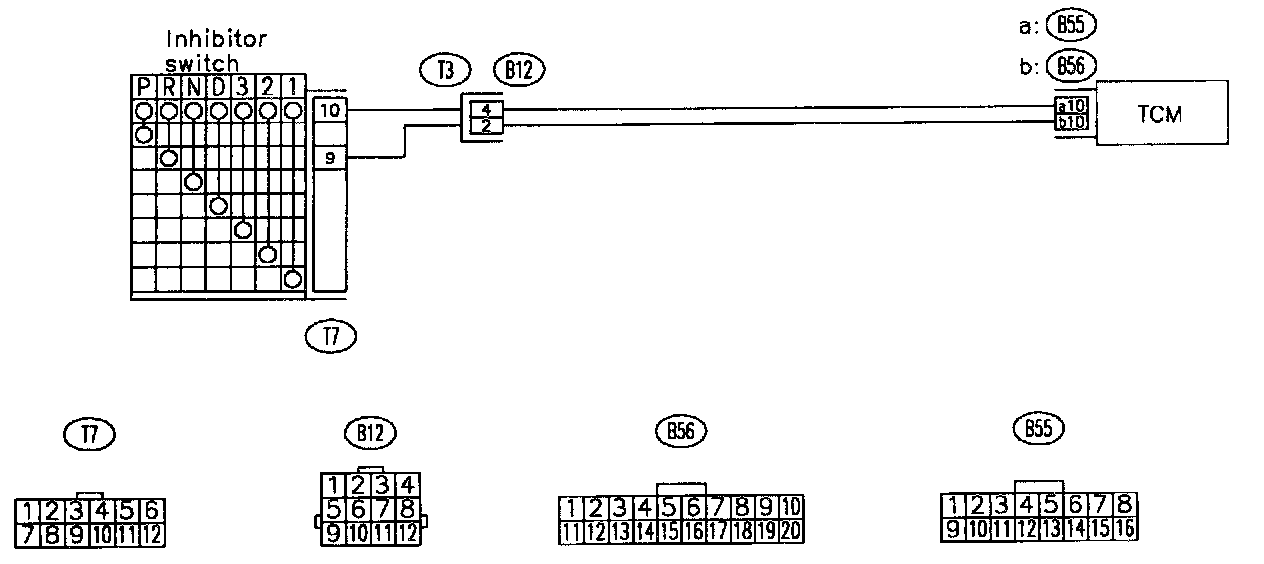

WIRING DIAGRAM, "N/P" RANGE SWITCH

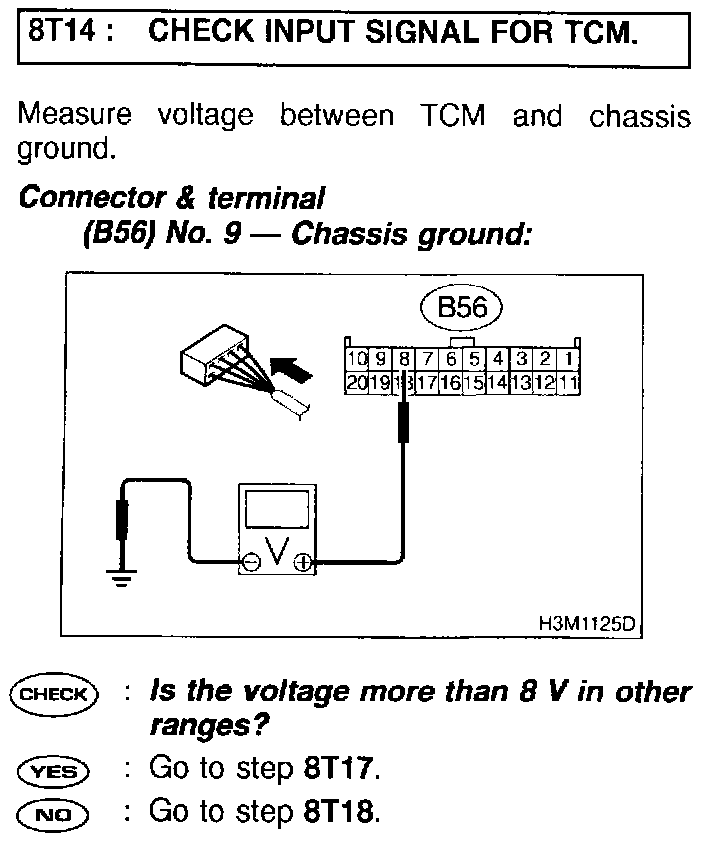

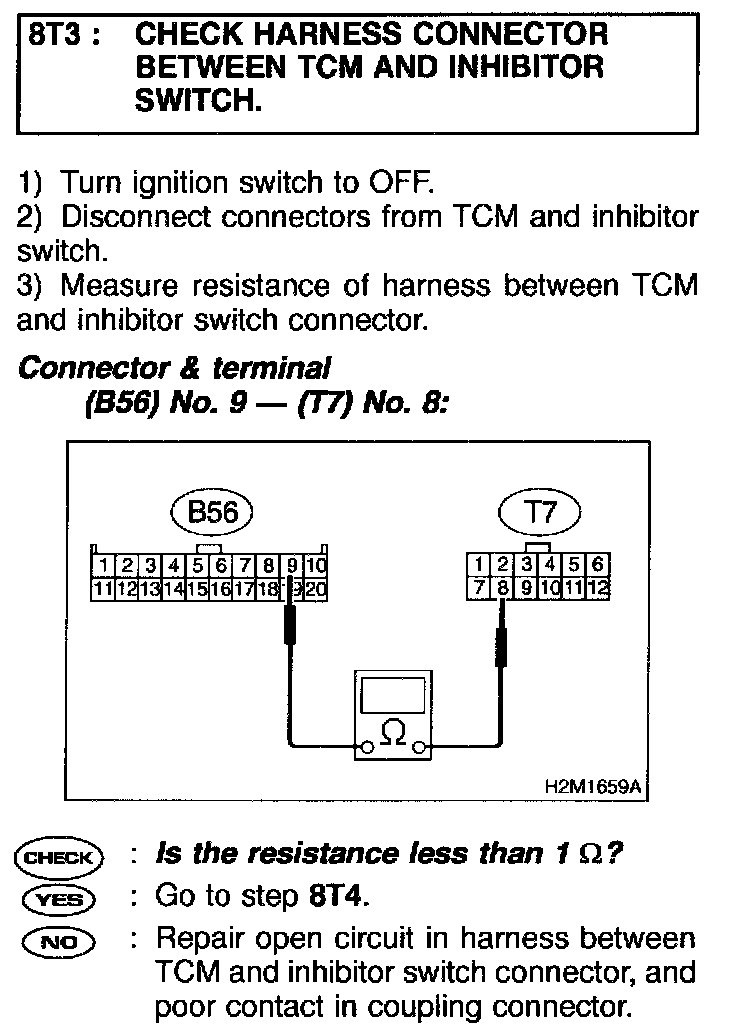

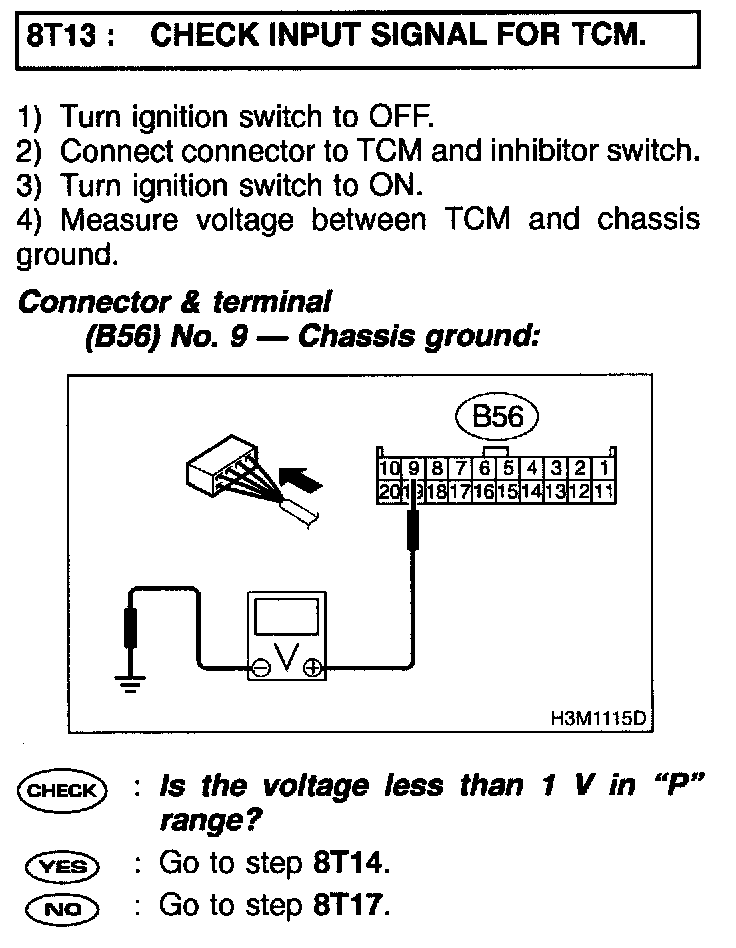

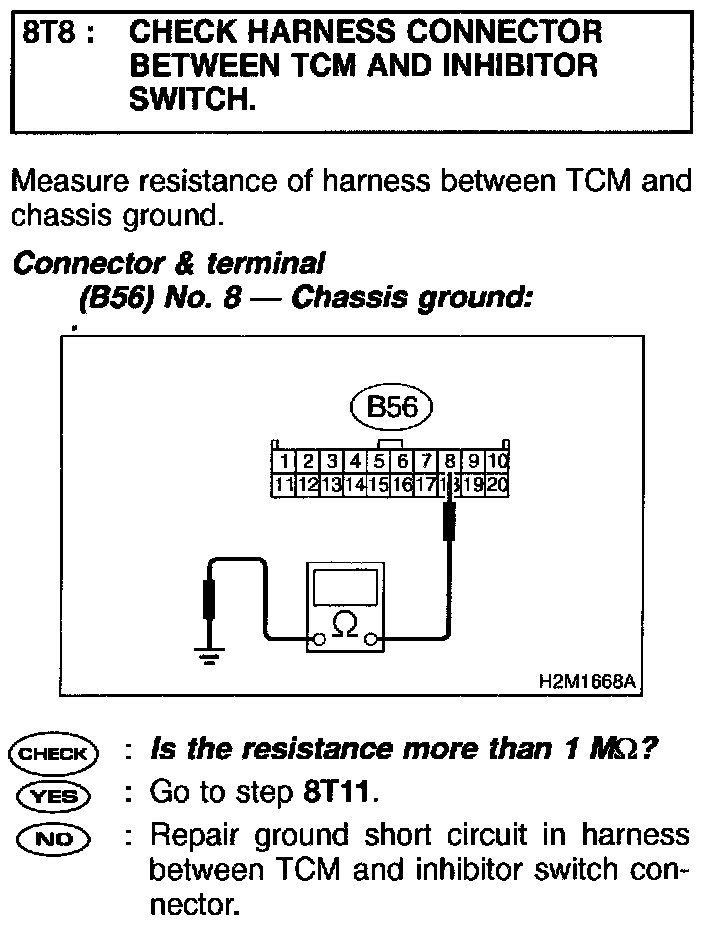

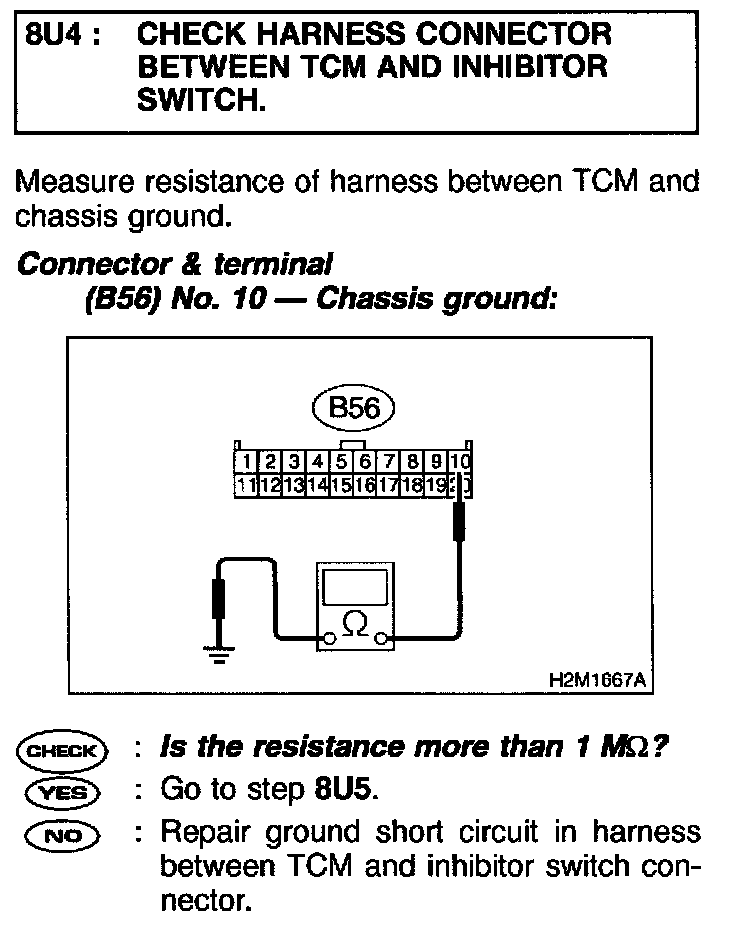

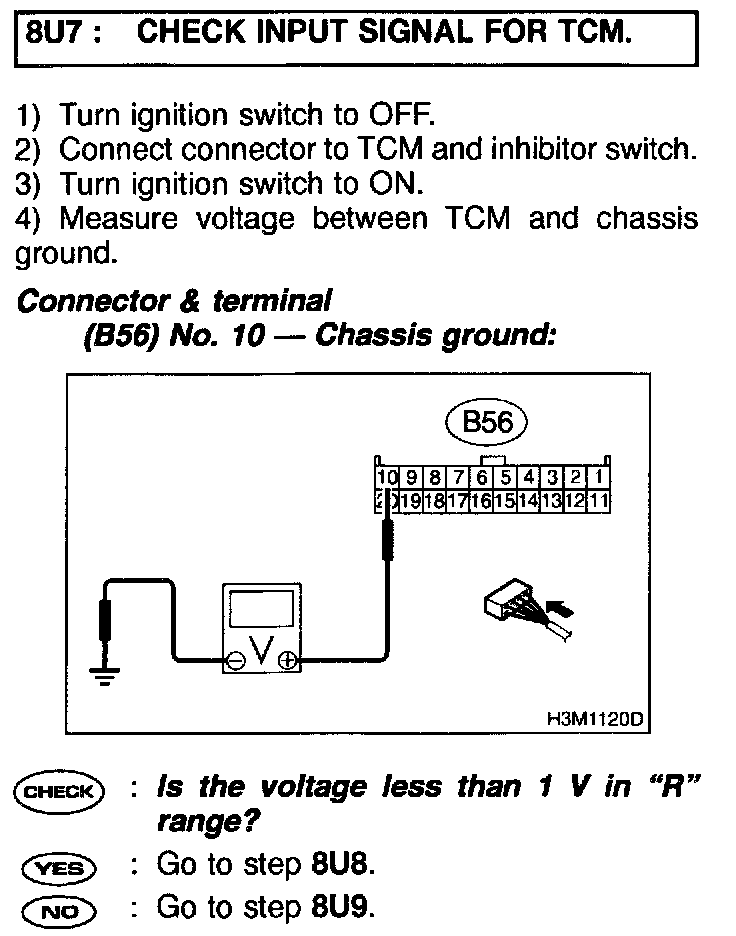

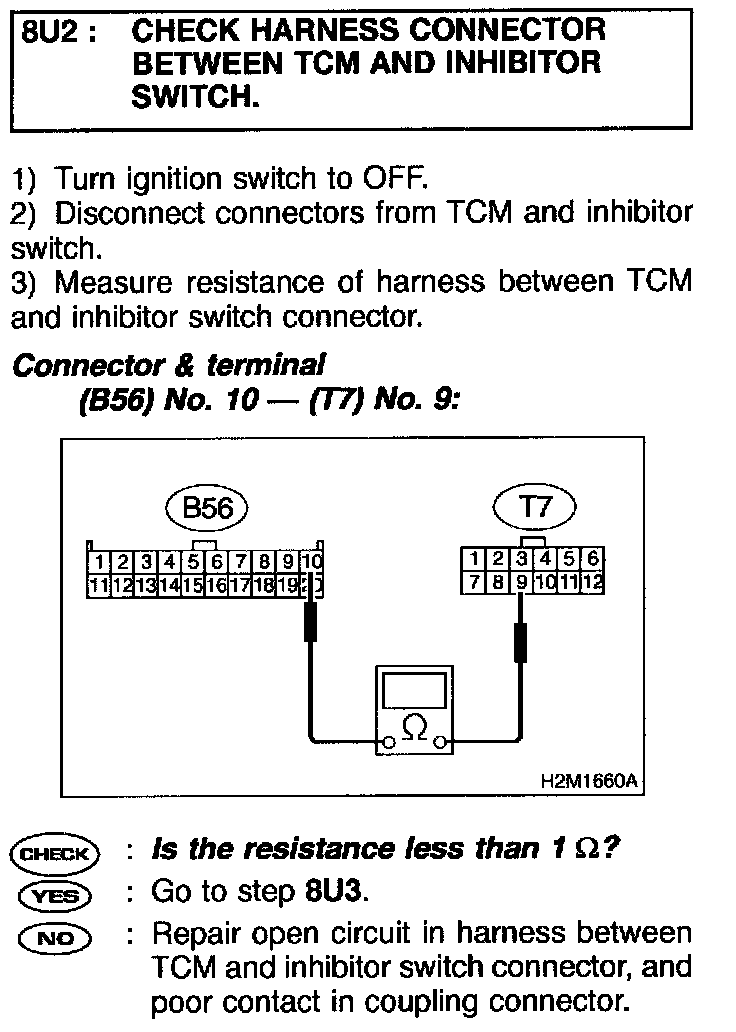

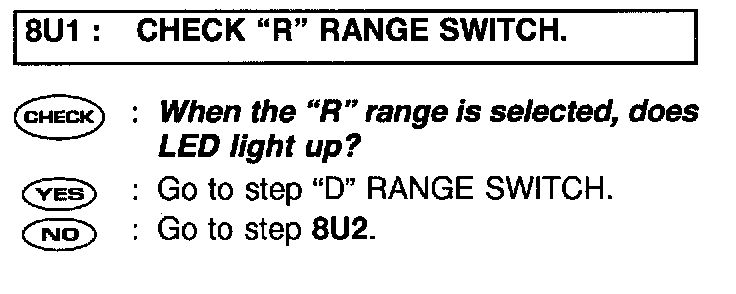

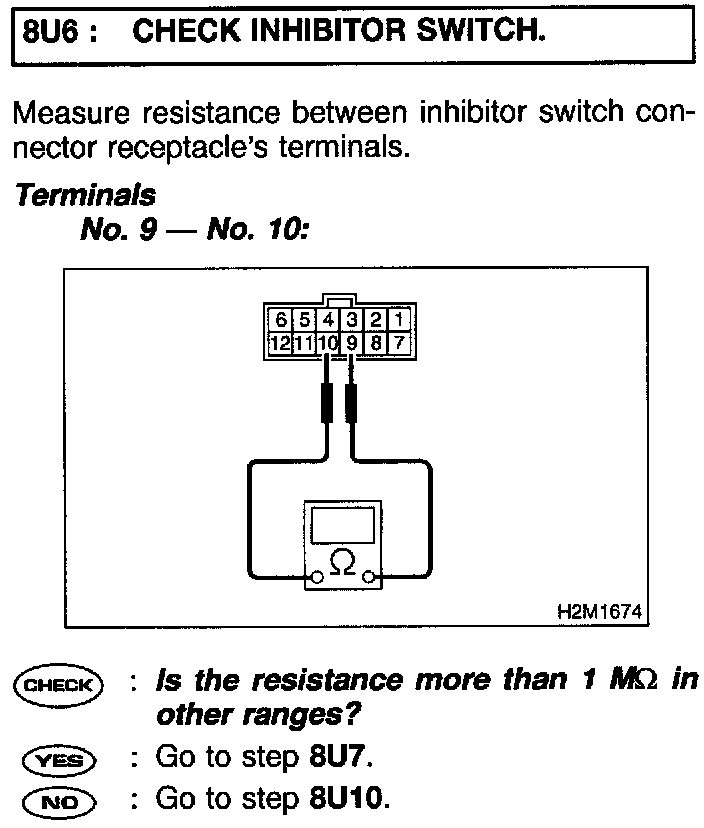

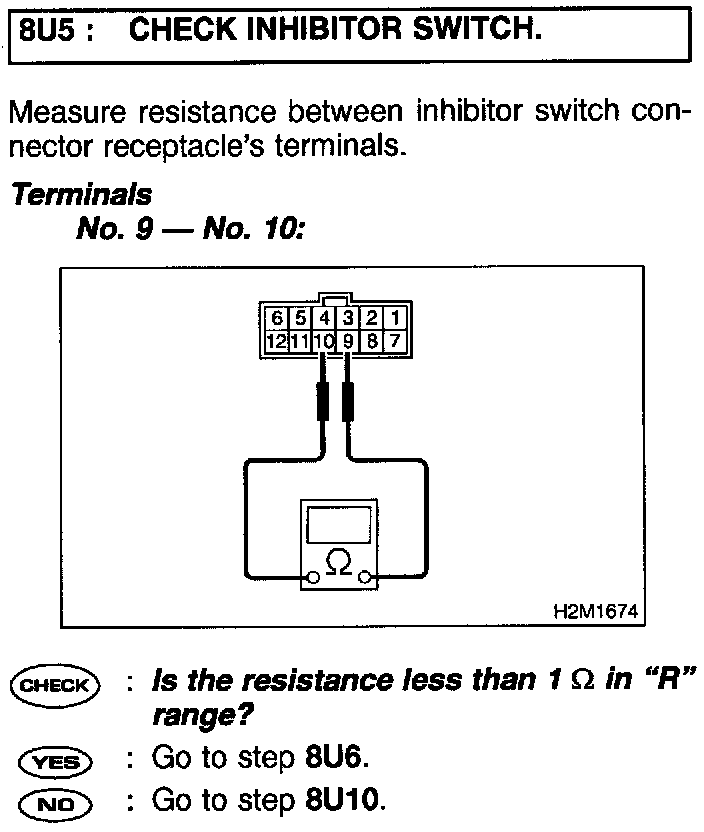

CHECK "R" RANGE SWITCH.
DIAGNOSIS:
- Input signal circuit of "R" range is open or shorted.
TROUBLE SYMPTOM:
- Shift characteristics are erroneous.

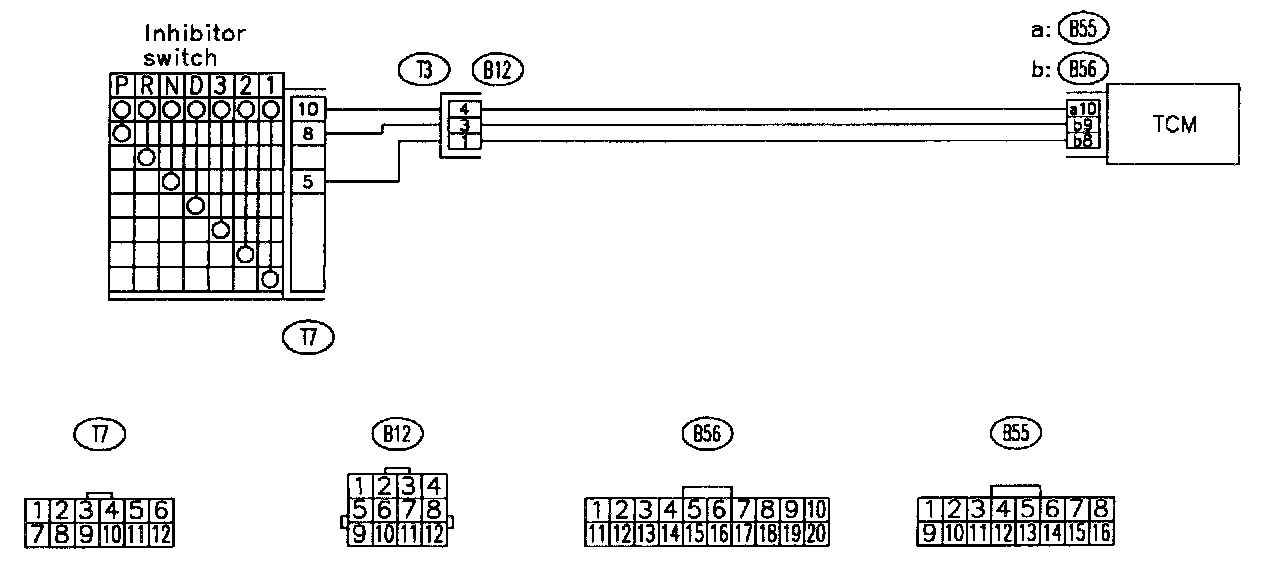

WIRING DIAGRAM, "R" RANGE SWITCH

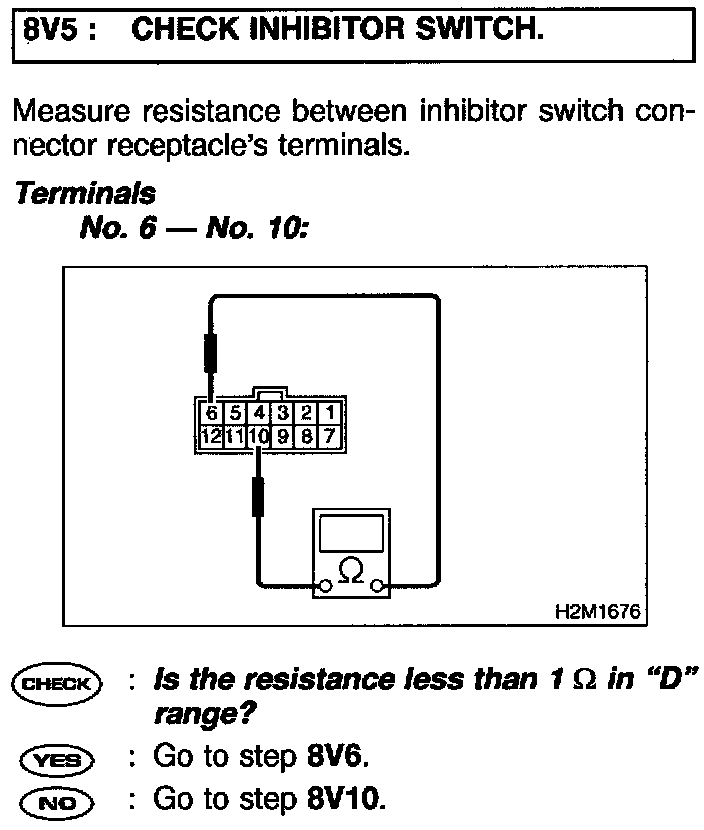

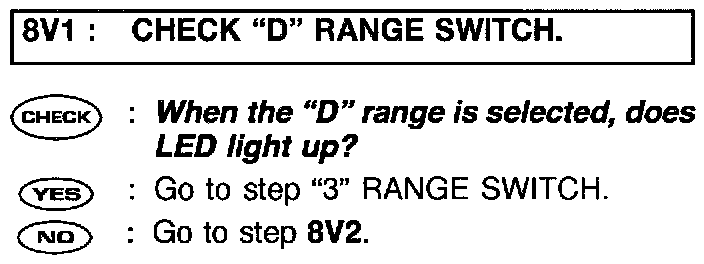

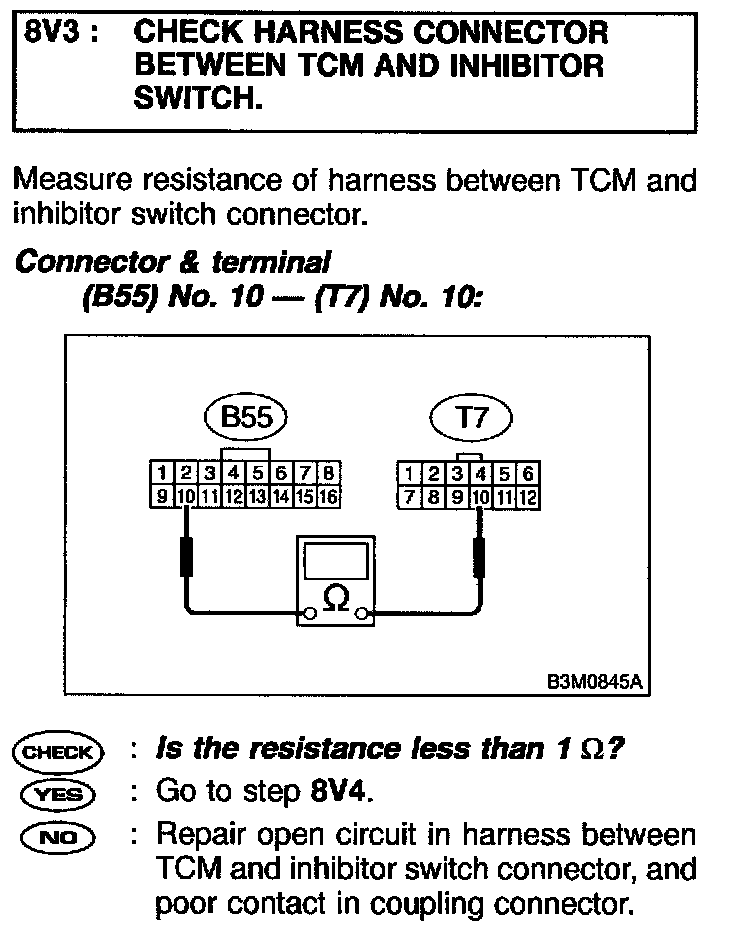

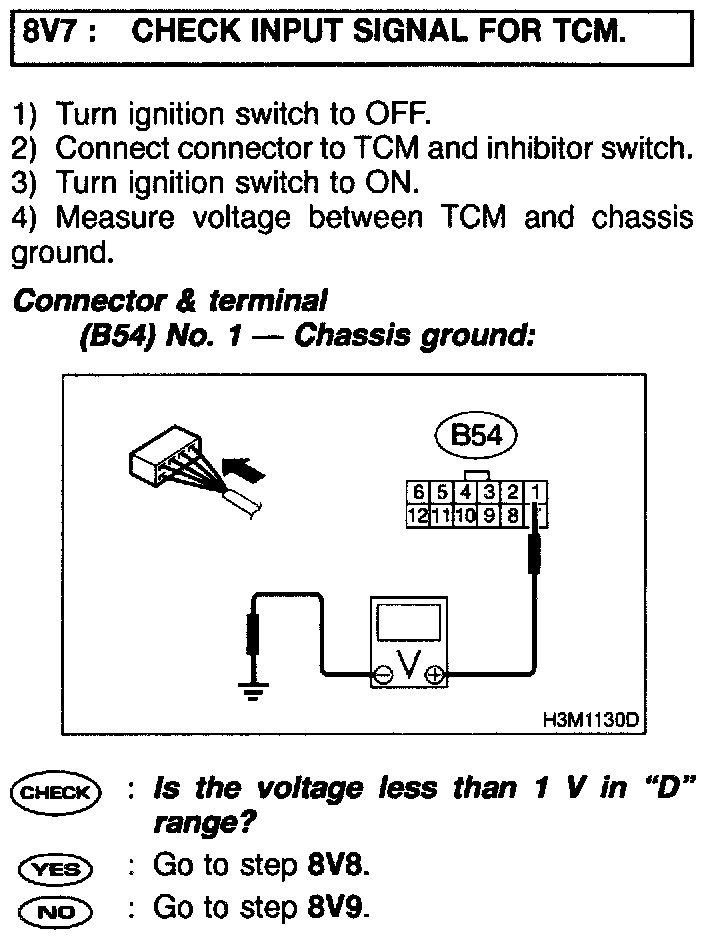

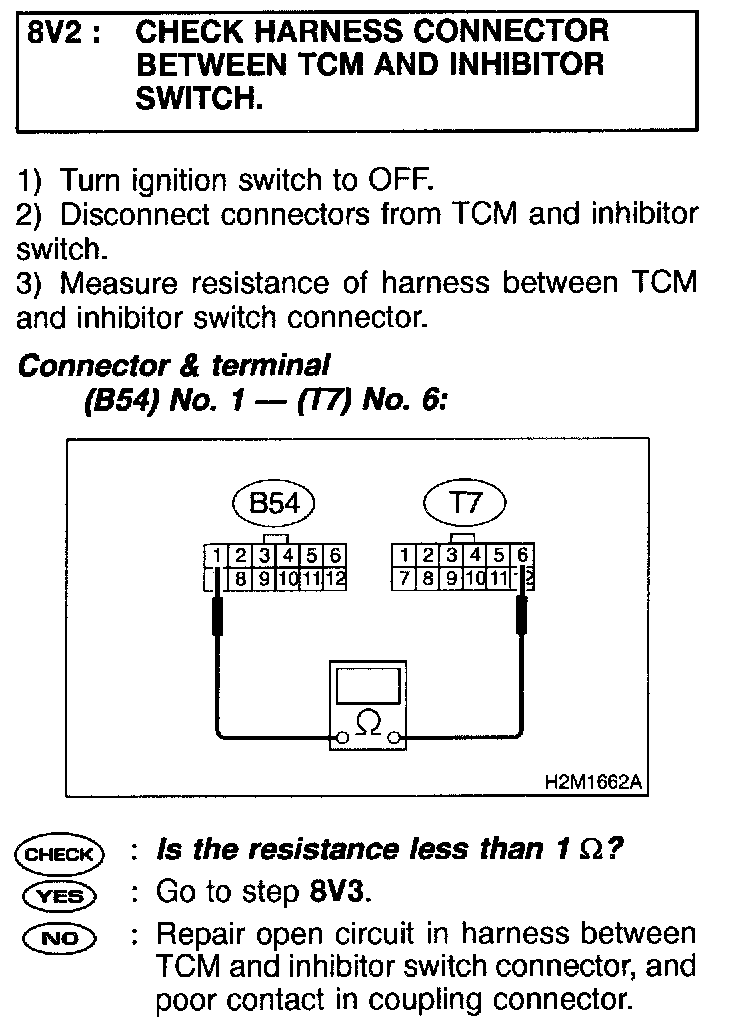

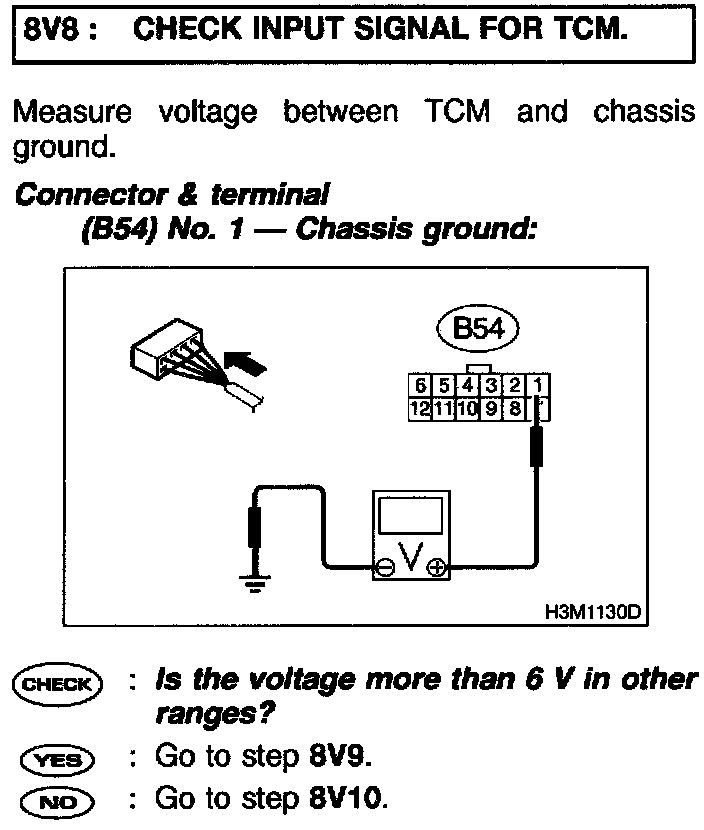

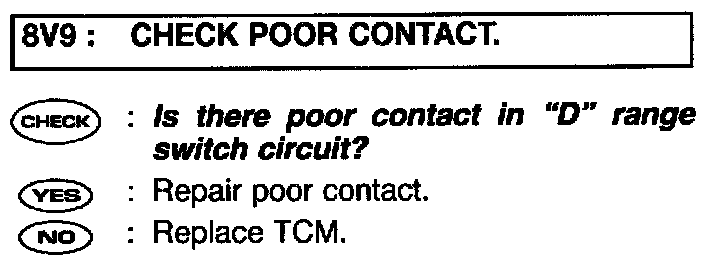

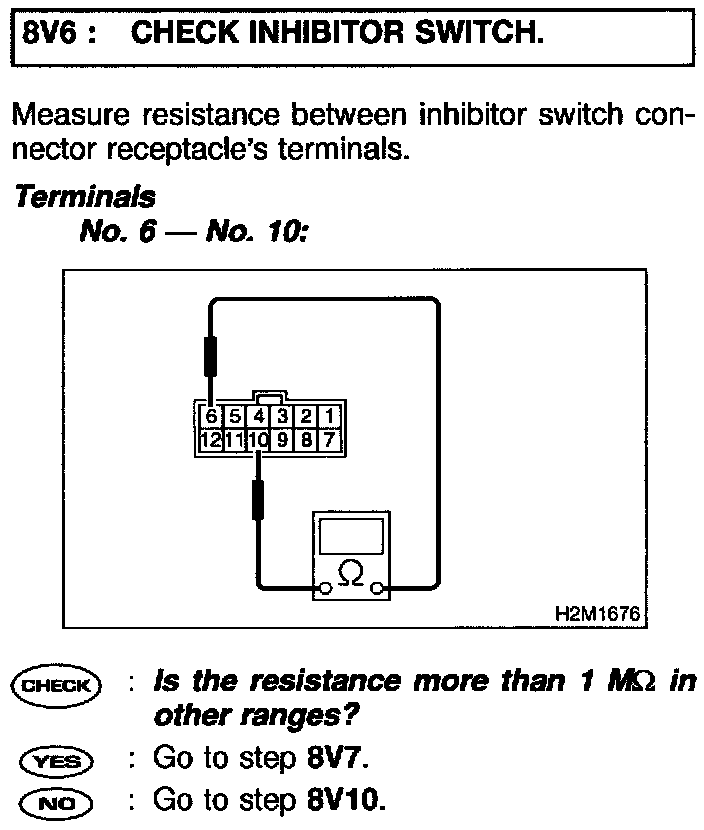

CHECK "D" RANGE SWITCH.
DIAGNOSIS:
- Input signal circuit of "D" range is open or shorted.
TROUBLE SYMPTOM:
- Shift characteristics are erroneous.
