MAIN RELAY AND FUEL PUMP RELAY

REMOVAL AND INSTALLATION

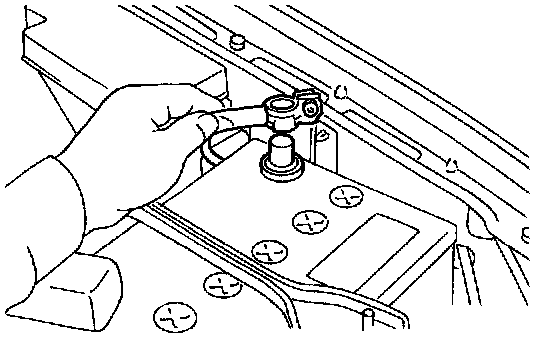

1. Disconnect battery ground cable.

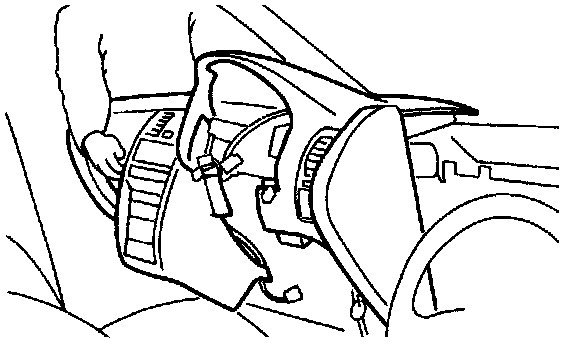

2. Remove instrument panel.

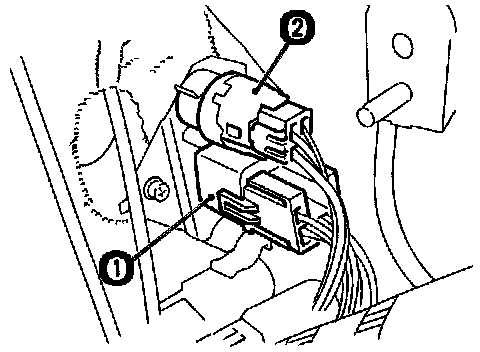

3. Remove screw which installs bracket of Main Relay (1) and Fuel Pump Relay (2).
4. Disconnect connectors from Main Relay and Fuel Pump Relay.
(1) Main Relay
(2) Fuel Pump Relay

5. Installation is in the reverse order of removal.
