Timing Belt

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1998 Subaru.

AI Repair Guides

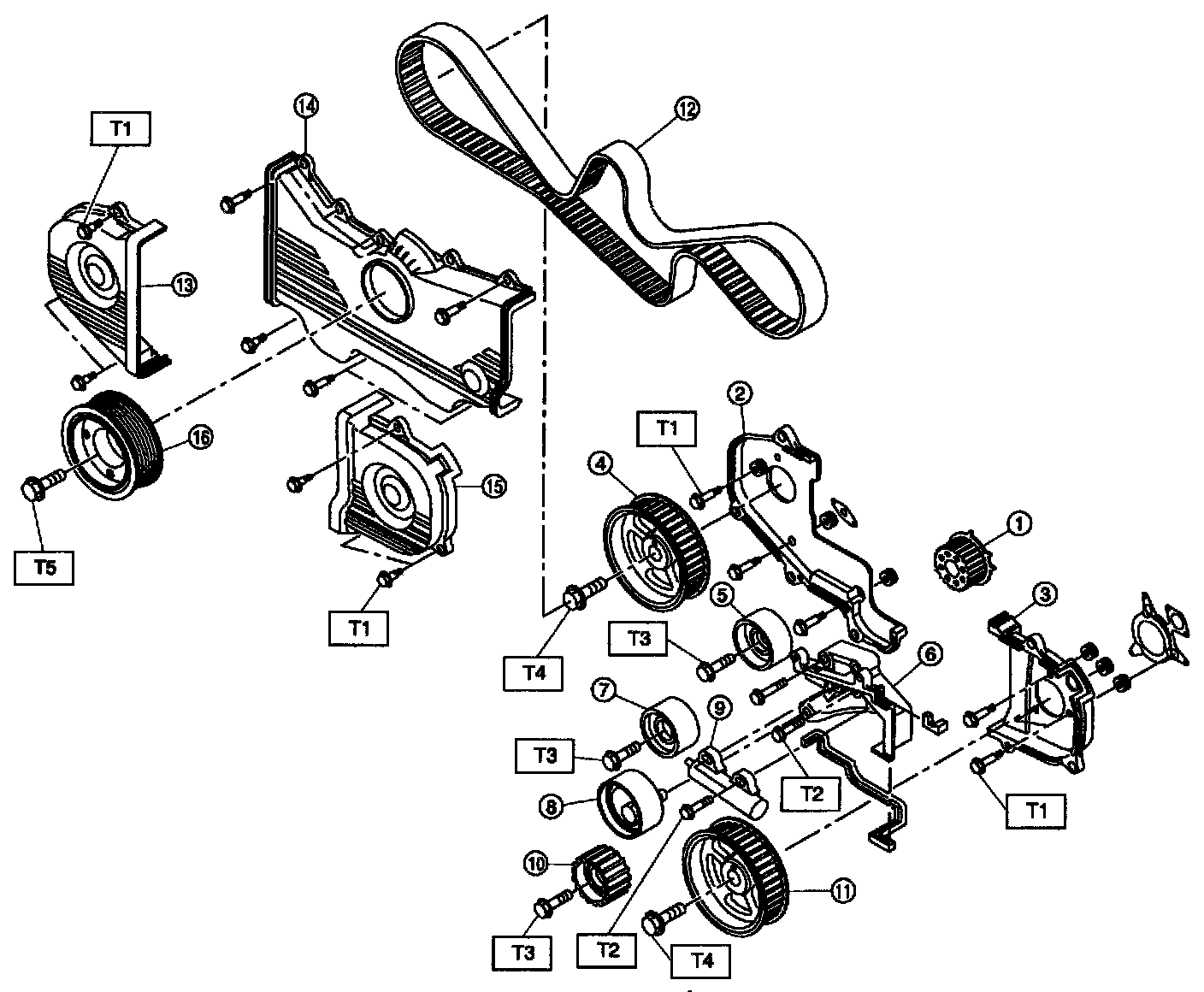

Timing Belt




1) Crankshaft sprocket
2) Belt cover No. 2 (RH)
3) Belt cover No. 2 (LH)
4) Camshaft sprocket (RH)
5) Belt idler
6) Tensioner bracket
7) Belt idler
8) Belt tensioner
9) Tensioner adjuster
10) Belt idler No. 2
11) Camshaft sprocket (LH)
12) Timing belt
13) Belt cover (RH)
14) Front belt cover
15) Belt cover (LH)
16) Crankshaft pulley
