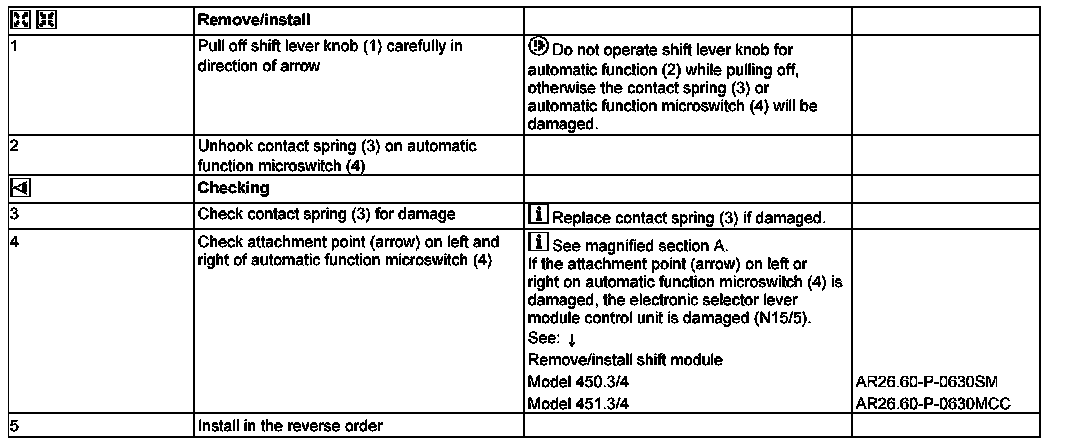

AR26.60-P-0633SM Remove/Install Contact Spring For Automatic Function Of Shift Module

TRANSMISSION 717.407 /408 /409 /476 in MODELS 450.3 /4
TRANSMISSION 717.4 in MODEL 451.3 /4 except CODE (494) USA version

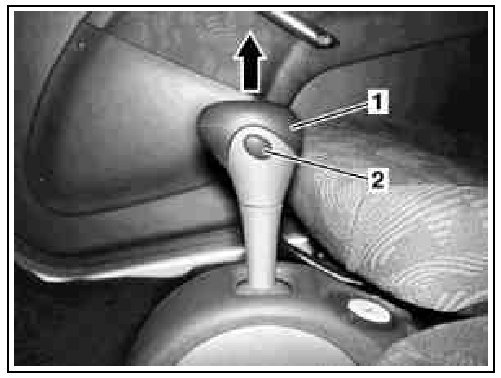

Shown on model 450







1 Shift lever knob
2 Shift lever knob automatic function

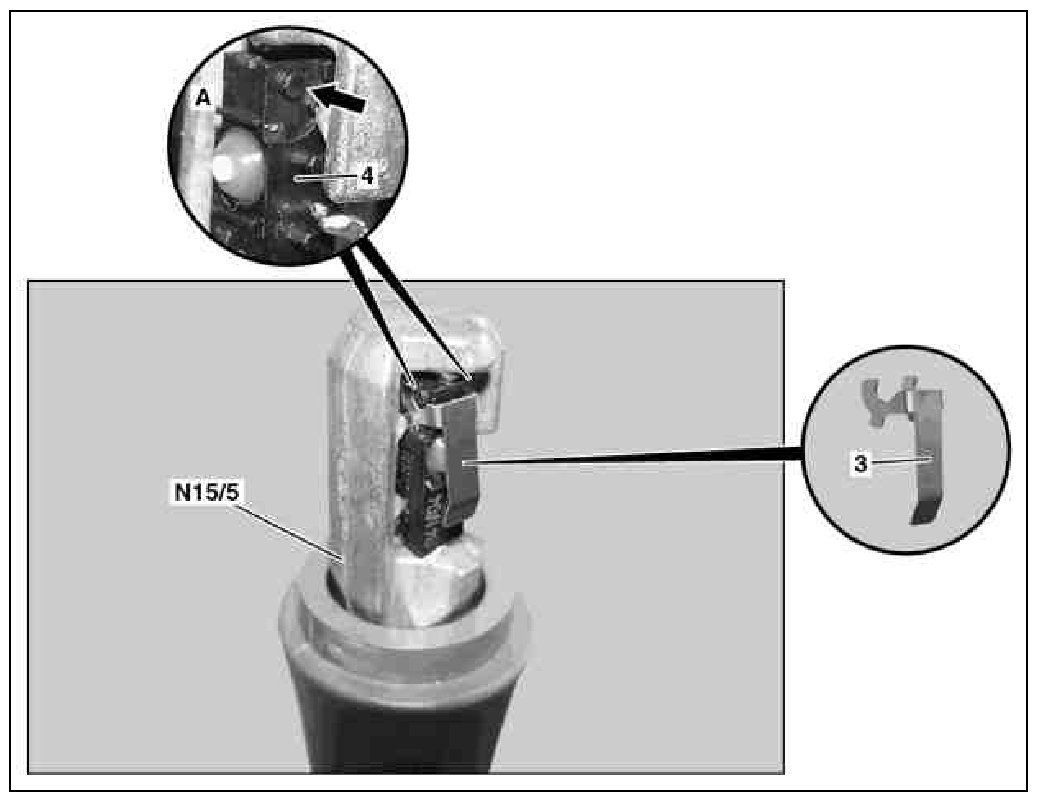

Illustrated on model 450







3 Contact spring
4 Automatic function microswitch
N15/5 Electronic selector lever module control unit
