Output Shaft Clearance Measurement

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Saturn.

NOTICE: The 5th driven gear has an identifier groove marked on its face. Install the gear with the groove facing up.

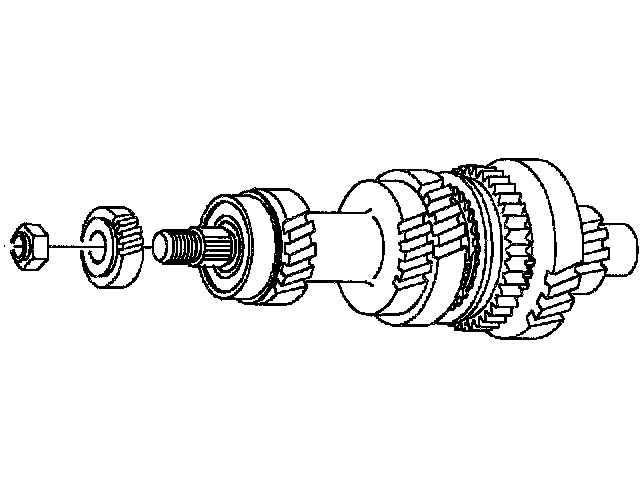

1. Assemble output shaft with 5th driven gear as shown. Use old nut and torque.
Torque:
Output Shaft Clamp Nut: 150 Nm (111 ft. lbs.)

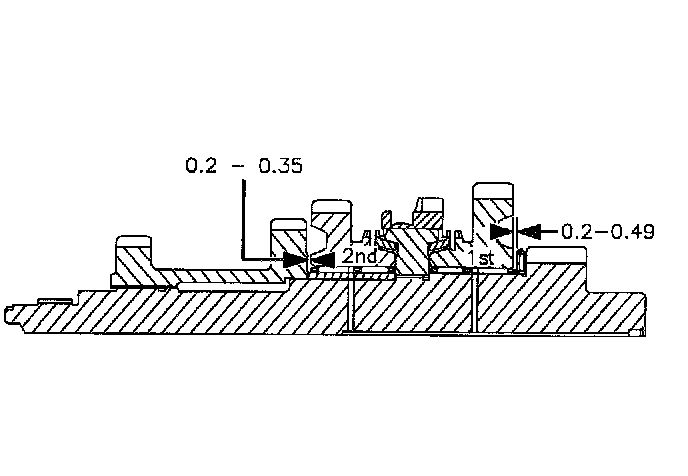

2. Measure clearance between 3rd/4th cluster gear and 2nd driven gear.
Clearance between 3rd/4th cluster gear and 2nd driven gear Standard: 0.20 - 0.35 mm (0.00 - 0.014 inch)
3. Measure clearance between 1st driven gear and 1st driven gear thrust washer.
Clearance between 1st driven gear and 1st driven gear thrust washer Standard: 0.20 - 0.0495 mm (0.008 - 0.019 inch)
