Powertrain Control Module (PCM)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Saturn.

AI Repair Guides

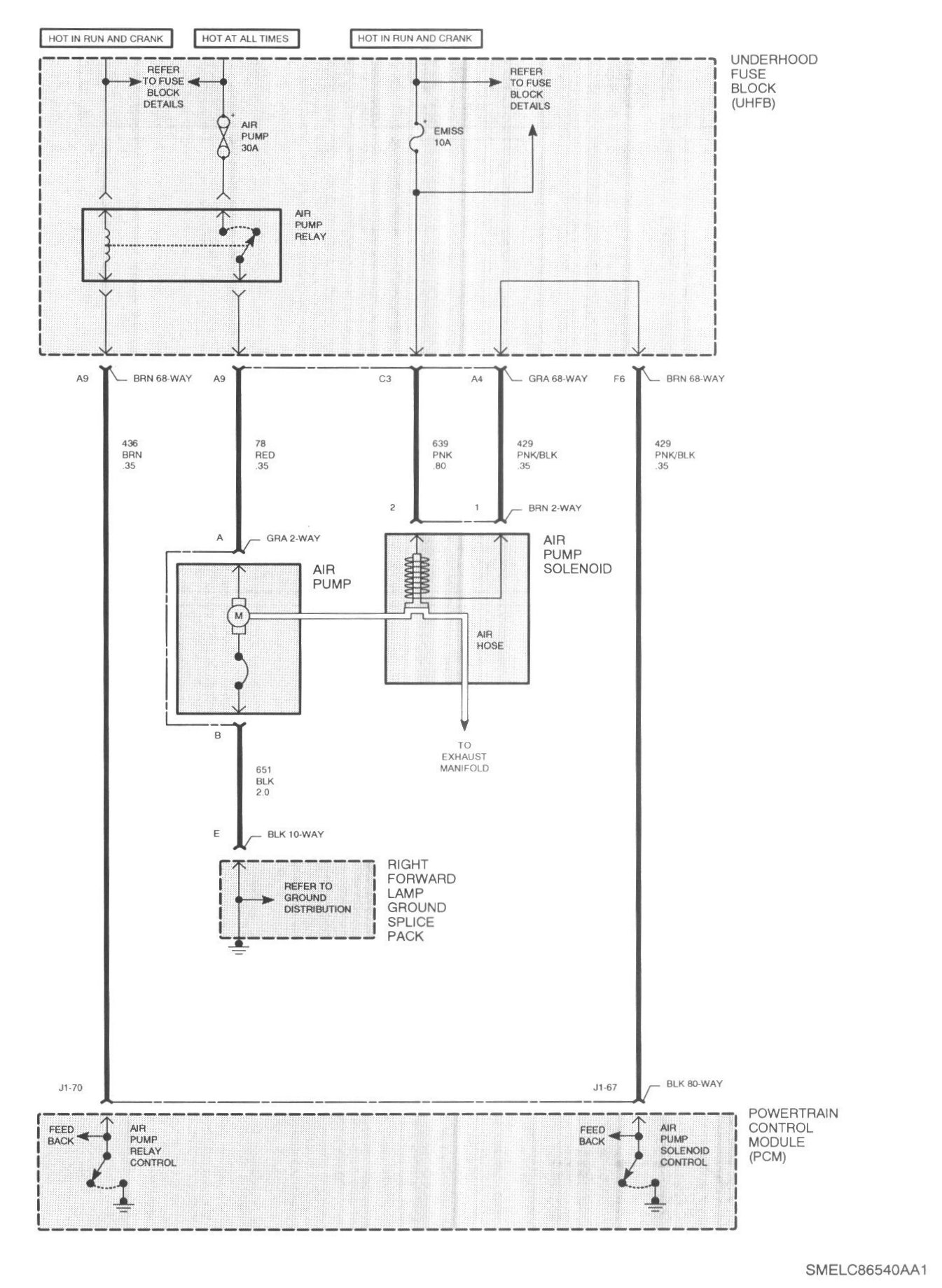

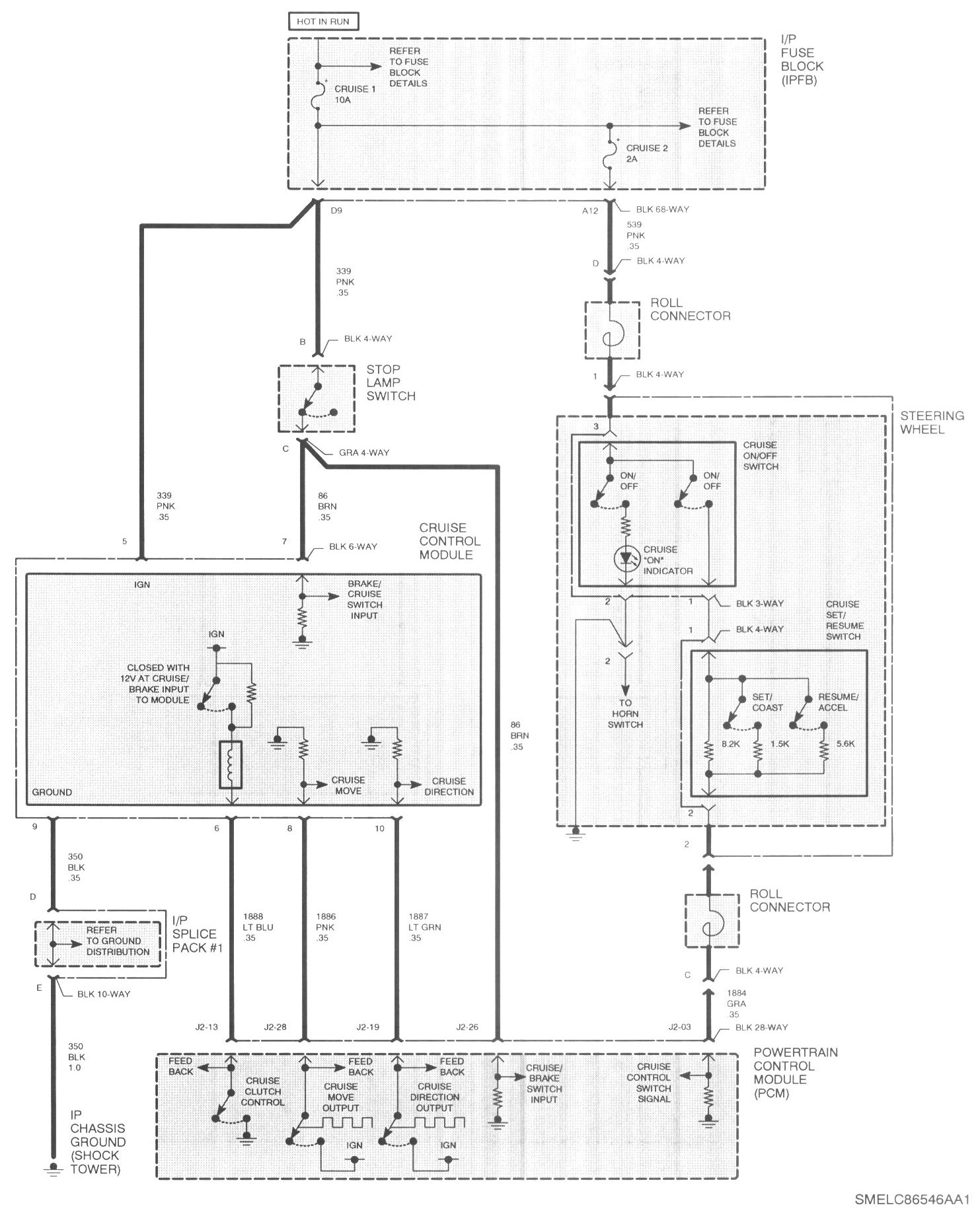

Powertrain Control Module (PCM) Schematics (Part 1 Of 9):

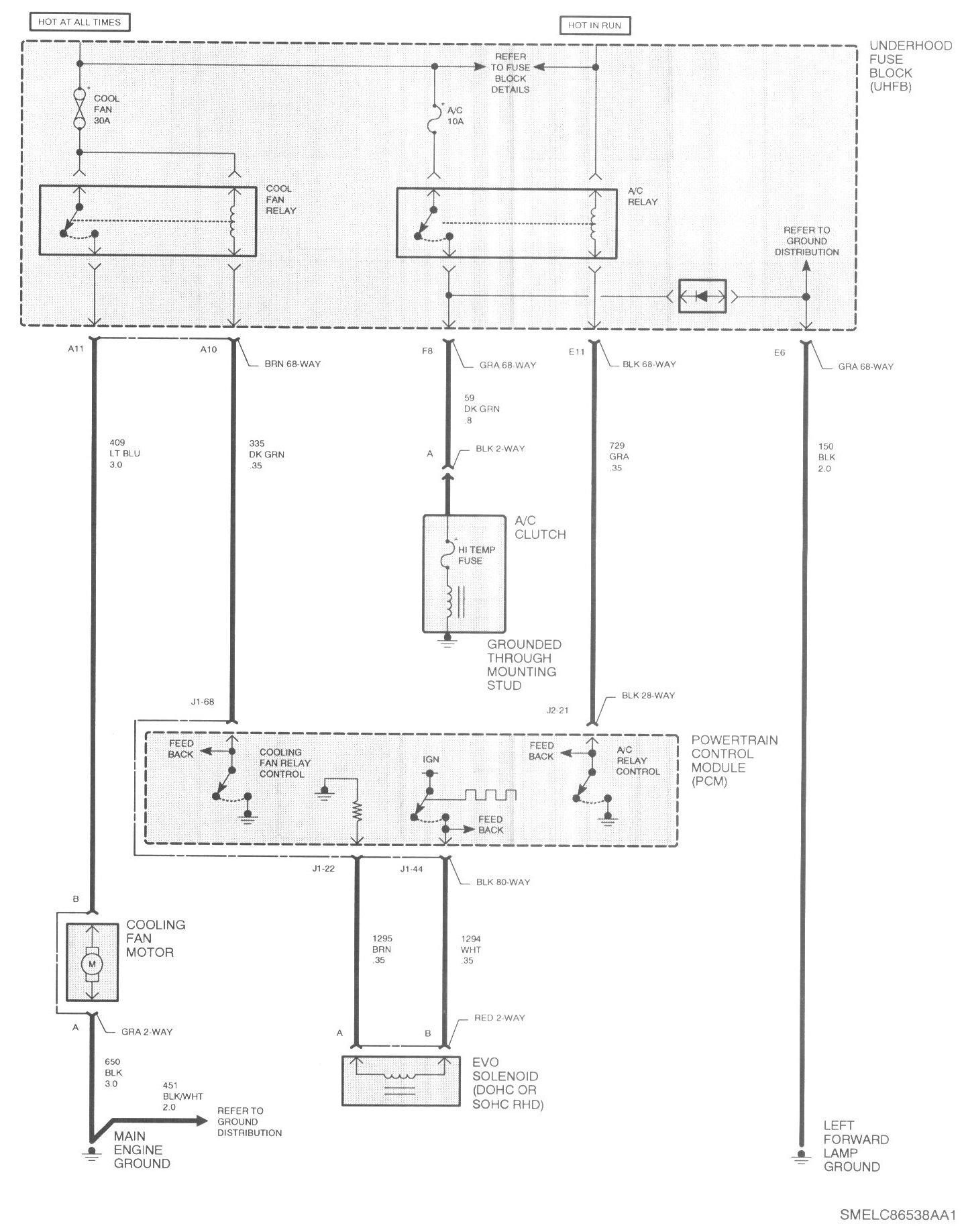

Powertrain Control Module (PCM) Schematics (Part 2 Of 9):

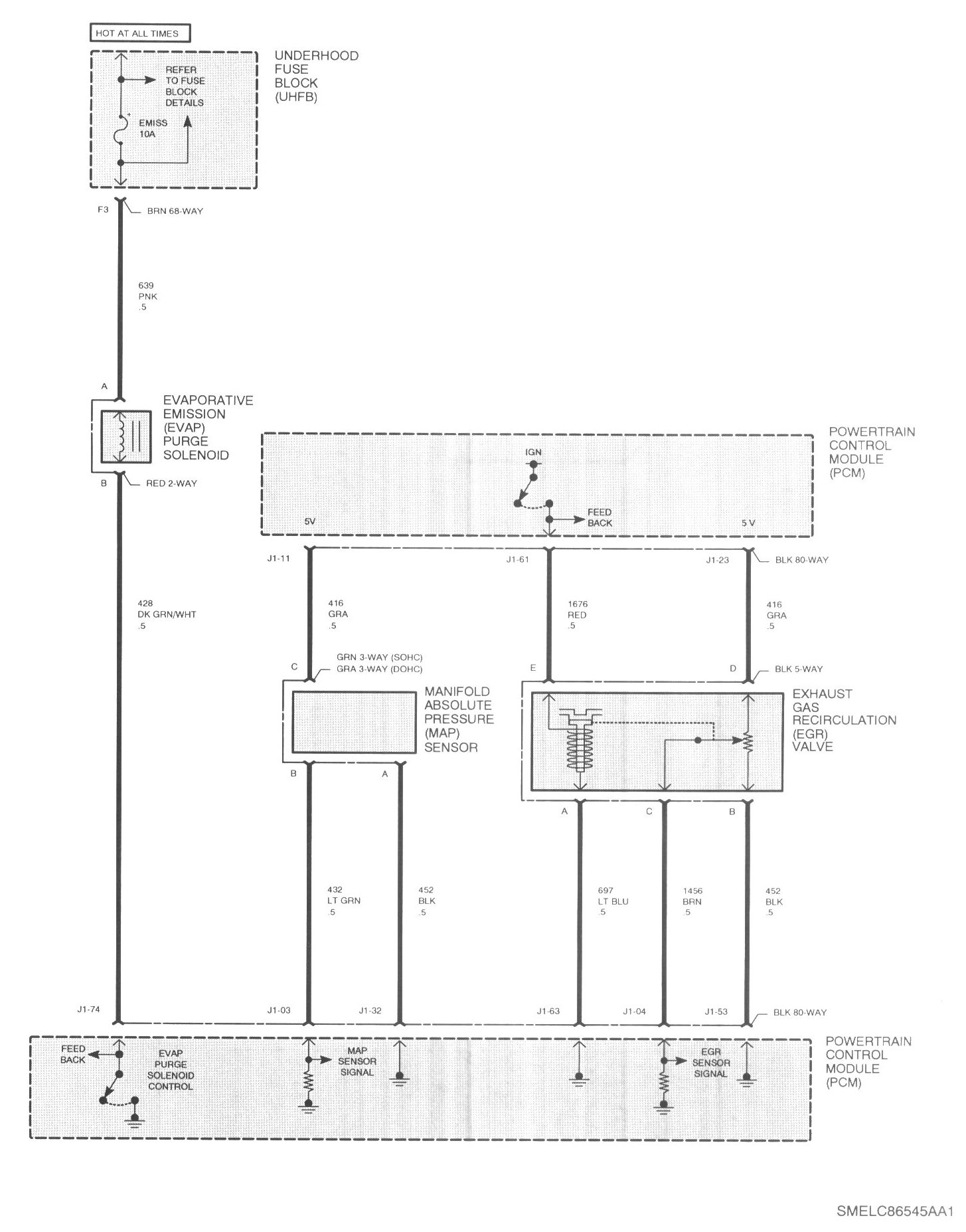

Powertrain Control Module (PCM) Schematics (Part 3 Of 9):

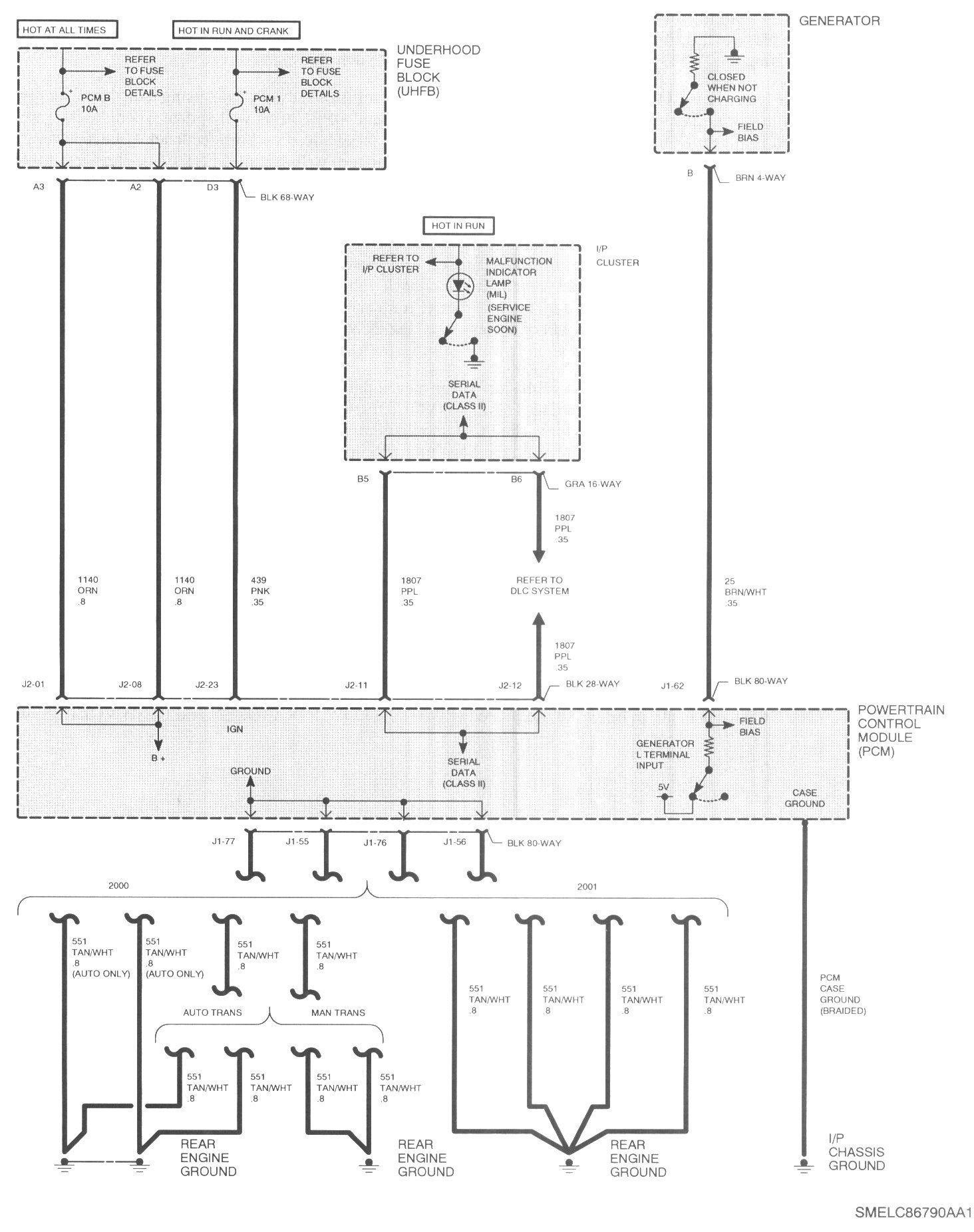

Powertrain Control Module (PCM) Schematics (Part 4 Of 9):

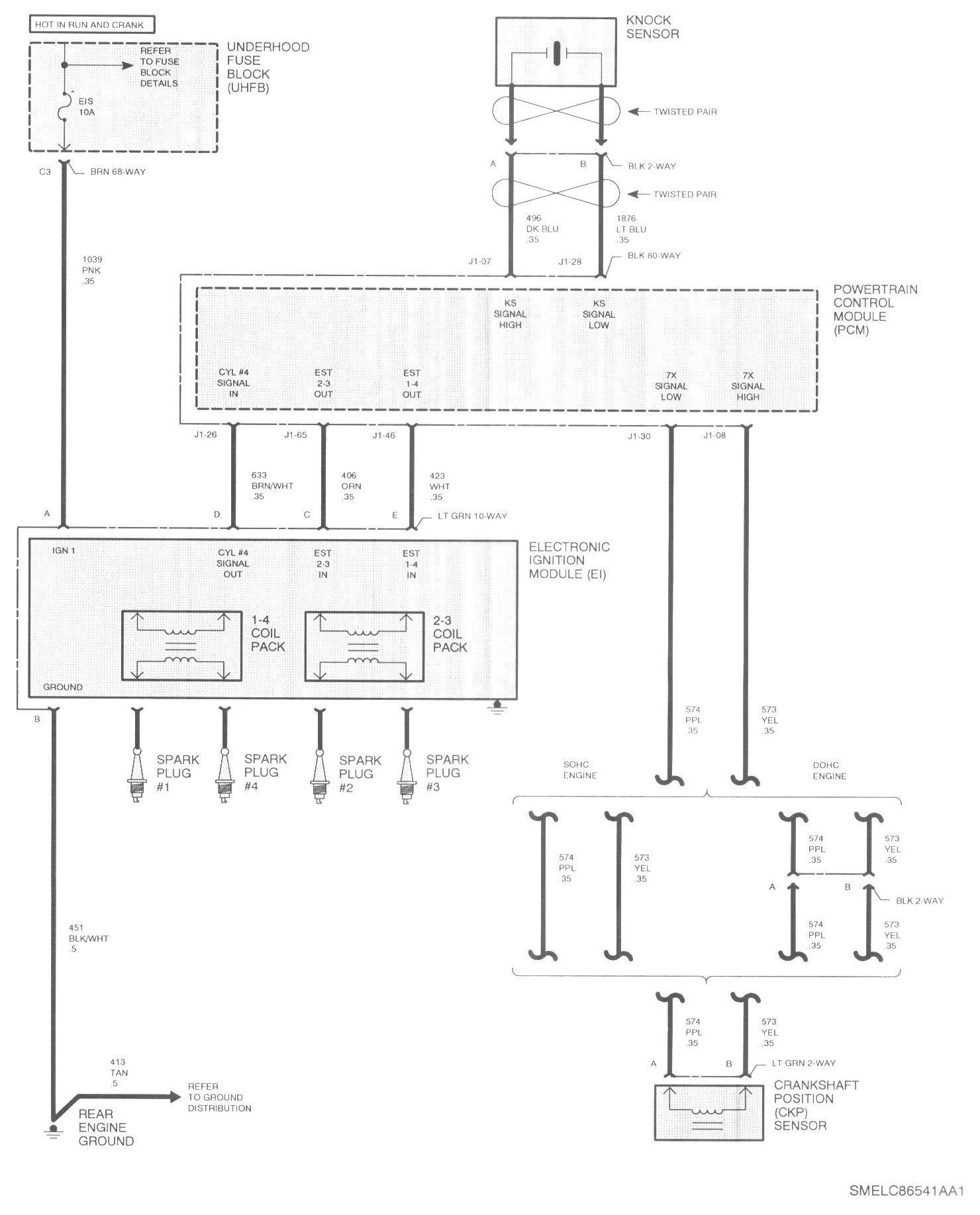

Powertrain Control Module (PCM) Schematics (Part 5 Of 9):

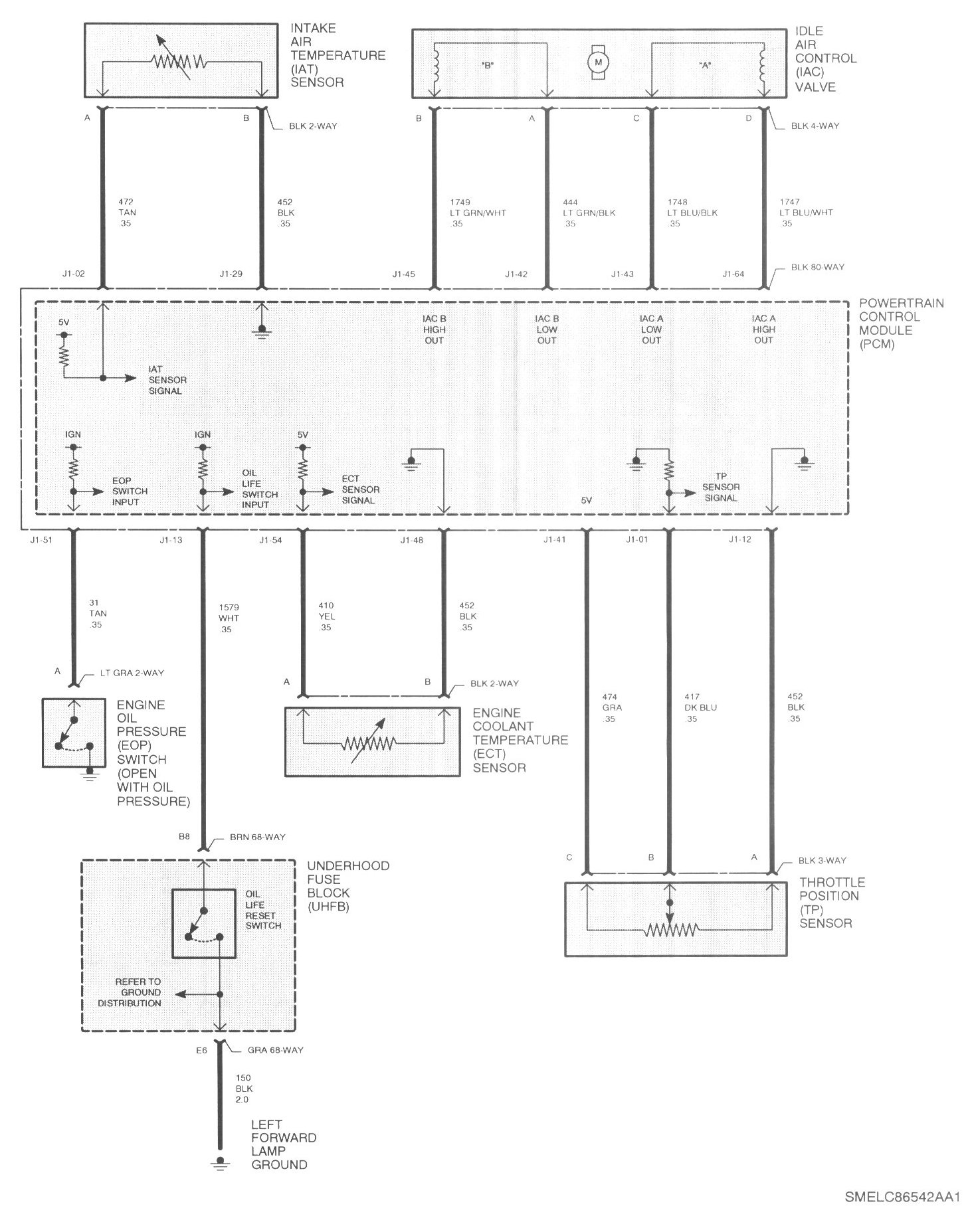

Powertrain Control Module (PCM) Schematics (Part 6 Of 9):

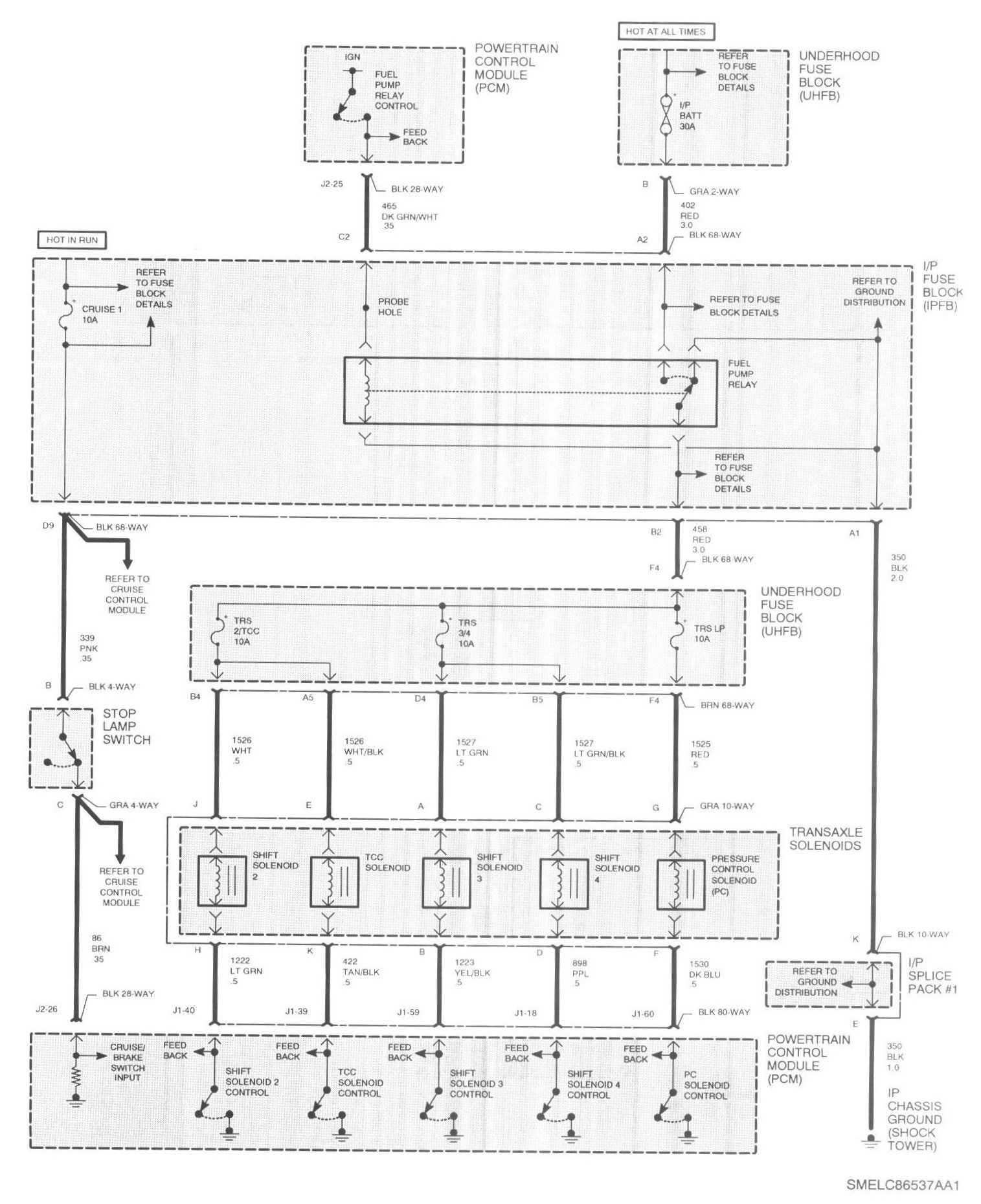

Powertrain Control Module (PCM) Schematics (Part 7 Of 9):

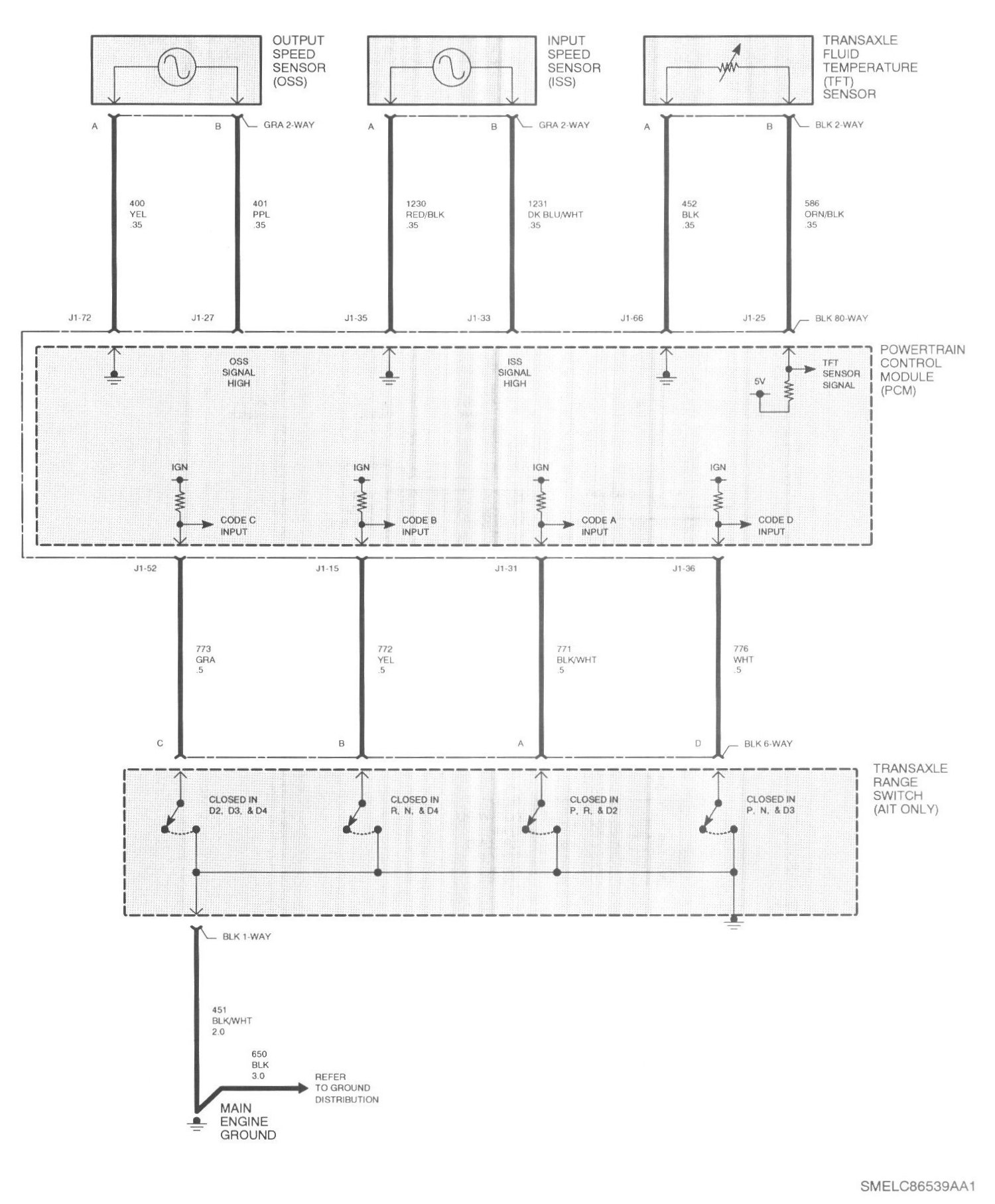

Powertrain Control Module (PCM) Schematics (Part 8 Of 9):

Powertrain Control Module (PCM) Schematics (Part 9 Of 9):
