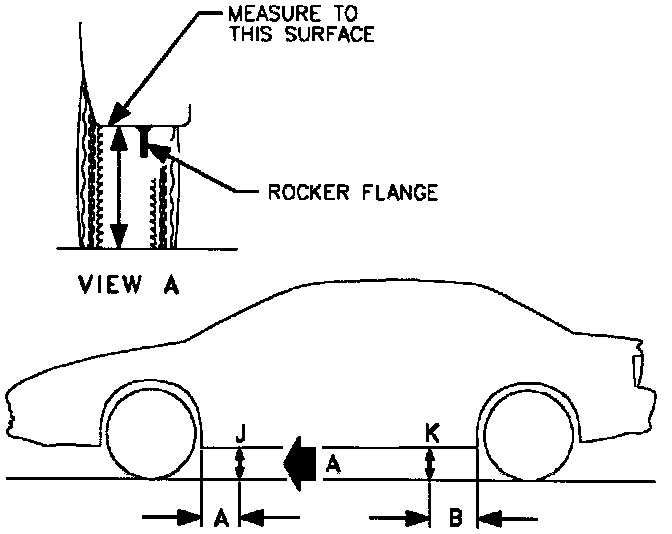

(Figure 1). Curb Height Measurement Points:
Sedan
A: 117 mm (4.6 inch)
B: 105 mm (4.1 inch)
J Front Rocker Height Range: 201 - 233 mm (7.8 - 9.0 inch)
K Rear Rocker Height Range: 202 - 234 mm (8.0 - 9.3 inch)
Vehicle Ride (Trim) Height Specifications
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1998 Saturn.
Sedan
A: 117 mm (4.6 inch)
B: 105 mm (4.1 inch)
J Front Rocker Height Range: 201 - 233 mm (7.8 - 9.0 inch)
K Rear Rocker Height Range: 202 - 234 mm (8.0 - 9.3 inch)
