The Transaxle Controller Module (TCM) data definitions shown are intended to assist in understanding the data displayed by a Scan tool when it is communicating with the transaxle controller. A thorough understanding of this data will not only aid in diagnosing transaxle related problems, but will also help eliminate unnecessary repairs.
Parameters are in alphabetical order.

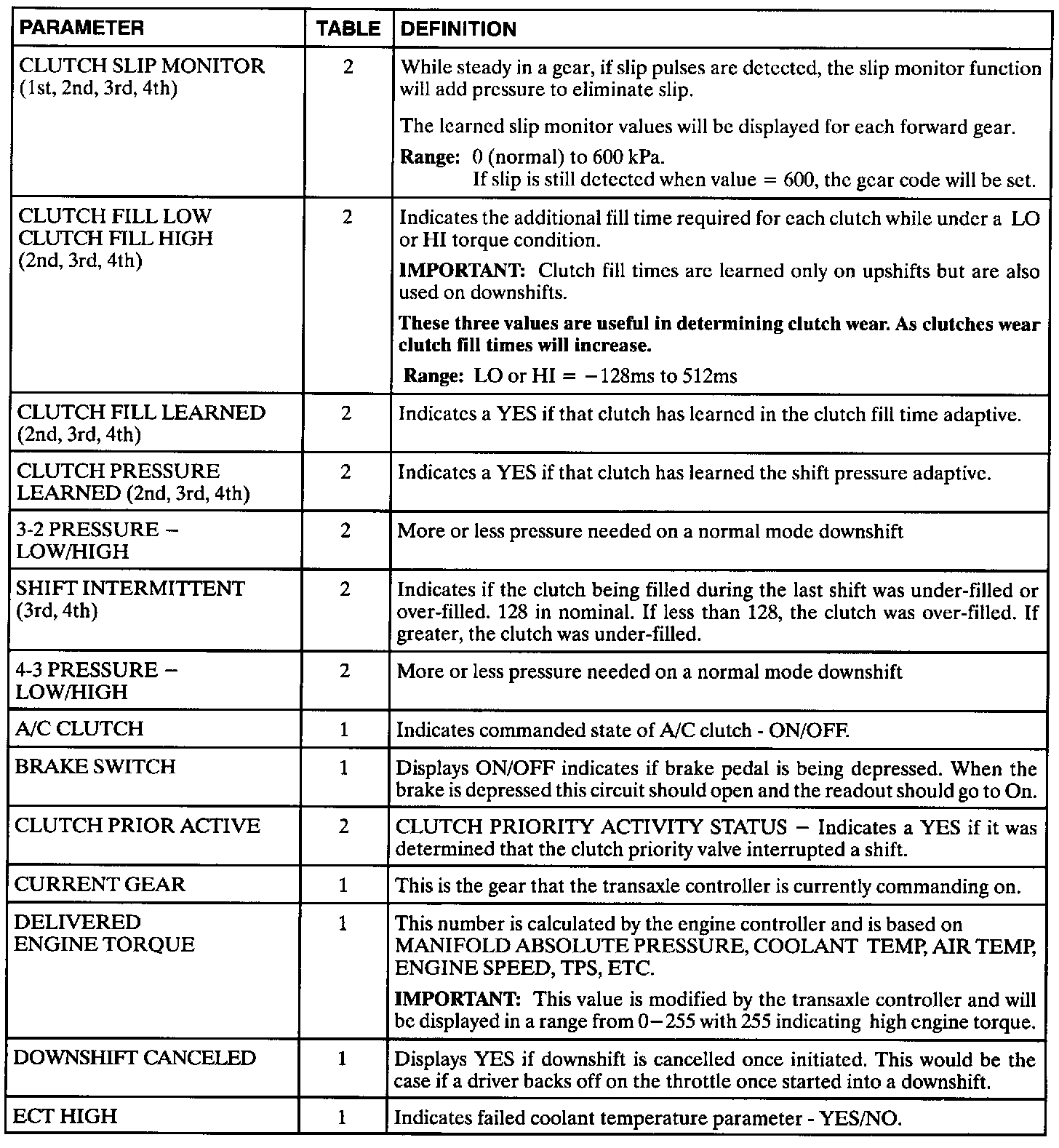

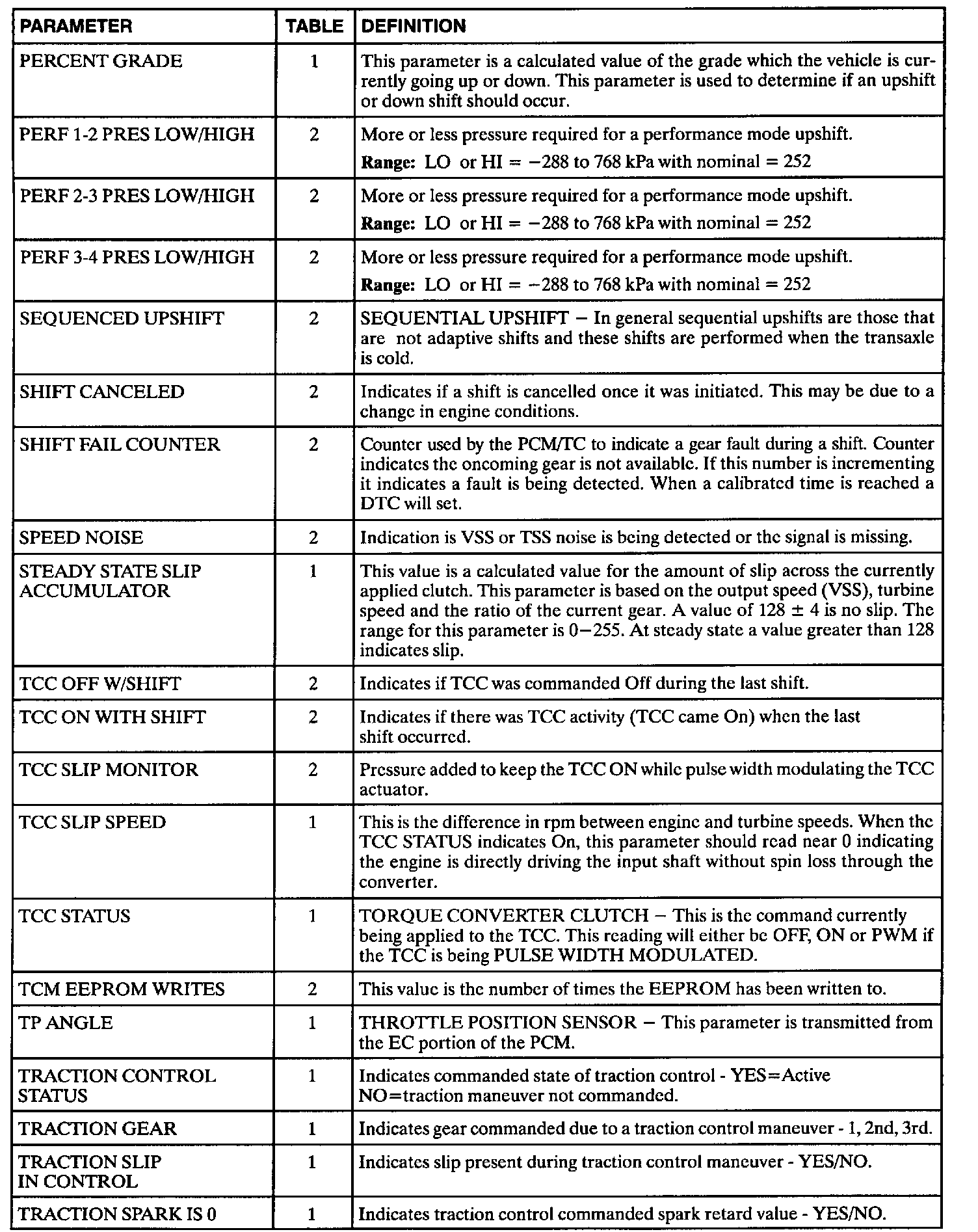

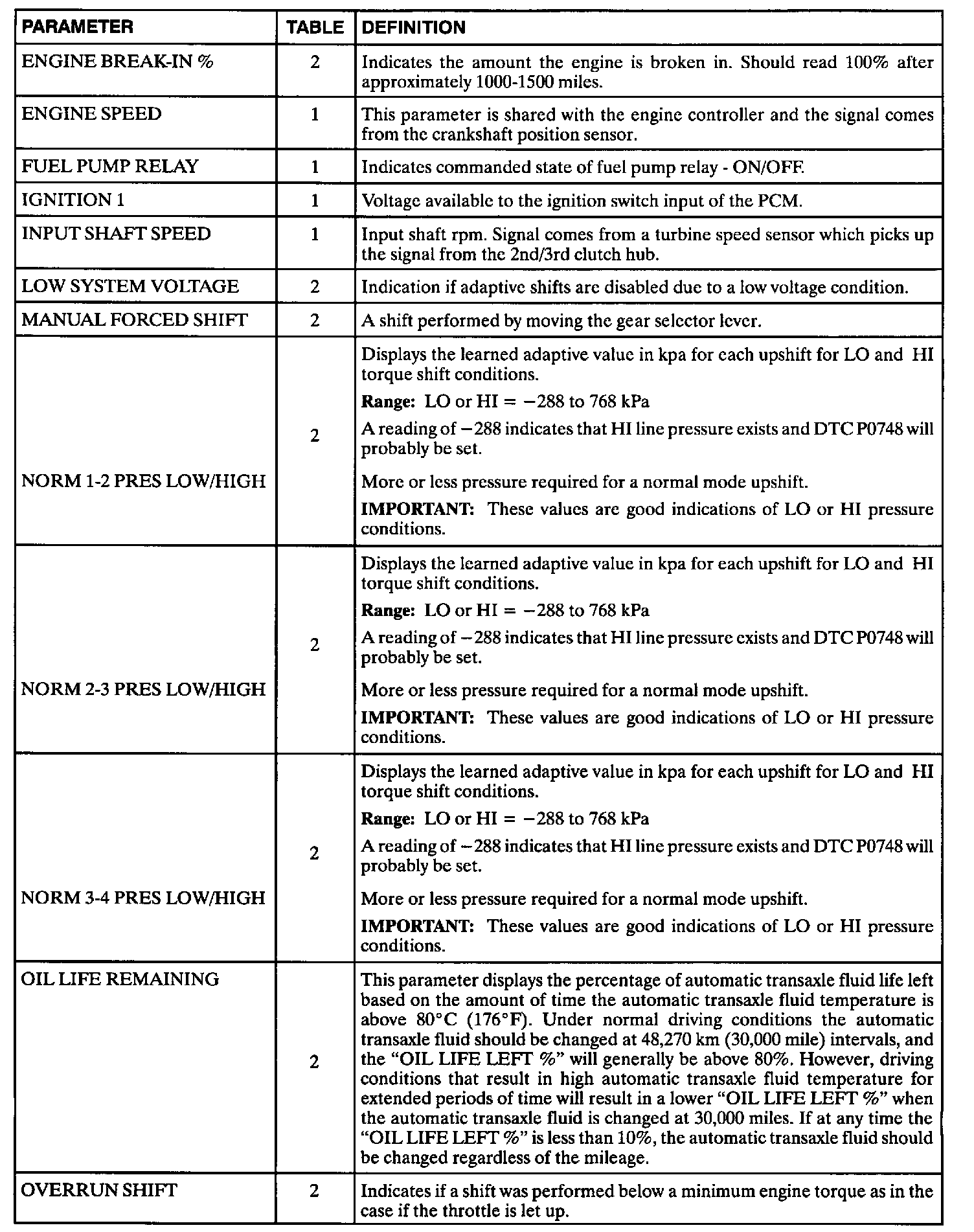

Table #1: Trans Data Table
Table #2: Adaptive Table
