Input Shaft Clearance Measurement

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1996 Saturn.

AI Repair Guides
1. Assemble input shaft with 5th gear bearing, 5th gear, 5th reverse synchronizer assembly, reverse cone, and washer. Use old nut and torque.
- Torque: 150 N.m (110 ft. lbs.).

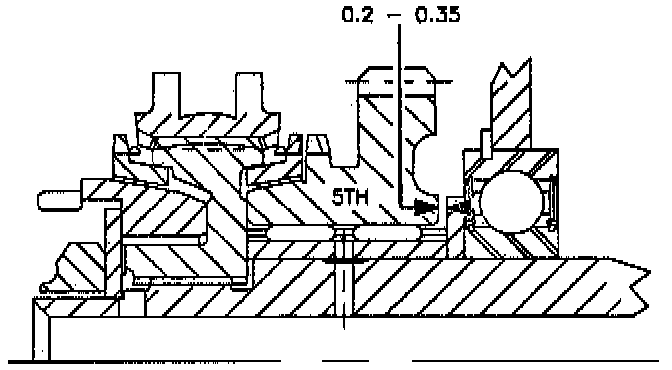

2. Measure clearance between 5th drive gear and 5th gear thrust washer.
- Clearance:
Standard: 0.20 mm - 0.35 mm (0.008 in. - 0.014 in.).

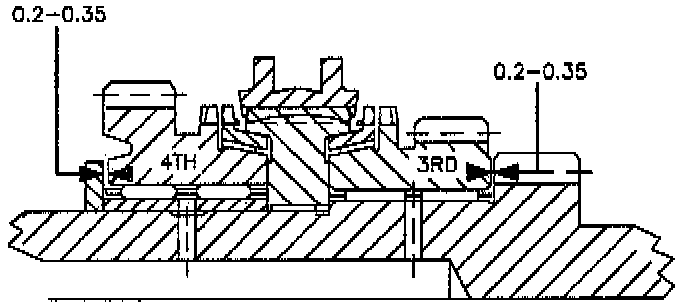

3. Measure clearance between 4th drive gear and 4th gear thrust washer.
- Clearance:
Standard: 0.20 mm - 0.35 mm (0.008 in. - 0.014 in.).
4. Measure clearance between 3rd drive gear and input shaft.
- Clearance:
Standard: 0.20 mm - 0.35 mm (0.008 in. - 0.014 in.).
