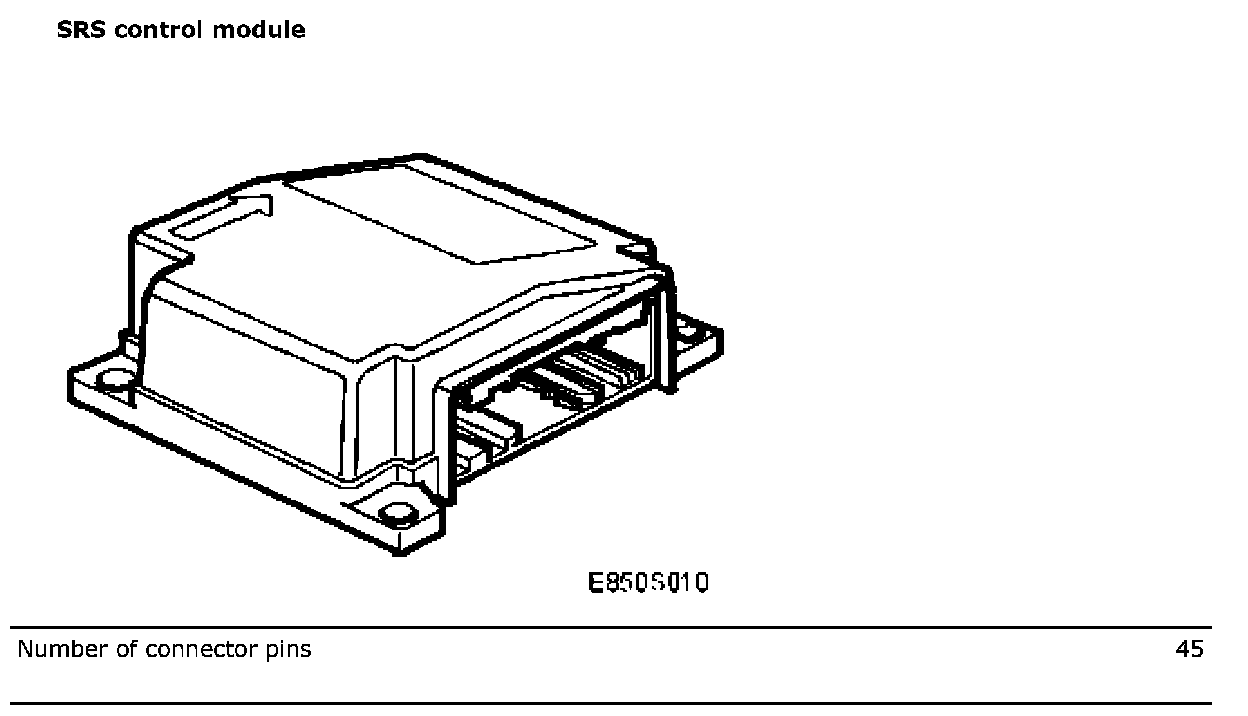

SRS Control Module


SRS Control Module:

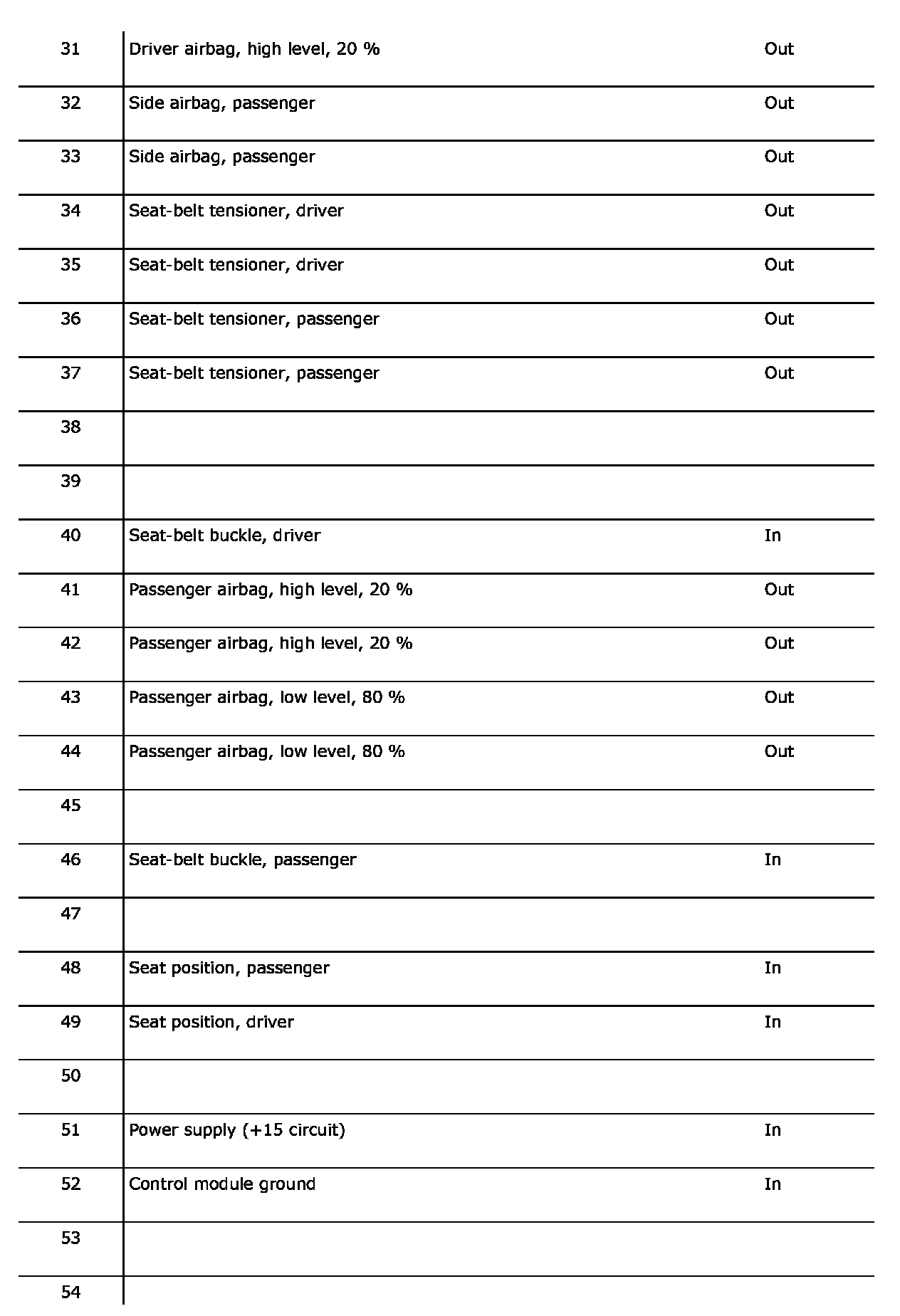

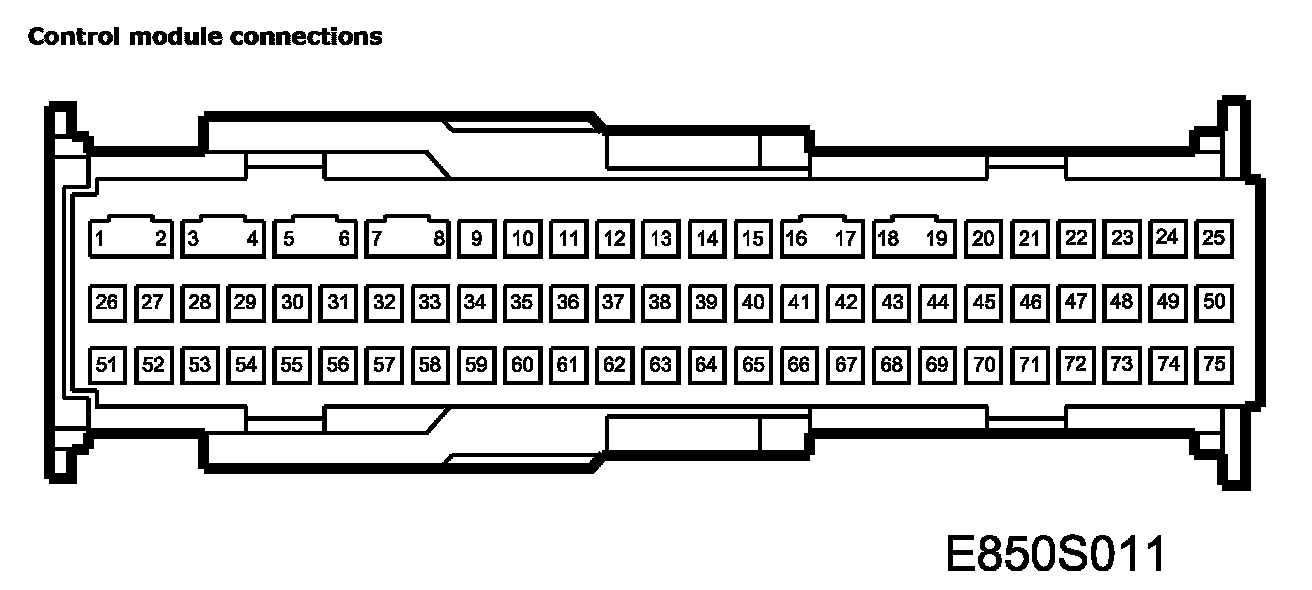

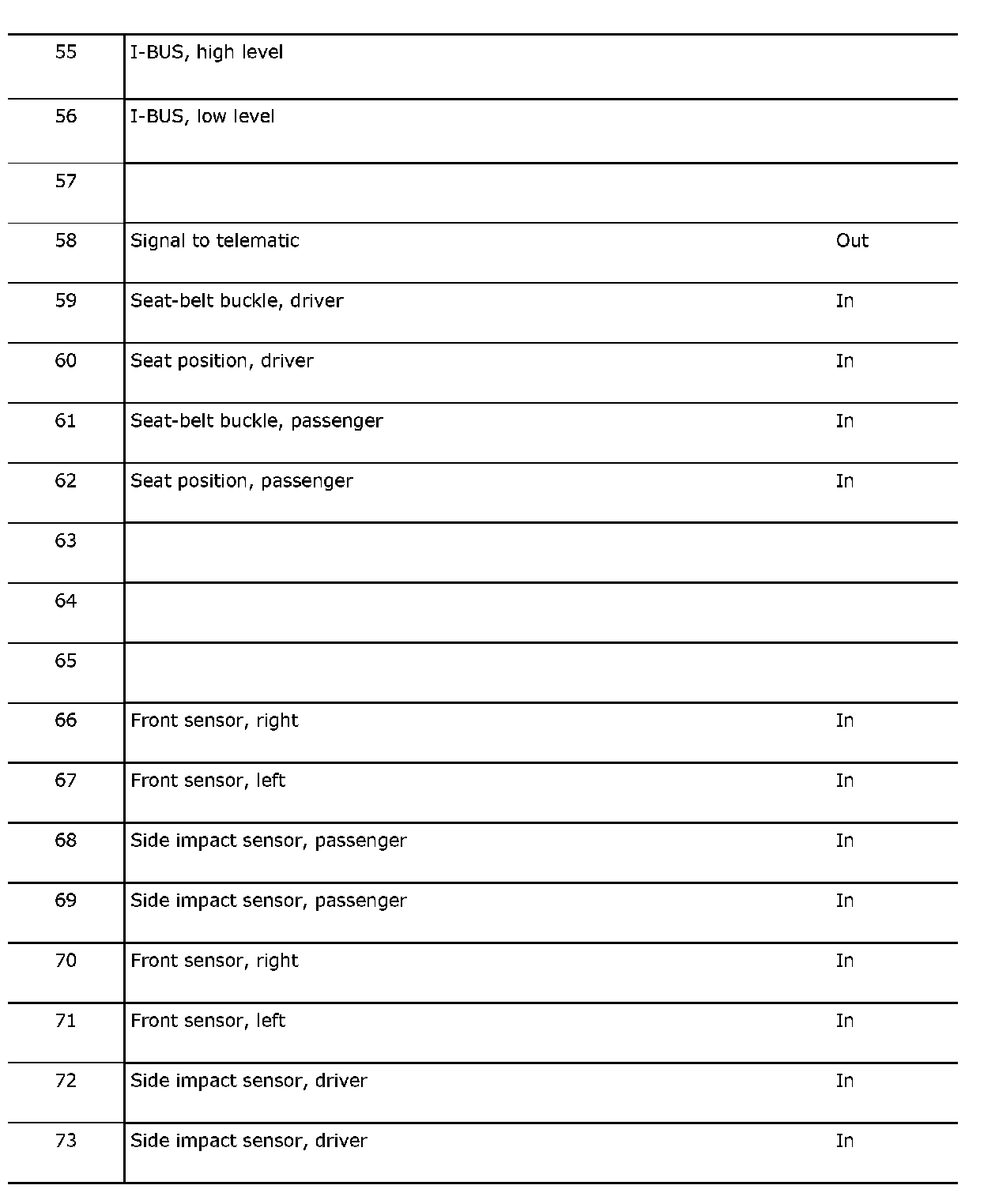

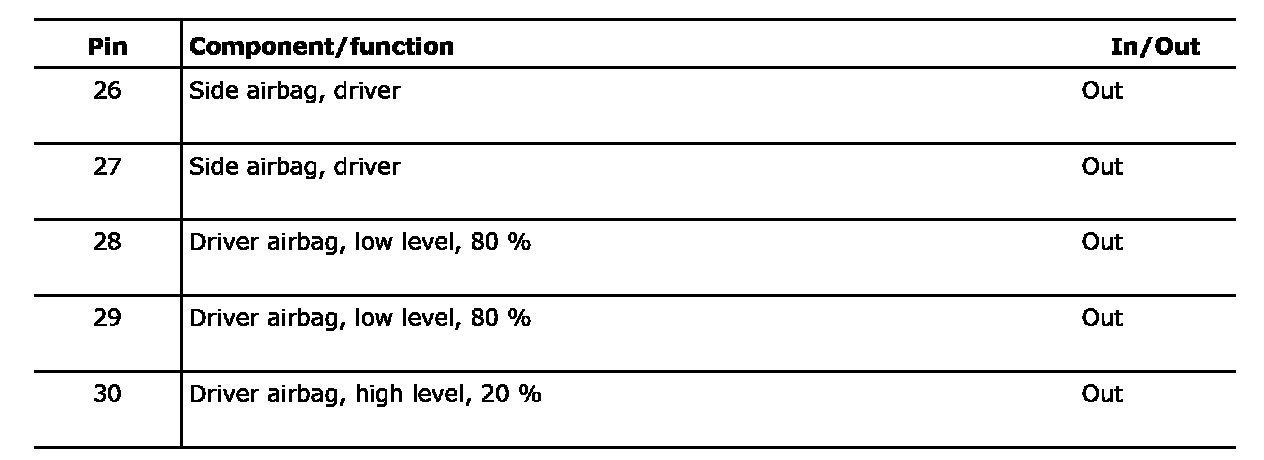

Control module connections


Control Module Connections:




Part 1:




Part 2:




Part 3:

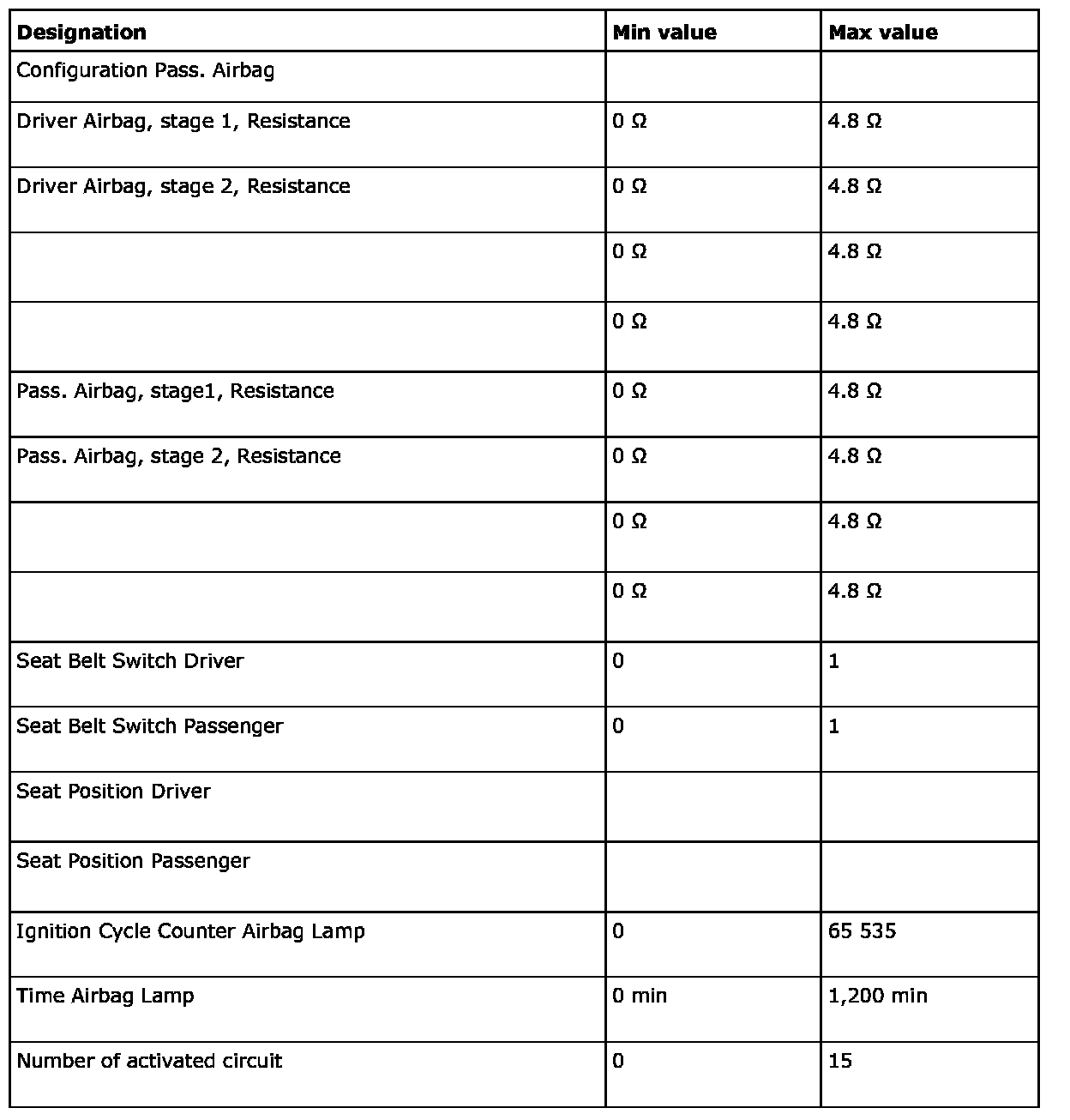

Measurement values
The following table indicates the values for measuring SRS levels. The diagnostic tool should be used for measurement.
