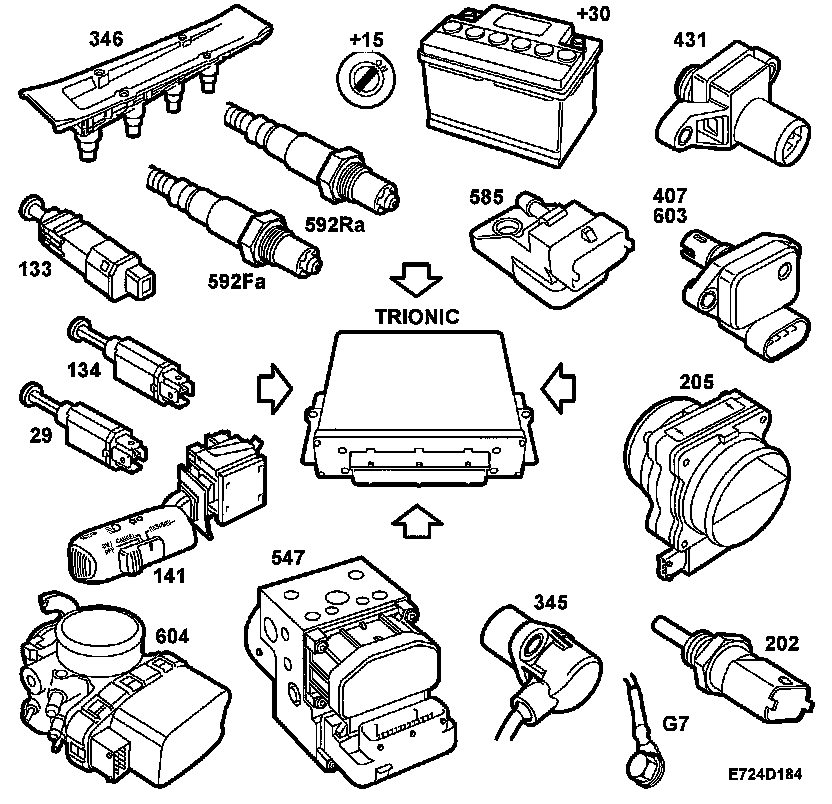

Control Module Inputs
^ Power supply +30
^ Power supply +15
^ Power ground
^ Mass air flow sensor (205)
^ Manifold absolute pressure sensor (431)
^ Charge air absolute pressure sensor (603)
^ Intake air temperature sensor (407)
^ Tank differential pressure sensor (585)
^ Temperature sensor, coolant (202)
^ Speed, wire from ABS (547) Speed, wire from ABS
^ Pedal position sensor
^ Cruise control switch
^ Pedal switches
^ Throttle position sensor
^ Oxygen sensor 1 (592Fa)
^ Oxygen sensor 2 (592Ra)
^ Ignition discharge module (346)
