Performance Test, A/C System
A performance test will reveal whether or not the A/C system cooling is sufficient.

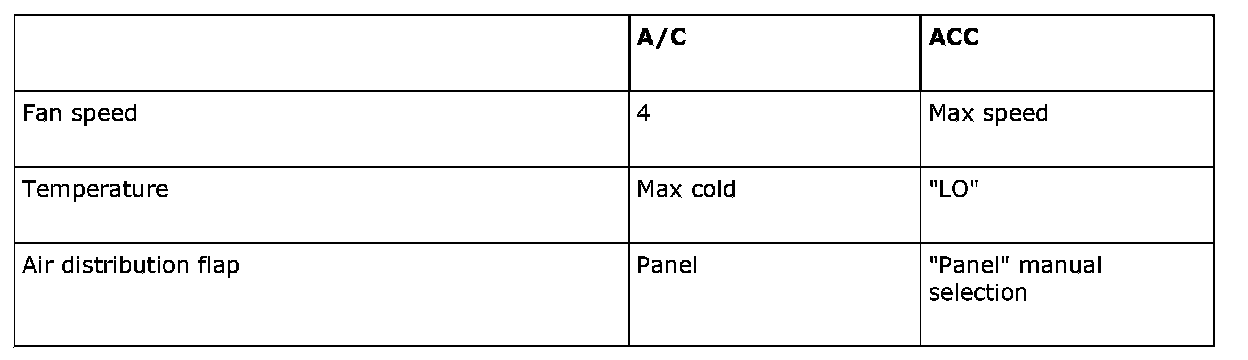

Conditions
The following conditions must be fulfilled:
- Doors, windows and bonnet must be closed.
- All panel outlets should be open.
- Engine speed must be 1500-2000 rpm.
- Ambient temperature must be 20-25 degrees C.
Check
Check the temperature 50 mm inside the centre panel outlet. Read the temperature after 5 minutes.
The temperature should be below 7 degrees C.
