Control Module Outputs

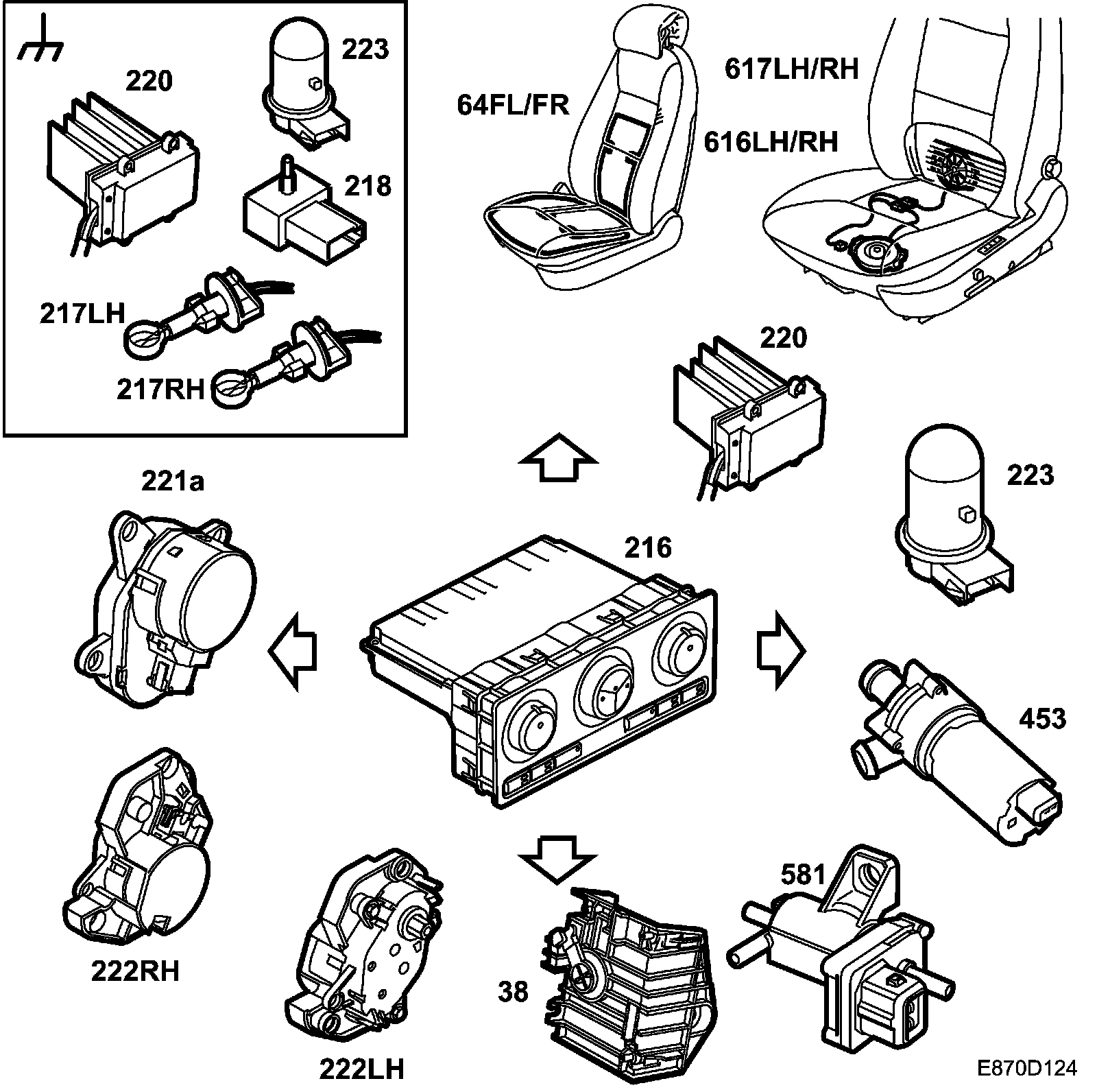

Control Module Outputs:
- Sensor ground, reference ground.
- Solar sensor, power supply (223).
- Ventilation fan control (220).
- Stepping motor, left-hand air-blending flap (222LH).
- Stepping motor, right-hand air-blending flap (222RH).
- Stepping motor, air distribution damper (221a).
- Air recirculation motor (38)
- Heat exchanger shut-off valve (581).
- Circulation pump (453).
- Heating pad, seat, left and right
- Ventilation fan, seat, left and right.
