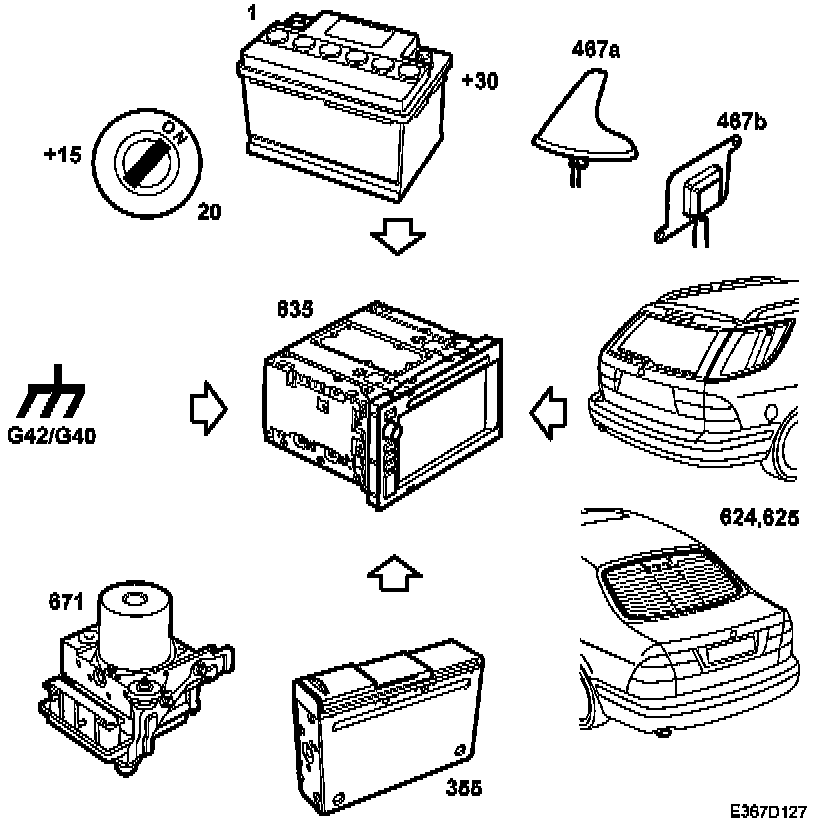

Head Unit Inputs






^ Power supply +15 (20)
^ Power supply +30 (1)
^ Ground (G42/G40)
^ Antenna signal, radio, HF (624, 625)
^ Antenna signal, GPS (467a/b)
^ Wheel speed, RL (671)
^ CD changer, line input right-hand channel (+/-) (355)
^ CD changer, line input left-hand channel (+/-) (355)
