Checking The Control Module Brake Light Input
^ Turn the ignition switch to the ON position.

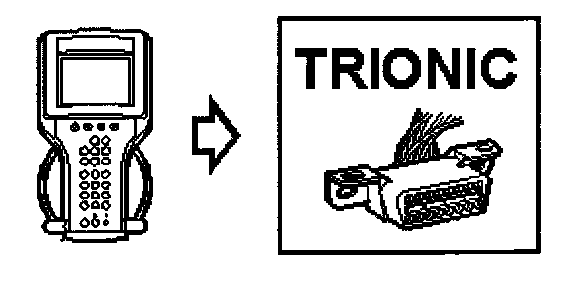

^ Contact Trionic.
^ Read value Brake Light (Trionic).
^ The reading should be ON when the brake pedal is depressed and OFF when the brake pedal is released.
Is the function correct?
NO ^ Changing Components
YES ^ Remedial Action OK
