35 Position ECU Plug:
For Terminal ID please refer to "Powertrain Management : Computers and Control Systems : Engine Control Module : Diagrams". Connector Views
CAUTION: When measuring Ohms, disconnect the ECU from the harness plug and never turn the ignition key on. It is possible that failure to follow these steps will result in damage to the ECU.

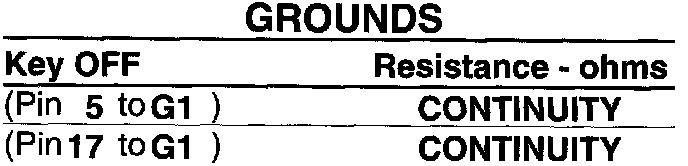

Grounds

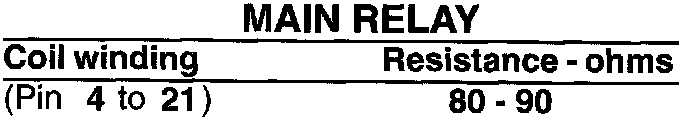

Main Relay

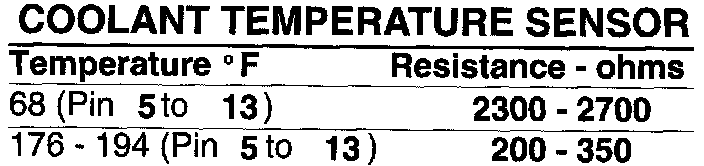

Coolant Temperature Sensor

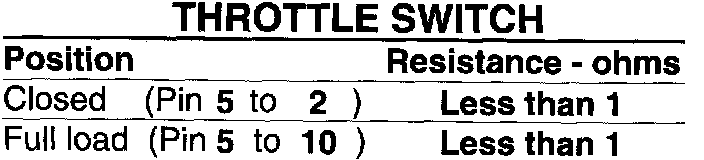

Throttle Switch

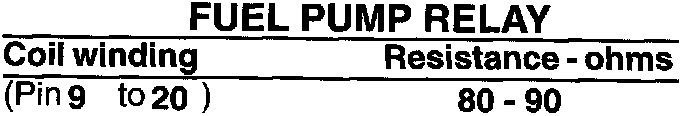

Fuel Pump Relay

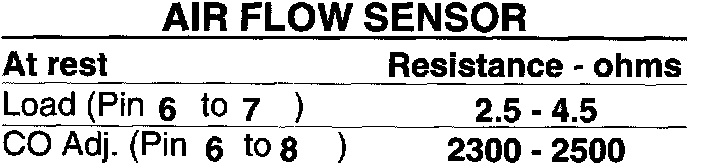

Air Flow Sensor

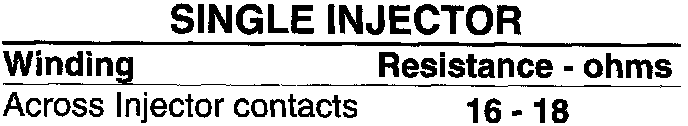

Single Injector

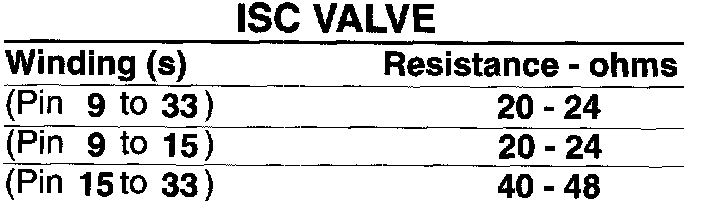

ISC Valve

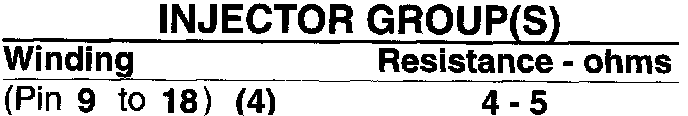

Injector Group(s)
