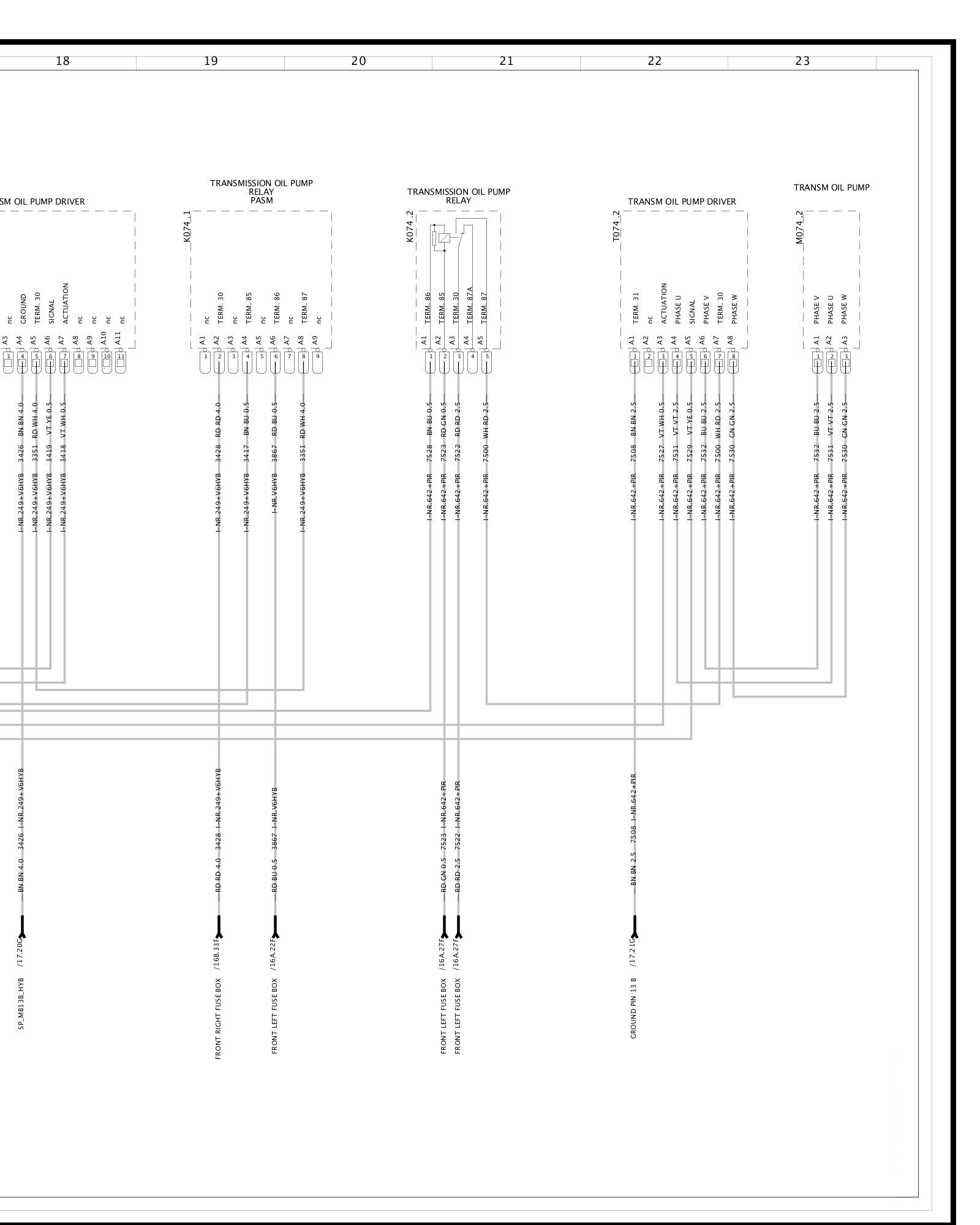

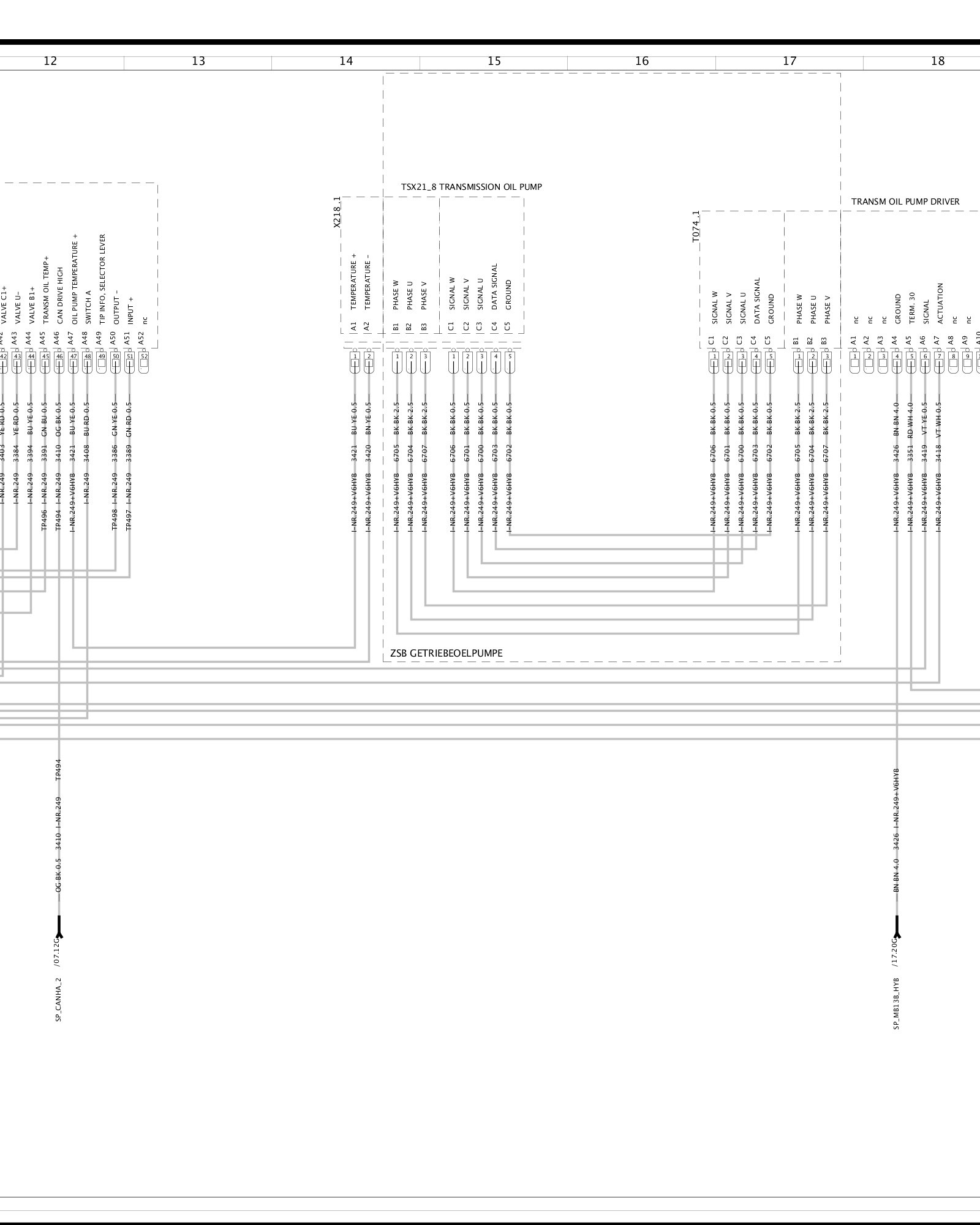

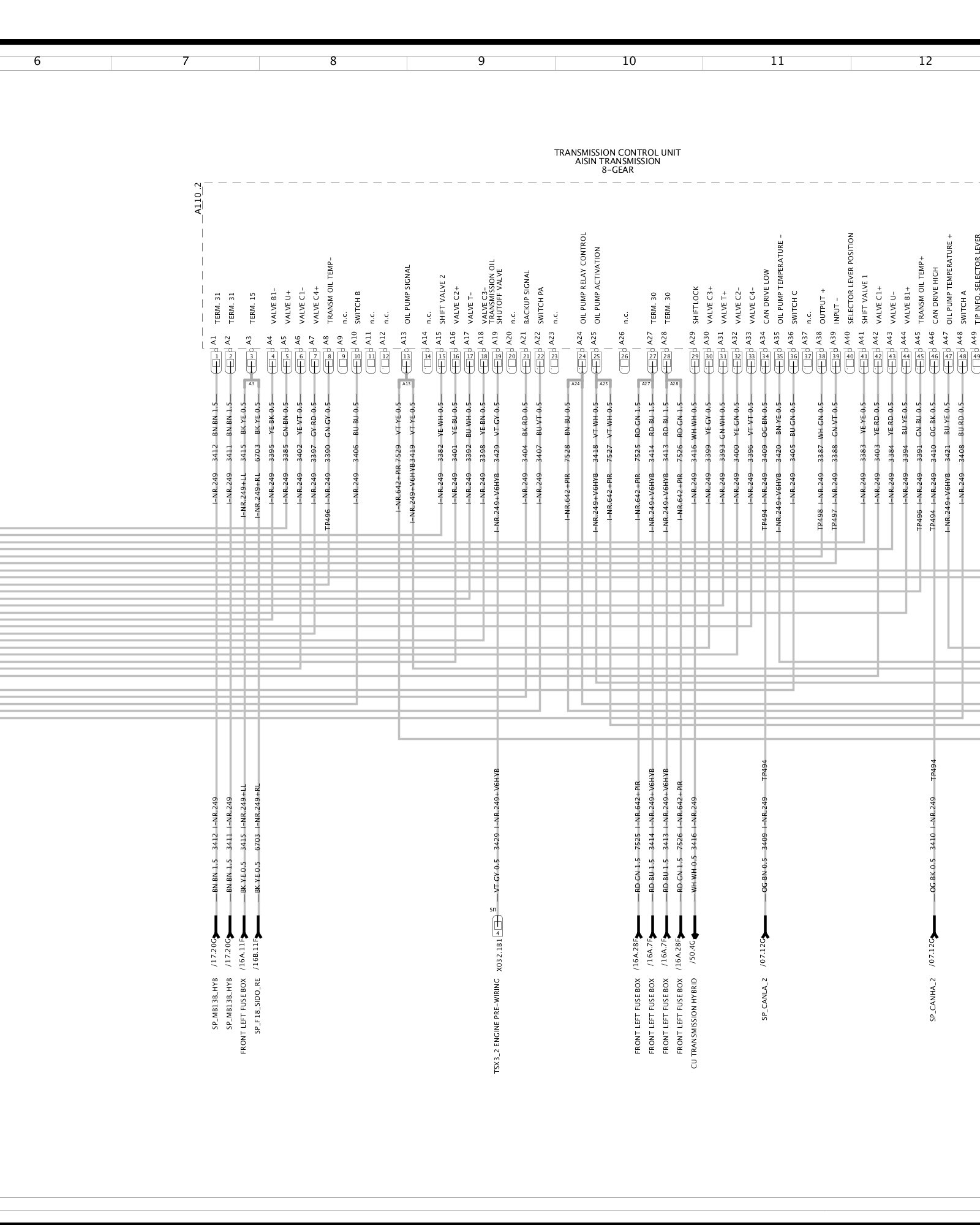

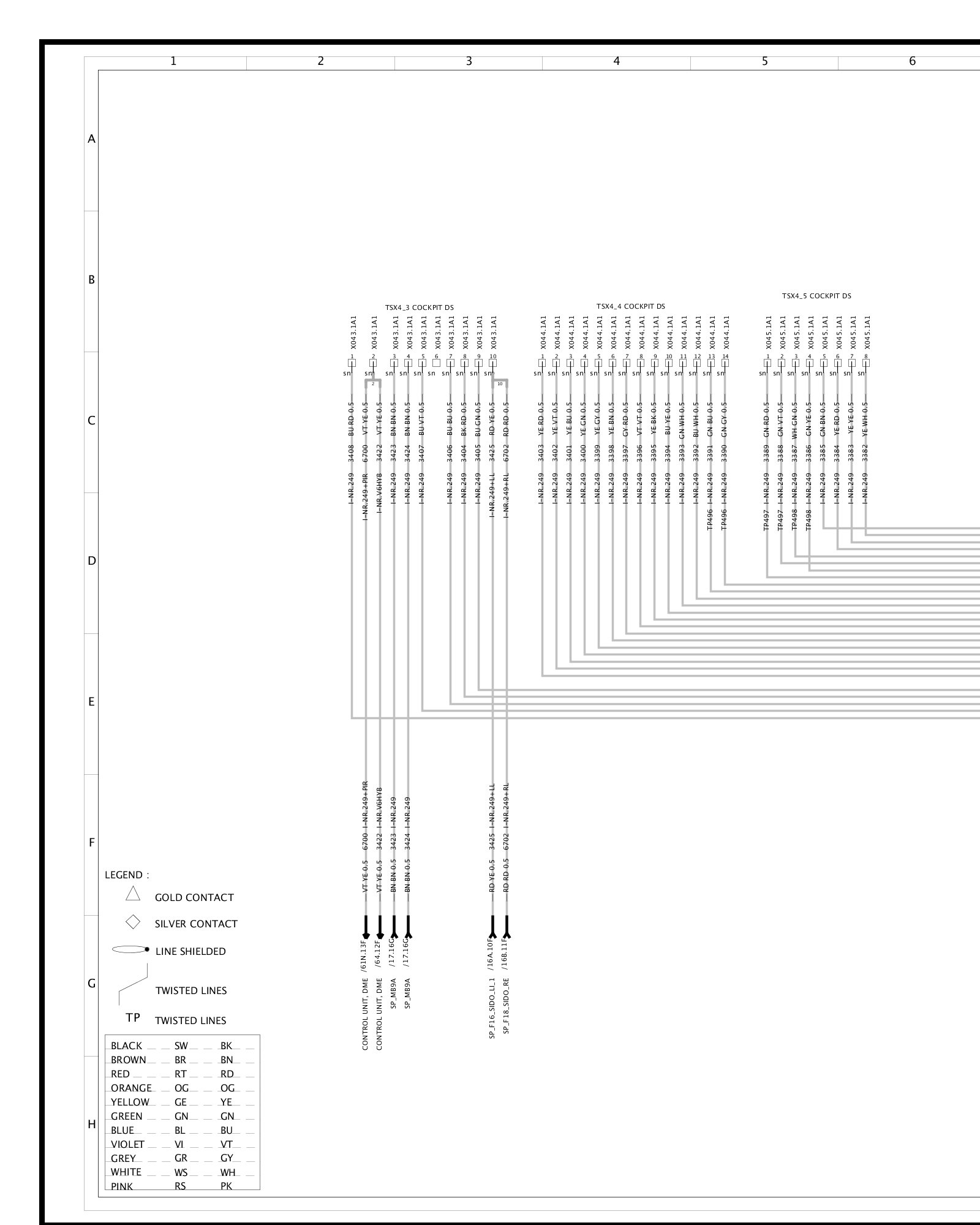

(50C) Automatic Transmission
Diagram: Other diagrams referred to by name and sheet number/coordinate (i.e "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
Automatic Transmission/Transaxle
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Porsche.
(50C) Automatic Transmission
Diagram: Other diagrams referred to by name and sheet number/coordinate (i.e "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
