Figure 1 - Powermaster III:

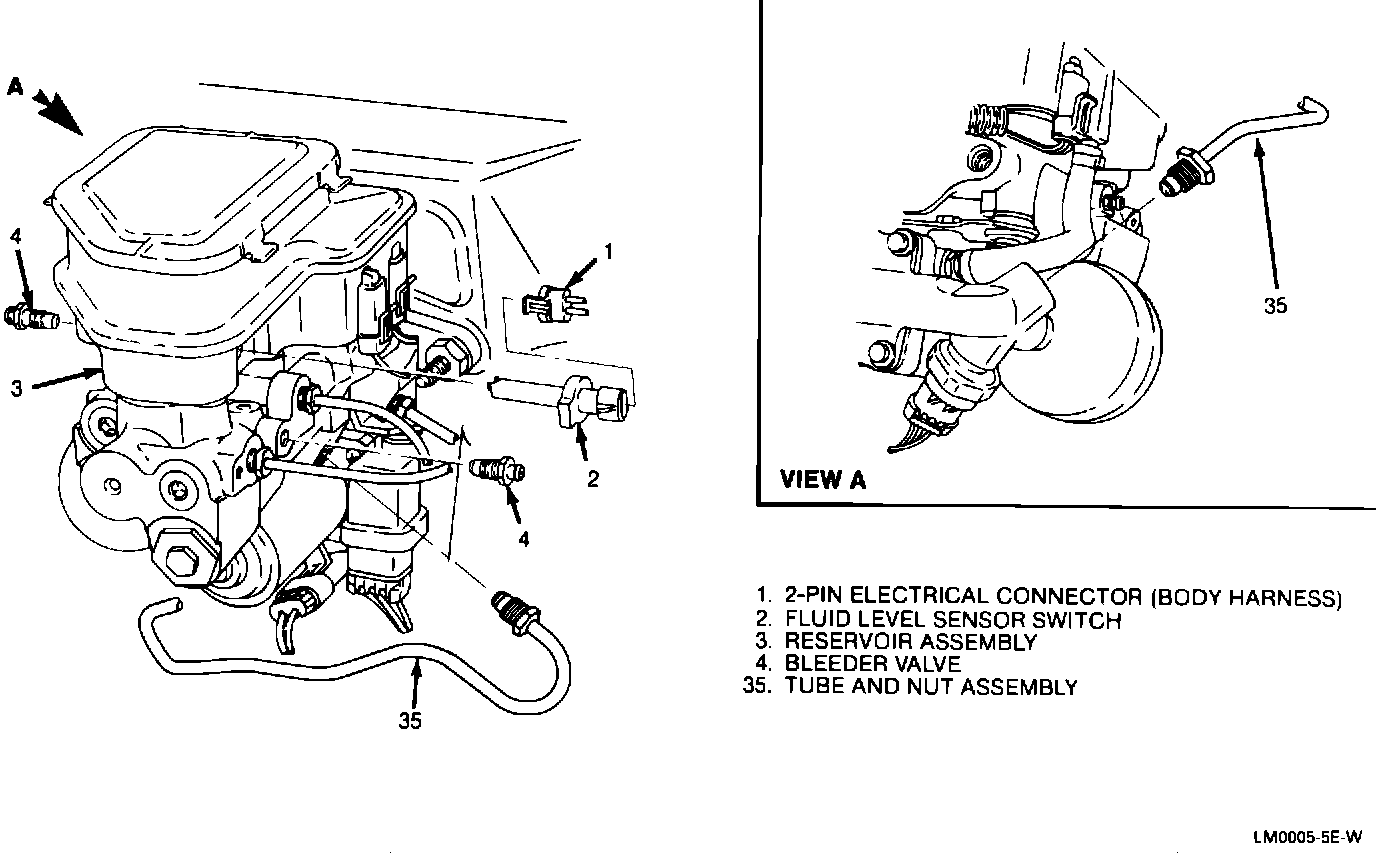

Figure 2 - Powermaster III Components:

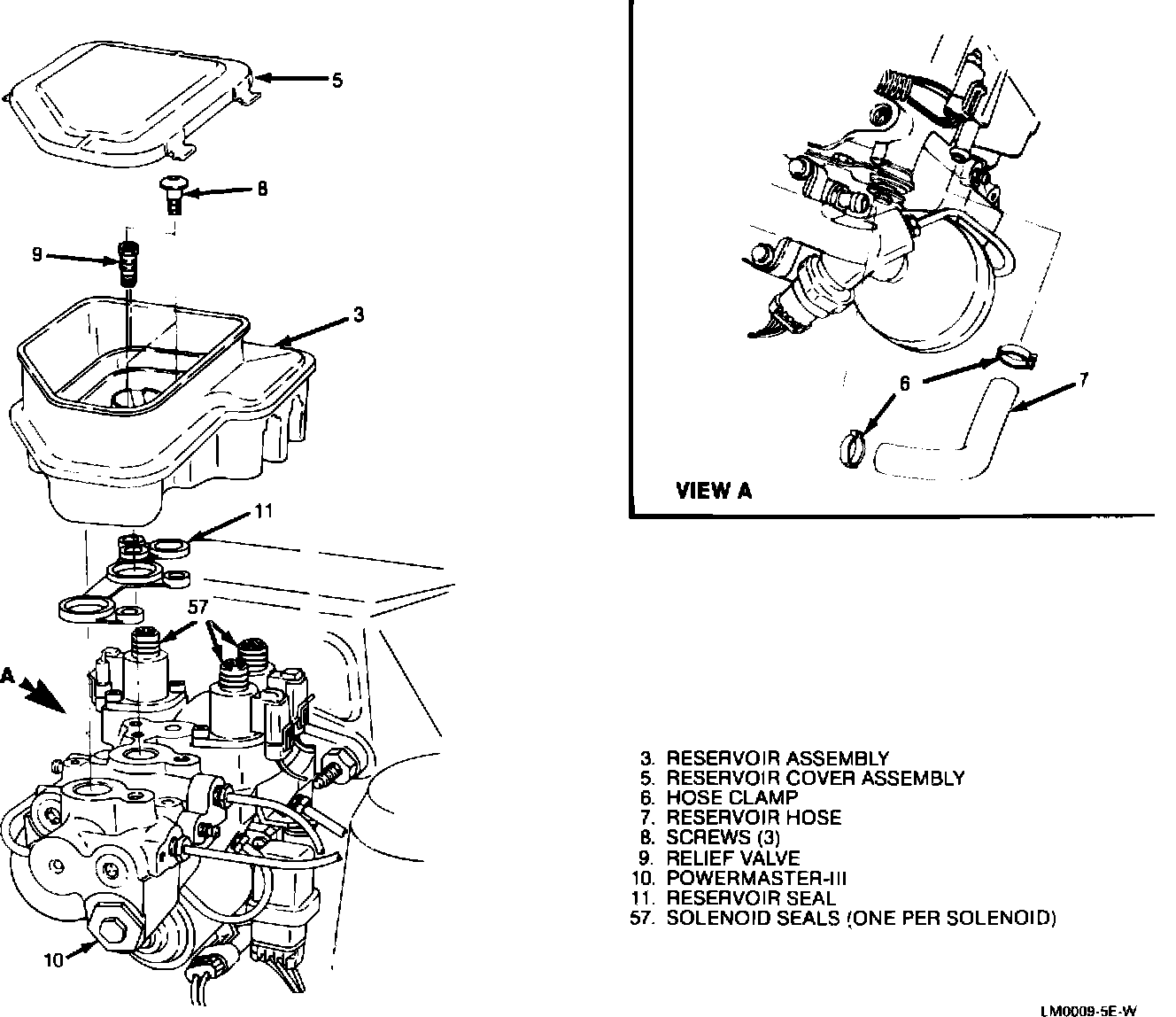

Figure 3 - Reservoir Cover, Hose and Reservoir Assembly:

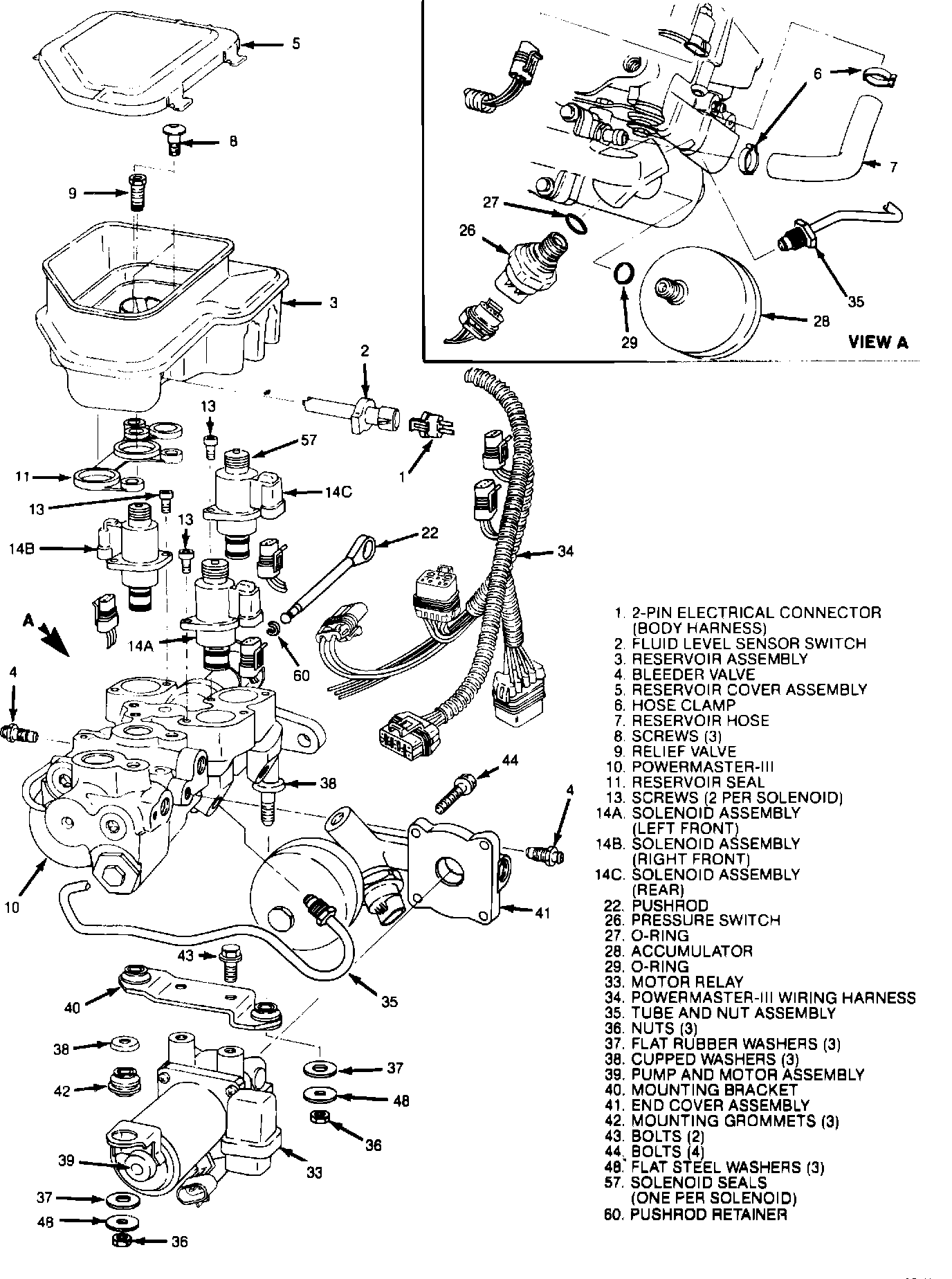

Power Master III Exploded View
