Number 85-6 (Gasoline)-31 Date 6/85
Subject: REVISED C3I IGNITION SYSTEM CHECK CHART C4-A

1985 GRAND AM WITH 3.0L (VIN CODE L) V-6 ENGINE

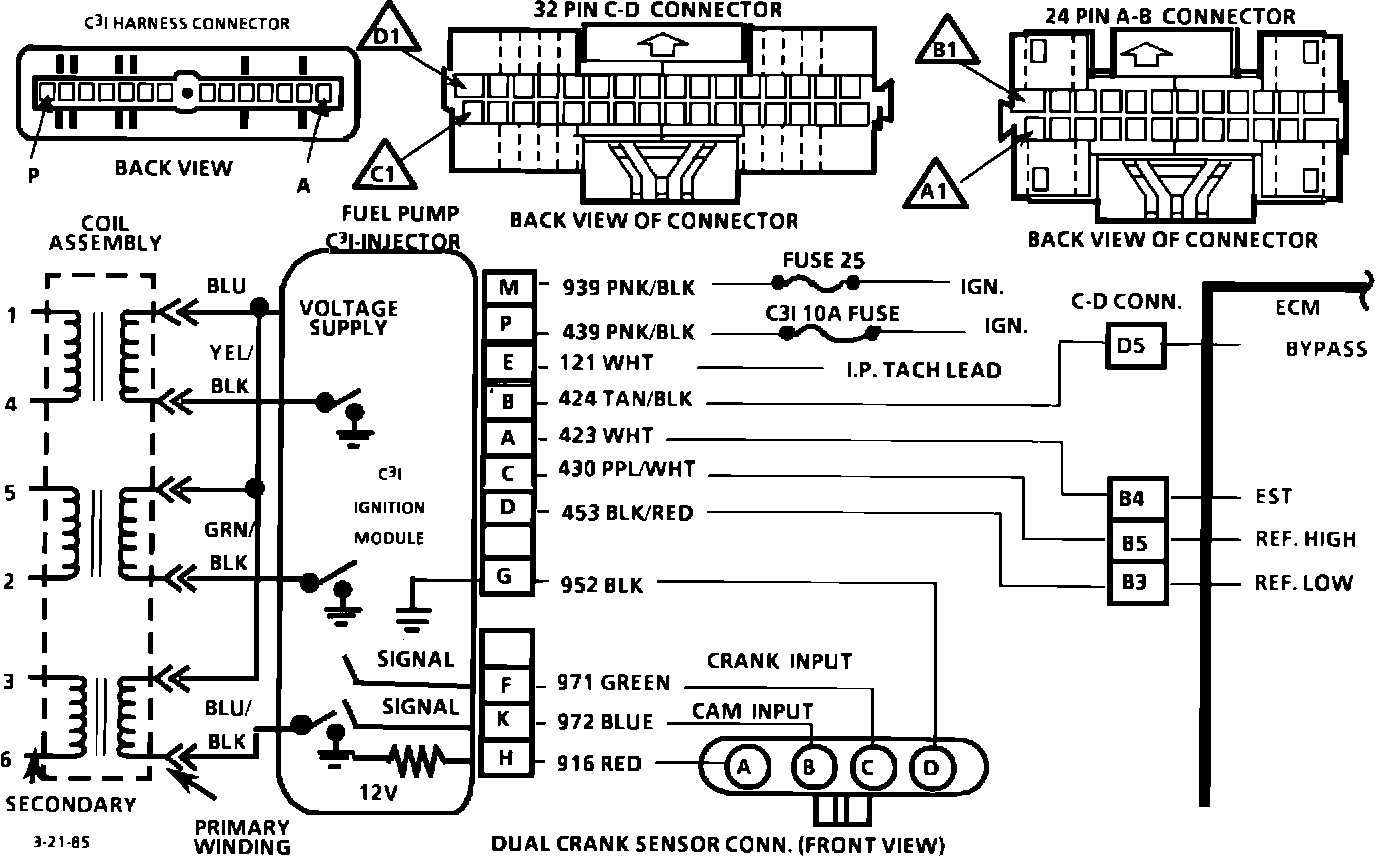

The C3I Ignition System Check Chart C4-A wiring diagram has been revised to include additional wire coding information. See illustration. Please update page 6E3-94 of your 1985 Grand Am Service Manual with this information.

IGNITION CHECK-WIRING DIAGRAM:

CHART C4-A
C3I IGNITION SYSTEM CHECK (1 of 2) 3.0L "N" SERIES FUEL INJECTION (Port)
