Test E: ECM Compressor Control Test

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1988 Oldsmobile.

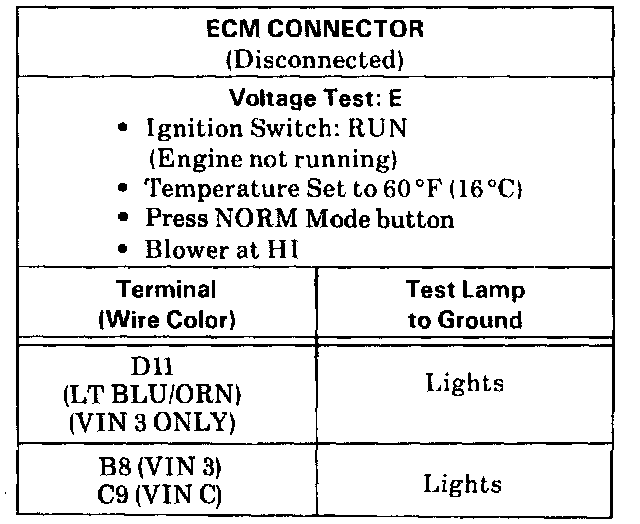

1. Remove the connectors from the ECM and use test lamp to ground at the following terminals of the connector.

Test E ECM Compressor Control Test:

^ If both tests are good, proceed to step 2.
^ If test lamp does not light at terminal D11, check for an open in LT BLU/ORN wire (495).
^ If test lamp does not light at terminal C9 or B8, check for an open in the LT BLU wire (67).

2. Temporarily connect terminal C15 to ground using a fused jumper.

^ If A/C Cut-Out Relay operates and turns on compressor, the A/C Compressor Control circuit wiring is good. Refer to ECM Diagnostics.
^ If A/C Cut-Out Relay does not operate or compressor does not turn on, check the LT GRN/BLK wire for an open. If wire is good, replace the A/C Cut-Out Relay.
