System Diagnosis - Electronic Spark Control (ESC) - C3I Ignition System

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1985 Oldsmobile.

AI Repair Guides

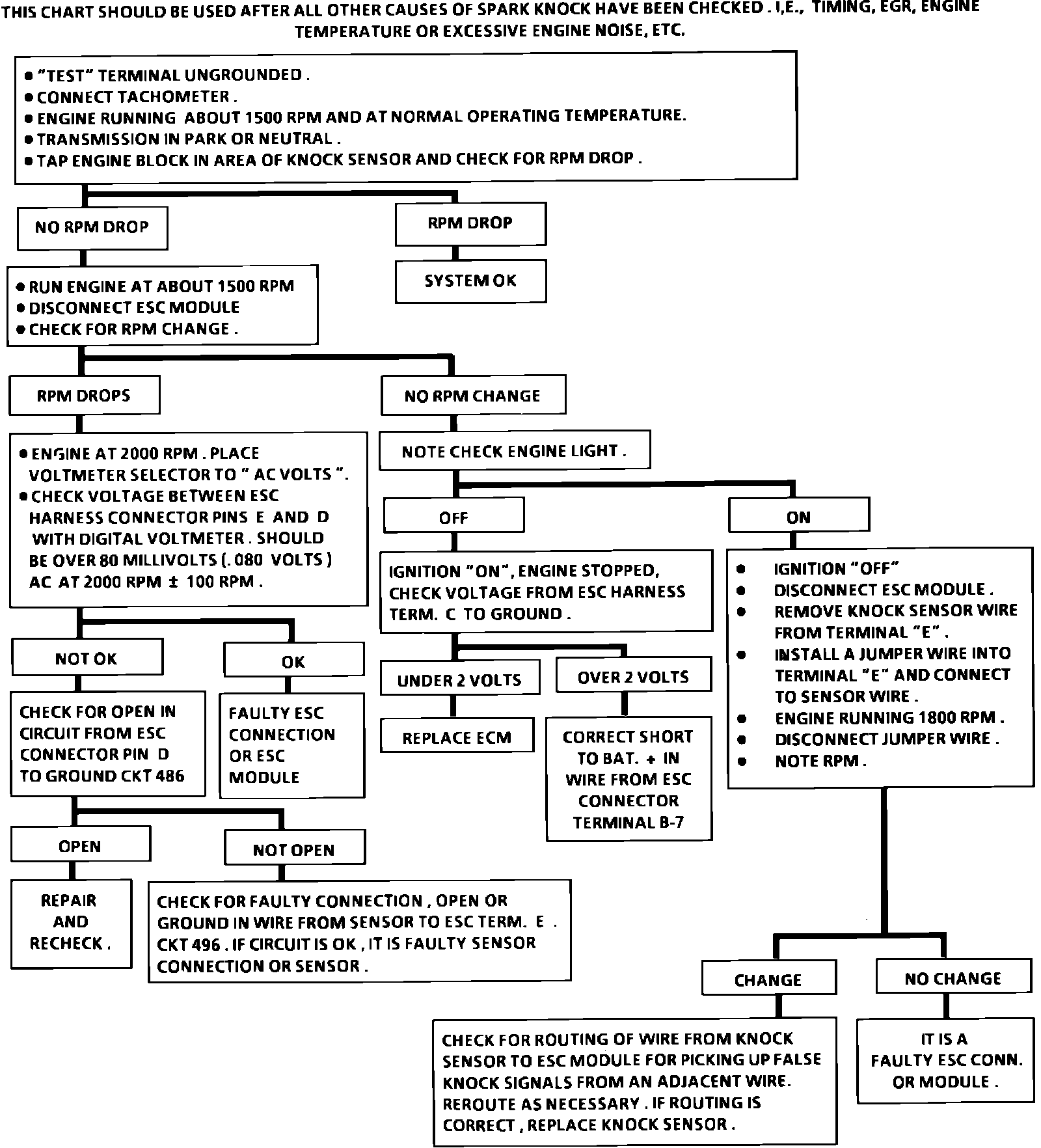

Fig. 24 C3I ESC diagnosis chart. 1985-86 models:
