This article has been updated by technical service bulletin 09 23 002 dated April 2009.

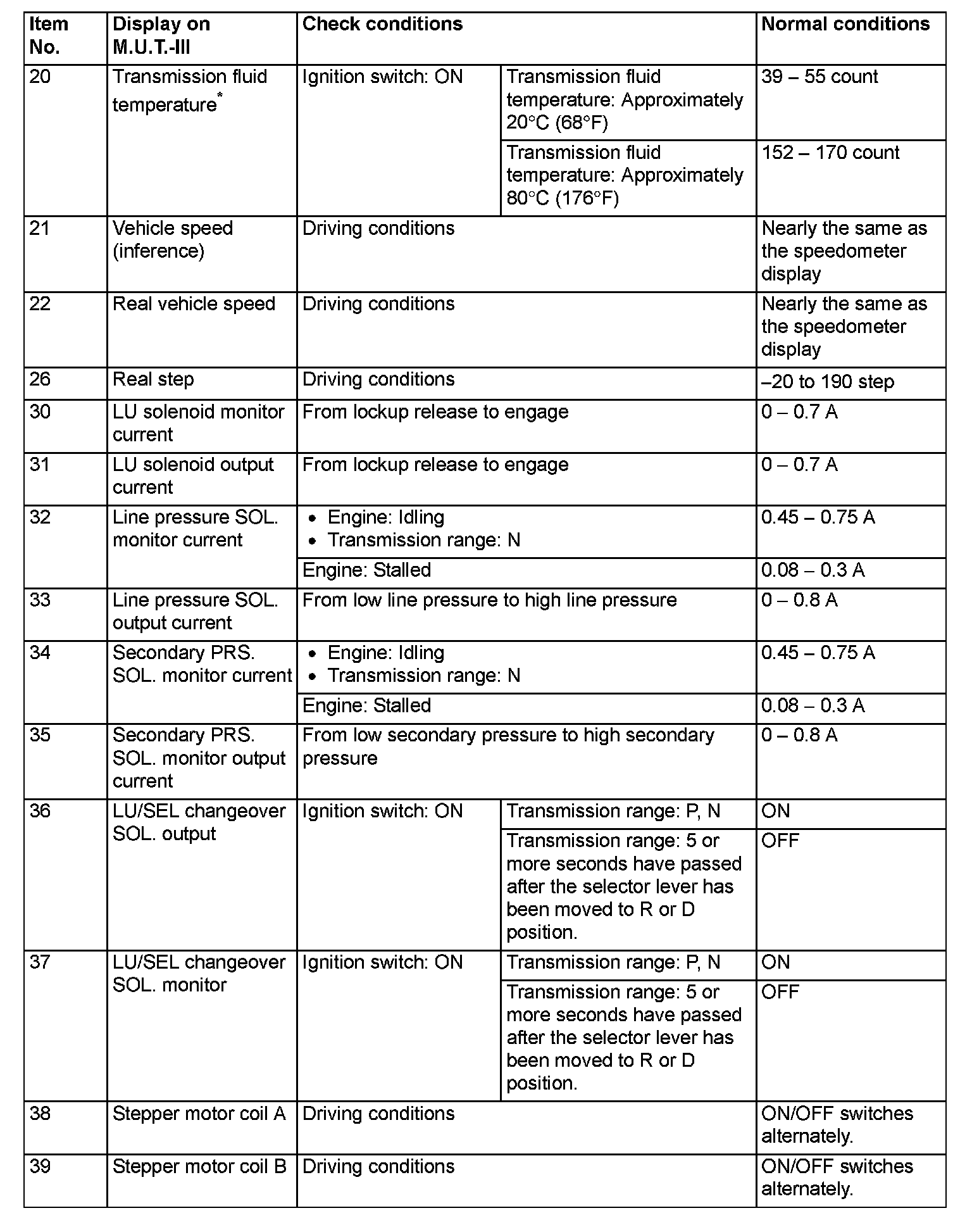

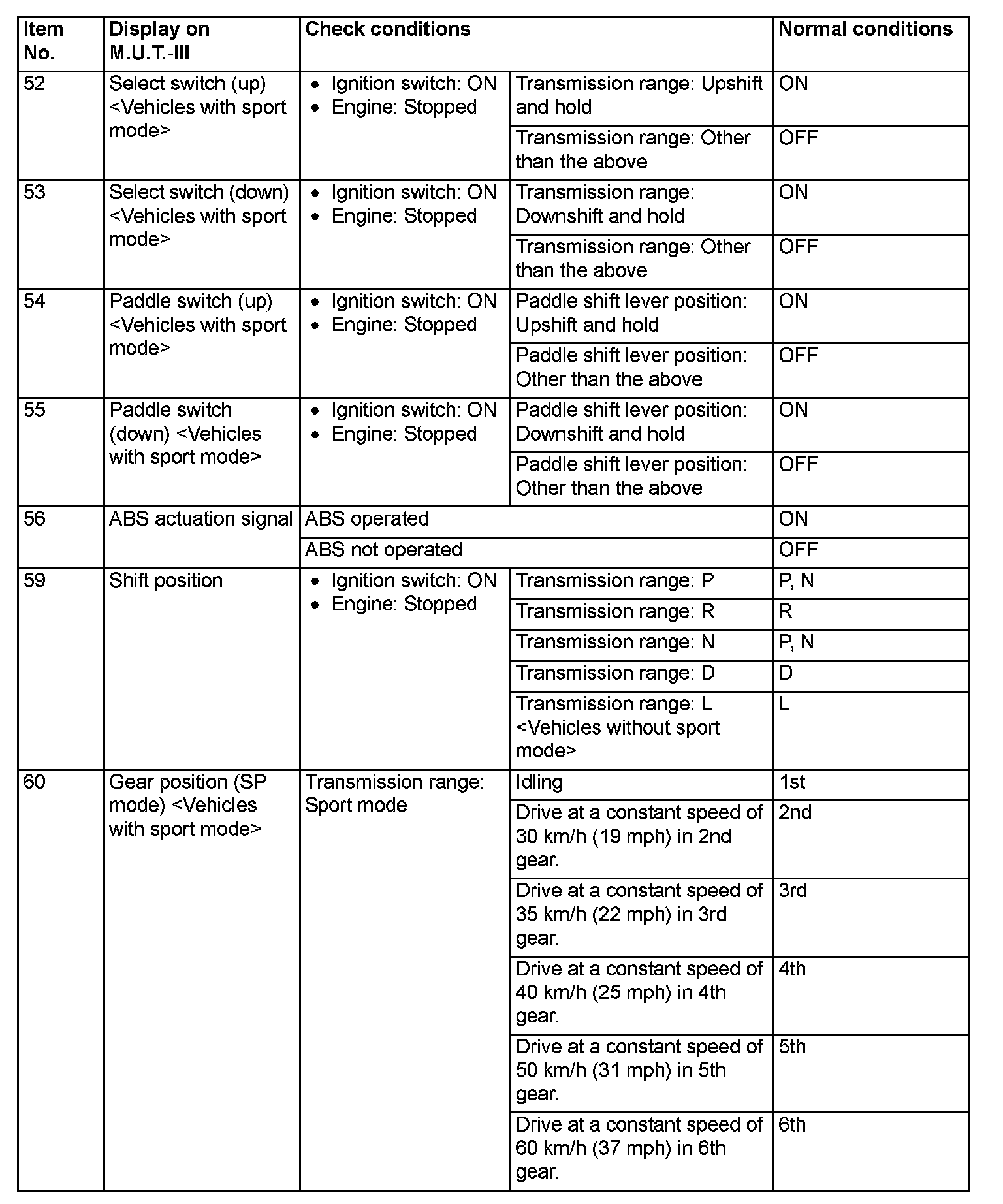

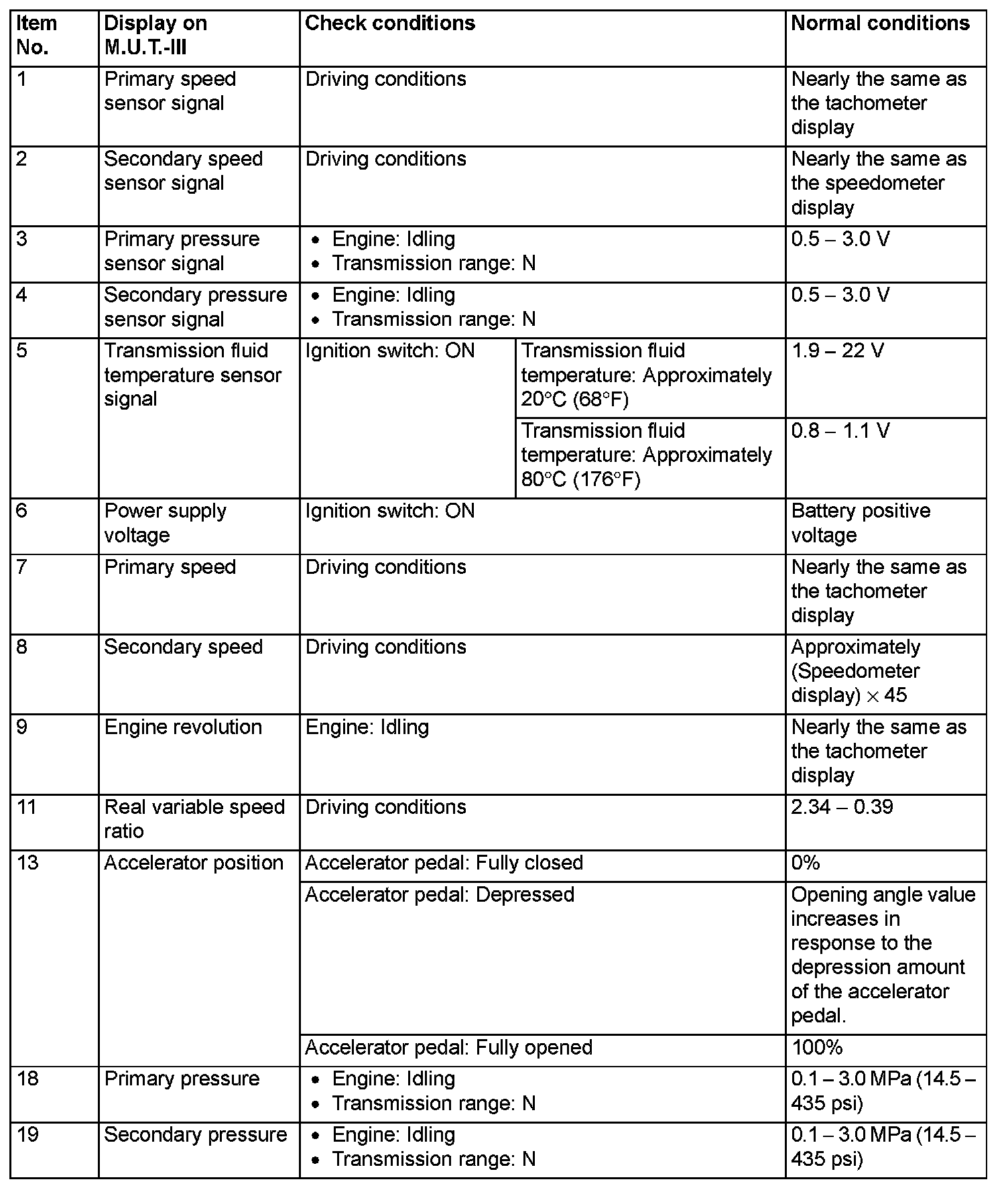

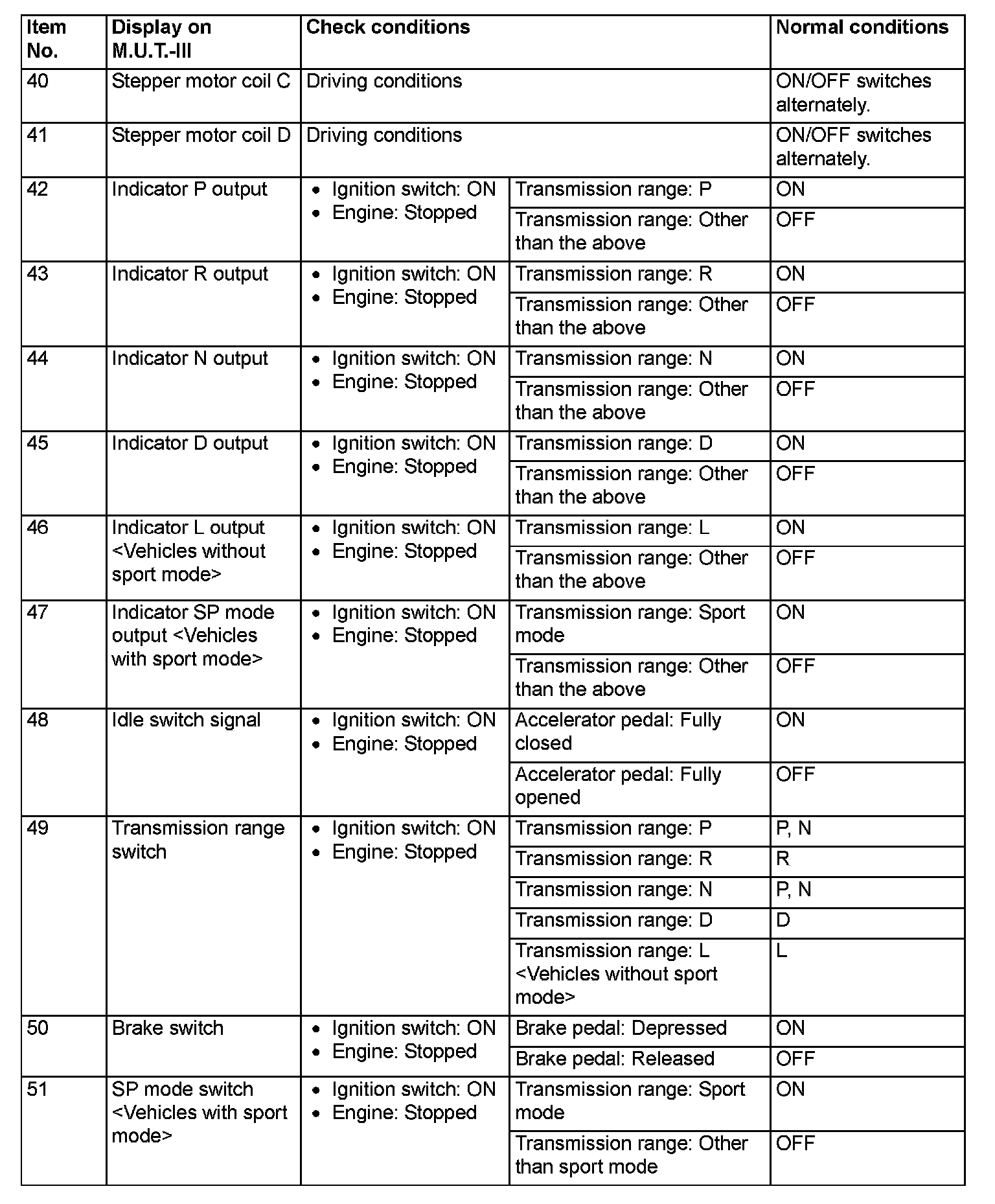

DATA LIST REFERENCE TABLE

Part 1:





Part 2:






Part 3:





Part 4:

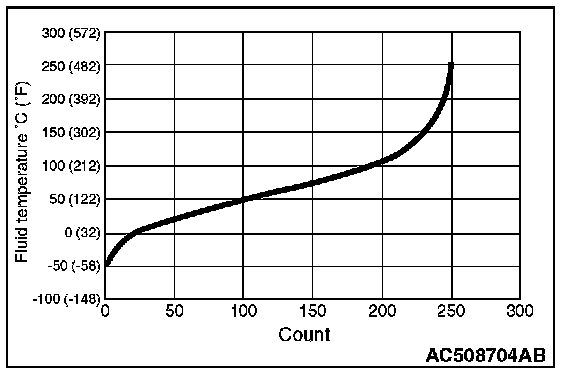

NOTE: *: Relation between fluid temperature and COUNT is shown to the characteristics chart.
