Part 1 Of 7:
Part 2 Of 7:
Part 3 Of 7:
Part 4 Of 7:
Part 5 Of 7:
Part 6 Of 7:
Part 7 Of 7:

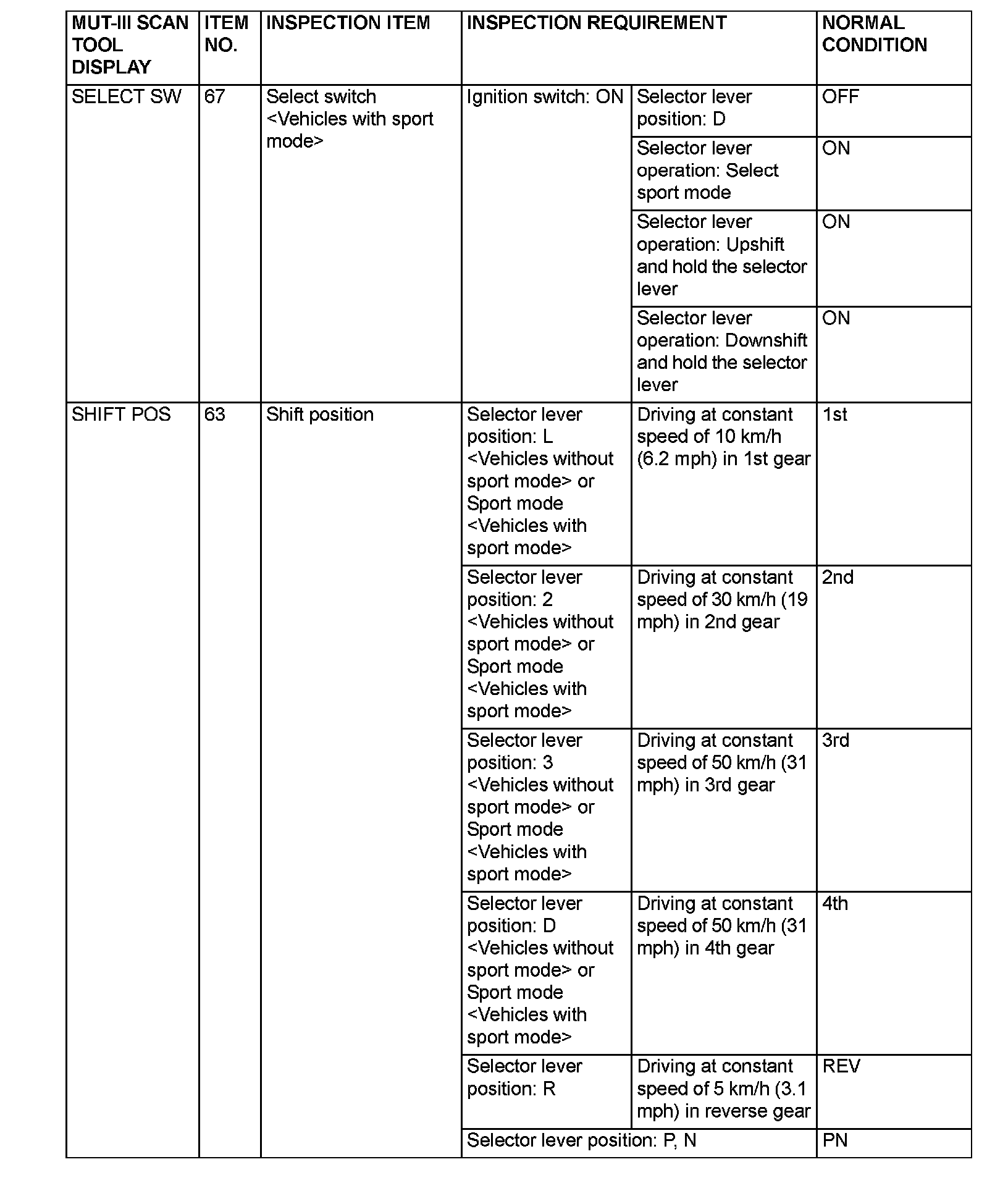

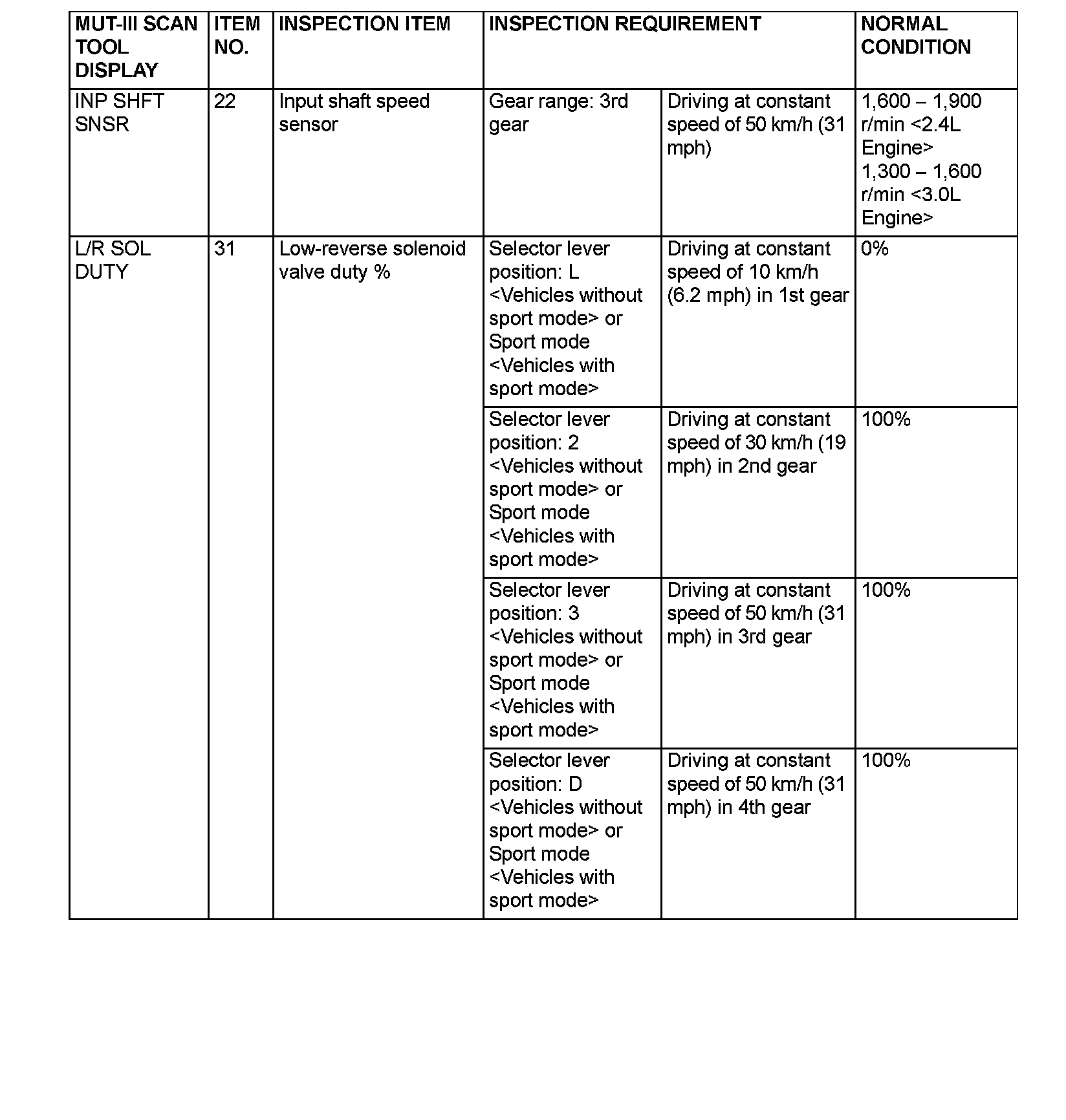

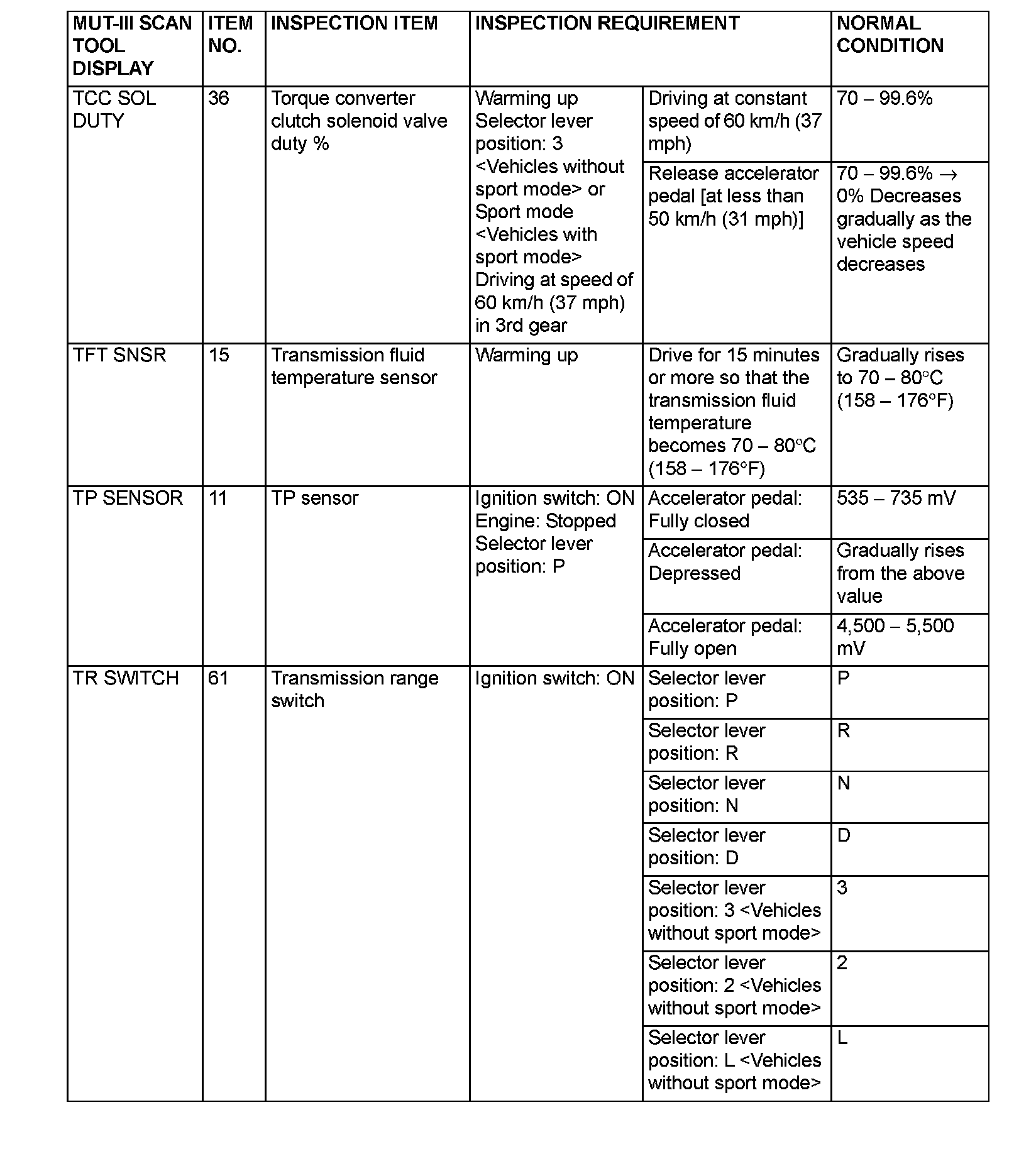

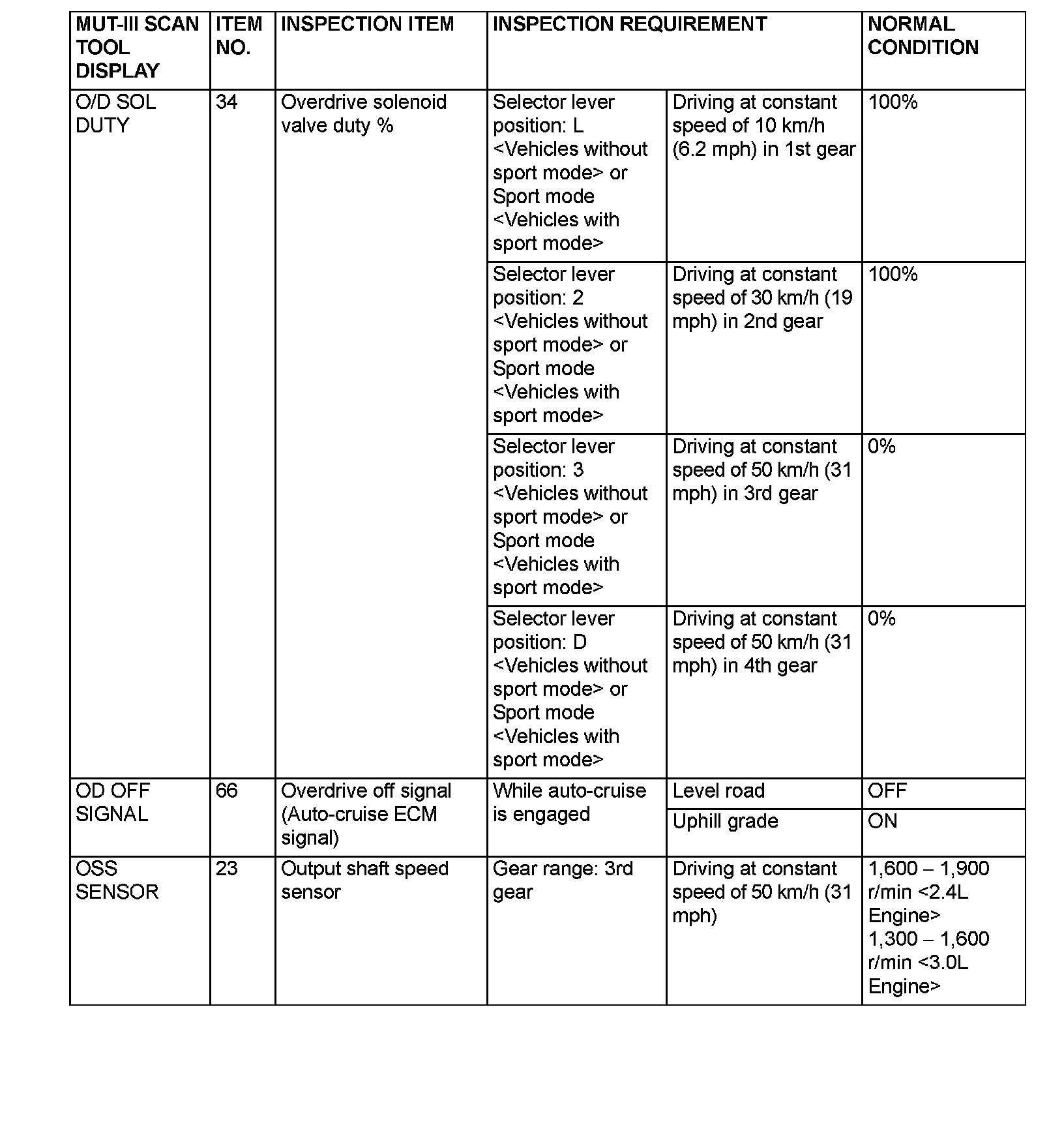

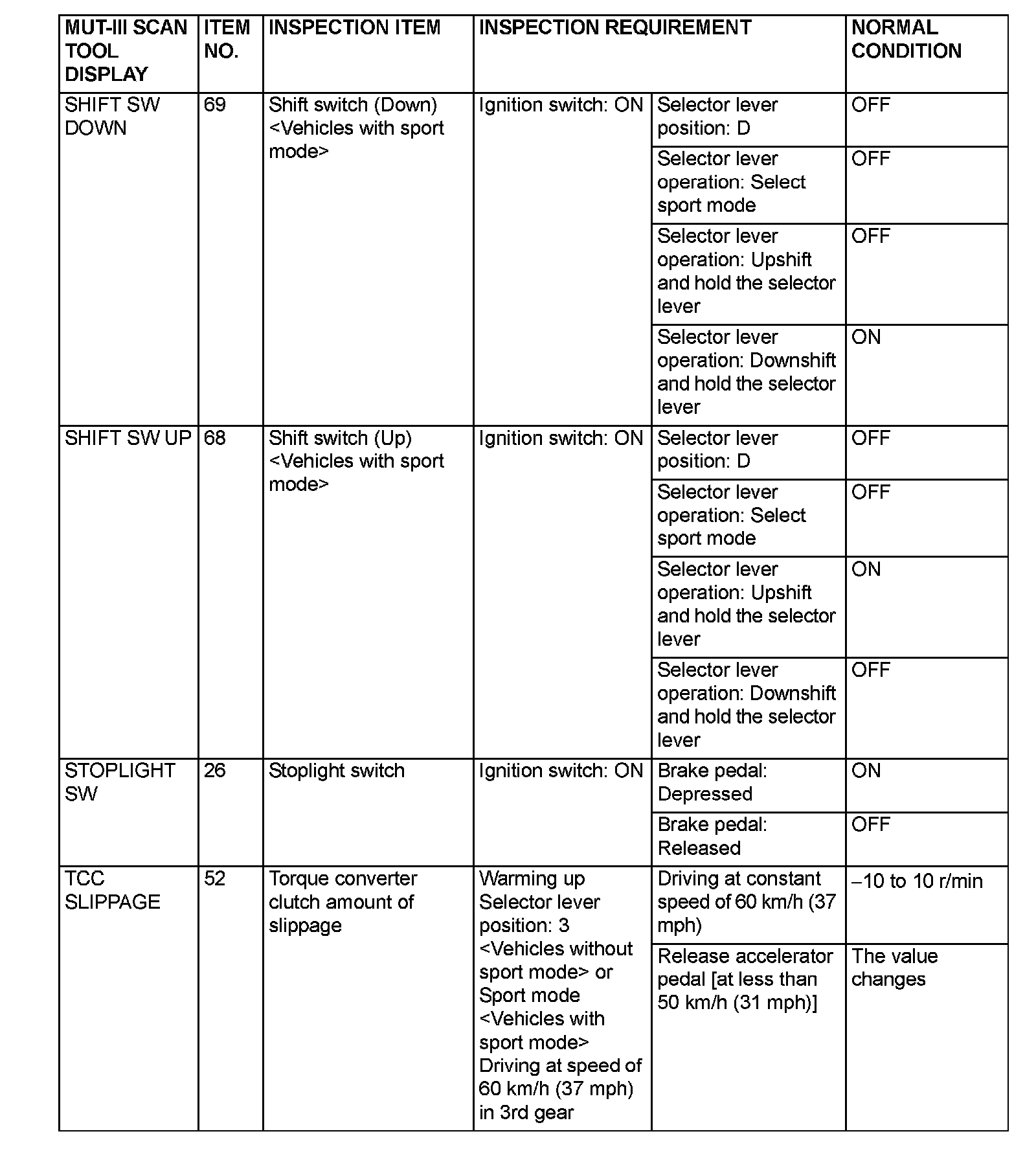

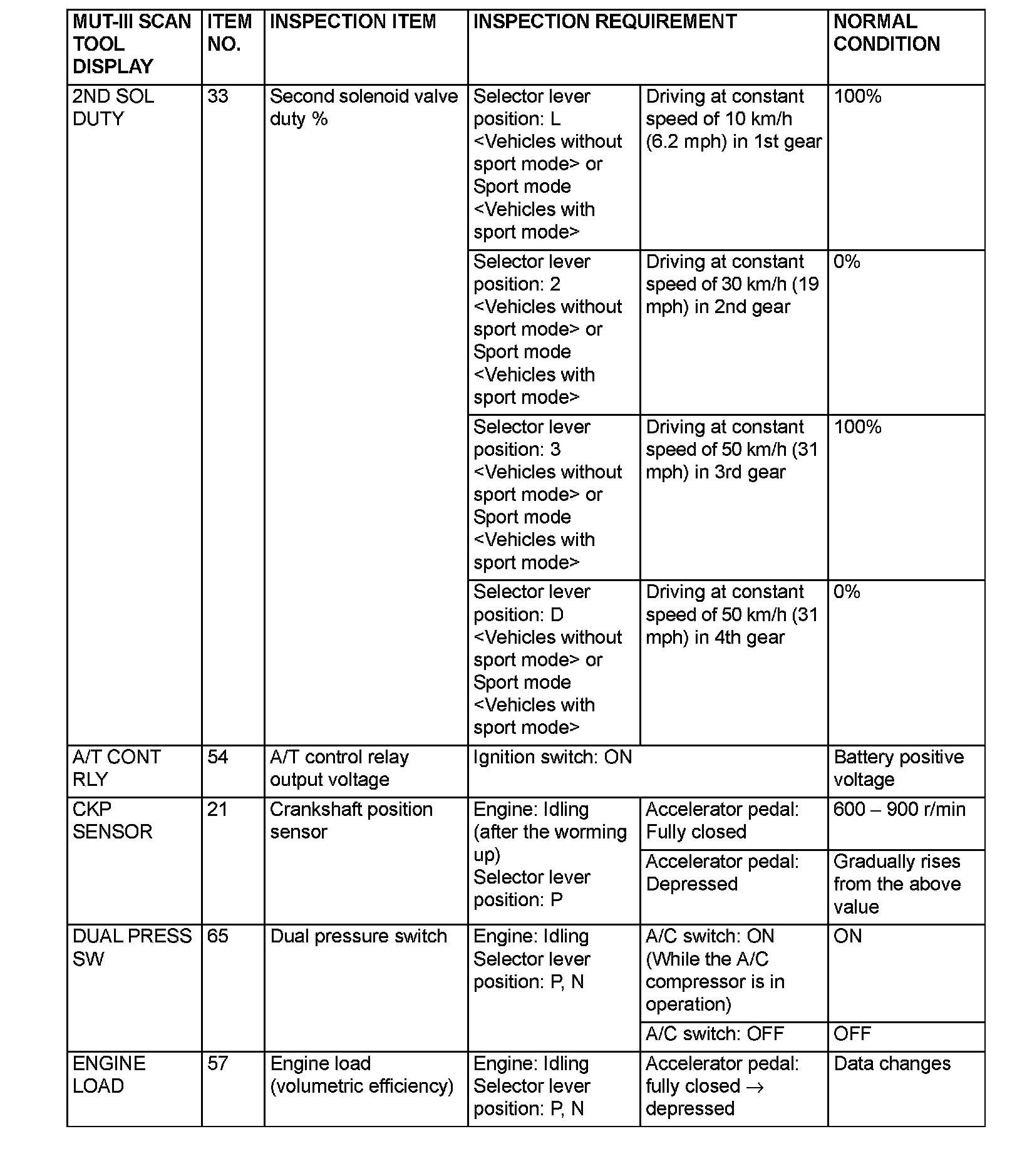

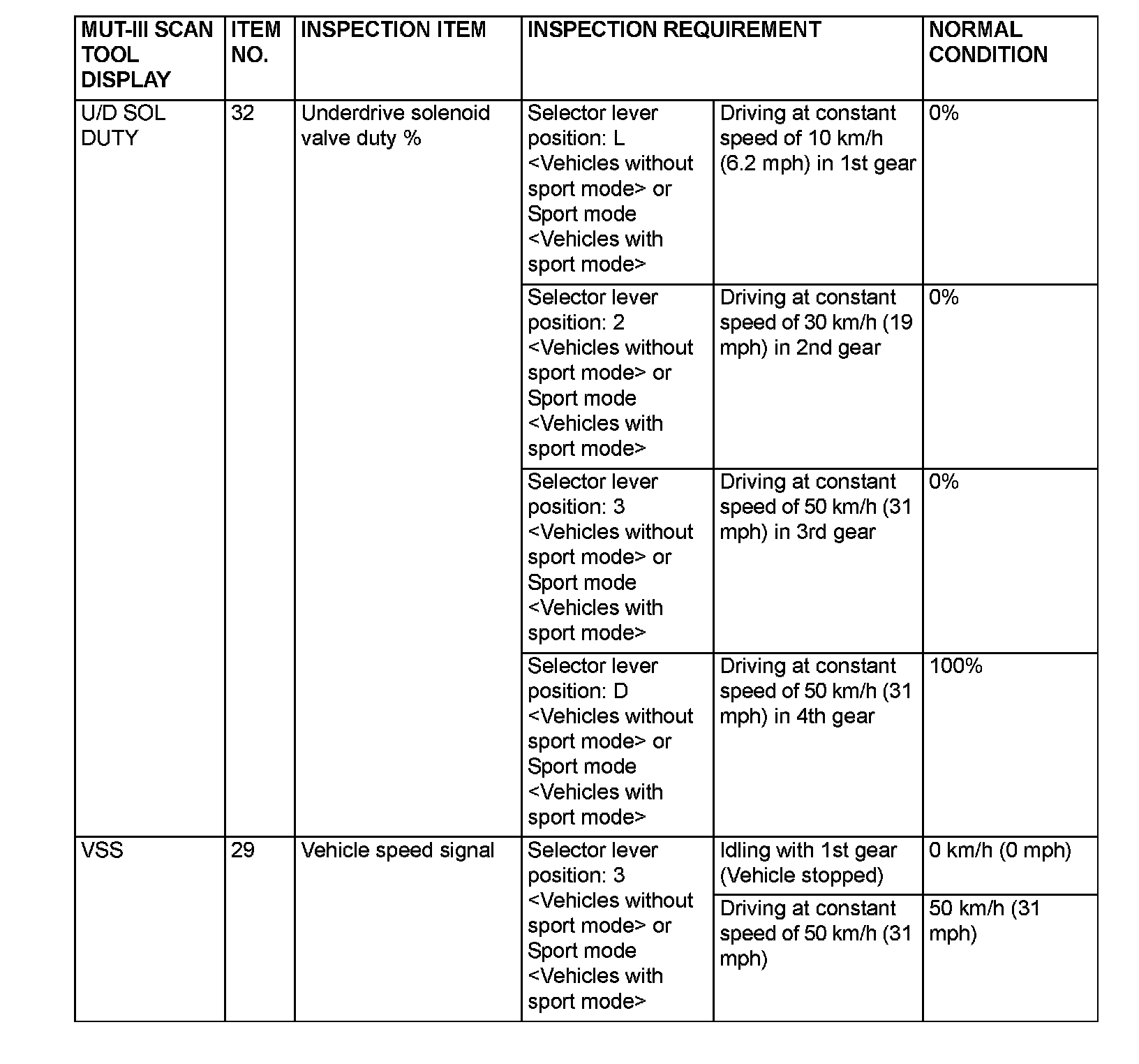

DATA LIST REFERENCE TABLE
