Engine Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mitsubishi.

AI Repair Guides

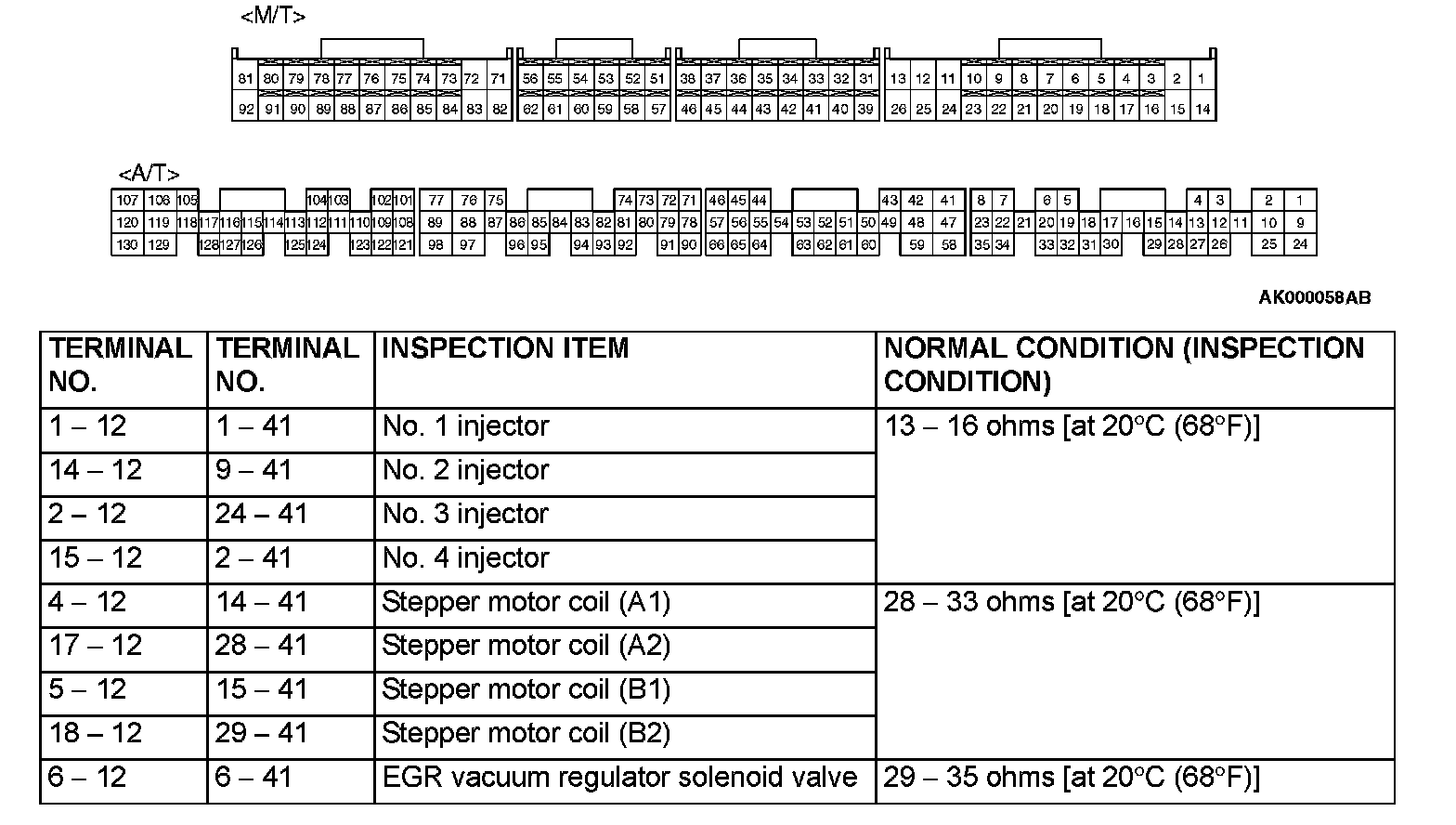

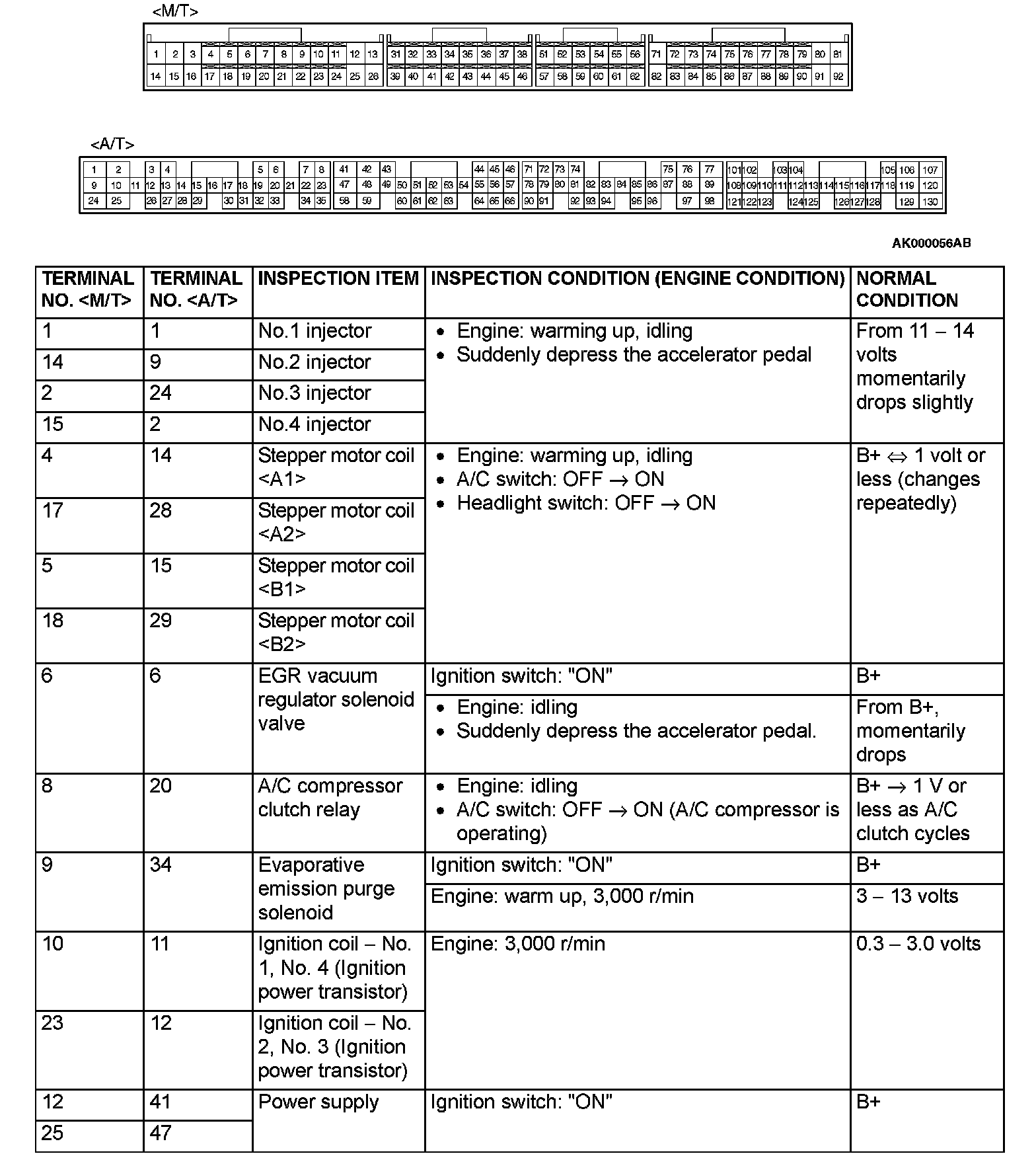

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 3:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 4:



ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 5:
