Positive Rectifier Test:

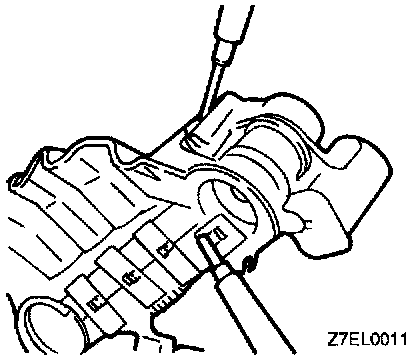

Ensure continuity exists in only one direction between positive rectifier and stator coil lead, Fig. 7. If continuity exists in both directions, diode is shorted and rectifier must be replaced.
Positive Rectifier Test
