Positive Rectifier

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1990 Mitsubishi.

AI Repair Guides

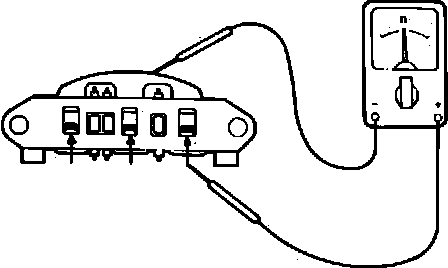

Fig. 6 Testing Positive Rectifier:





Check continuity between positive rectifier and stator coil lead terminal with an ohmmeter as shown in Fig. 6. Ohmmeter should read continuity in only one direction, if continuity is in both directions a diode is shorted and the rectifier assembly must be replaced.
