Diode Trio Test

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1990 Mitsubishi.

AI Repair Guides

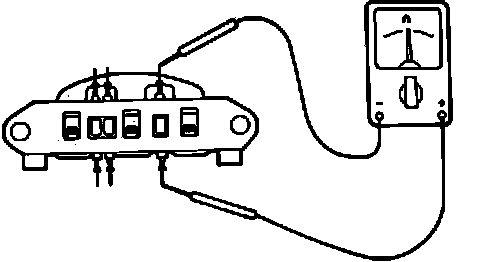

Fig. 8 Testing Diode Trio:





Check continuity of the three diodes by connecting an ohmmeter to both ends of each diode as shown in Fig. 8. Diodes should have continuity in one direction only. If diode has continuity in both directions replace diode heatsink assembly.
