M/T Torque Data

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1990 Mitsubishi.

AI Repair Guides

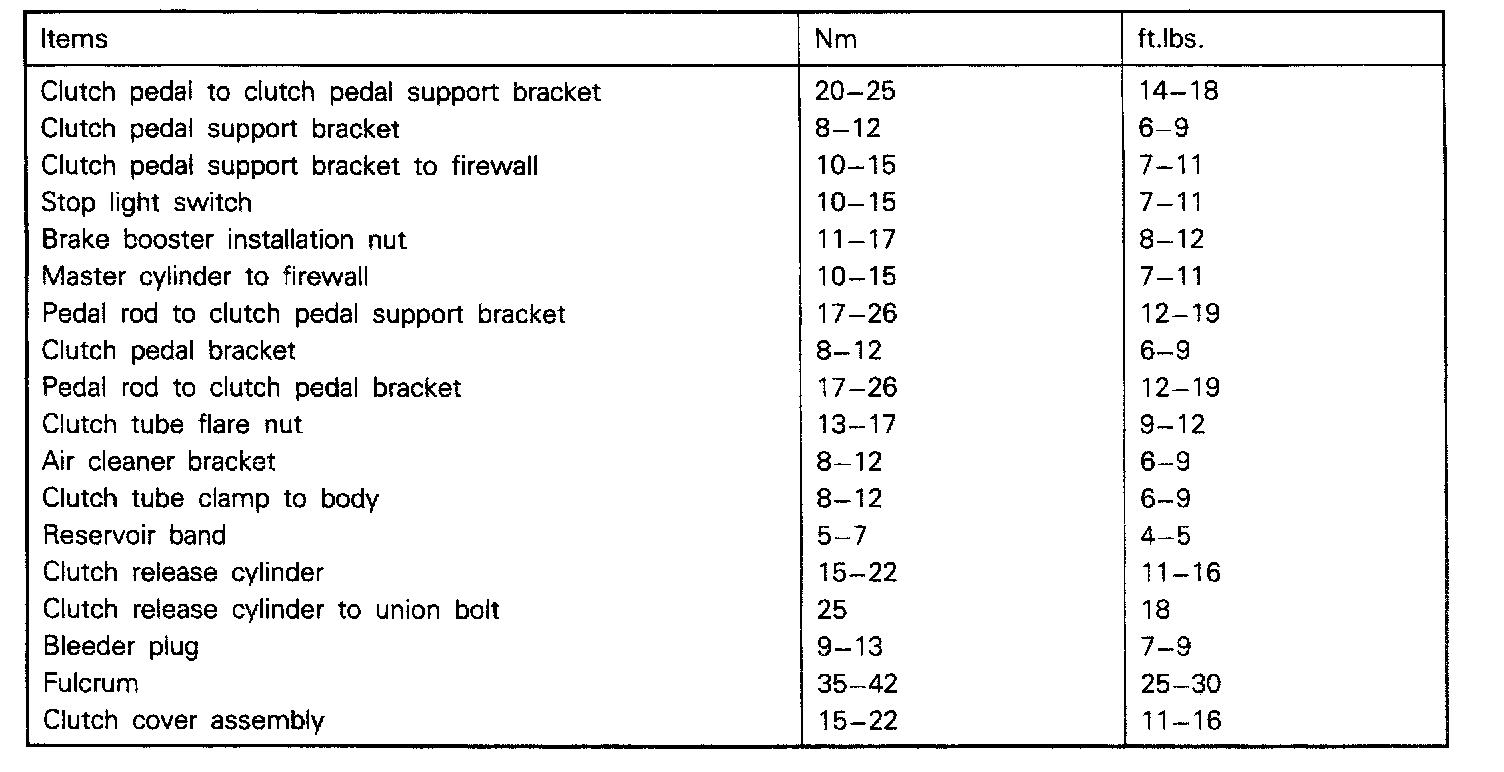

W5M33 5-spd M/T, Clutch Torque:

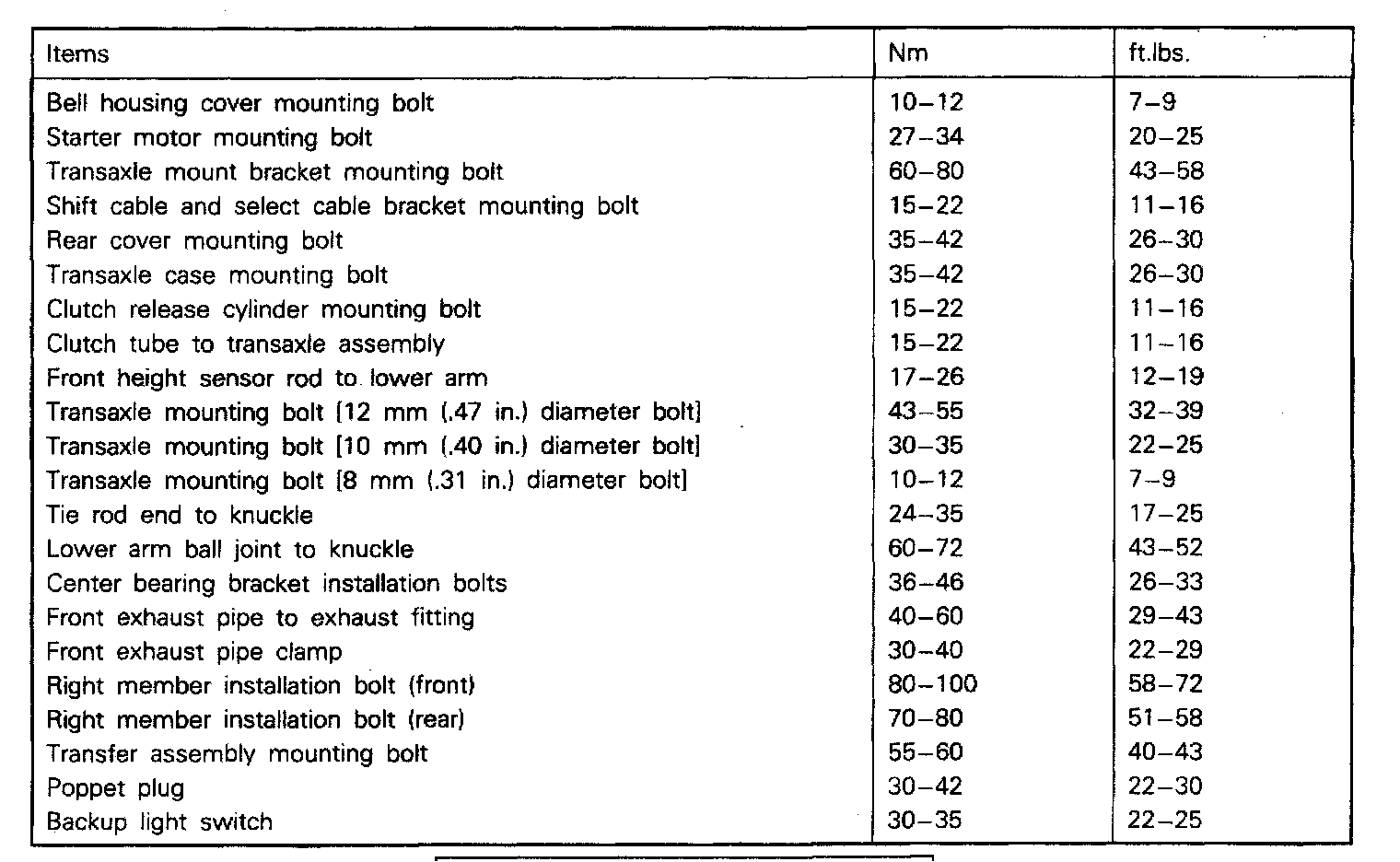

W5M33 5-spd M/T, Transaxle Torque:

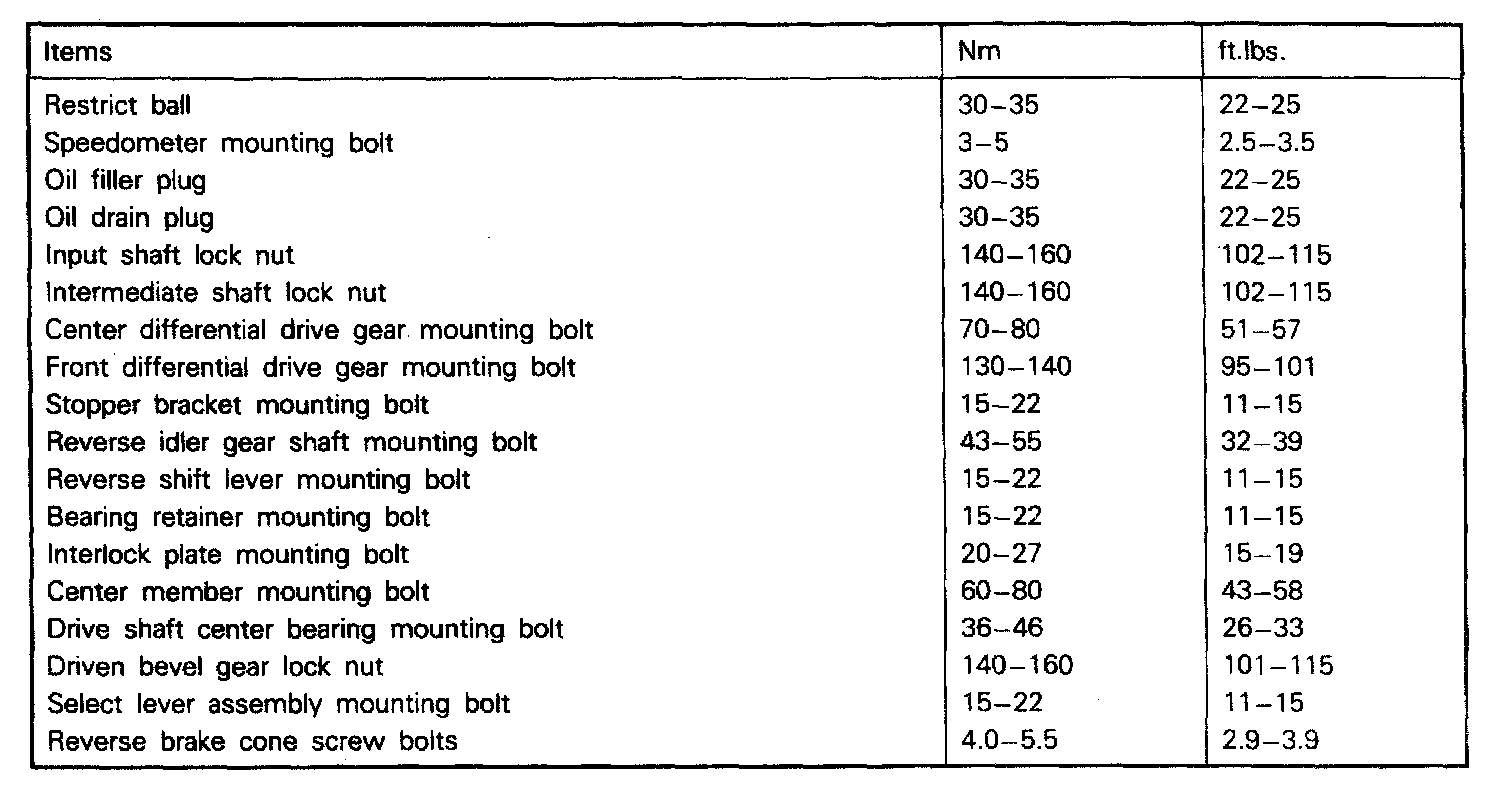

W5M33 5-spd M/T, Transaxle Torque:

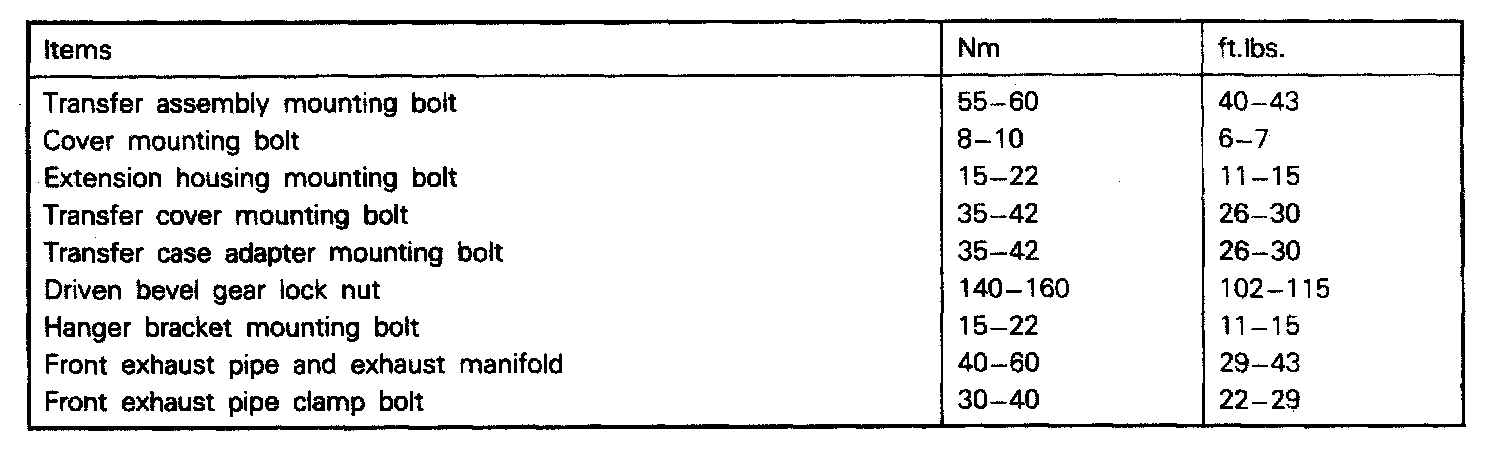

W5M33 5-spd M/T, Transfer Case Torque:




← Back to System SpecificationsAll Makes
