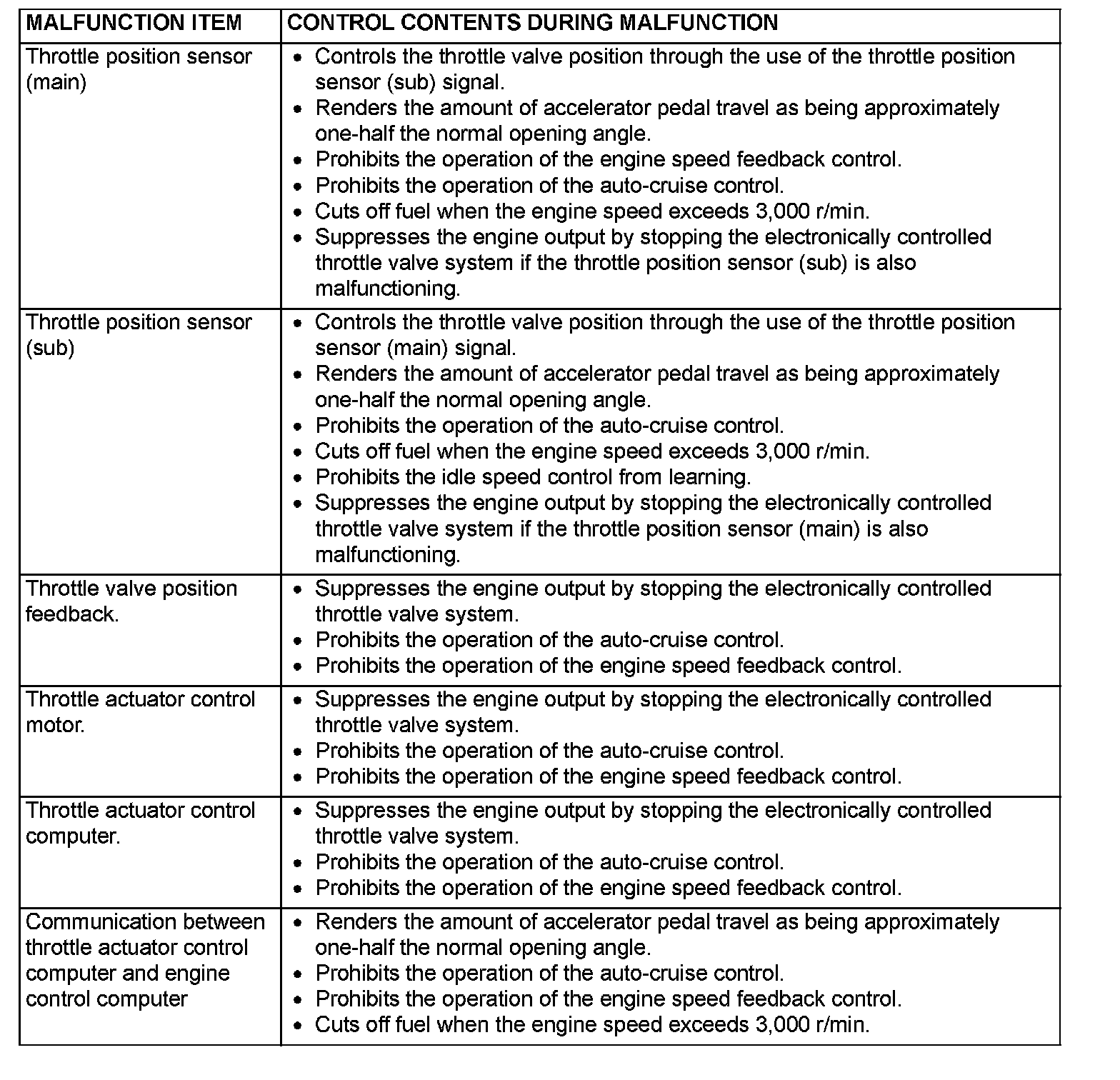

Fail-Safe Function Reference Table Part 1:

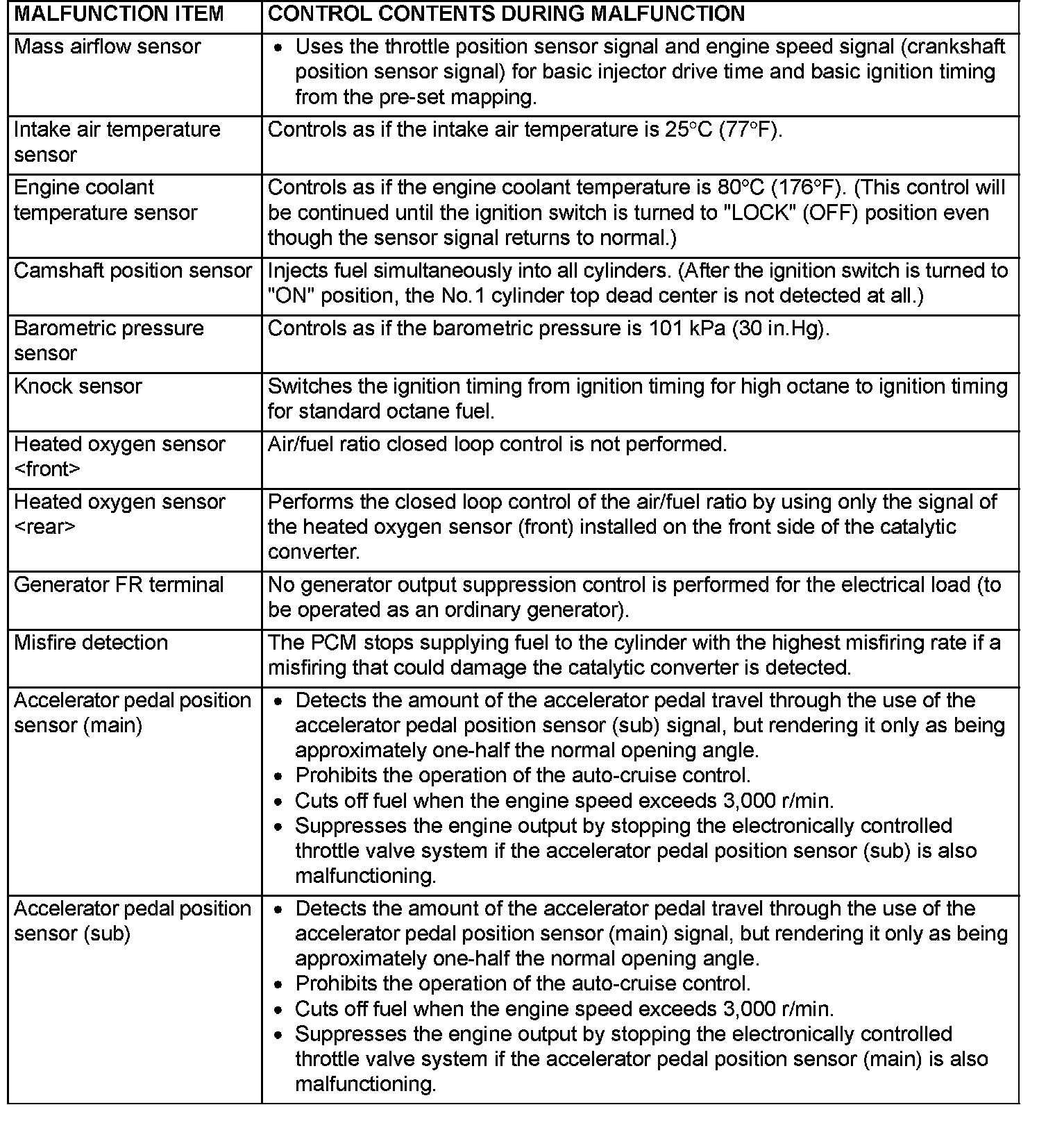

Fail-Safe Function Reference Table Part 2:
When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the given defaults.
Fail-Safe Function Reference Table
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mitsubishi Truck.
When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the given defaults.
