System Diagram

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mitsubishi Truck.

AI Repair Guides

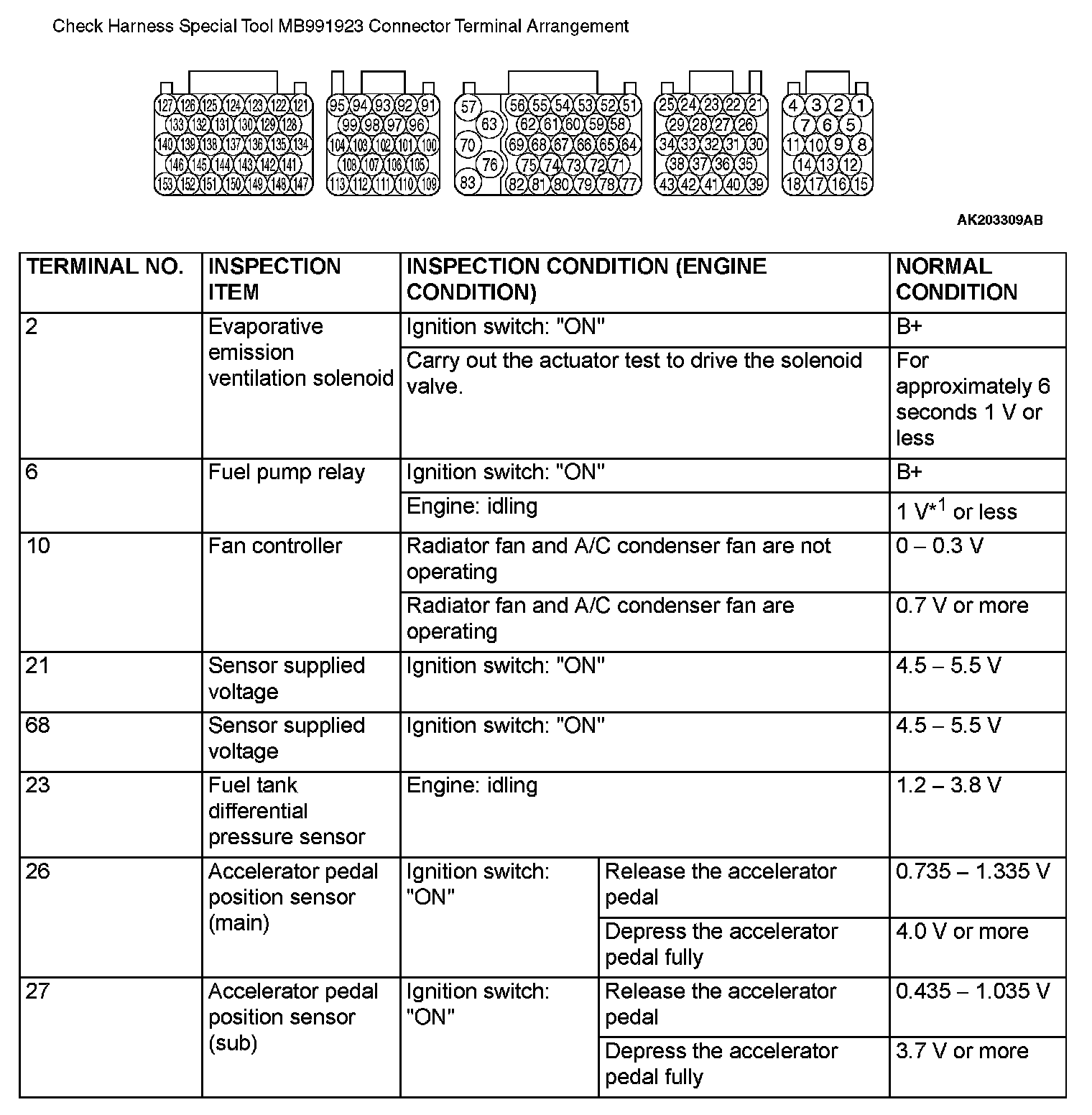

TERMINAL VOLTAGE CHECK CHART

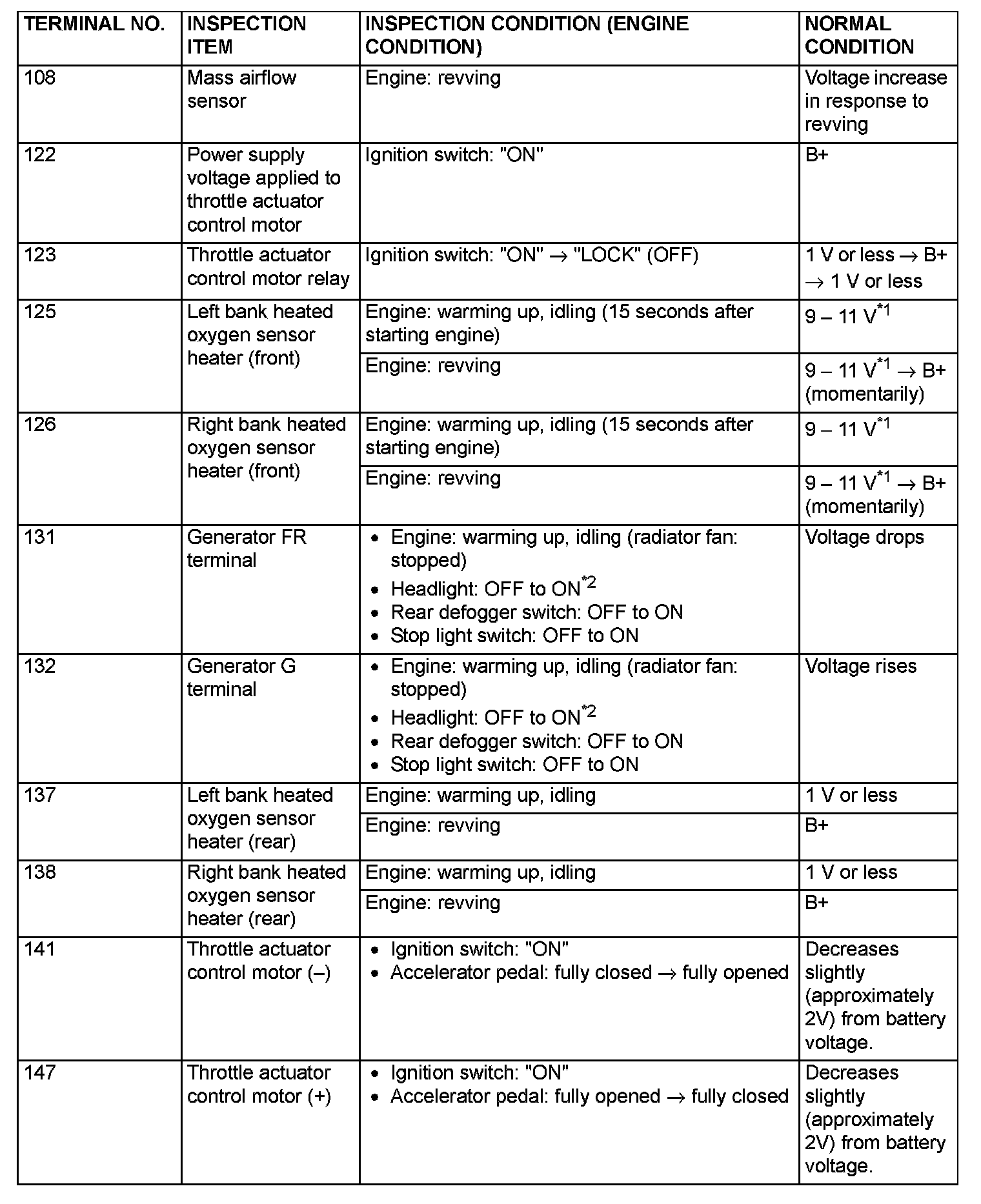

Part 1:

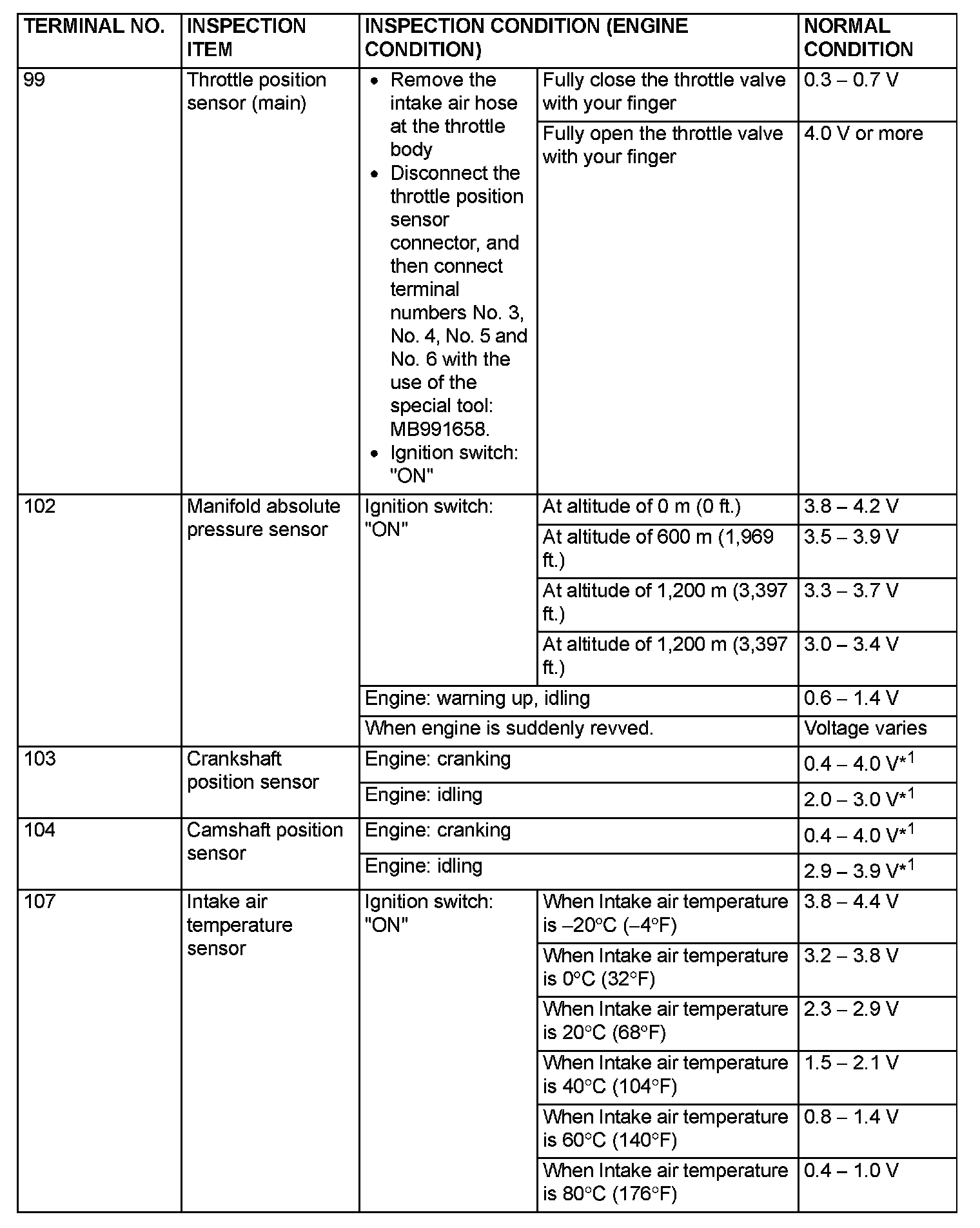

Part 2:

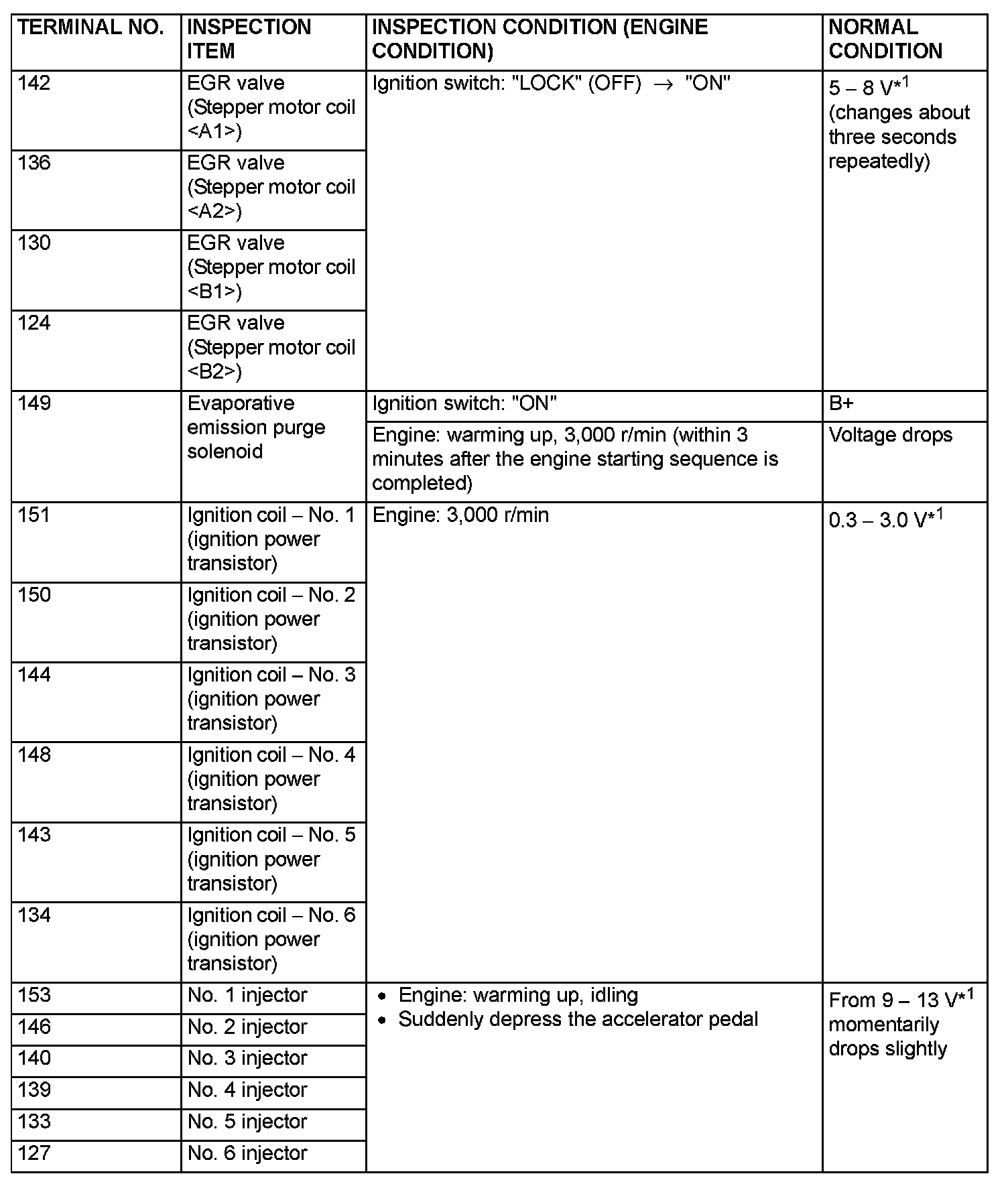

Part 3:

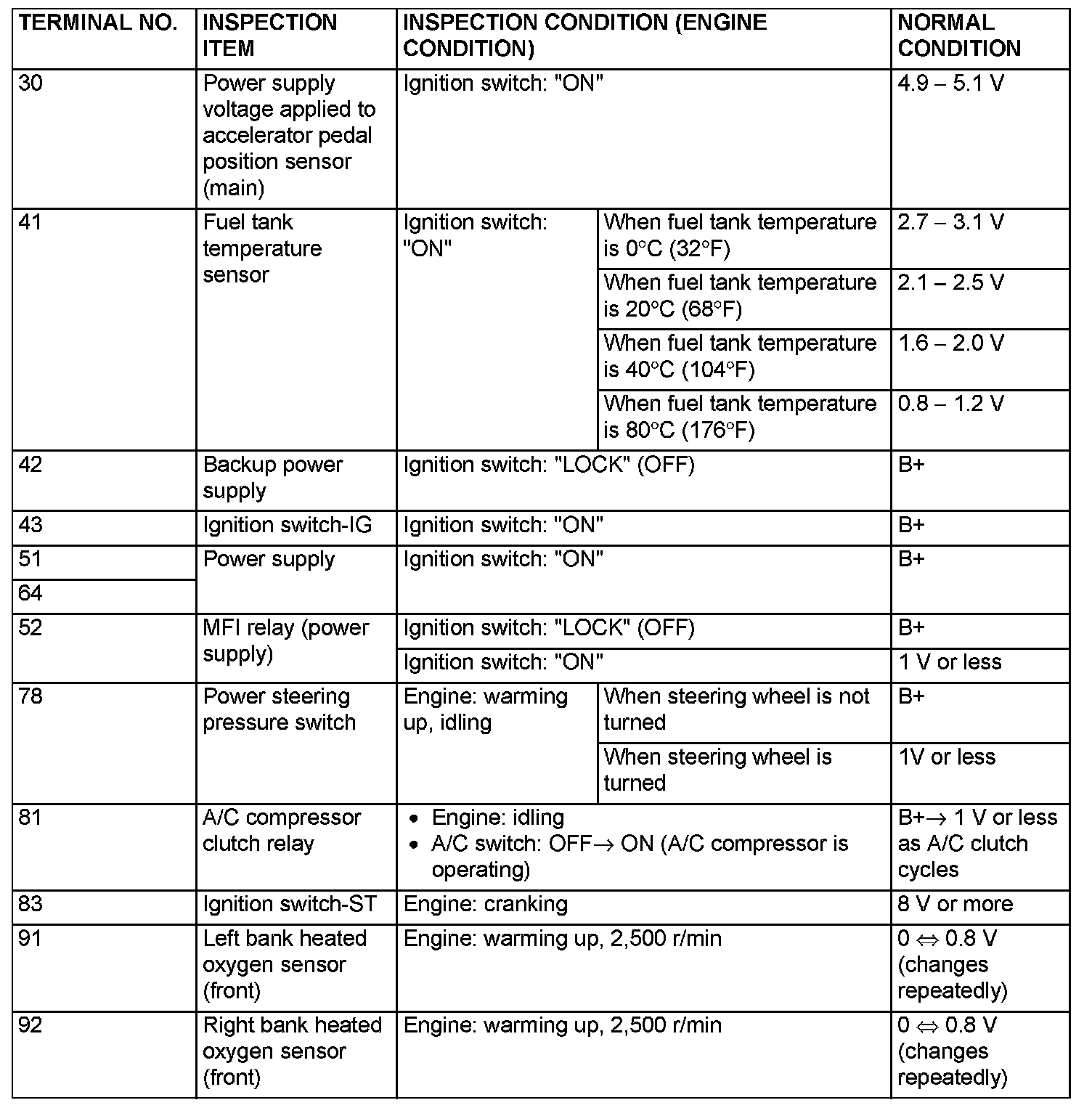

Part 4:

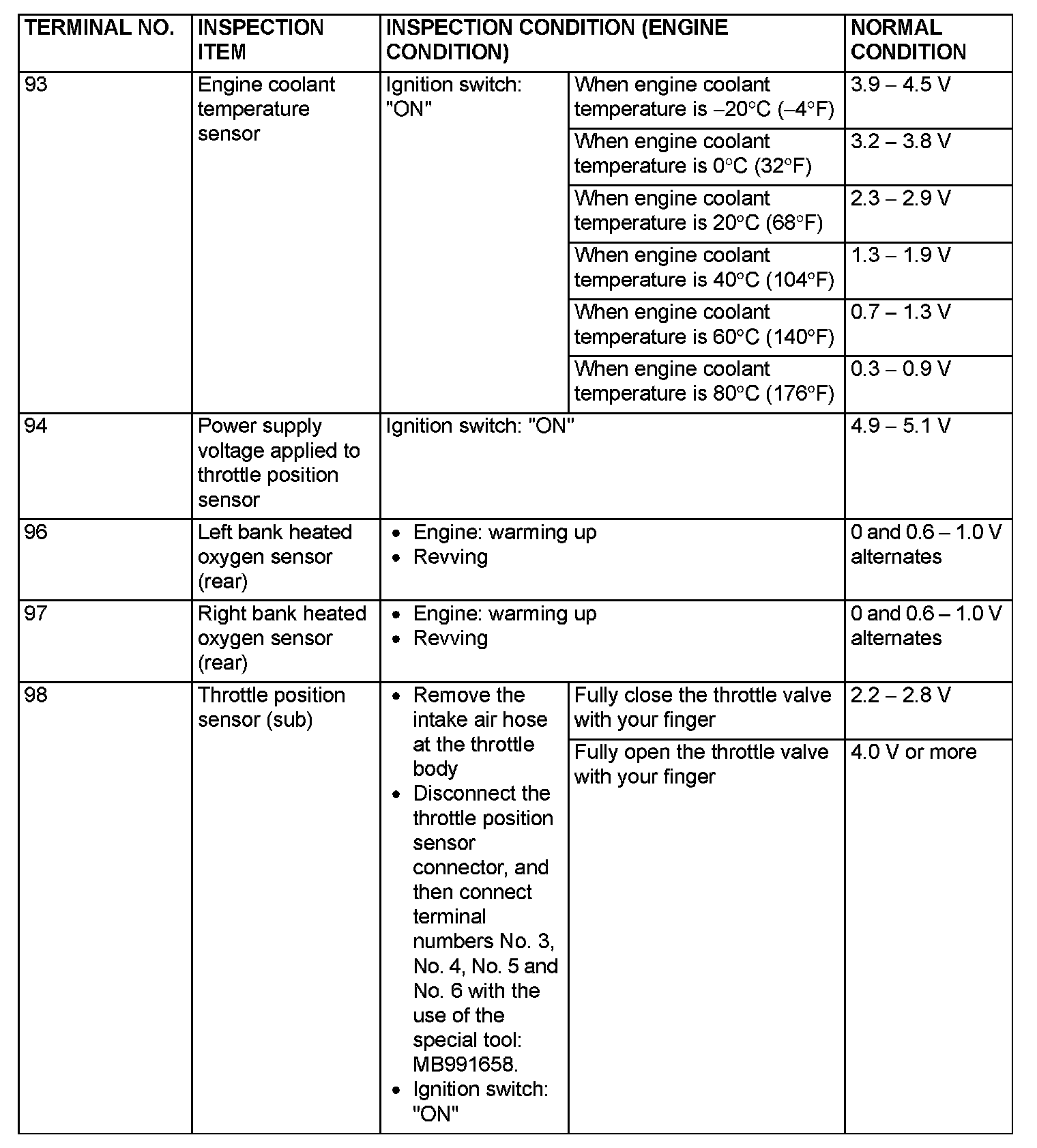

Part 5:





Part 6:

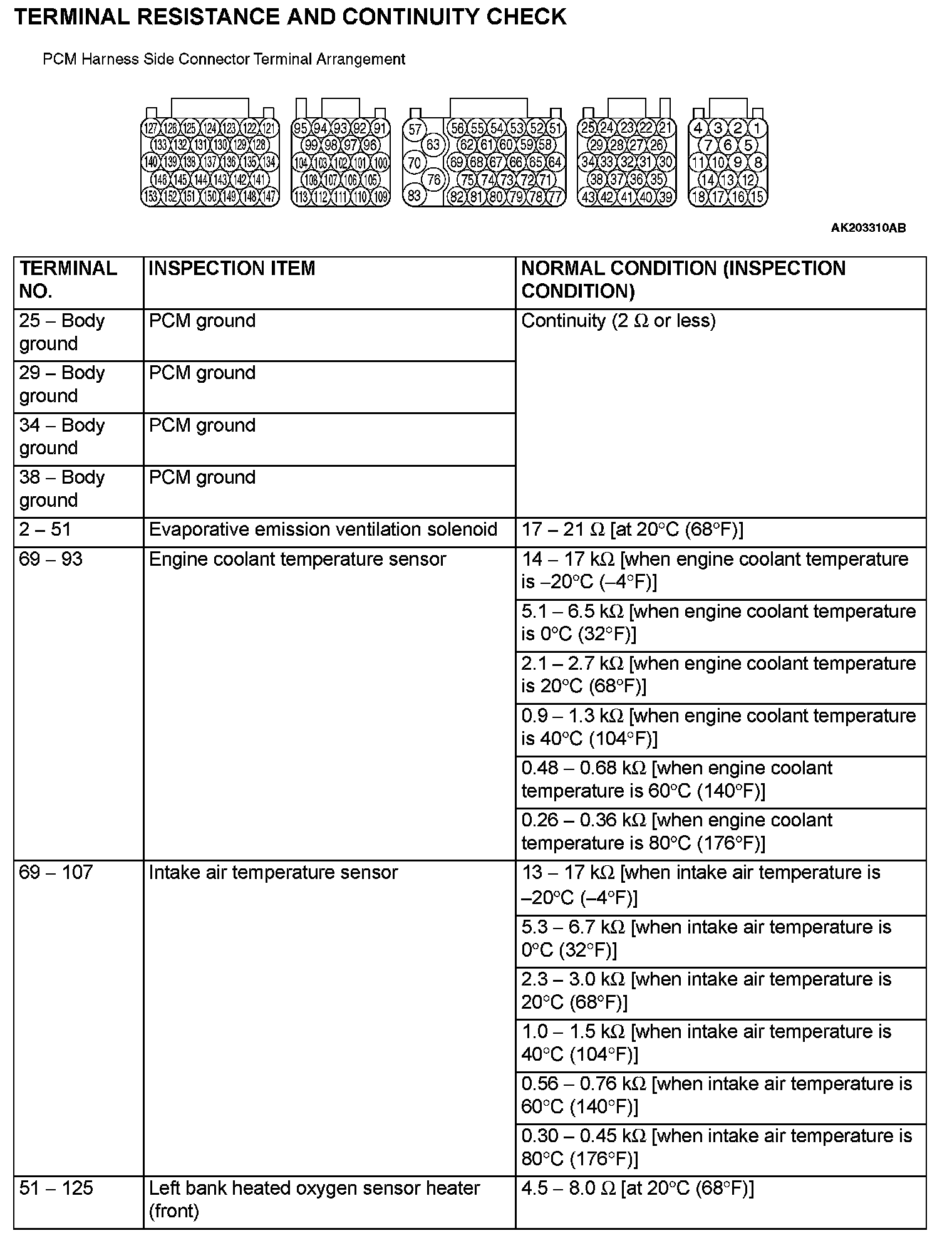

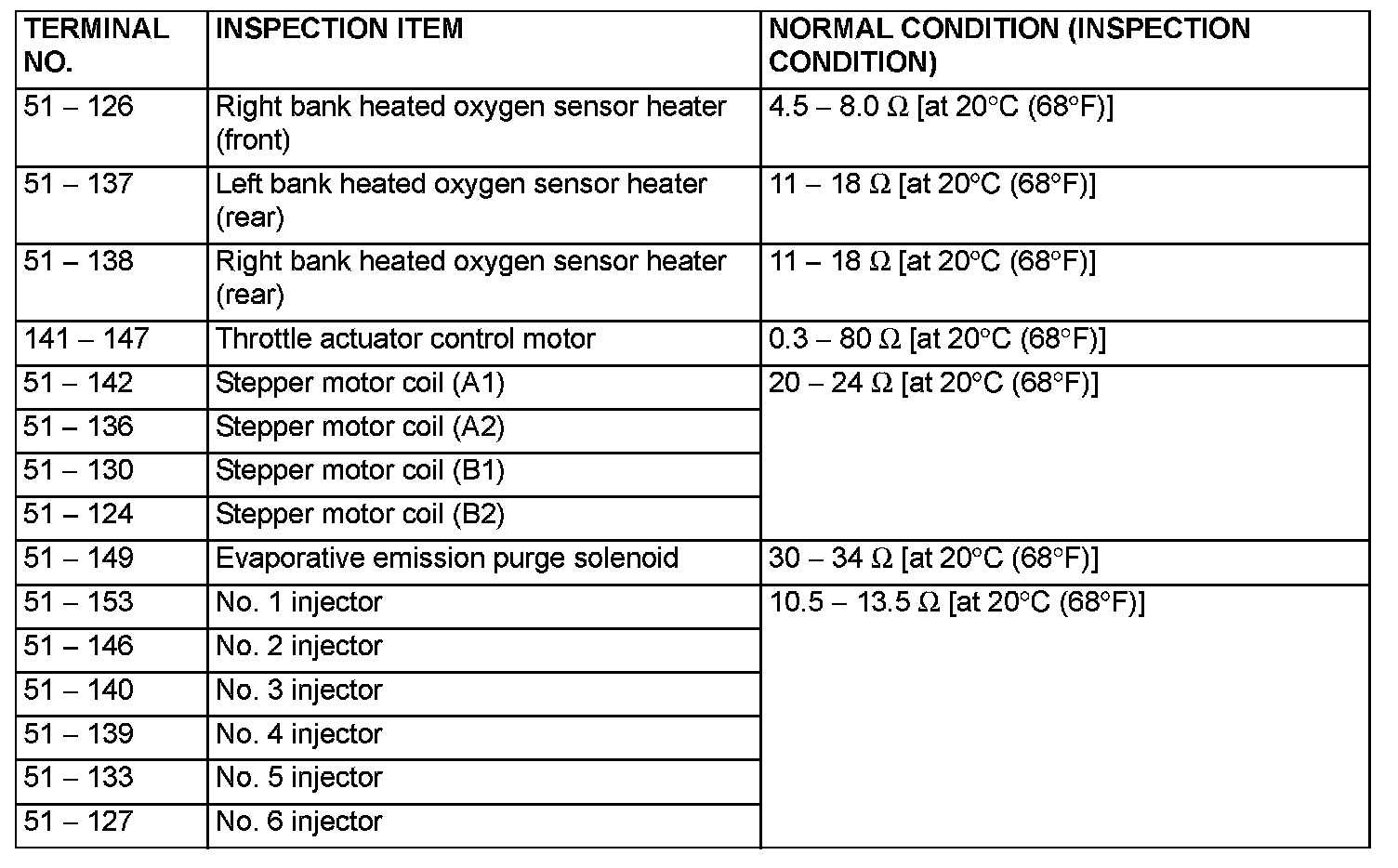

TERMINAL RESISTANCE AND CONTINUITY CHECK

PCM Harness Side Connector Terminal Arrangement Part 1:





PCM Harness Side Connector Terminal Arrangement Part 2:
