Scan Tool Testing and Procedures

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mitsubishi Truck.

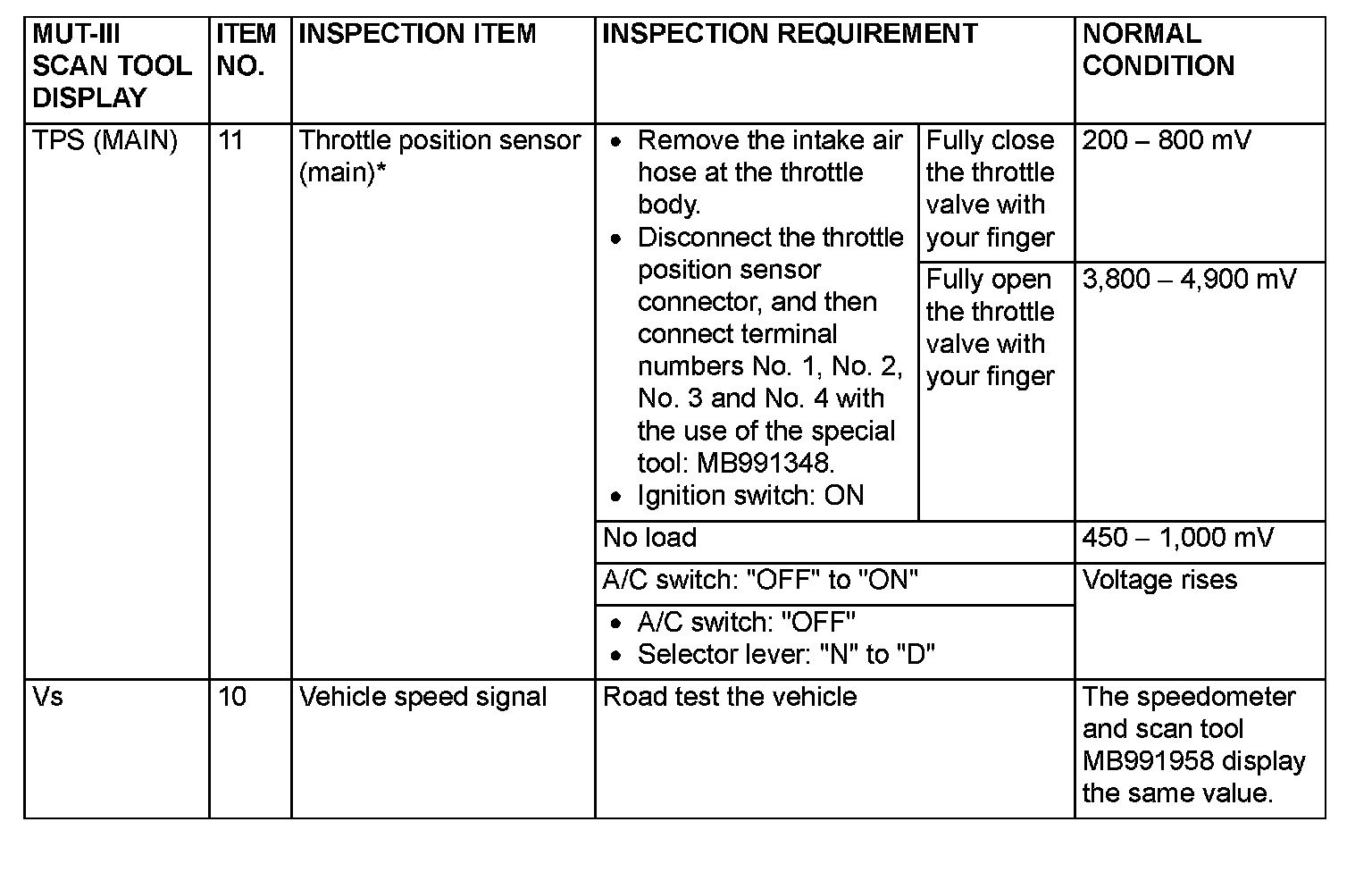

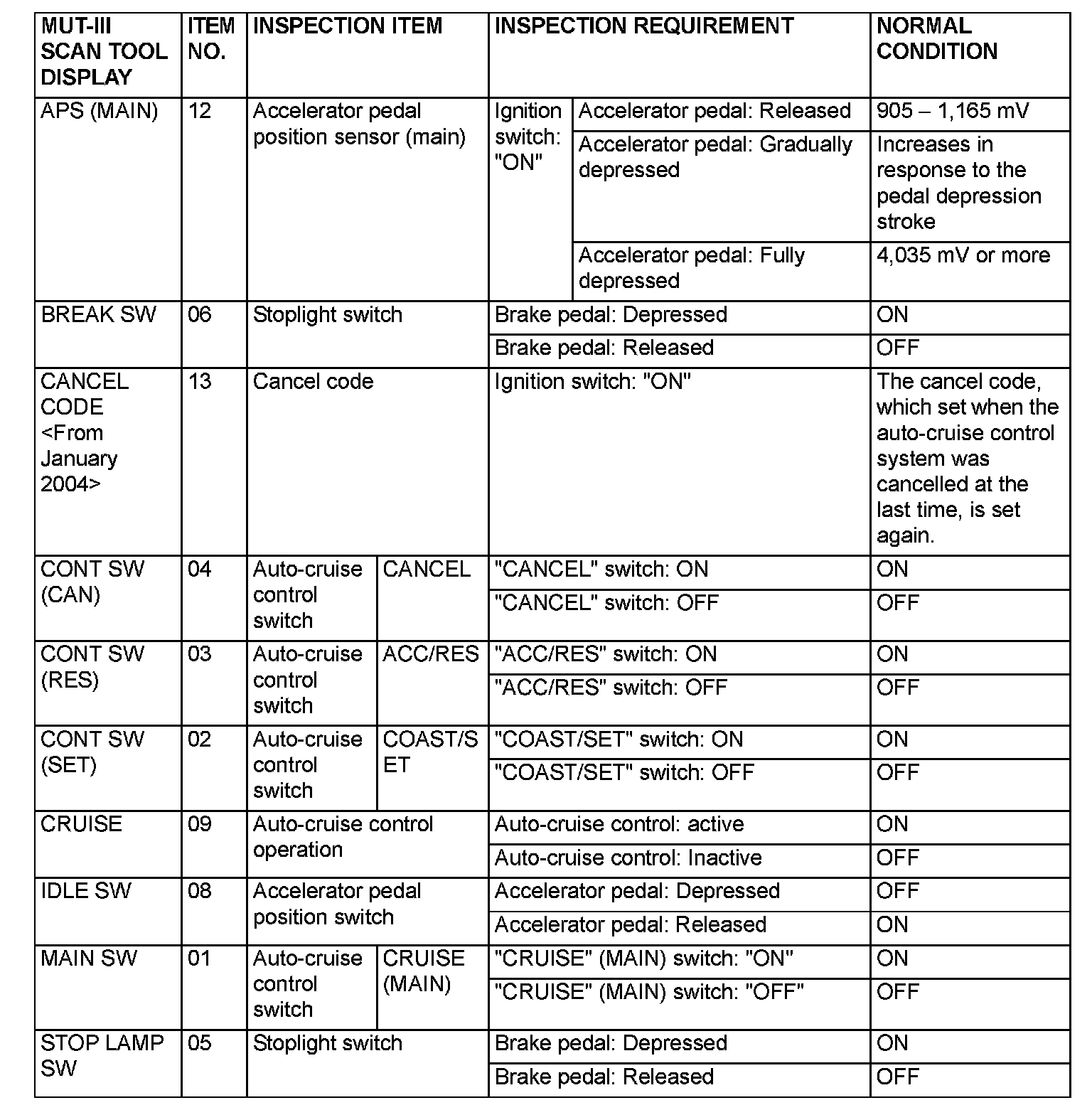

DATA LIST REFERENCE TABLE

Part 1:

Part 2:

CAUTION:
- When shifting the selector lever to "D" range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: *:Disconnect the throttle position sensor connector, and then delete the diagnostic trouble code that was recorded during the inspection with the use of scan tool MB991958 after the inspection has been completed.
