The scan tool activates the following actuators for testing.
NOTE: If the TCL/ASC-ECU runs down, actuator testing cannot be carried out.
NOTE: Actuator testing is only possible when the vehicle is stationary.

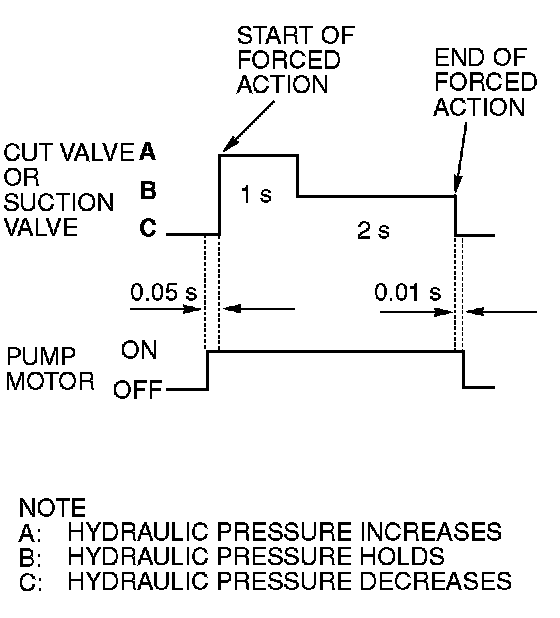

ACTUATOR TEST SPECIFICATIONS

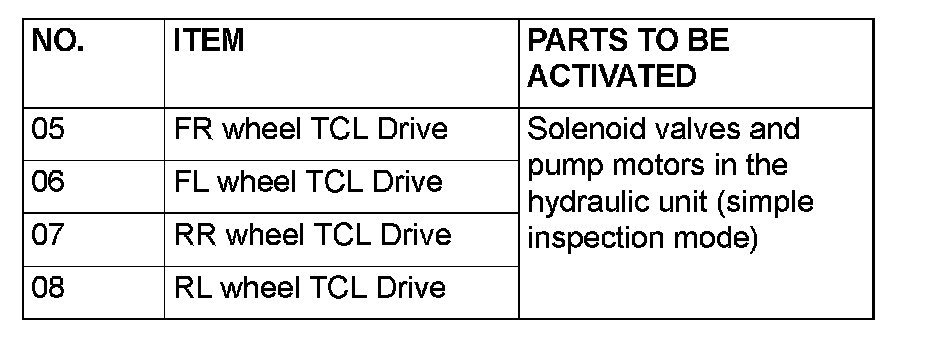

Actuator Test Reference Table
