Compression Check

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.

AI Repair Guides
AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

Part 1:




Part 2:

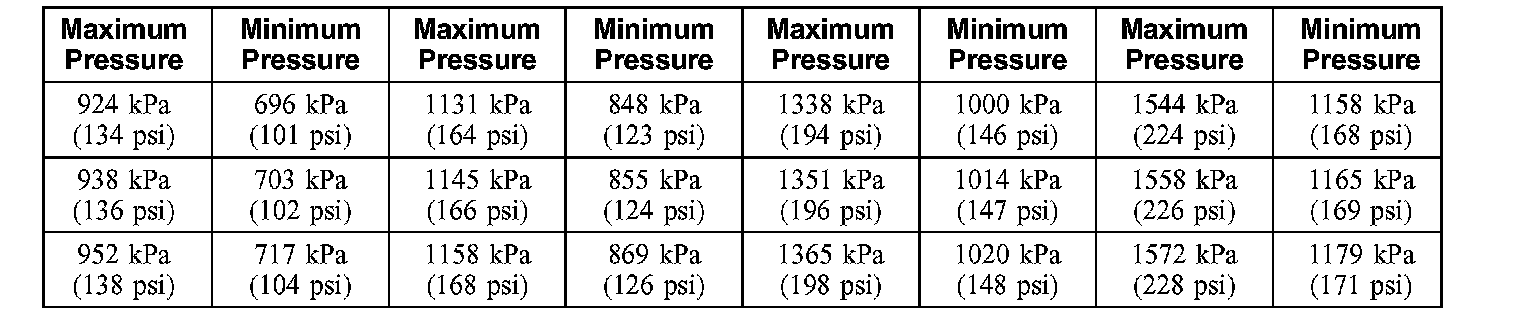

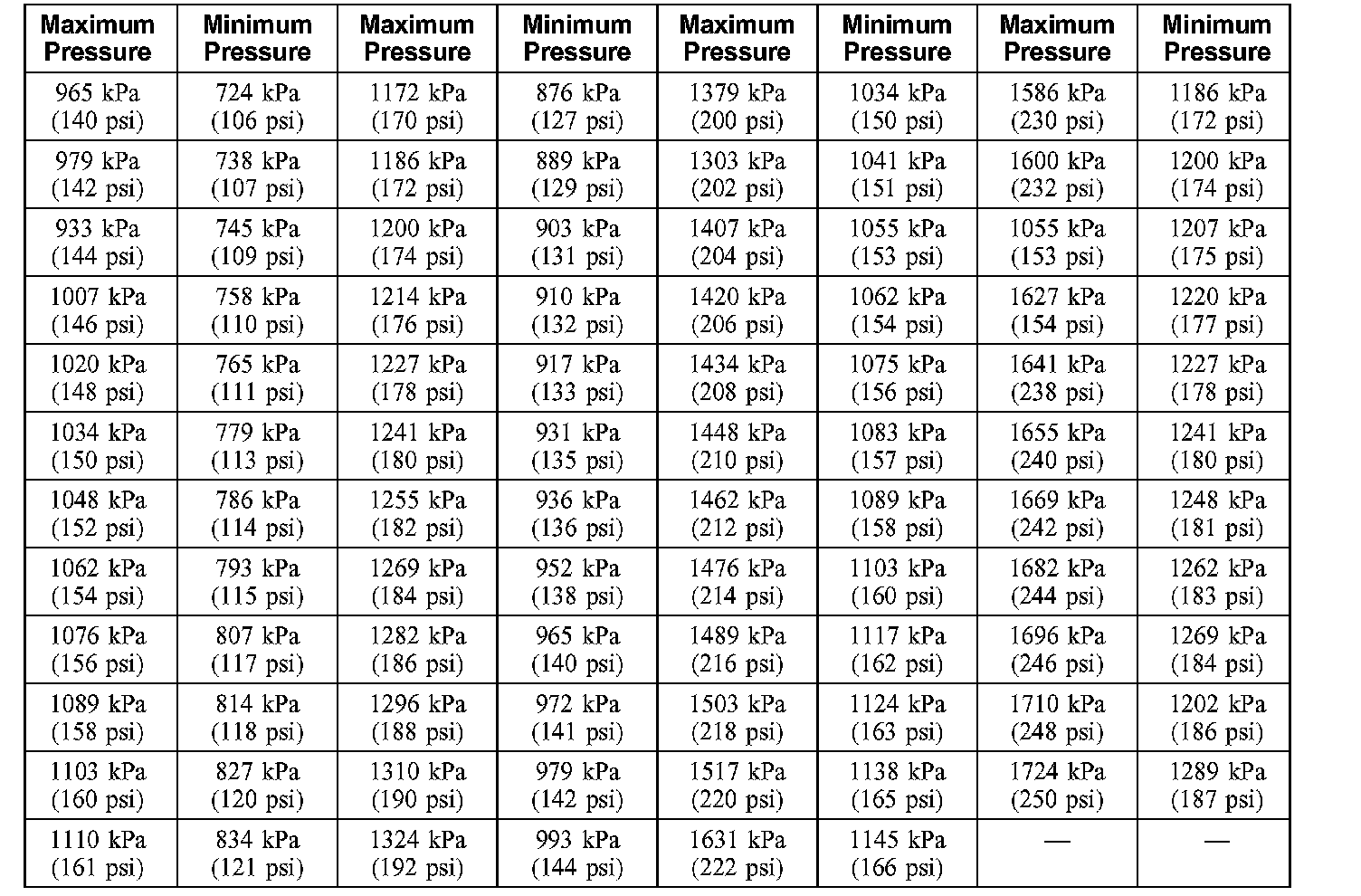

Compression Pressure Limit Chart

Use the Compression Pressure Limit Chart when checking cylinder compression so that the lowest reading is within 75 percent of the highest reading.
