Reference Value PID/Measured Signal Chart

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.

AI Repair Guides

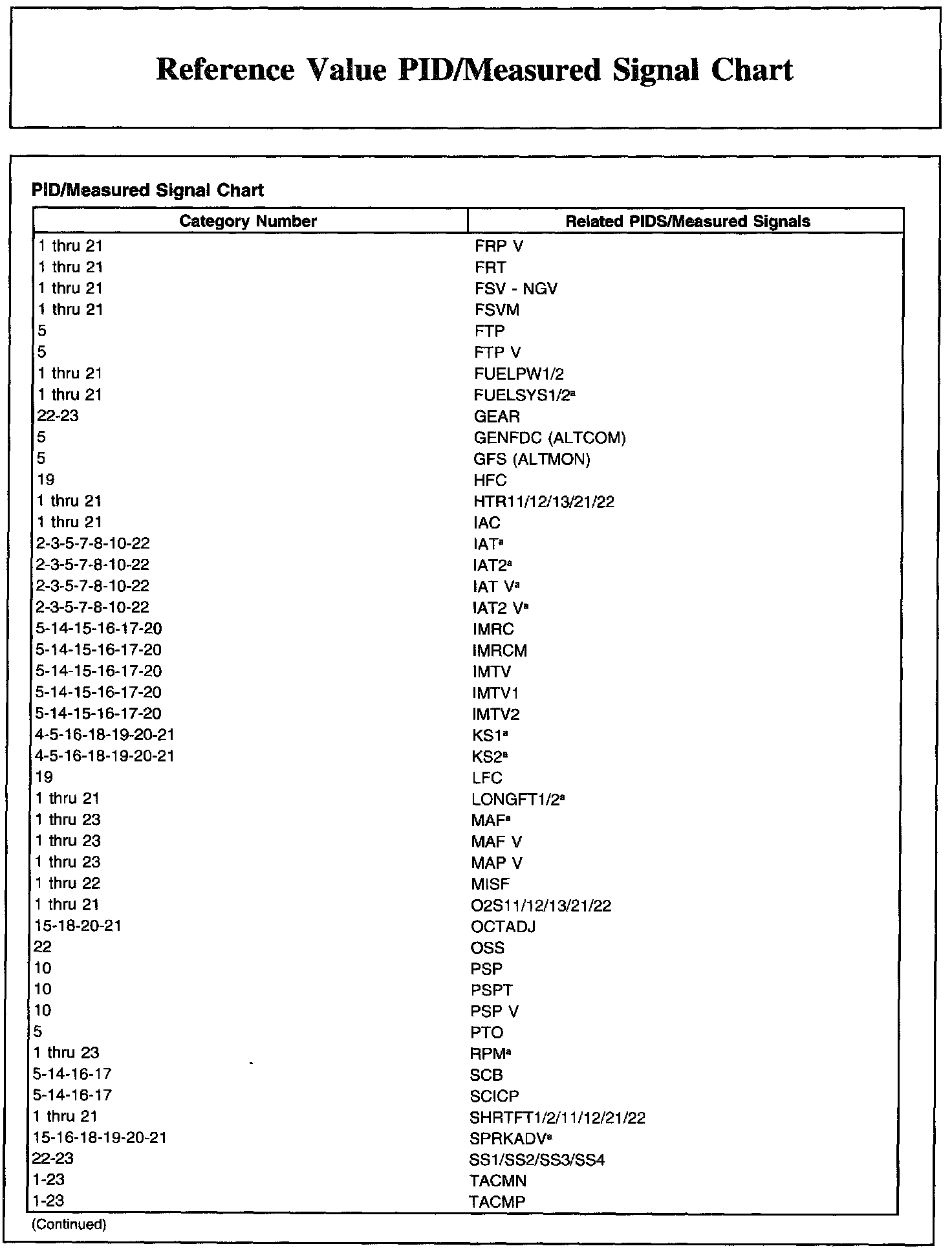

Reference Value PID/Measured Signal Chart, Part 1:

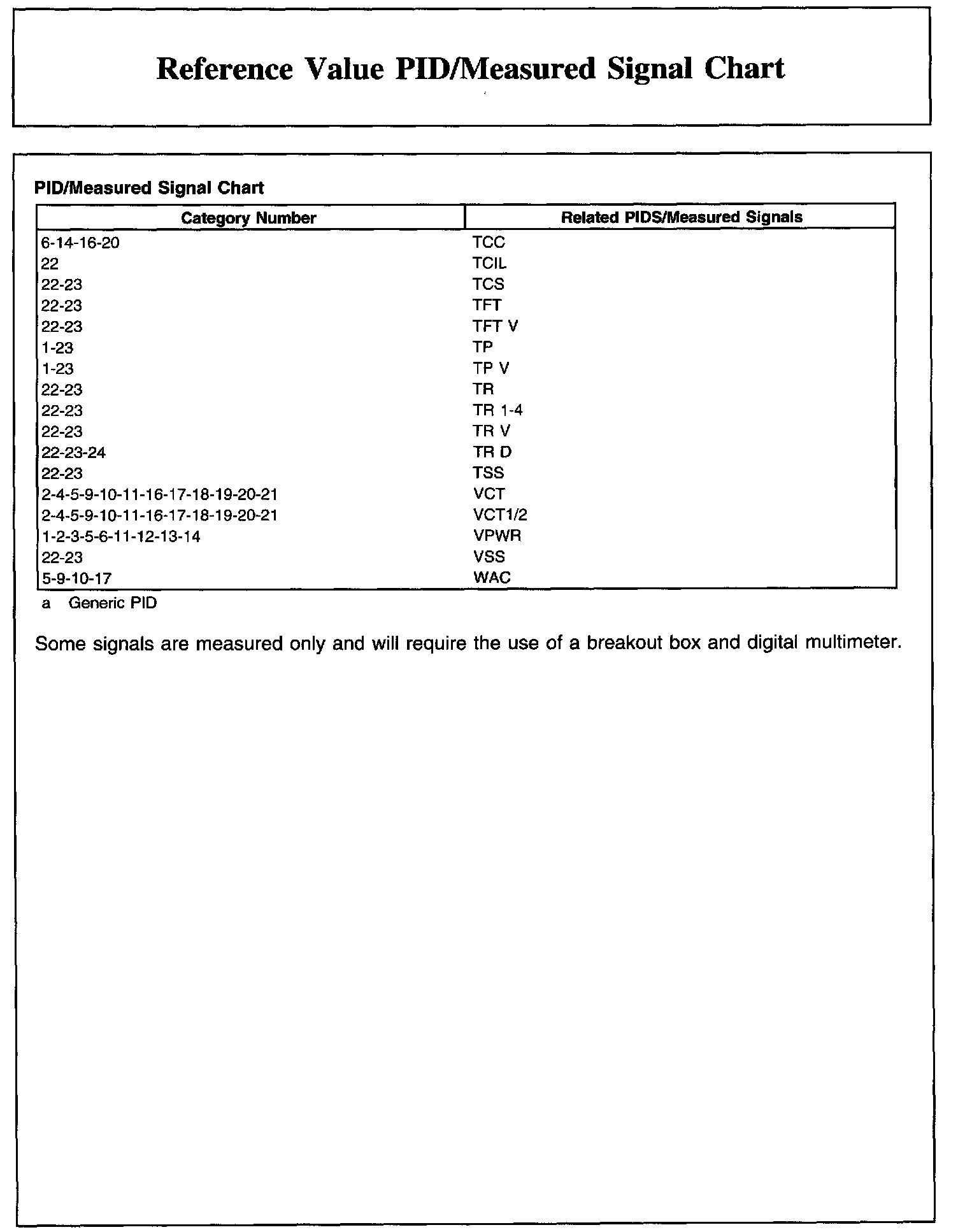

Reference Value PID/Measured Signal Chart, Part 2:

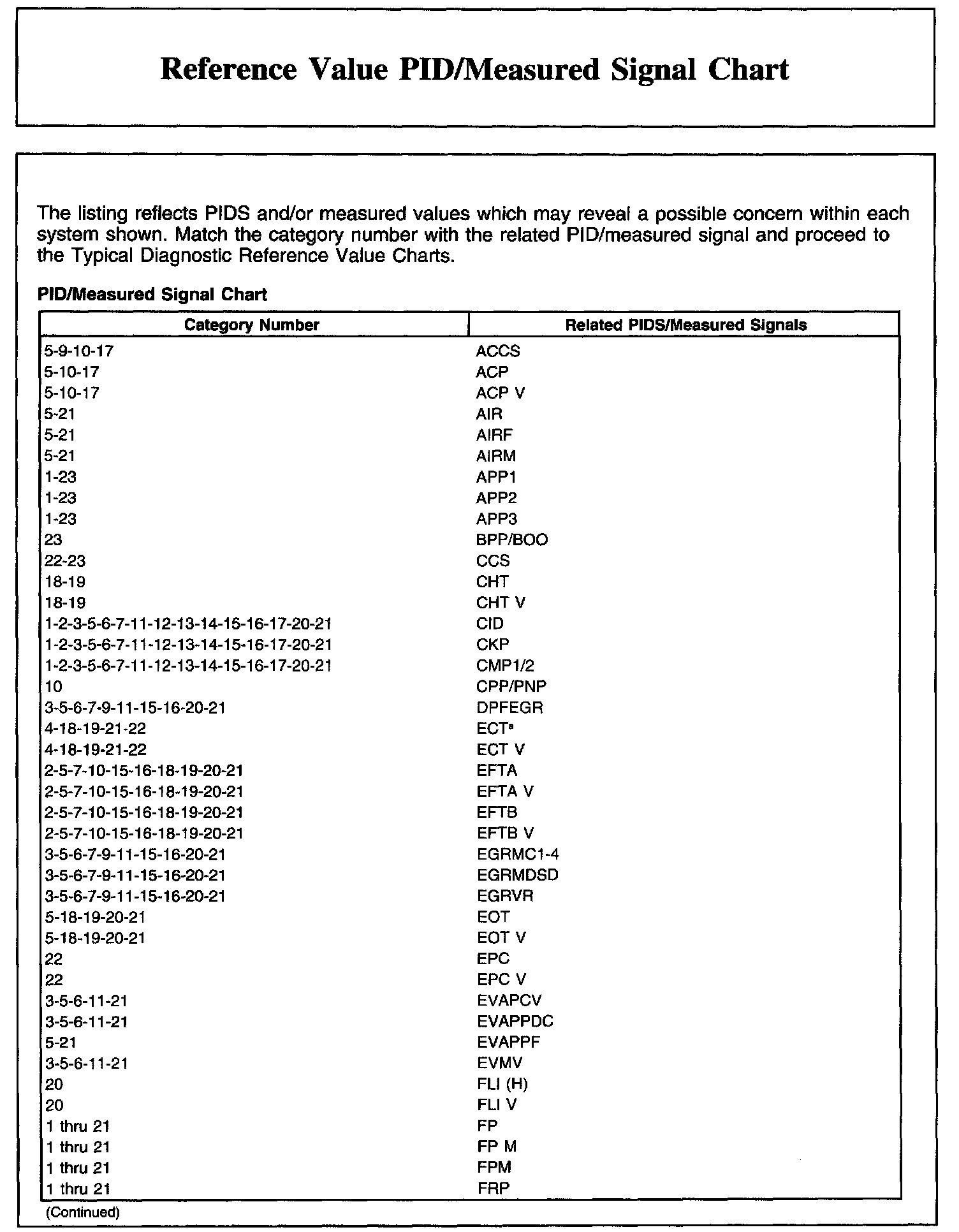

Reference Value PID/Measured Signal Chart, Part 3:
