Tests DH: Throttle Position (TP) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.

AI Repair Guides


PINPOINT TEST DH: THROTTLE POSITION (TP) SENSOR

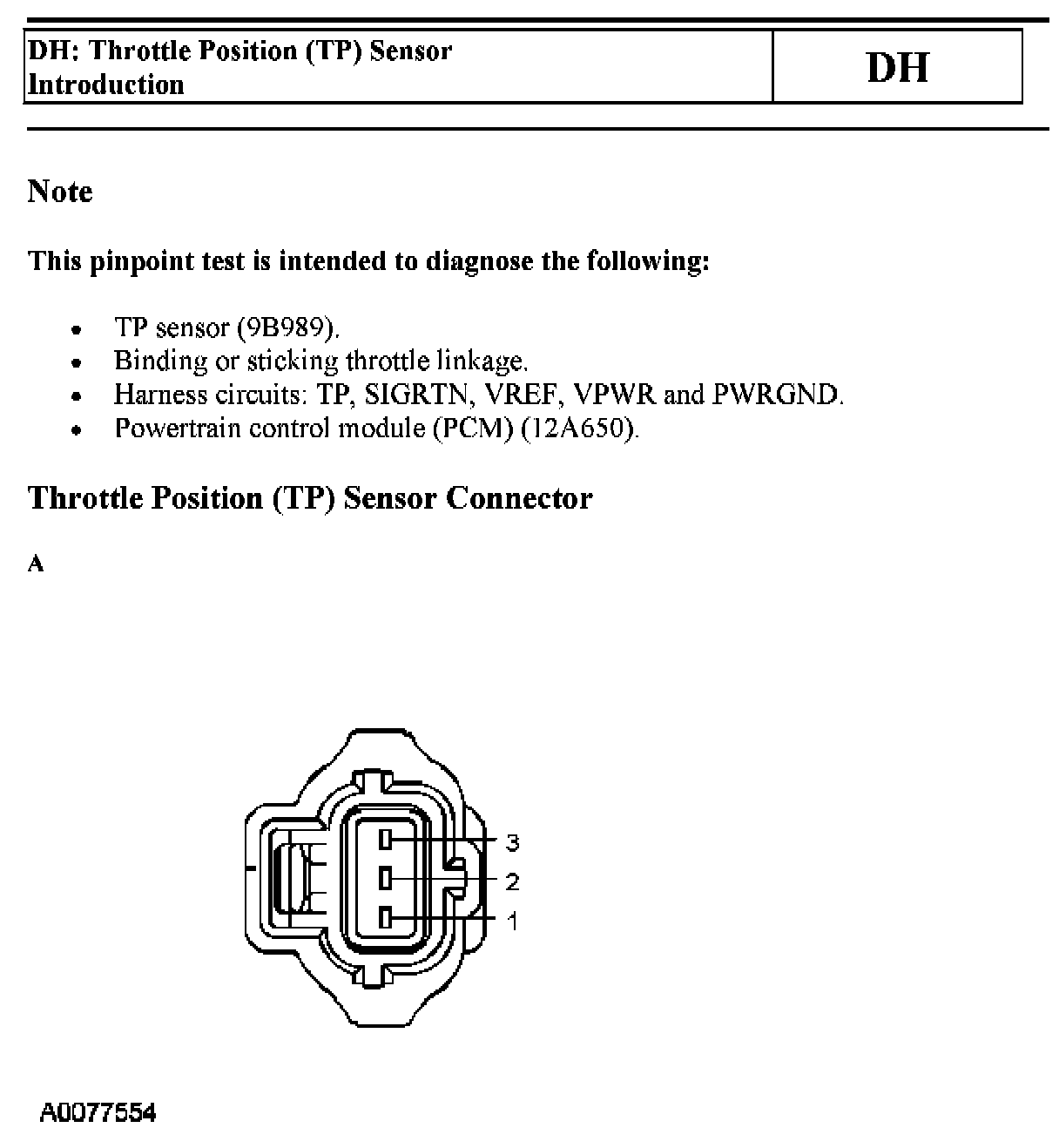

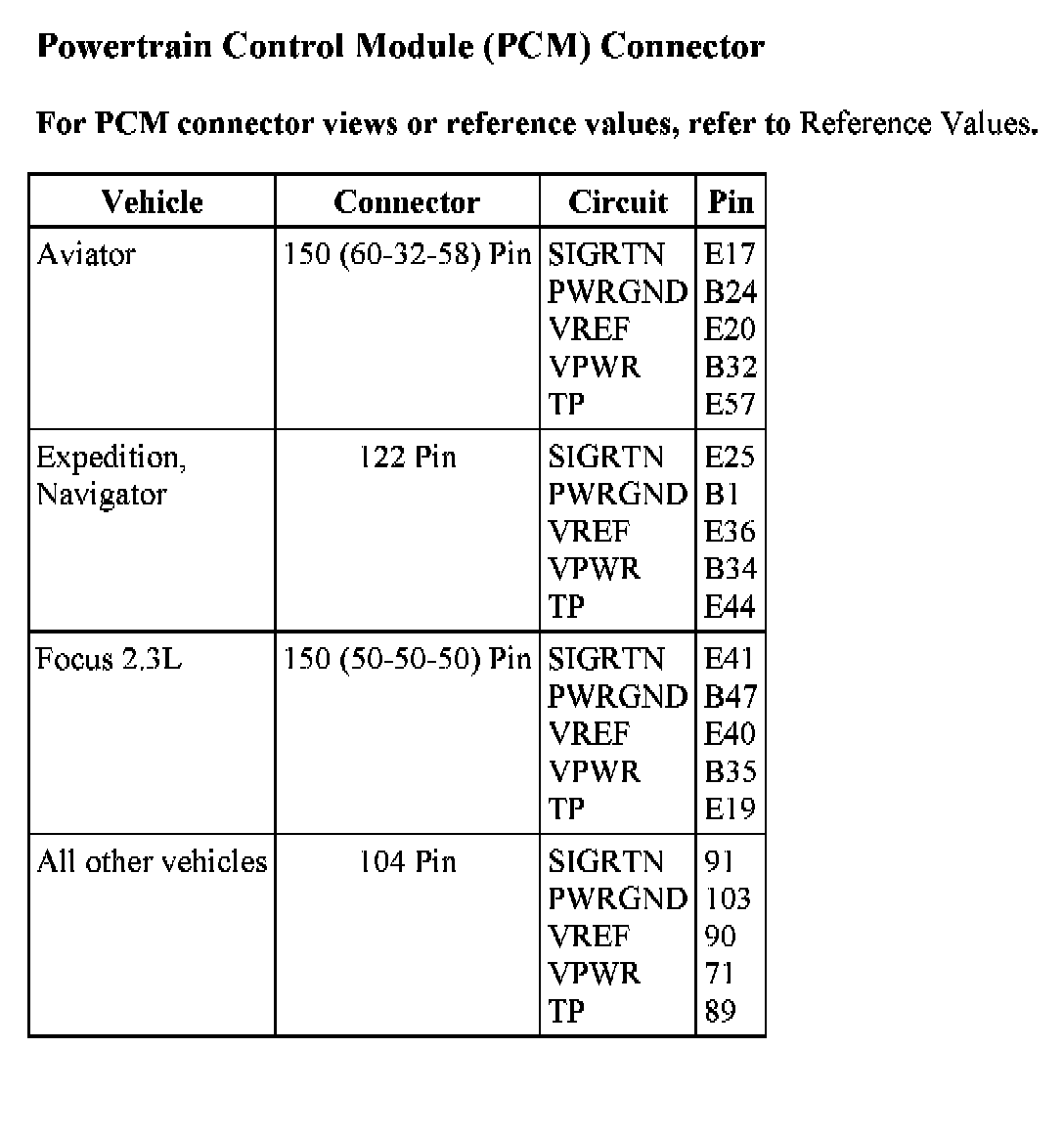

DH Introduction 1 Of 3:

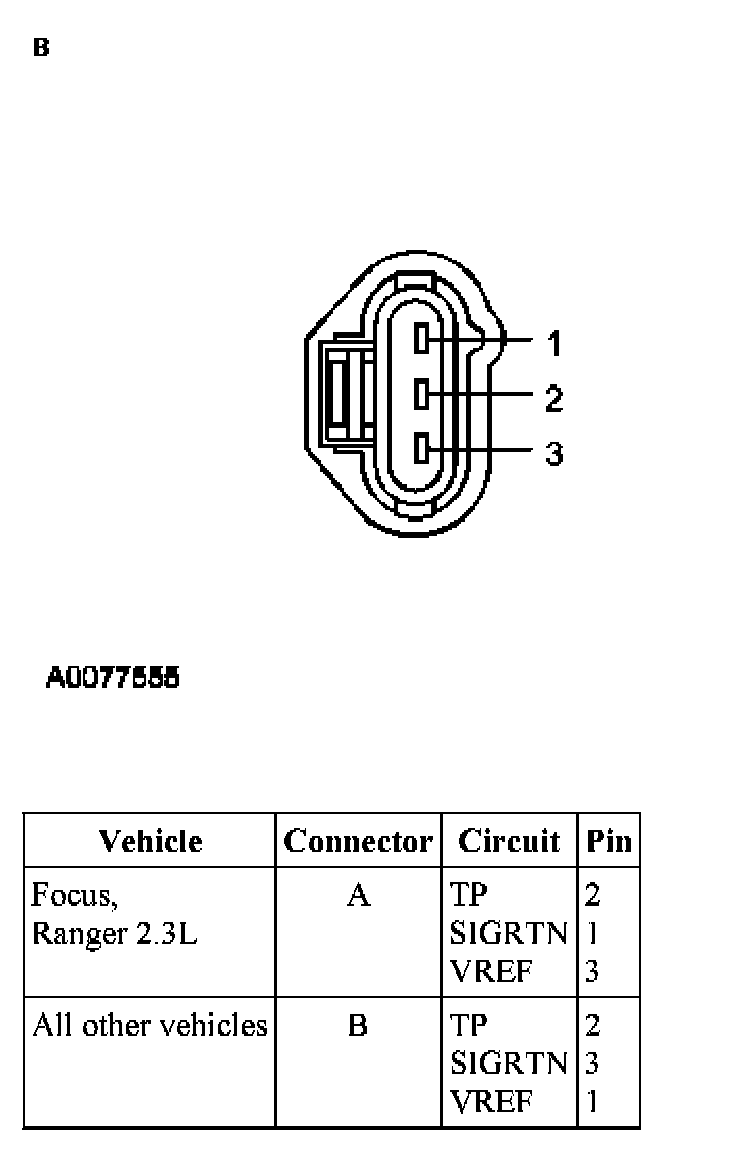

DH Introduction 2 Of 3:





DH Introduction 3 Of 3:

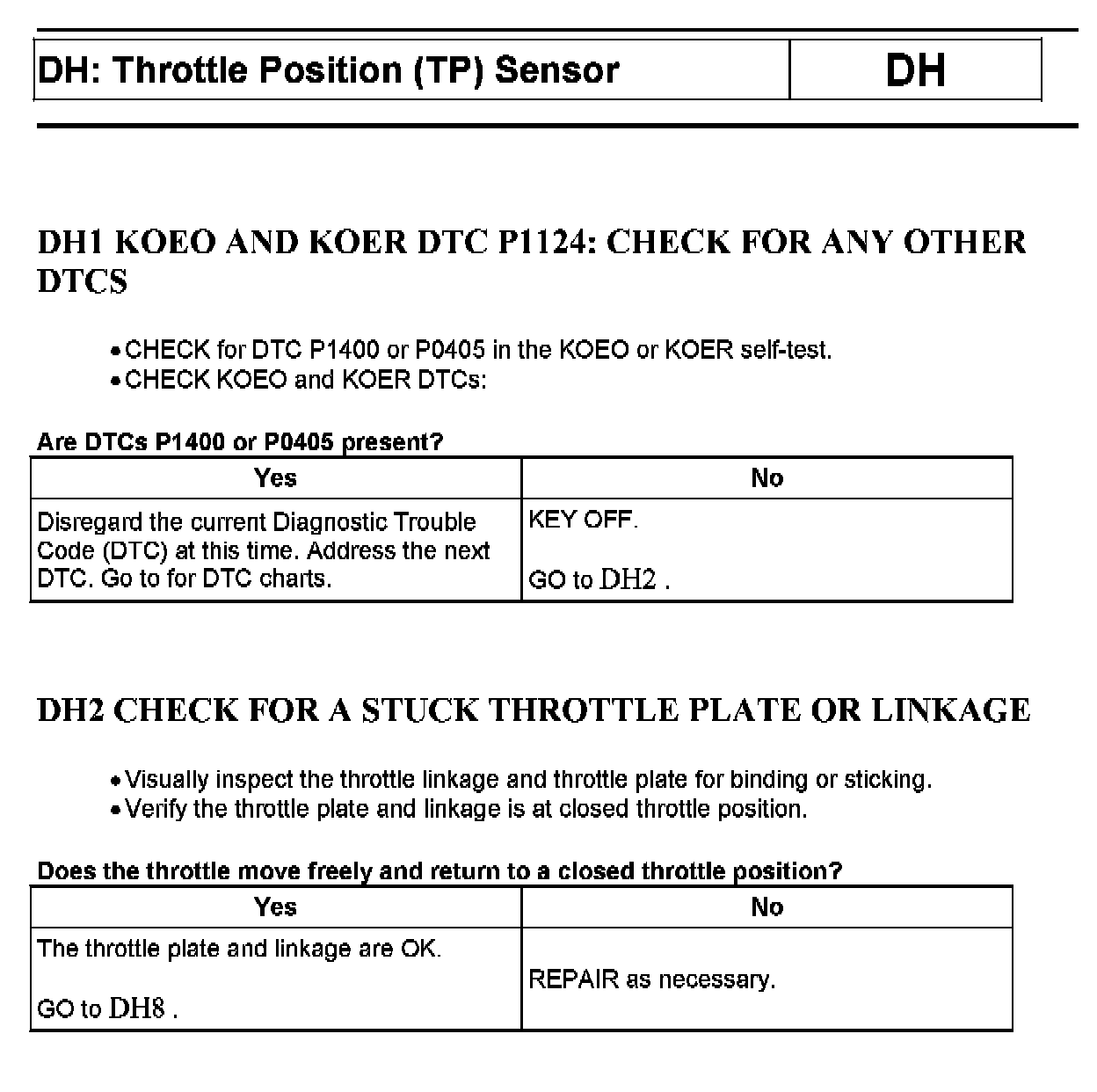

DH1 - DH2:

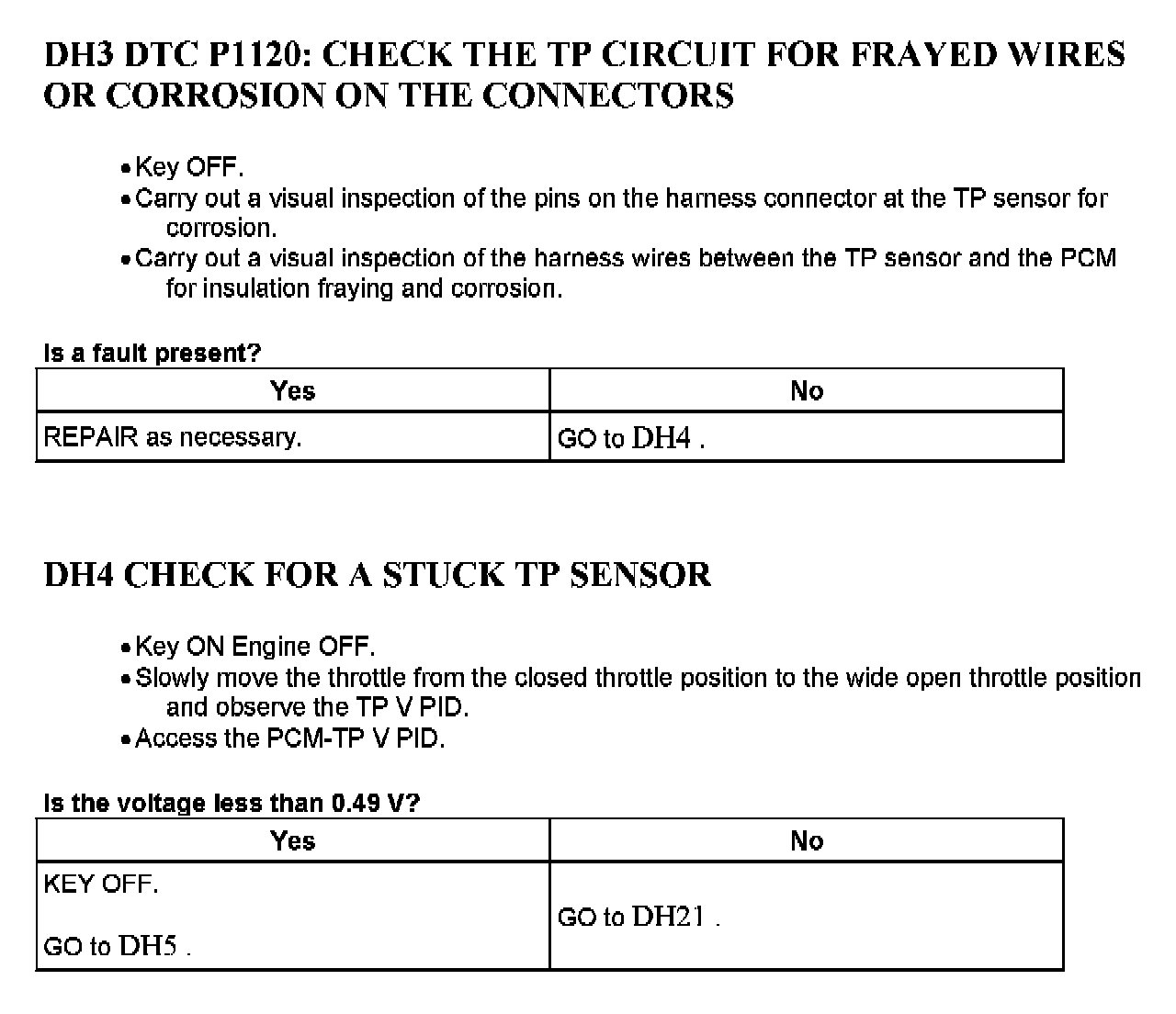

DH3 - DH4:

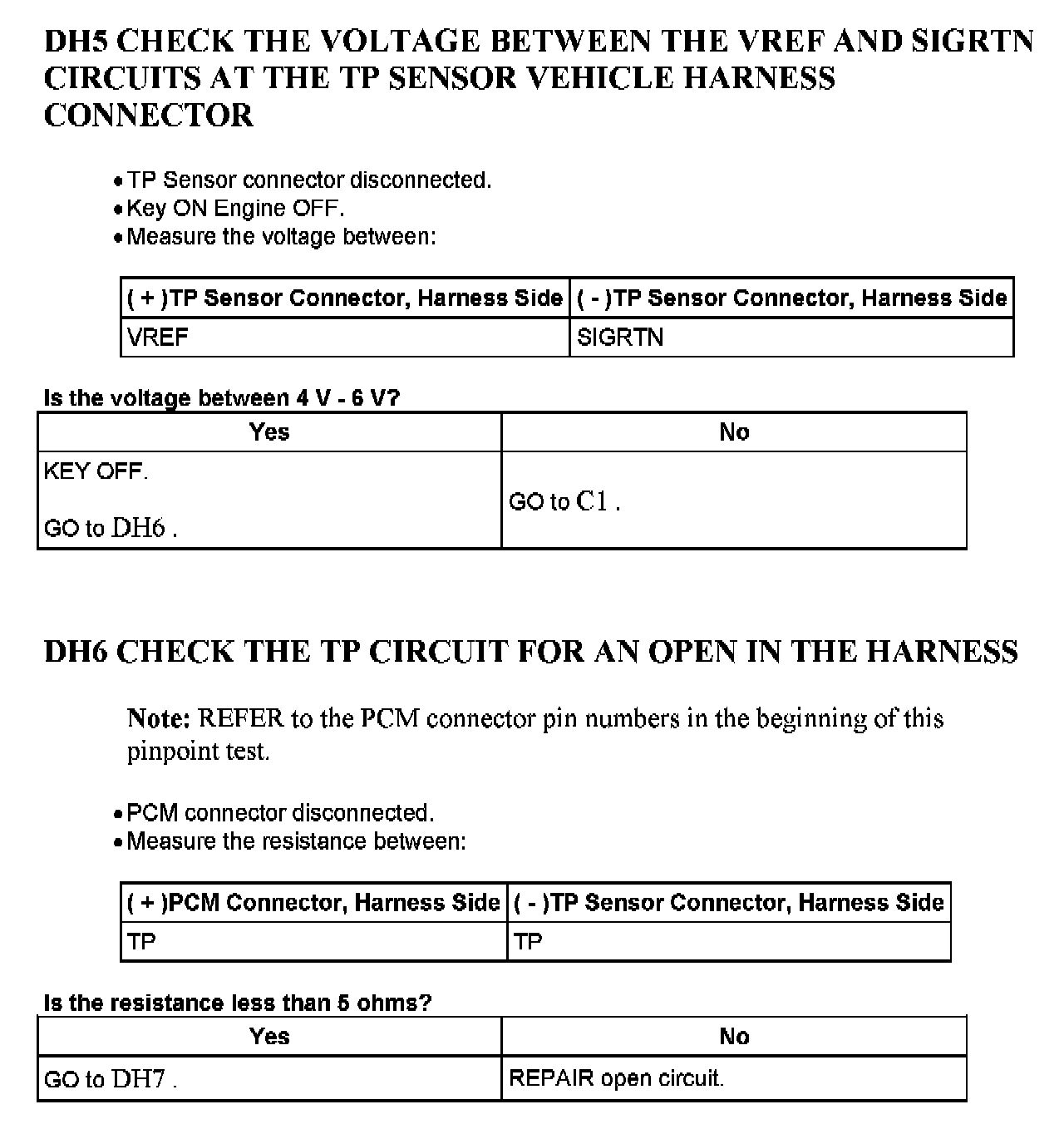

DH5 - DH6:

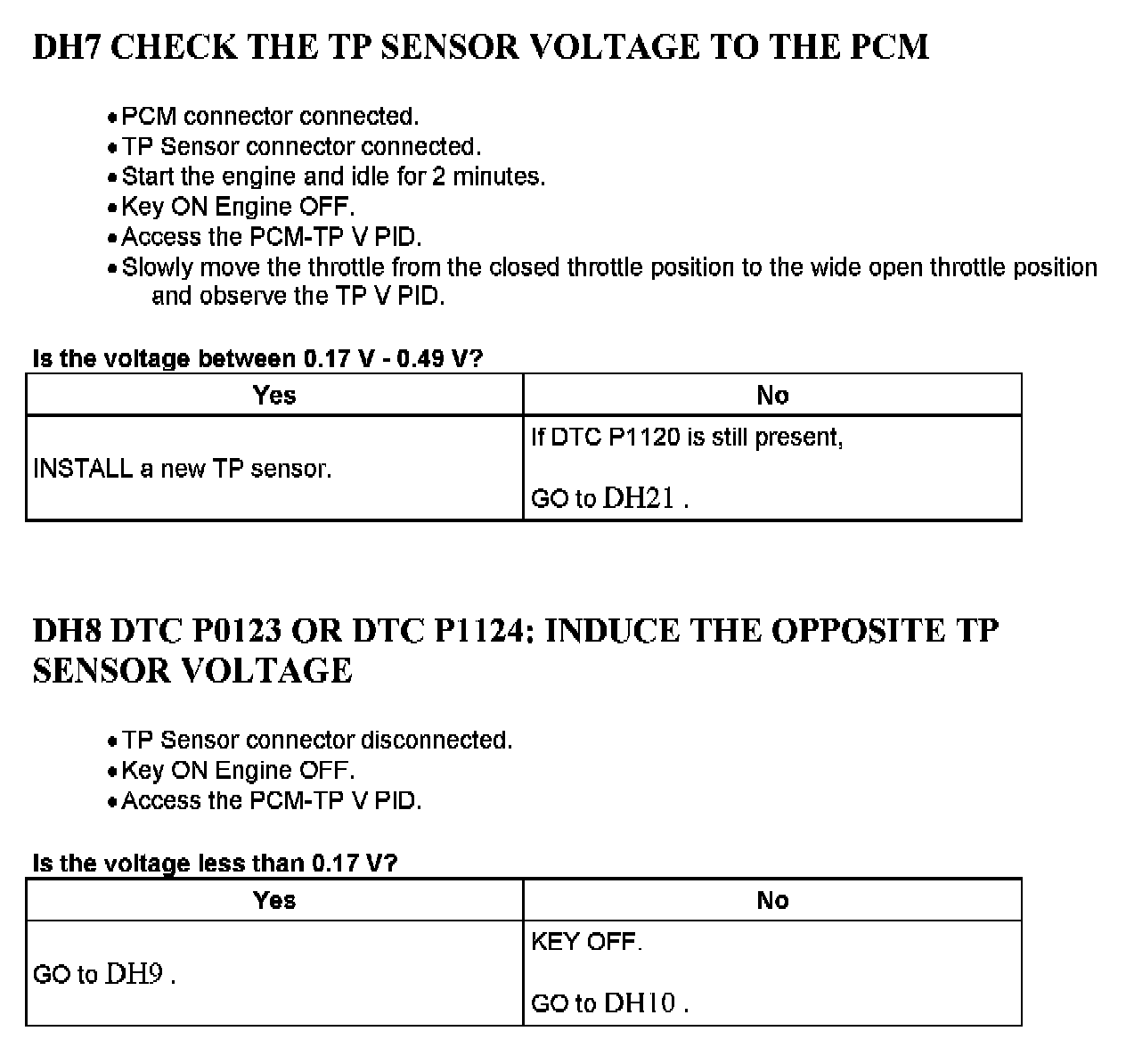

DH7 - DH8:

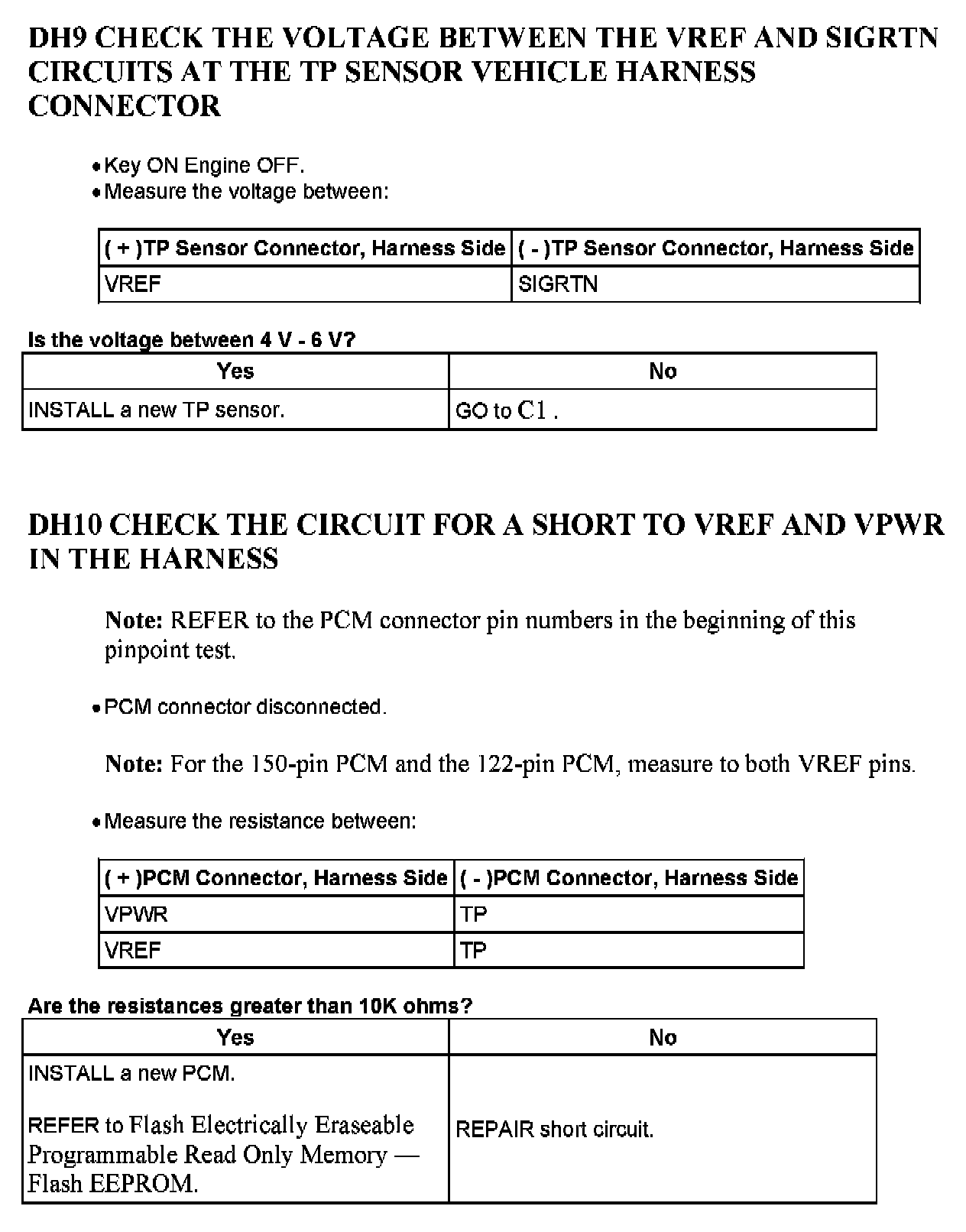

DH9 - DH10:

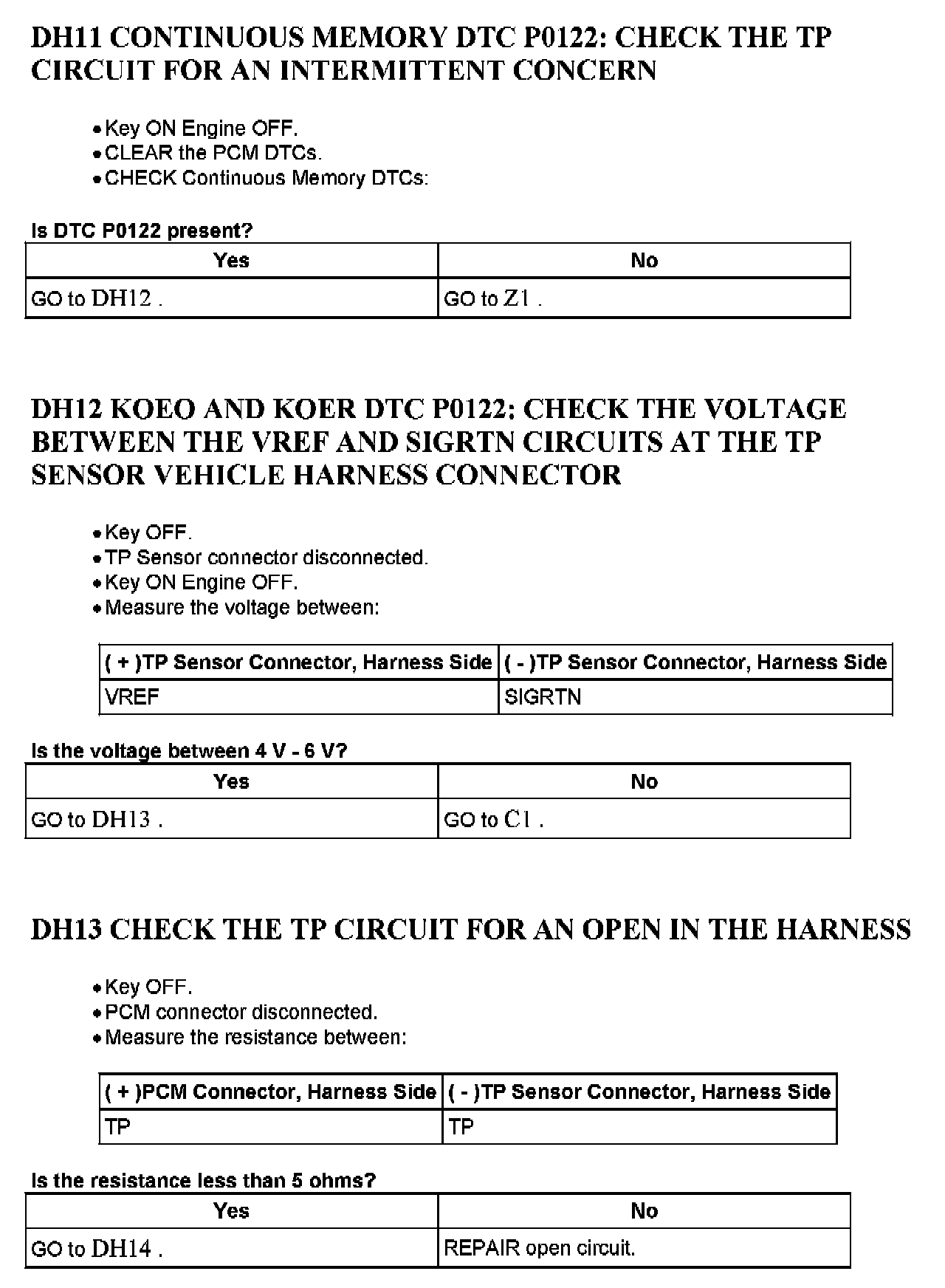

DH11 - DH13:

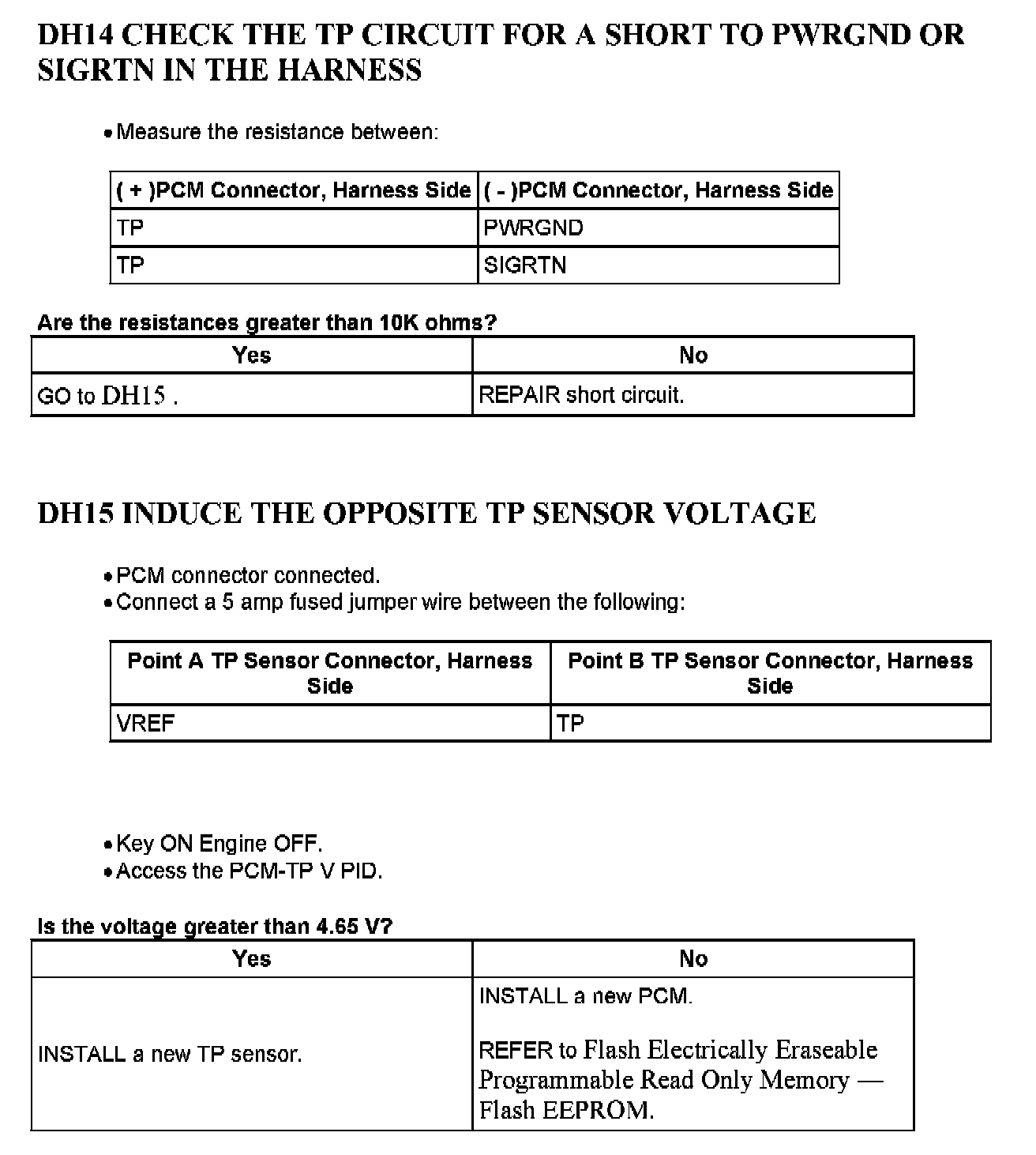

DH14 - DH15:

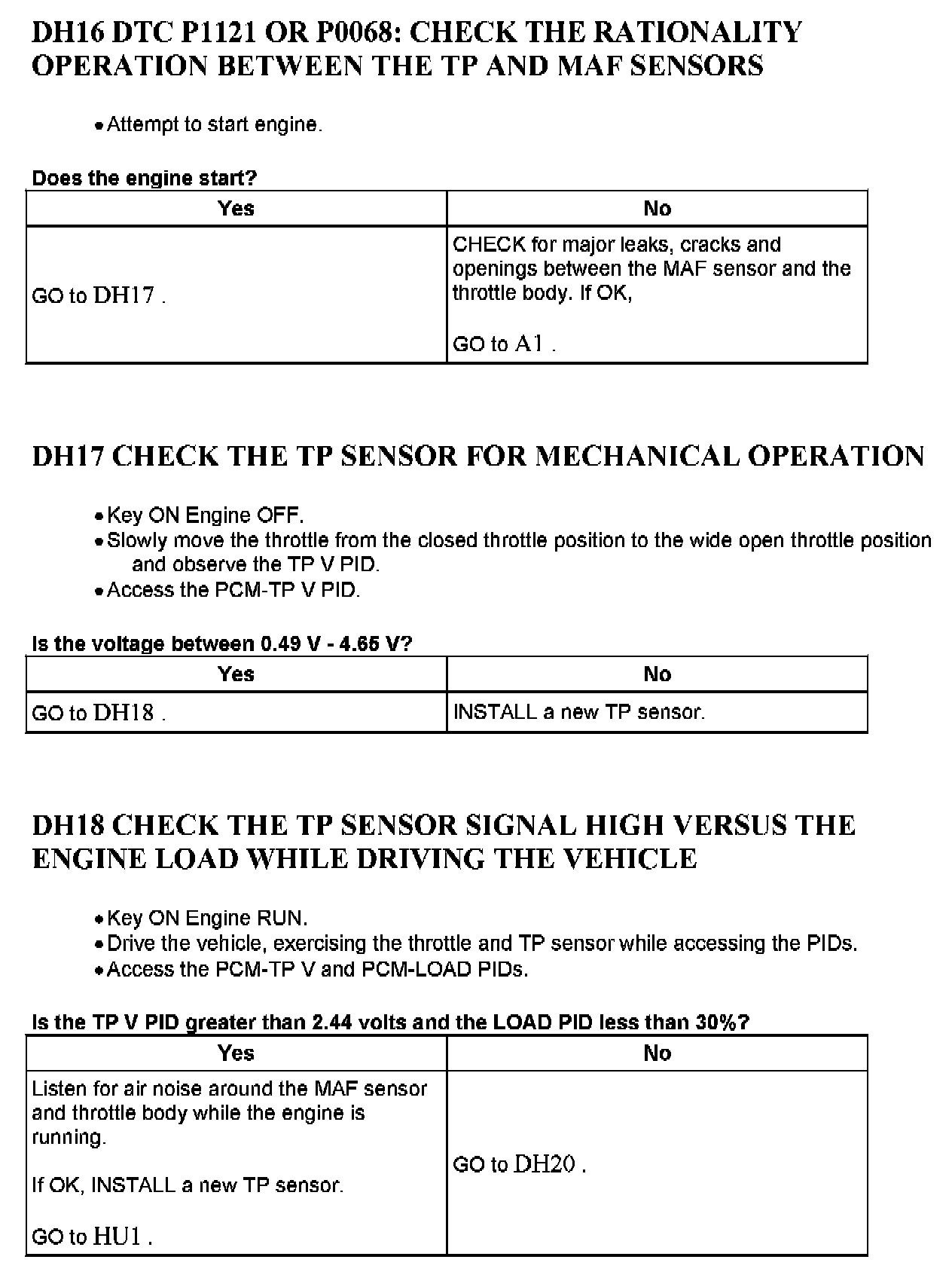

DH16 - DH18:

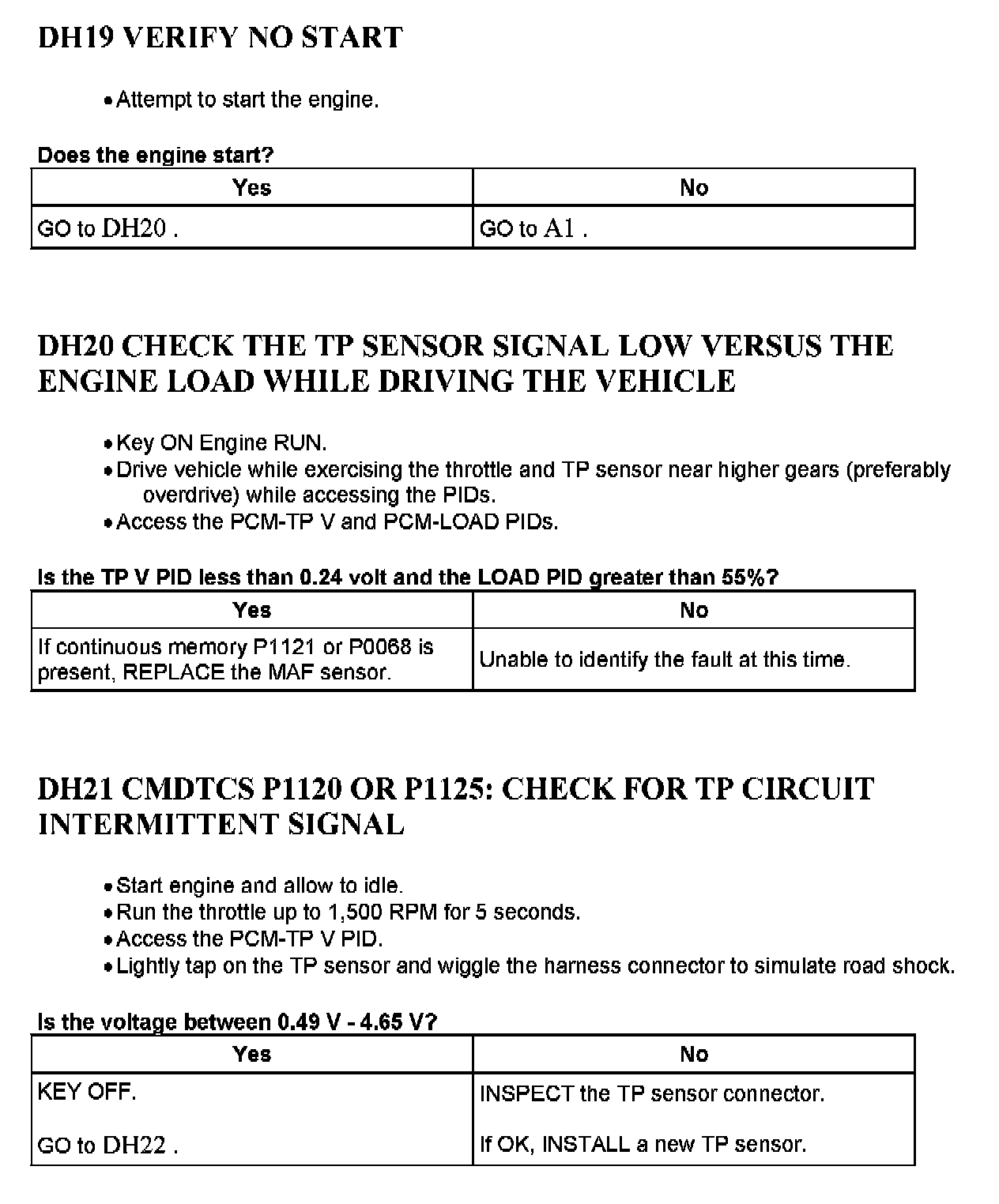

DH19 - Dh21:

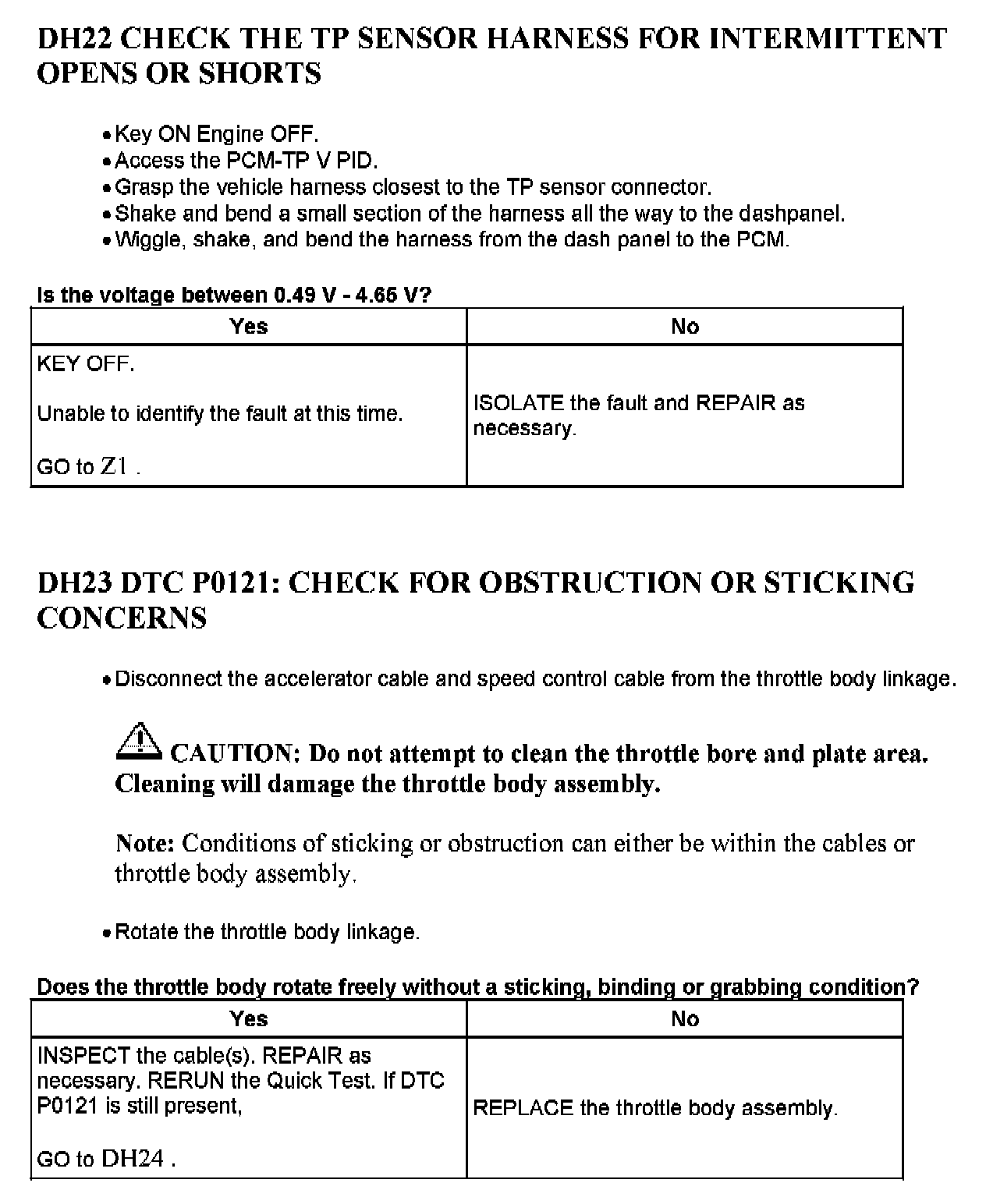

Dh22 - DH23:

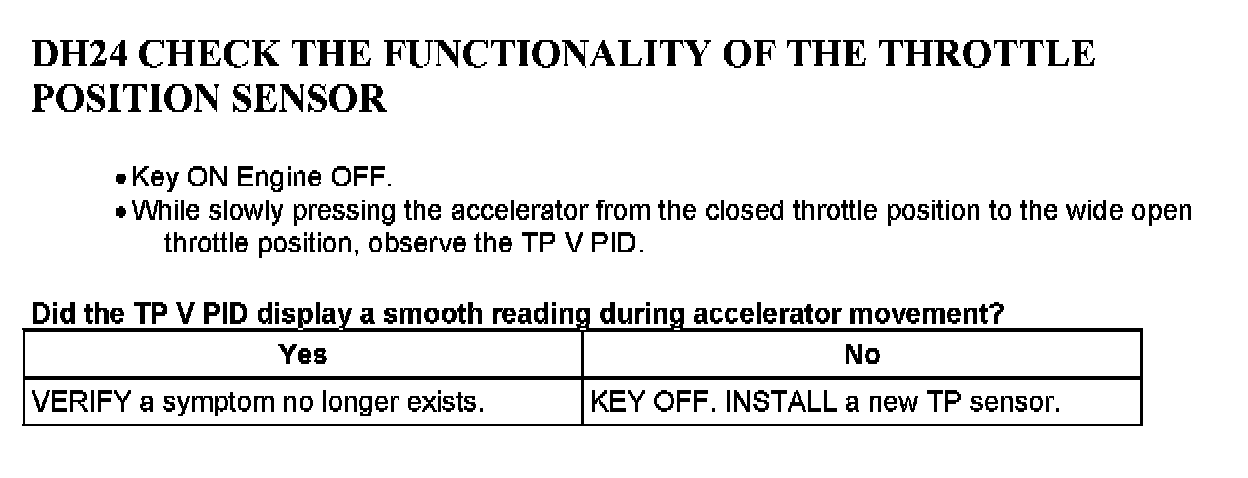

DH24:
