Tests DA: Intake Air Temperature (IAT) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.

AI Repair Guides


PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

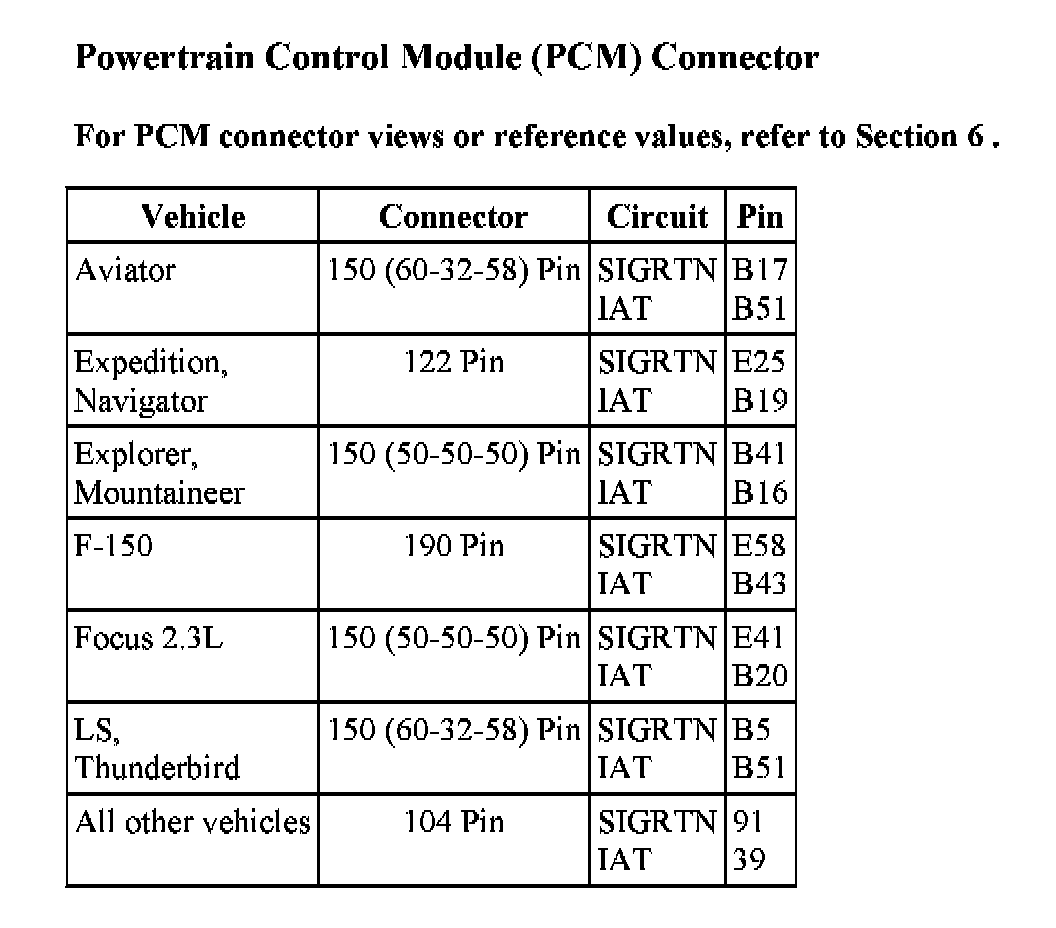

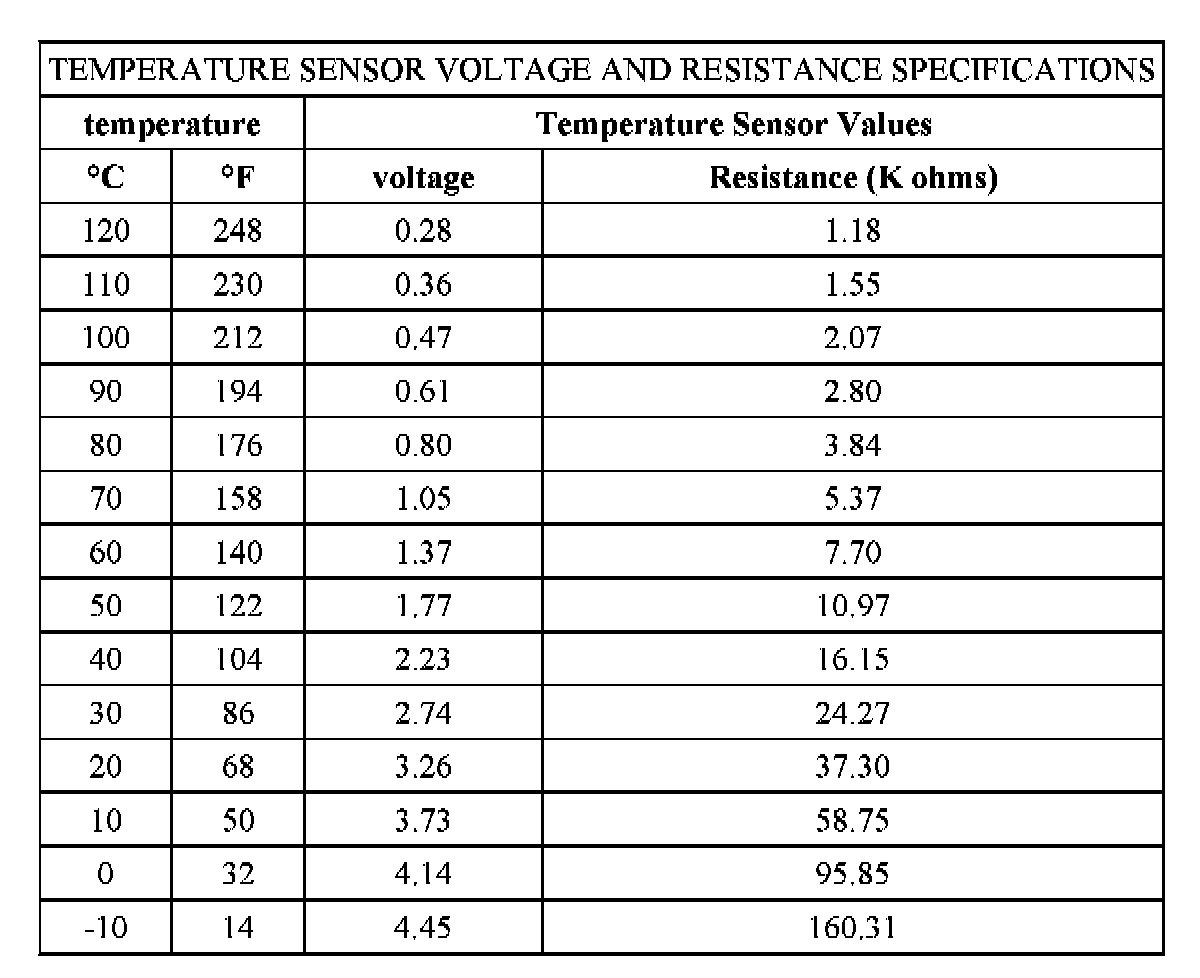

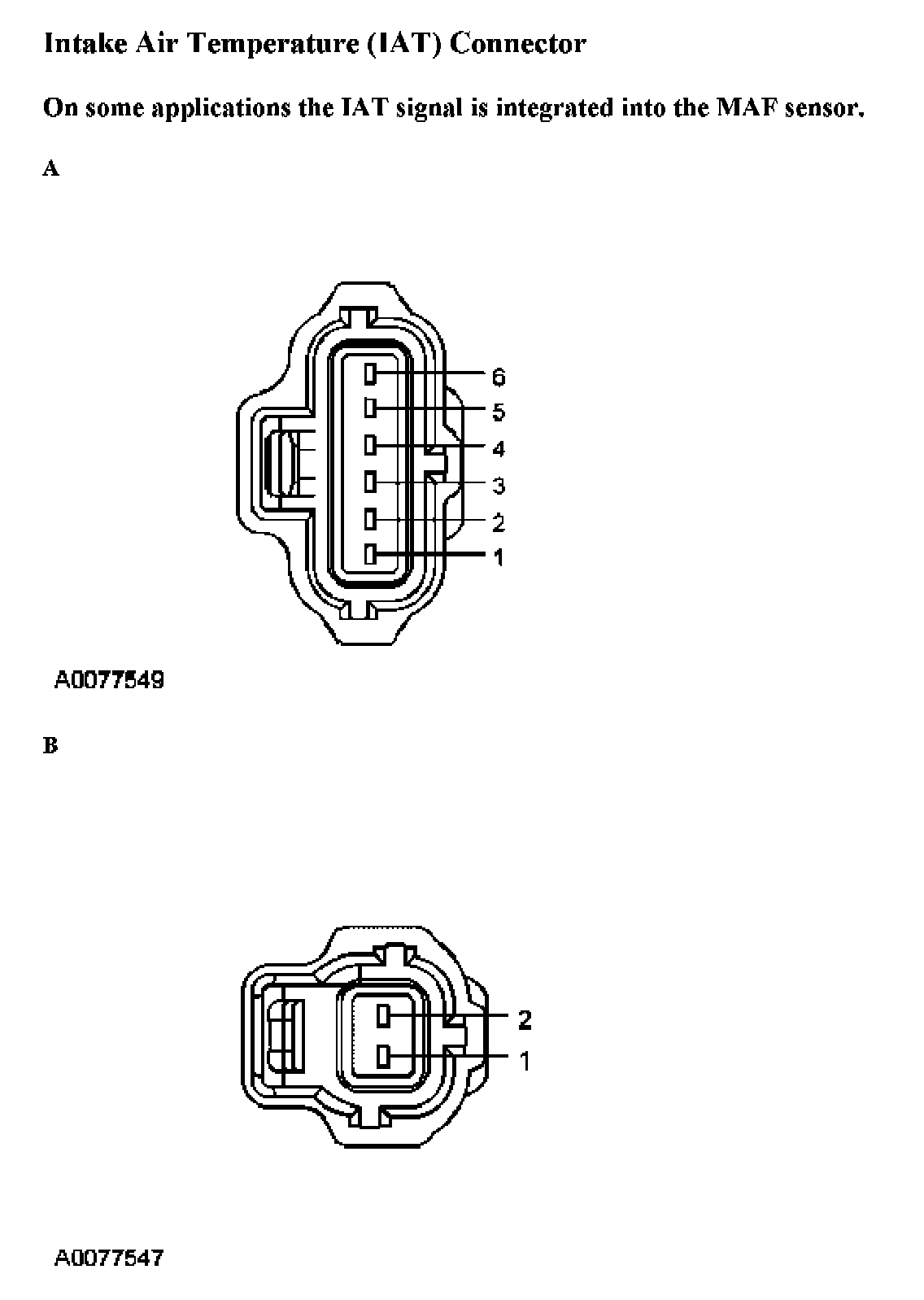

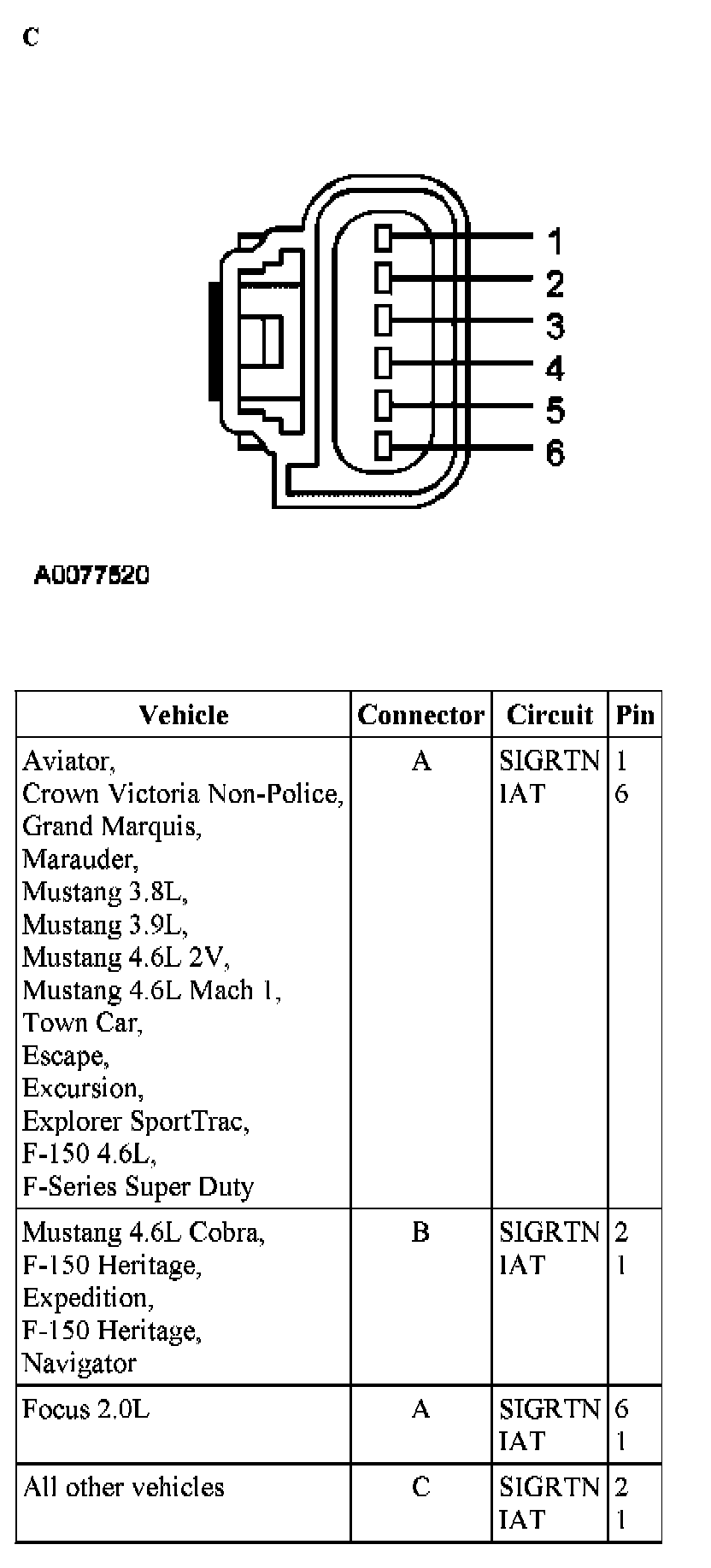

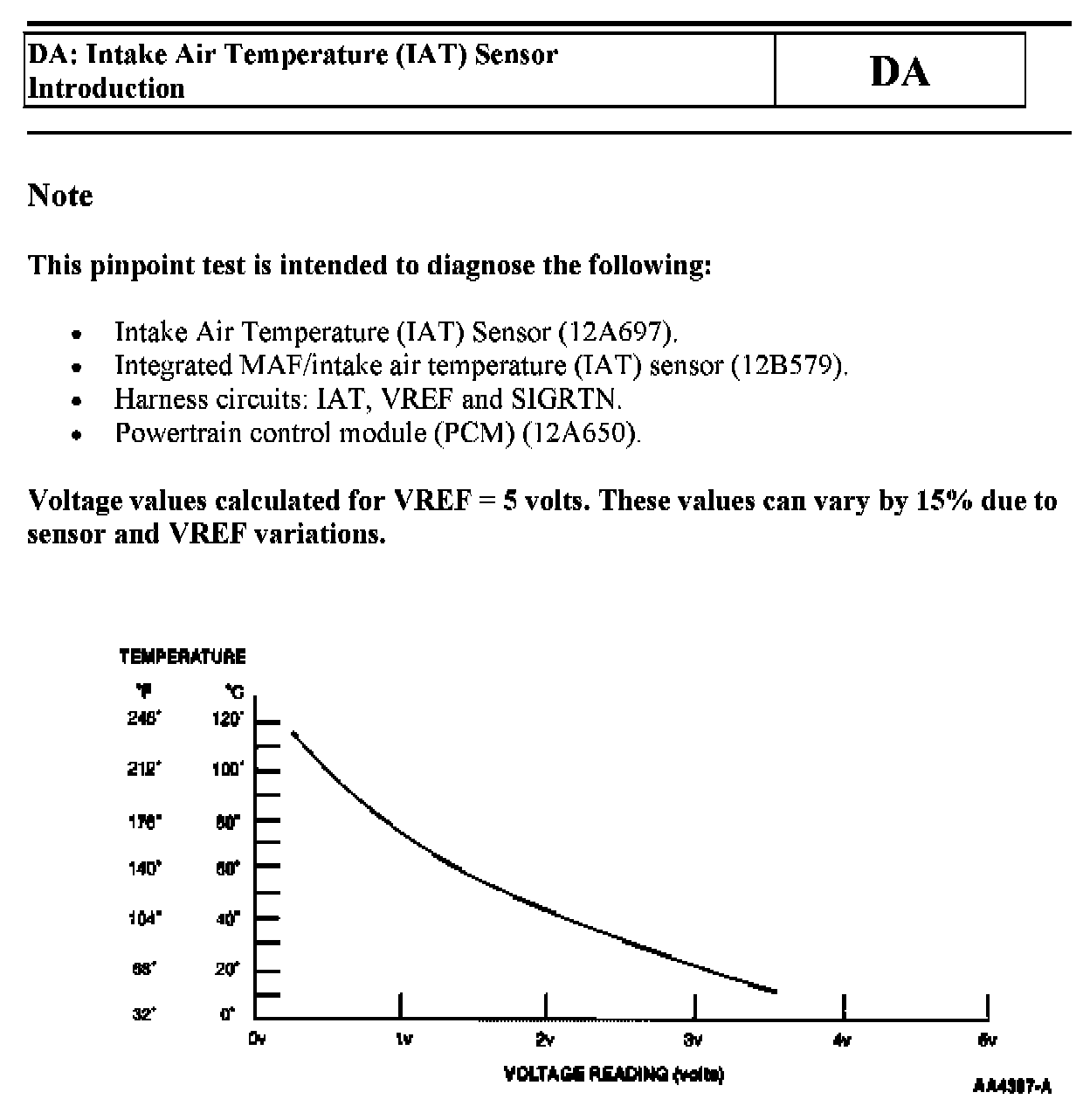

DA Introduction 1 Of 5:





DA Introduction 2 Of 5:





DA Introduction 3 Of 5:





DA Introduction 4 Of 5:





DA Introduction 5 Of 5:

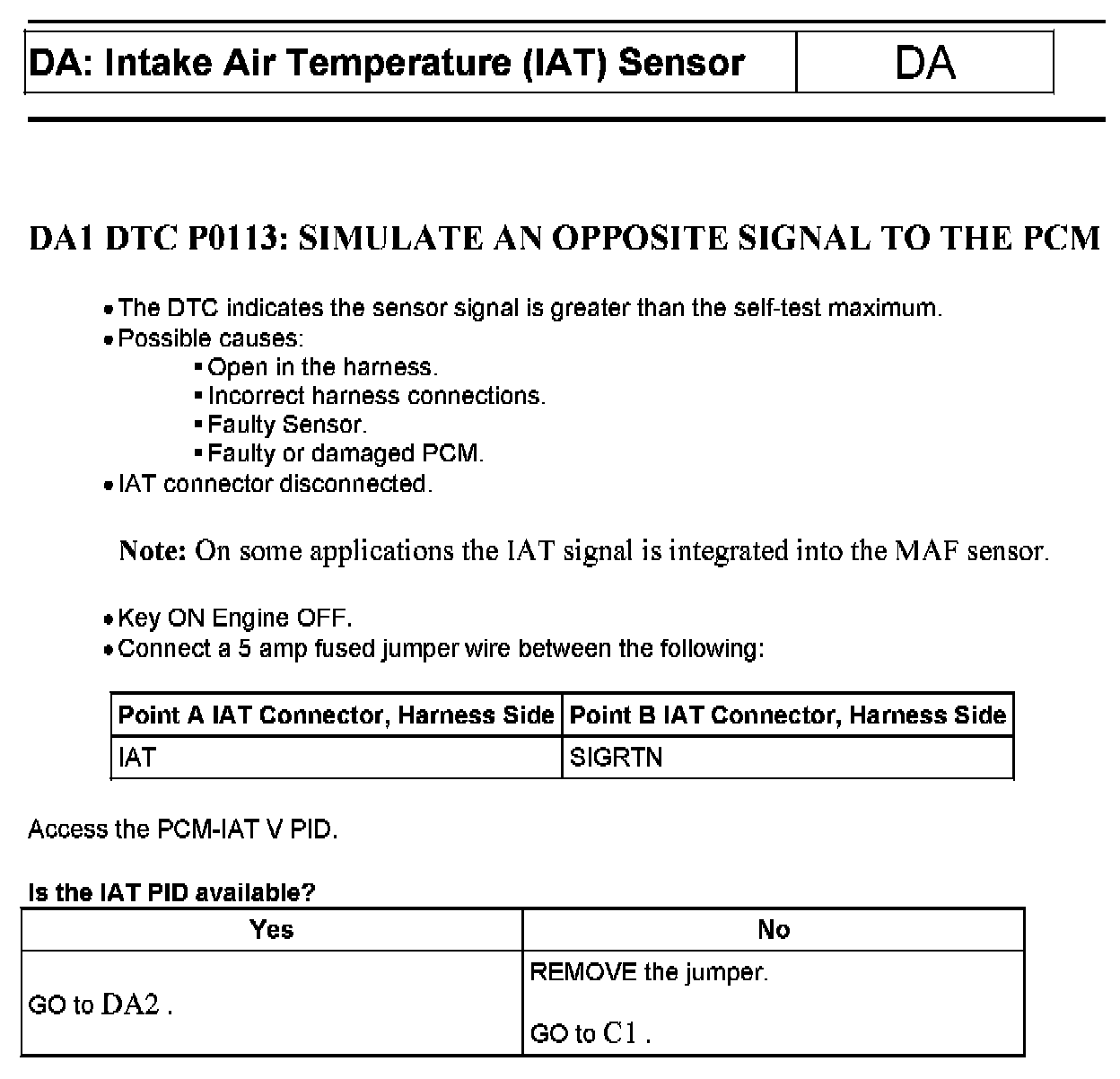

DA1:

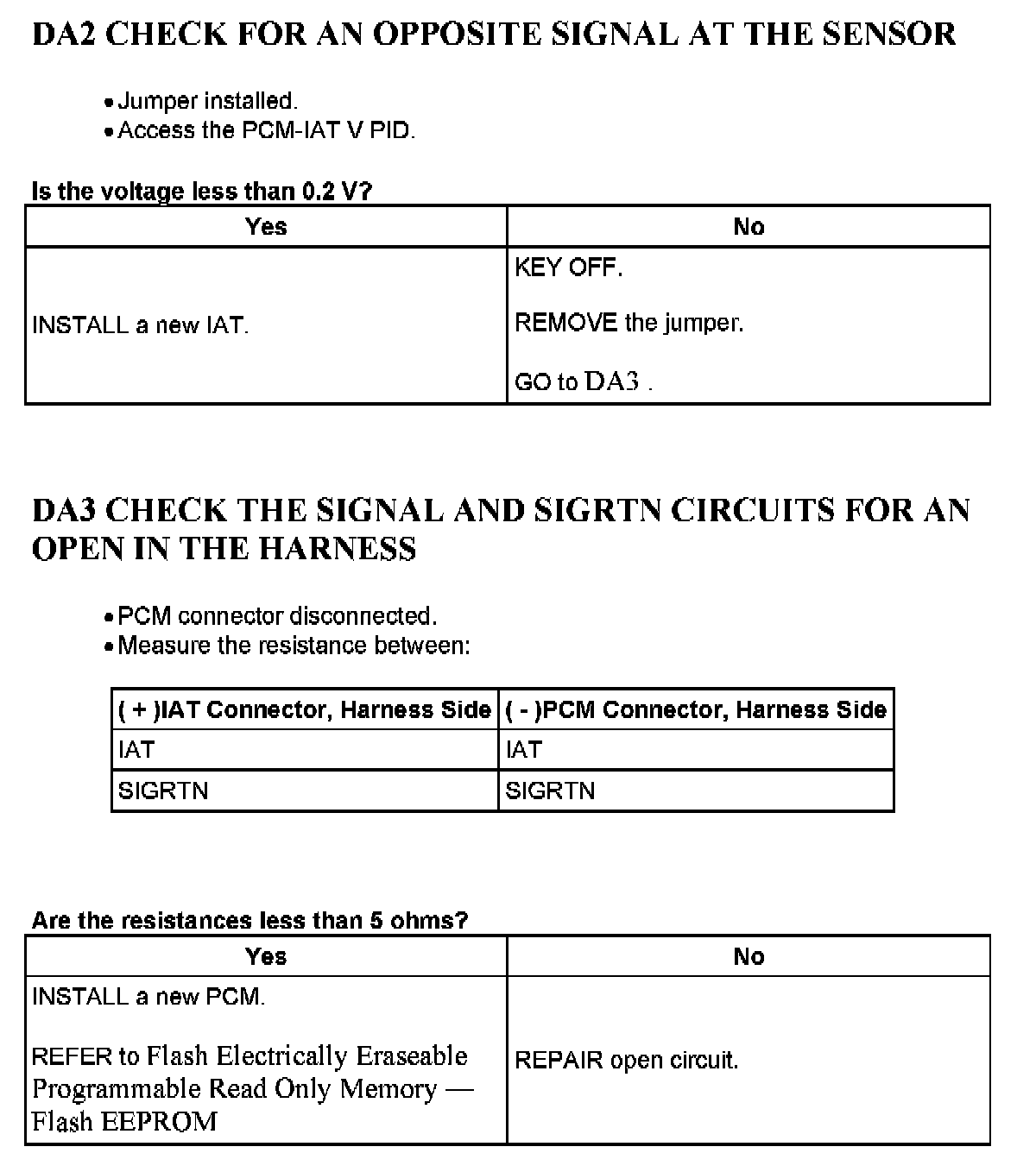

DA2 - DA3:

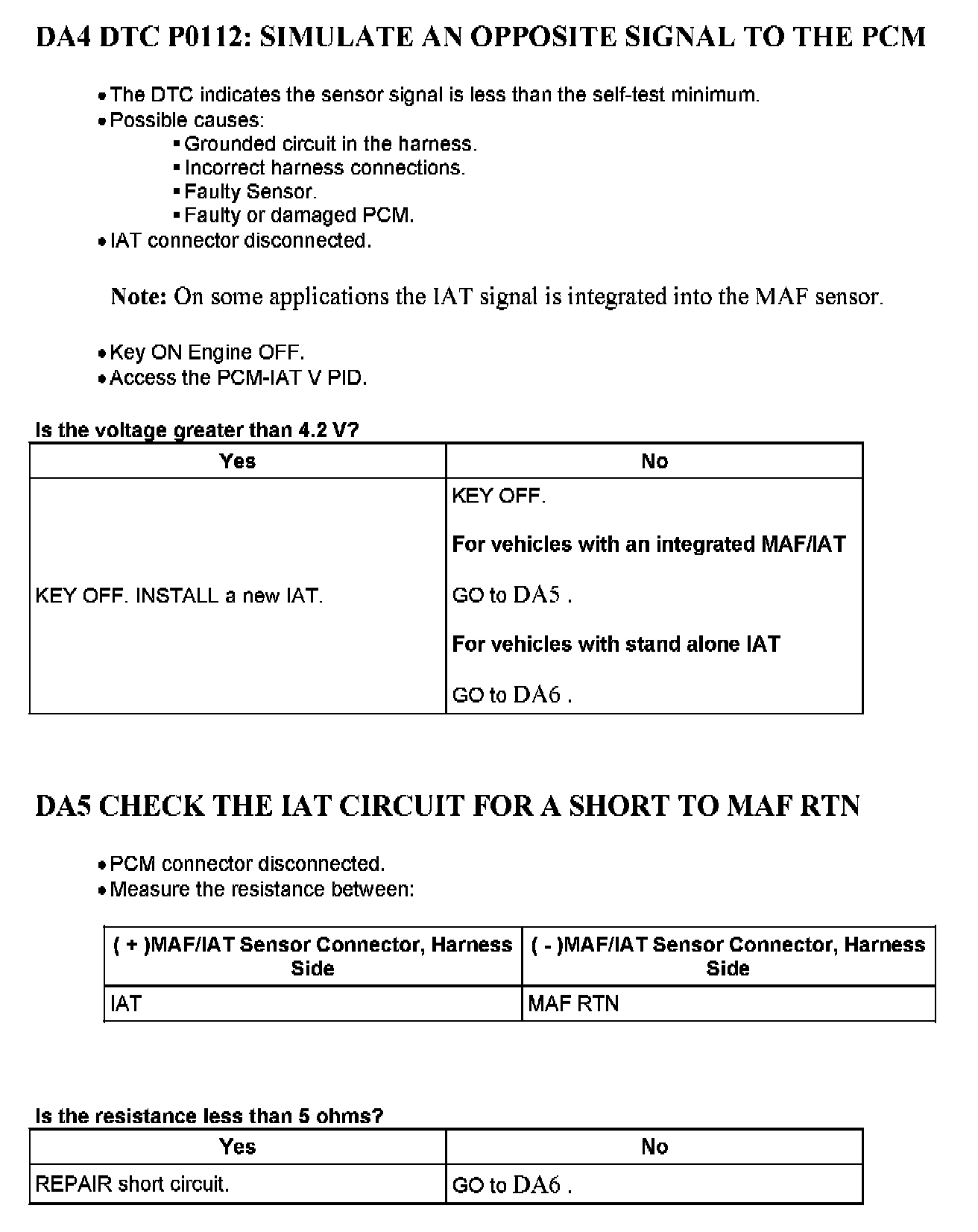

DA4 - DA5:

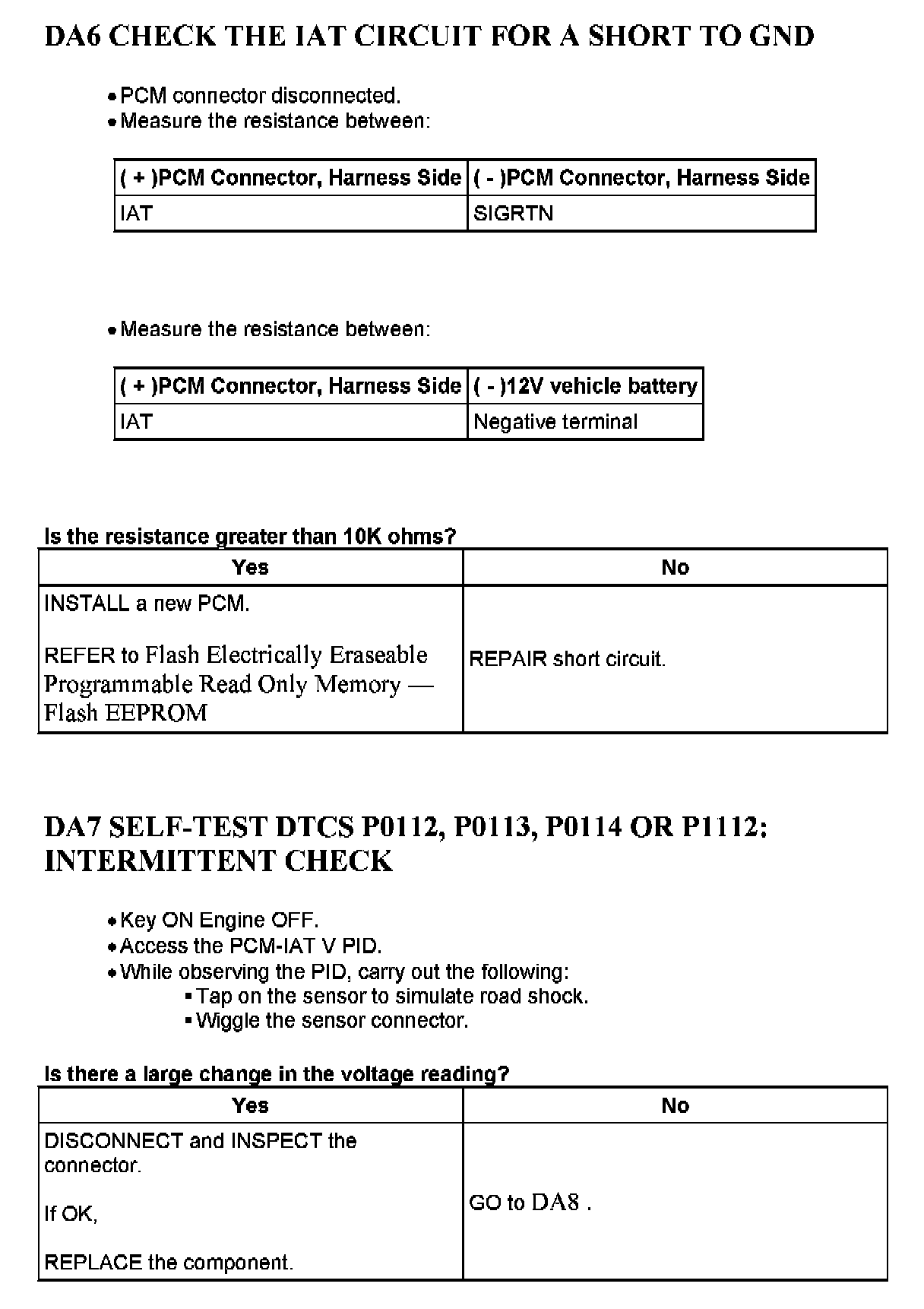

DA6 - DA7:

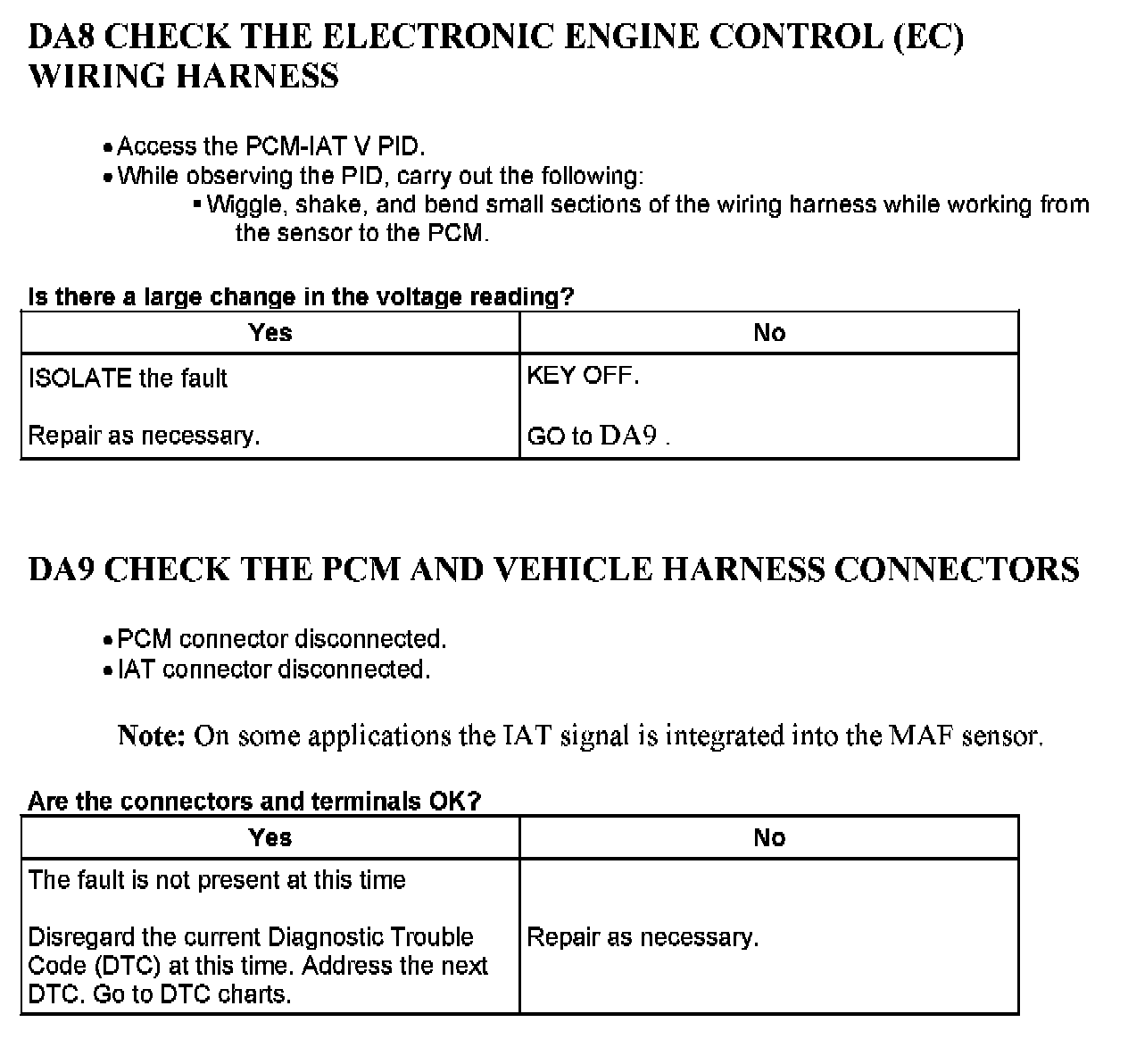

DA8 - DA9:
