REMOVAL
1. Remove the integrated control panel.

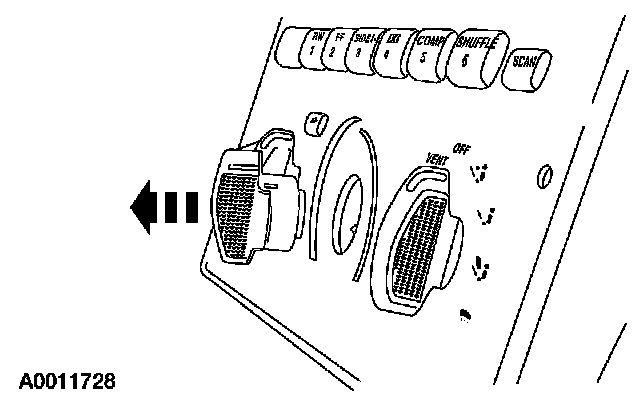

2. Remove the knob.

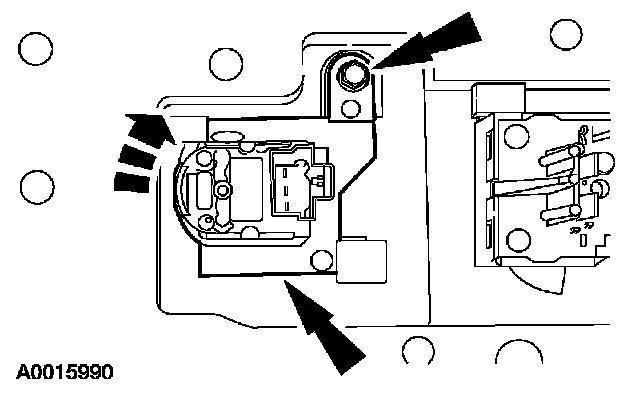

3. Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch.
INSTALLATION
1. To install, reverse the removal procedure.
Temperature Control Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.
REMOVAL
1. Remove the integrated control panel.
2. Remove the knob.
3. Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch.
INSTALLATION
1. To install, reverse the removal procedure.
