REMOVAL
1. Remove the integrated control panel.

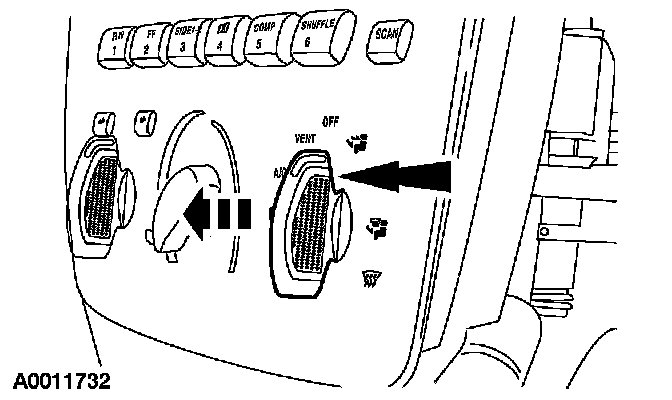

2. Remove the knob.

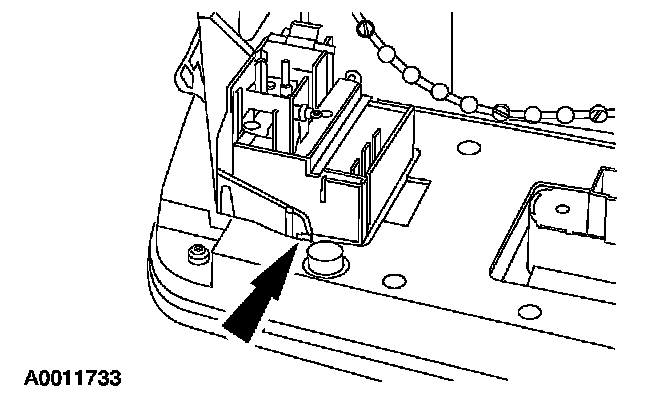

3. Disengage the retaining tabs. Remove the function selector switch.
INSTALLATION
1. To install, reverse the removal procedure.
Function Selector Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Mercury.
REMOVAL
1. Remove the integrated control panel.
2. Remove the knob.
3. Disengage the retaining tabs. Remove the function selector switch.
INSTALLATION
1. To install, reverse the removal procedure.
