Rear Power Window Regulator

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

1. Disconnect the negative battery cable.
2. Remove the rear door trim.
3. Partially peel off the rear door screen.
4. Disconnect the rear power window regulator connector.

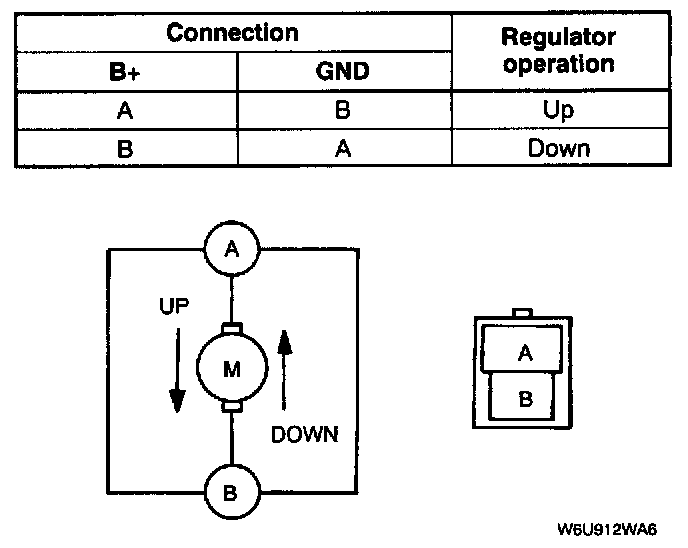

5. Apply battery positive voltage to the rear power window regulator terminals and check the operation of the rear power window regulator.
- If not as specified, replace the rear power window regulator.
